How One Sleeve Block Let a Startup Rental Company Use Both 290mm and 400mm Truss Beams

Project Background

The customer was a startup event-equipment rental company building its first inventory of aluminum truss.

Like many new rental companies, they were not only thinking about one project.

They were thinking about the next several years:

How can the first purchase be used in as many different lighting-truss configurations as possible?

Their planned lighting structures would generally use spans longer than 12 m but below approximately 16 m.

For smaller jobs, 290 mm spigot truss could still be useful.

For larger spans and heavier-duty lighting structures, they also wanted 400 mm spigot truss.

So the customer decided to purchase both sizes.

That created the next question:

If the beam truss changes from 290 mm to 400 mm, does the entire lifting tower also need a different sleeve block?

This was where the customer hesitated.

The Customer Already Understood Part of the Compatibility Logic

The customer was new to the rental industry, but their thinking was not wrong.

They already understood that some tower components could be selected toward the larger configuration and then reused.

For example, they recognized that items such as the:

• top section;

• manual hoist arrangement;

• lifting accessories

could often be selected around the larger system requirement and then continue to serve smaller truss configurations where the interfaces were compatible.

But the sleeve block was less intuitive.

The customer assumed:

290 mm tower / beam → 290 mm sleeve block

and:

400 mm tower / beam → 400 mm sleeve block.

If that were always true, buying both beam sizes could gradually turn into buying two largely separate ground-support systems.

That would reduce the economic advantage of buying modular truss in the first place.

Our Judgment: Fix the Tower Size, Make the Beam Connection More Flexible

We explained that the sleeve block can follow the same reuse logic—but with one important condition.

The vertical tower still needs to be designed around one fixed tower size.

For example:

290 mm vertical tower

can remain the fixed tower system.

But the connection plate on the sleeve block can be configured with connector positions for:

• 290 mm beam truss

• 400 mm beam truss

That means the customer does not necessarily need a completely separate lifting tower simply because the horizontal beam becomes larger.

The same principle can also be considered the other way around:

400 mm vertical tower

with a sleeve-block connection plate configured for compatible:

• 290 mm beams

• 400 mm beams

The key is to separate two questions:

What size is the vertical tower?

from:

What horizontal beam sizes can the sleeve block connect?

Those do not always have to be identical.

The Sleeve Block Was Already a Mature Product, Not a New Experiment

This was important in the discussion.

We were not proposing an untested one-off idea simply to reduce the customer's quotation.

DragonStage already has a sleeve-block product configured for compatible F34 approximately 290 mm truss and F44 400 mm truss connections. The product uses a multifunctional outer connection plate and is intended as the beam-to-tower junction in ground-support systems. Dragon Stage

Product reference:

F44 400x400mm Standard Sleeve Block Connecting F34 & F44 Square Box Truss

That mattered because the customer was not being asked to accept a theoretical compatibility concept.

The product category already existed.

The discussion was mainly about showing them how to use that compatibility strategically in their first equipment purchase.

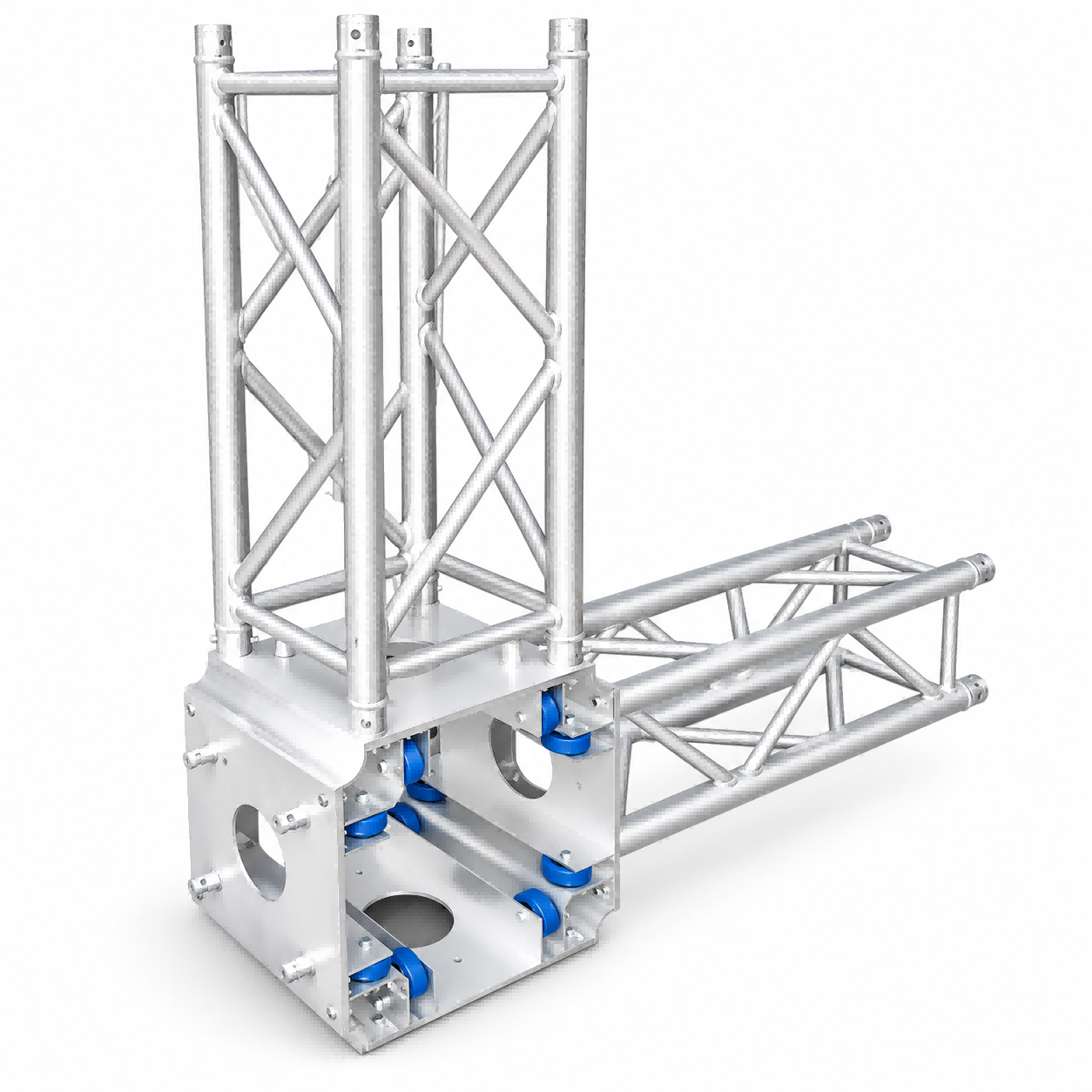

How the Dual-Size Sleeve Block Works

The selected sleeve block used an aluminum plate with two sets of connector positions.

One set corresponds to the compatible 290 mm beam geometry.

The other corresponds to the compatible 400 mm beam geometry.

Conceptually:

fixed vertical tower

↓

sleeve block

↓

multi-position aluminum connector plate

↙︎ ↘︎

290 mm beam 400 mm beam

The customer's final tower configuration was designed around a 290 mm vertical tower.

The sleeve block then provided the beam-connection options for both 290 mm and 400 mm horizontal truss.

That allowed the tower and lifting logic to remain largely common while the beam size changed according to the job.

Two Ways to Configure the Half Connectors

We also explained that the customer had two practical choices.

Option 1 — Install Both Connector Sets

The customer can install the required half connectors for both:

• 290 mm beam positions;

• 400 mm beam positions.

Then, when the rental job changes, the required beam can be connected without first repositioning the connector hardware.

The advantage is:

less preparation time during setup.

For a rental company changing configurations frequently, that convenience may be worthwhile.

Option 2 — Install Only One Set and Move It When Needed

If the customer wants to reduce the first purchase slightly, they can install only one set of half connectors.

When the beam size changes, the half connectors can be moved to the second set of hole positions.

The advantage is:

lower initial accessory cost.

The disadvantage is:

additional adjustment work when changing between 290 mm and 400 mm beam configurations.

This is a small decision, but it matches the customer's real priority very well.

They were trying to balance:

first investment

against

future setup convenience.

What Stayed Fixed and What Became Interchangeable

This case becomes clearer when the system is separated into fixed and flexible parts.

The customer therefore did not achieve a completely universal tower.

That would be the wrong conclusion.

What they achieved was more specific:

one fixed tower system with a sleeve-block interface capable of accepting two compatible horizontal beam sizes.

That wording is much more accurate.

Why This Mattered for a Startup Rental Company

For an experienced rental company, this product may seem obvious.

That is actually part of why this case is worth publishing.

A company that has used ground-support truss for years may already know that connector plates and sleeve blocks can be configured this way.

But a first-time buyer often sees the system as a series of product sizes:

290 goes with 290.

400 goes with 400.

They may not yet think in terms of:

fixed components + interchangeable components + interface components.

That change in thinking can affect a large part of the first equipment purchase.

For this customer, the sleeve block became the component that connected two otherwise separate beam inventories.

The amount of hardware involved was small.

The effect on how they understood the system was much larger.

Why We Did Not Recommend Two Complete Tower Systems

The customer wanted to maximize the use of every component they purchased.

So simply telling them:

buy one complete 290 ground-support system and another complete 400 system

would have been easy—but it would not have addressed their real business problem.

They were a startup company.

Their question was not:

What is the most complete inventory we can buy?

It was:

What is the minimum practical inventory that still gives us room to handle different jobs?

That is why we looked first at which components genuinely had to change.

The vertical tower geometry needs consistency.

But the horizontal beam interface could be made more flexible.

So we concentrated the compatibility at the sleeve block instead of duplicating the whole system.

The Final Configuration

The customer accepted the proposed sleeve-block arrangement.

The agreed concept was:

• 290 mm vertical tower

• aluminum sleeve block

• aluminum connection plate with two connector-position sets

• one set for compatible 290 mm horizontal truss

• one set for compatible 400 mm horizontal truss

• optional installation of both half-connector sets

• or one connector set moved between positions when required

This gave the customer a more reusable tower configuration without forcing the first purchase into two separate complete systems.

Compatibility Still Needs to Be Confirmed

There is an important limitation.

“290 mm” and “400 mm” are nominal size descriptions.

They do not mean that every 290 mm and 400 mm truss from every manufacturer can automatically connect to the same sleeve block.

The DragonStage product information itself notes that compatibility should be confirmed before ordering and that actual connector position, tube spacing, spigot specification and external dimensions matter. Dragon Stage

So for a customer who already owns truss from another supplier, we would still need to check:

• actual outside dimensions;

• main chord positions;

• conical/spigot connector specification;

• connector-center spacing;

• beam geometry;

• tower geometry.

This case is about planned compatibility within a confirmed system, not universal compatibility between every brand.

Experience-Based Judgment vs. Engineering Verification

This case is mainly about system compatibility and purchasing logic.

It does not establish structural load capacity.

Confirmed project facts

The project information confirms:

• customer was a startup rental company;

• they purchased both 290 mm and 400 mm truss;

• their intended lighting spans were generally above 12 m and below 16 m;

• they wanted to reduce duplicate first investment;

• the proposed sleeve block used two connector-position sets;

• the vertical tower was designed around 290 mm;

• horizontal beams could be selected between compatible 290 mm and 400 mm configurations;

• the customer accepted the concept.

Experience-based judgment

Our recommendation was based on practical system and quotation experience:

Keep the tower system common where possible, and put the compatibility into the connection interface instead of duplicating complete systems.

What this case does not establish

This case does not provide:

• allowable span for a particular load;

• lighting load capacity;

• sleeve-block load rating;

• tower load calculation;

• hoist capacity verification;

• wind resistance;

• safety factor;

• engineering approval.

A 12–16 m span cannot be judged only by whether the beam is 290 mm or 400 mm.

Final structural suitability depends on the actual truss model, loads, support configuration and project conditions.

That follows the DragonStructure rule that experience and system logic must not be presented as verified engineering calculation. 粘贴的 markdown (1)。md

What This Case Shows

This is not a technically complicated case.

And that is exactly why I think it is worth publishing.

The customer's breakthrough did not require a large engineering redesign.

It required one image and one explanation:

The tower size can stay fixed. The sleeve-block plate can provide more than one beam connection pattern.

After that, the customer immediately understood how their 290 mm and 400 mm inventory could work together.

This is a useful reminder:

Industry experience is sometimes not about inventing a new component. It is about knowing which existing component removes an unnecessary assumption from the customer's purchasing plan.

For an experienced truss company, this sleeve block may be familiar.

For a startup rental company, it can change the way they plan their entire first inventory.

Planning a Mixed 290mm / 400mm Ground-Support System?

If you want to use different beam sizes within one lifting-tower system, send us:

• vertical tower truss size;

• horizontal beam sizes;

• truss brand or manufacturer if known;

• actual outside dimensions;

• connector-center spacing;

• main chord diameter;

• spigot / conical connector dimensions;

• intended span;

• lighting/equipment arrangement;

• manual or electric hoist requirement.

We can first determine which parts really need to change and which parts can remain common.

That is usually more useful than treating every different truss size as a completely separate system.

FAQ

Can one sleeve block connect both 290mm and 400mm truss?

A sleeve block can be configured with connector positions for compatible 290 mm and 400 mm horizontal truss. DragonStage currently lists a sleeve-block product configured for F34 approximately 290 mm and F44 400 mm truss connections. Dragon Stage

Does that mean the vertical tower can also switch between 290mm and 400mm?

Not automatically.

In this case, the vertical tower size remained fixed at 290 mm.

The flexibility was in the horizontal beam connection, not in making every part of the tower interchangeable.

Do I need two sets of half connectors?

Not necessarily.

You can install both connector sets if you want faster changeover between 290 mm and 400 mm beam configurations.

Or you can use one set and move the connectors between the two hole patterns when required.

Can I use 290mm and 400mm truss from different brands?

Possibly, but nominal size alone is not enough.

Actual tube spacing, connector positions, spigot dimensions and outside geometry should be confirmed before compatibility is assumed. Dragon Stage

Does using a 400mm beam mean I can automatically use a 16m span?

No.

Span capacity depends on the actual truss model, equipment loads, support conditions and complete structural configuration.

Beam size alone does not establish allowable span.
