Hybrid Structure
Hybrid Structure is the system-integration section of DragonStructure, focusing on how different modular structural systems work together within the same project. Unlike our functional structure categories, which classify projects by what the structure is designed to do, Hybrid Structure examines how Ringlock, aluminum and access systems divide structural functions and connect within a complete configuration.
Unlike a structure developed primarily around one system, a hybrid structure may use Ringlock, aluminum truss, aluminum access components, stage modules or other compatible structural elements according to the requirements of each part of the project.
From our project experience, the purpose of combining different systems is not to make a structure more complicated. It is the opposite: use each structural system where its characteristics are most practical.
A Ringlock system may be suitable for creating a large three-dimensional supporting volume. Aluminum truss may be more practical for an elevated roof span or equipment-support beam. Aluminum stairs and platforms may provide lighter and more convenient access within a larger supporting structure.
The complete project therefore becomes one structure assembled from several functional systems.
Why Use a Hybrid Structure?
Large temporary projects do not always fit neatly into one structural system.
A concert structure may require:
a large supporting volume;
elevated roof spans;
LED support areas;
sound equipment positions;
working platforms;
stairs and technical access.
Trying to solve every requirement with the same type of component is not always the most practical approach.
Instead, we first separate the project into functional structural zones and then consider which system is suitable for each zone.
The basic logic is:
Project Requirement → Functional Zones → Suitable Structural Systems → Integrated Structure
This is the central idea behind Hybrid Structure.
Ringlock as the Main Supporting System
In many of our hybrid temporary structures, Ringlock Structure forms the main supporting volume.
Its modular vertical and horizontal grid can create:
large stage-support areas;
towers;
side structures;
elevated supporting zones;
multi-level temporary structures.
Other systems can then be integrated where they provide a practical advantage.
This does not mean that Ringlock must always be the dominant system. The structural relationship depends on the project.
Hybrid Structure is therefore defined by how different systems divide the work, rather than by one fixed material combination.
Ringlock + Aluminum Structure
One of the most important hybrid configurations combines Ringlock with aluminum structural components.
For example, Ringlock may create the supporting towers or surrounding structural volume while aluminum truss forms an elevated roof.
In a sound-support structure, Ringlock may create the main tower while an aluminum truss beam provides the upper equipment-supporting position.
LED structures may similarly combine a large Ringlock supporting framework with aluminum components where a lighter frame or beam is useful.
A typical relationship can therefore be:
Ringlock Supporting Structure → Aluminum Structural Module → Functional Equipment / Roof
This type of integration allows each system to perform a more specific structural role instead of requiring one system to solve the complete project.
Ringlock + Access Structure
Another important direction combines Ringlock with modular access components.
Our Access Structure system includes working platforms, stairs and walkways designed around personnel movement and working positions.
In a larger Ringlock structure, these functions may be provided by dedicated aluminum access modules.
For example, an aluminum stair or walkway originally developed as part of an access system can be adapted in dimension and connection arrangement to work with a Ringlock grid.
The resulting structure combines:
Ringlock → main supporting structure
with:
Aluminum Access → stairs, platforms and movement routes
This is different from simply attaching an accessory to a completed structure. The access modules become part of the overall configuration from the beginning.
Hybrid Structure Is About System Relationships
The important question in a hybrid project is not:
Which system is better?
It is:
Which system is more suitable for this part of the project?
A Ringlock structure and an aluminum truss do not need to compete for the same function.
A working platform and a Ringlock grid do not need to be treated as independent products.
When their functions are clearly separated, they can work together as parts of one temporary structure.
This approach is particularly useful when projects contain several different structural requirements within the same footprint.
For a deeper explanation of how different materials and connection methods relate to modular temporary structures, DragonStage's Connection & Material System provides additional technical background.
Hybrid Structures in Event Projects
Large event structures provide many practical examples of this approach.

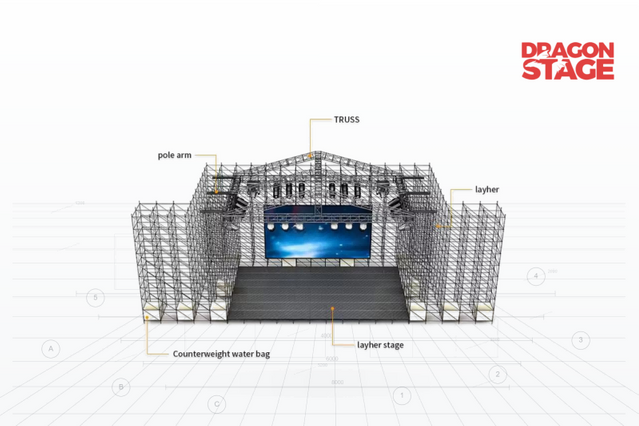

A Roof Support Structure may combine Ringlock supporting zones with an aluminum truss roof.

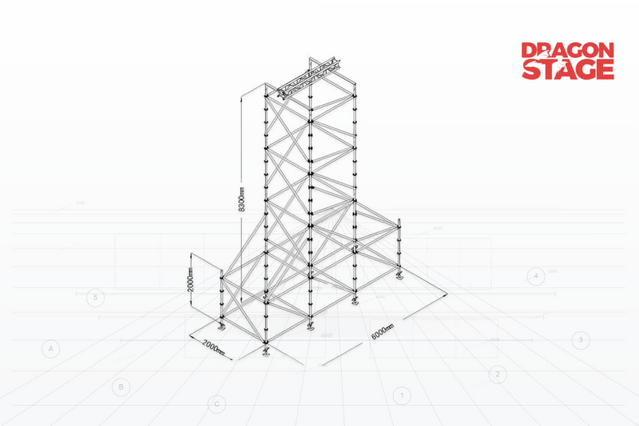

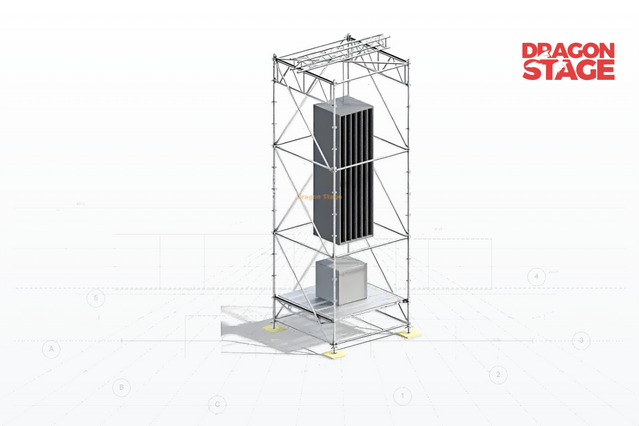

A Sound Support Structure may combine a Ringlock tower with an aluminum equipment-support beam.
A Stair & Walkway Structure may integrate aluminum access modules into a larger Ringlock project.
These structures have different functions, but the engineering idea is the same:
separate the project into structural functions first, then combine suitable systems into one configuration.
Hybrid Structure Project Cases
The cases in this category may examine:
overall project dimensions and functions;
systems used in the project;
function of each structural system;
Ringlock supporting zones;
aluminum truss or frame modules;
stairs, platforms and access components;
connection between different structural systems;
component quantities and functions;
assembly sequence;
reasons for using a hybrid configuration;
changes required when project requirements change.
The purpose of these cases is to show why different structural systems are combined, what function each system performs, and how they work together as one temporary structure.
How Hybrid Structure Cases Are Classified

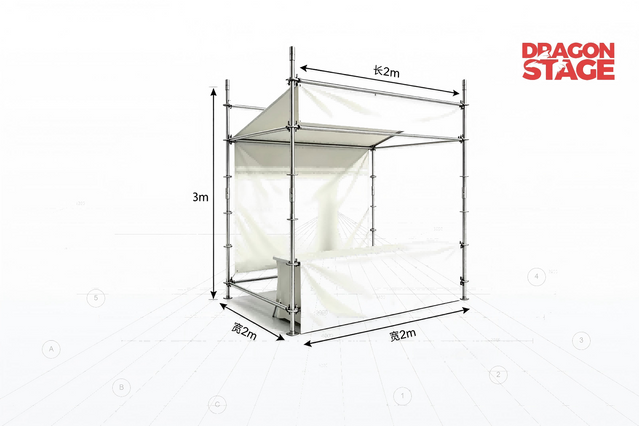

A hybrid project may also belong to a functional category such as Roof Support Structure, Sound Support Structure or FOH & Control Structure. The functional category explains what the structure does, while the Hybrid Structure section explains how different structural systems work together.
For this reason, Hybrid Structure should be understood as a cross-system project perspective rather than a separate application type.
