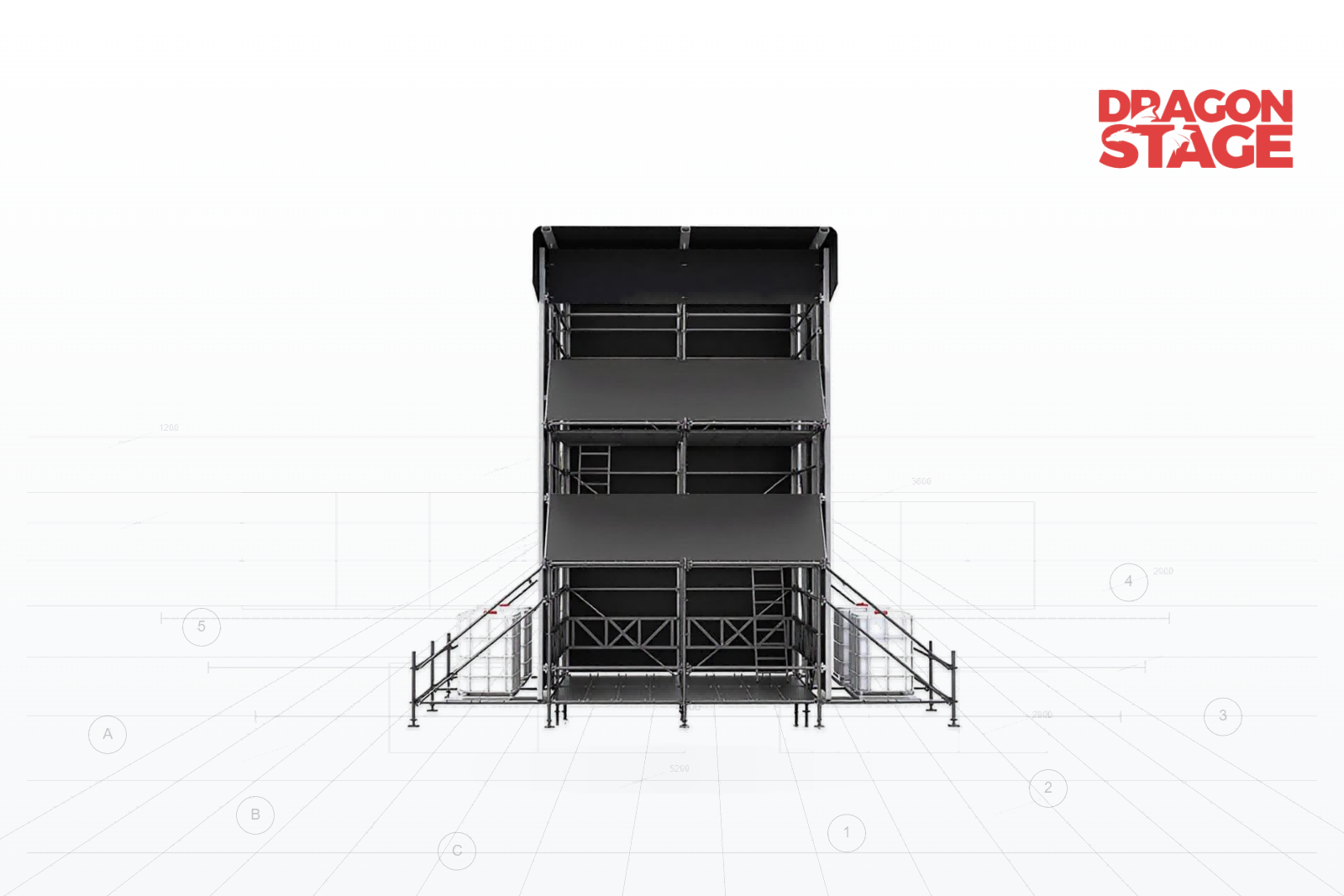

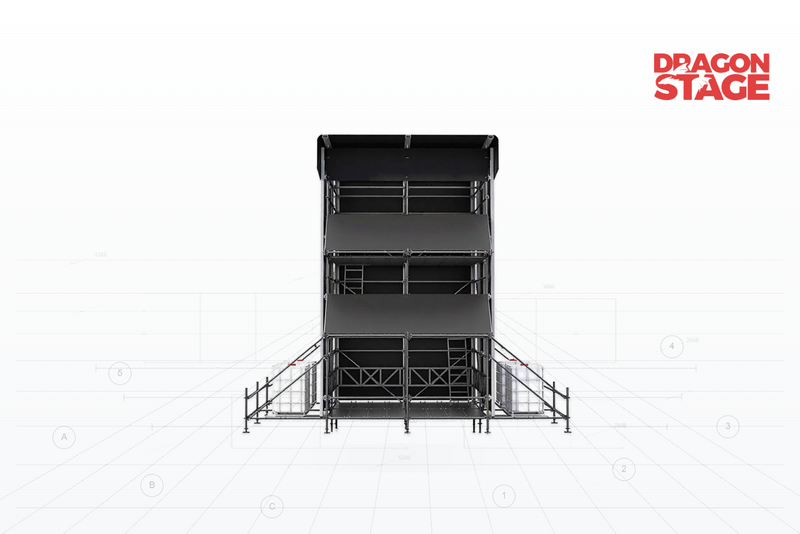

Structure Overview

This FOH is better understood as a small multi-level technical building made from modular temporary-structure systems, rather than simply a covered Ringlock scaffold.

The main footprint is 4m × 4m. The Ringlock body rises to approximately 6m, while the aluminum roof rises from a 6m low point to a 7m high point, creating a single-slope roof profile.

Structurally, the complete system can be divided into five functional modules:

Main Ringlock Tower

Multi-Level Working Platforms & Access

Aluminum Sloped Roof Frame

Roof / Curtain Enclosure

Lower Auxiliary Base Structure

This division is important because each part answers a different requirement of an FOH control tower.

The Ringlock body creates the height and working levels. The platforms turn that framework into usable technical spaces. The aluminum structure creates the roof geometry. The tarpaulin and curtains provide enclosure, while the lower auxiliary structure extends the configuration around the base.

For other FOH configurations:

FOH Structure

1. Why This Is a Multi-Level FOH Tower Rather Than a Simple Booth

A ground-level FOH booth mainly needs an enclosed operating area.

This structure has a different requirement: technical working positions are arranged vertically inside a 6m-high Ringlock body.

The BOQ therefore contains:

• 84 platform planks;

• 2 open aluminum + wood platform planks;

• 2 heavy-duty aluminum ladders;

• a full vertical Ringlock framework.

That combination changes the structural identity from a booth into a multi-level control tower.

For concert production, the individual levels can be configured around functions such as audio, lighting, video or show control. The exact allocation of equipment and operators between levels is project-specific; it is not fixed by the Ringlock structure itself.

2. Main 4x4m Ringlock Tower

The main body uses modular Ringlock components.

Its primary structural components are:

• 27 × 2m main vertical standards

• 3 × 1m main vertical standards

• 54 × 2m main ledgers

• 24 × 2.83m main diagonal braces

• 18 × 2m single-row members

Together, these components create the vertical and horizontal scaffold grid of the FOH tower.

The basic relationship is straightforward:

Vertical Standards

→ establish the tower height

Horizontal Ledgers

→ connect the vertical grid

Diagonal Braces

→ create braced bays

Platforms

→ convert selected levels into usable working areas

This is one of the practical reasons Ringlock works well for multi-level FOH structures: the same modular framework can provide both the vertical tower geometry and the positions needed for working platforms and access.

For the broader structural system:

Ringlock Structure

3. Working Platforms Inside the Tower

A tall Ringlock framework alone is not an FOH.

The structure becomes an operator tower when usable working levels are integrated into it.

This configuration contains 84 platform planks, together with 2 open platform planks made from aluminum and wood.

The distinction matters.

The regular planks form the working-floor system, while the open platform components work with the access arrangement where movement between levels is required.

So the internal logic is:

Ringlock structural bay

↓

platform level

↓

access opening

↓

next working level

This allows one 4m × 4m footprint to provide several vertically organized technical areas instead of spreading every FOH function across a larger ground-level footprint.

4. Internal Ladder Access

Two heavy-duty aluminum ladders are included in the configuration.

For this particular structure, ladder access is consistent with the compact multi-level layout: the objective is to move operators between vertically stacked working areas without building a large external stair structure around the tower.

If a future project requires:

• higher personnel traffic;

• easier equipment movement;

• wider access;

• different circulation between levels;

then the access arrangement should be reconsidered separately.

That is an important modular distinction:

changing the access requirement does not necessarily mean changing the entire FOH concept.

It may mean changing the access module while retaining the basic Ringlock tower.

5. Why the Roof Is Aluminum Instead of Continuing Ringlock

The upper part changes structural system.

Rather than continuing the Ringlock members to create the complete roof geometry, this configuration uses a dedicated aluminum roof package consisting of:

• 6 × 6.1231m aluminum roof beams

• 9 × 6m side-wall aluminum tarpaulin posts

• 9 × 0.5m aluminum column forks

• 9 × 1.5m outrigger canopy beams.

This creates a clear hybrid relationship:

Steel Ringlock

→ main tower / working structure

Aluminum Frame

→ roof / canopy / curtain-support structure

It is therefore more accurate to classify this as a Ringlock + Aluminum Hybrid Structure, rather than simply calling it a Ringlock FOH.

For related hybrid configurations:

Ringlock + Aluminum Structure

6. The 6–7m Single-Slope Roof

The original title uses “4x4x6m,” but the complete geometry needs one more dimension.

The confirmed structure has:

The roof therefore rises approximately 1m from its low side to its high side.

For DragonStructure, this is a more useful description than simply saying “6m high,” because it explains the actual geometry.

Conceptually:

              7m HIGH POINT
                   /|
                  / |
     ALUMINUM    /  |
     ROOF       /   |
               /    |
       6m ____/     |
          |         |
          |         |
          | RINGLOCK|
          |  FOH    |
          |  TOWER  |
          |         |
          |_________|
             4m

The roof geometry is a confirmed configuration. It should not, however, be converted into an unsupported claim about drainage capacity, roof loading or wind performance.

7. Canopy Outriggers Extend Beyond the Main Tower

Another easily overlooked part of this FOH is the canopy system.

The Ringlock BOQ contains:

• 9 × 0.9m canopy outriggers

• 6 × 2m canopy outrigger ledgers

while the aluminum system contains:

• 9 × 1.5m outrigger canopy beams.

The enclosure therefore does not consist only of a roof sitting directly above the 4×4m Ringlock footprint.

There is a secondary projecting canopy relationship around the tower.

This also explains why the main roof tarpaulin is listed as 48m², substantially larger than the nominal 16m² plan area of a simple 4m × 4m flat cover.

We should not infer the exact fabric geometry from area alone, but the BOQ clearly shows that the roof/enclosure extends beyond a simple 4×4m rectangular top cover.

8. Roof and Curtain Enclosure

The fabric package contains four different groups:

• 1 × 48m² main roof tarpaulin

• 6 × 3m² outrigger canopy tarpaulins

• 2 × 24m² side curtains

• 1 × 24m² front/rear curtain.

This is another reason the structure should not be understood simply as an open scaffold tower with a roof.

The aluminum frame and fabric system together create a configurable enclosure around the technical working areas.

For FOH use, the actual opening arrangement matters because operators still need:

• sightlines toward the stage;

• equipment access;

• personnel access;

• cable routes.

Those requirements should therefore be defined before the curtain arrangement is finalized.

9. Lower Auxiliary Base Structure

There is another structural module below and around the main tower that should not disappear from the Product page.

The configuration contains:

• 6 × 1m base vertical standards

• 10 × 2m base ledgers

• 12 × 2.83m base diagonal braces

• 12 × 2m base planks.

This is a separate lower auxiliary structural package.

That distinction is useful because the complete FOH is not simply:

4×4m vertical tower + roof

but more accurately:

Main Tower

Lower Auxiliary Structure

Roof / Enclosure Structure

From a modular-design perspective, this is exactly the kind of detail that becomes important when adapting an existing FOH design to another site. The tower dimensions may remain similar while the lower auxiliary configuration changes.

10. Ballast-Related Components

The package also contains:

2 × 4m long, 50×2mm ballast steel pipes with accessories.

These are confirmed physical components and therefore belong in the structural breakdown and BOQ.

But their presence does not establish a universal ballast requirement for the FOH.

In other words:

Confirmed: ballast-related steel pipes are included.

Not established: the quantity of ballast required for a particular outdoor installation.

The latter depends on the complete structure, covered area, equipment configuration and actual site conditions and requires project-specific determination.

11. Complete Structural Relationship

The easiest way to understand the complete FOH is:

             SLOPED ALUMINUM ROOF
                    /──────
                   /
          CANOPY / ENCLOSURE
               │
     ┌────────────────────┐
     │  UPPER FOH LEVEL   │
     │  platform + access │
     ├────────────────────┤
     │  LOWER FOH LEVEL   │
     │  platform + access │
     └────────────────────┘
          RINGLOCK BODY
               │
       AUXILIARY BASE
               │
             GROUND

This is the defining structural logic of the product:

Ringlock provides the multi-level working tower; aluminum provides the sloped roof and enclosure-support geometry.

Neither system is being used simply for the sake of mixing materials. Each is assigned to a different functional part of the FOH.

12. Complete BOQ with Structural Functions

Main Ringlock Tower

Working Platform & Access

Aluminum Roof & Enclosure Frame

Fabric Roof & Enclosure

Auxiliary Base Structure

Packing Weight: approximately 2,900kg
Packing Volume: approximately 12CBM.

13. Assembly Logic

At Product level, the practical assembly sequence can be understood as:

1. Establish the layout for the main 4×4m Ringlock tower and auxiliary lower structure.

2. Assemble the lower Ringlock standards, ledgers and diagonal bracing.

3. Continue the main tower vertically using the 2m modular standards and ledgers.

4. Install diagonal bracing as the Ringlock bays are completed.

5. Install the platform planks at the required working levels.

6. Integrate the open platform sections and aluminum ladders for vertical access.

7. Install the canopy outrigger components.

8. Connect the aluminum column-fork interfaces.

9. Assemble the aluminum roof beams, side-wall posts and canopy beams.

10. Form the 6–7m single-slope roof geometry.

11. Install the main roof tarpaulin, canopy covers and required curtain panels.

12. Complete the project-specific base/stabilization arrangement according to the final installation requirements.

This describes the modular assembly relationship, not a project-specific engineered erection method.

14. What Changes When the FOH Requirement Changes?

This structure is particularly useful as a reference because the modules can change independently.

If the customer needs more working space, the tower width/depth or platform arrangement changes.

If the customer needs more operator levels, the vertical Ringlock configuration and access arrangement change.

If the customer prefers stairs instead of ladders, the access module changes and normally requires more space.

If the customer needs more weather enclosure, the aluminum curtain-support frame and fabric package change.

If the customer needs an open FOH, much of the curtain package may no longer be necessary.

If the required roof geometry changes, the aluminum upper structure changes rather than automatically redesigning every Ringlock component below it.

This is the practical advantage of treating the FOH as several connected structural modules instead of one indivisible product.

15. Information Needed for a Similar FOH Structure

For a similar project, the useful starting information is:

• required FOH width and depth;

• required working levels;

• height of each working level;

• audio / lighting / video functions on each level;

• number of operators;

• equipment dimensions and weights;

• required sightline toward the stage;

• ladder or stair access preference;

• roof height;

• roof profile;

• open or enclosed sides;

• required canopy extension;

• cable-entry and routing positions;

• indoor or outdoor use;

• available ground footprint;

• existing Ringlock equipment, if any;

• site drawings or reference photos.

The final structure can then be configured around the working requirement, rather than simply enlarging or reducing this 4×4m model proportionally.

16. Engineering Boundary

The confirmed configuration establishes the physical geometry, component quantities, platform/access system, aluminum roof structure, enclosure package, auxiliary base components and packing information.

It does not establish universal values for:

• working-platform load capacity;

• roof load capacity;

• wind resistance;

• required ballast;

• anchoring;

• ground-bearing requirements;

• safety factor;

• certification;

• engineering approval.

For another project, those questions depend on the actual equipment, platform use, covered area, final dimensions and site conditions.

The two supplied 4m ballast pipes should therefore remain exactly what the BOQ confirms them to be: supplied ballast-related components, not proof of a verified ballast calculation.

17. Related DragonStructure Pages

FOH Structure

Primary category for FOH booths, multi-level control towers and temporary event technical-control structures.

Ringlock + Aluminum Structure

Relevant because this FOH deliberately combines a steel Ringlock working tower with an aluminum roof and enclosure-support system.

Ringlock Structure

For the broader modular Ringlock structural system used to create the main tower, platforms and auxiliary base.

18. Original DragonTruss Product

Original Product Name:

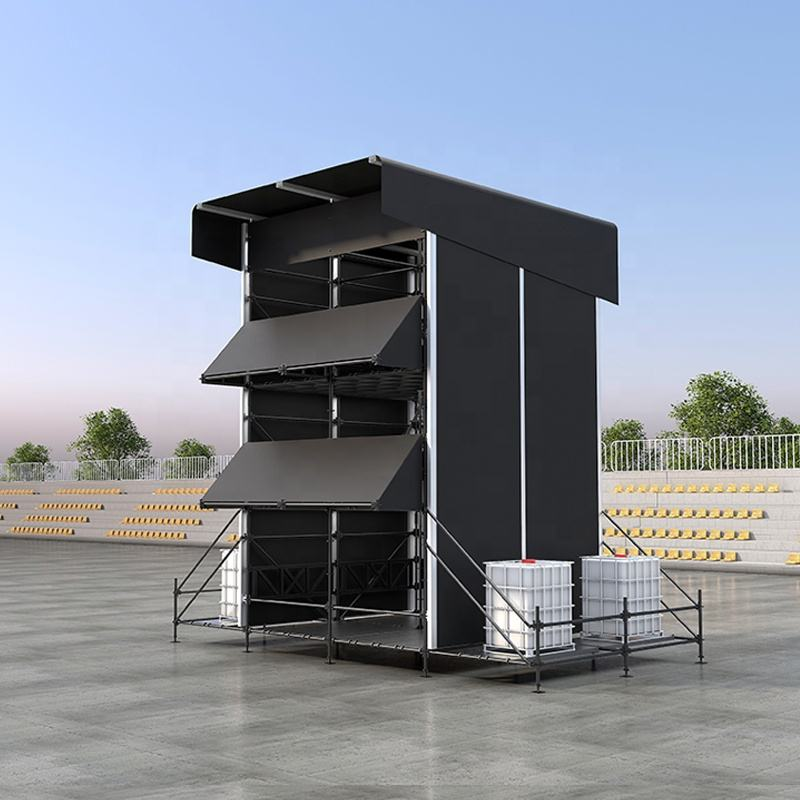

4x4x6m Multi-Level Hybrid Ringlock FOH Control Tower with Aluminum Roof Frame

Original Product URL:
https://www.dragontruss.com/4x4x6m-Multi-Level-Hybrid-Ringlock-FOH-Control-Tower-with-Aluminum-Roof-Frame-pd134974238.html

The original DragonTruss product contains the commercial configuration and complete supplied BOQ, including the 2,900kg packing weight and 12CBM packing volume.

The two pages therefore have different jobs:

DragonTruss:
What 4×4m hybrid FOH system can DragonStage manufacture and supply?

DragonStructure:
How is a multi-level FOH tower divided into a Ringlock working structure, internal platform/access system, aluminum sloped roof, fabric enclosure and auxiliary lower structure?

FAQ

What is the actual height of this 4x4m FOH tower?

The main side and roof low point are approximately 6m, while the single-slope roof rises to approximately 7m at its high point. For this reason, the complete maximum height is approximately 7m rather than 6m.

Why is this called a hybrid FOH structure?

Because the main multi-level tower is built from steel Ringlock, while the upper roof and enclosure-support frame uses aluminum components. The two systems perform different structural functions within the same FOH.

Is this a ground-level FOH booth?

No. It is a multi-level FOH control tower with internal platform planks and ladder access between working levels.

How are operators able to move between levels?

The configuration includes two heavy-duty aluminum ladders and two open aluminum + wood platform planks as part of the internal access arrangement.

Does the tower have a flat roof?

No. The aluminum roof is single-slope, rising from approximately 6m to 7m.

Are the roof and side covers included?

Yes. The configuration includes a 48m² main roof tarpaulin, six 3m² canopy tarpaulins, two 24m² side curtains and one 24m² front/rear curtain.

Can stairs replace the ladders?

Yes, the access concept can be changed for another project. A stair system requires a different spatial and structural arrangement, so it should be defined when the FOH layout is developed rather than simply added after the tower is finalized.

What is the lower auxiliary structure?

It is a separate Ringlock component group at the lower part of the complete FOH, consisting of six 1m standards, ten 2m ledgers, twelve 2.83m diagonal braces and twelve 2m planks.

Does the included ballast pipe define the ballast requirement?

No. The package contains two 4m-long 50×2mm ballast steel pipes with accessories, but the required ballast for an actual installation depends on the complete project and site conditions.

Can the 4x4m configuration be customized?

Yes. The modular concept allows the footprint, height, number of levels, platform arrangement, access system, roof geometry, canopy, curtain layout and auxiliary structure to be configured around a different FOH requirement.

Recommended DragonStructure Classification
