Many of our custom aluminum-truss projects for bars, clubs and entertainment venues begin with the same contradiction.
The venue owner or design team wants a large, visually continuous structure inside the building.
But the building itself was usually not originally designed around that truss system.
This is especially common in bars.
A bar owner often rents an existing commercial building and later converts it into an entertainment venue.
The original architect may never have expected that large:
lighting truss;
decorative truss structures;
LED support;
sound equipment;
custom aluminum frames
would eventually need to pass through the building.
So when we design a custom bar truss, we are solving two different problems:
What should the final structure look like and do once installed?
and
How can that structure actually be manufactured, transported through the building and assembled in the required position?
Those two questions cannot be answered at exactly the same stage.
At the beginning of a project, our main concern is the final installed structure.
The customer, venue owner or design team normally gives us requirements such as:
overall dimensions;
visual shape;
lighting positions;
LED positions;
speaker integration;
decorative requirements;
suspended equipment;
available ceiling height;
relationship with walls, columns and other architectural elements.
At this stage, we need to understand the complete structure.
If the final result is supposed to form one large continuous shape, we first design it as a complete installed system.
We do not immediately break every beam into small sections merely because there is a doorway somewhere in the building.
Why?
Because if the structure is divided too early, the transport limitation may start controlling the design before the actual functional and visual requirements are clear.
So our normal logic is:
final installed requirement
↓
overall truss geometry
↓
connection with lighting / sound / LED / décor
↓
customer or design-team approval
↓
then study how to divide it for production and access
This separation is important.
For some bar or venue projects, the first drawing is mainly intended to answer:
Is this the structure the client actually wants?
That drawing may already show:
overall shape;
dimensions;
truss positions;
equipment relationships;
final visual result.
But once the proposal or tender is approved, another stage of design begins.
Now we ask:
How do we turn this complete structure into components that can actually be manufactured and taken into the venue?
That is a different problem.
The first drawing solves the installed structure.
The second stage solves the real-world delivery and production logic.
Before finalizing production drawings, we need information about the route from the unloading point to the final installation position.
For a bar or club project, useful information may include:
external entrance-door width and height;
internal door openings;
corridor width;
narrowest passage;
stair width;
elevator dimensions;
turning space;
ceiling height along the transport route;
fixed columns or walls;
whether long components can be tilted vertically;
final installation location.
A structure that looks perfectly reasonable in CAD may become impossible to deliver if one section is wider than the narrowest doorway.
So the key question is not simply:
How large is the finished truss?
It is:
What is the largest individual component that can travel from the truck to the final installation position?
That dimension may control the final module breakdown.
This sounds obvious, but it changes how we design custom truss.
Imagine the final installed decorative truss is several meters wide and has an unusual multi-sided shape.
The client sees:
one structure.
From a manufacturing and installation point of view, we may see:
eight, twelve or twenty individual modules that become one structure only after they reach the site.
The objective is not to make the structure small.
The objective is to decide:
where it can be divided;
where connectors can be placed;
which parts should remain welded assemblies;
which parts should be bolted or spigot-connected on site.
That is modular design applied to a custom structure.
This is also the broader logic behind our Modular System Logic for Stage, Truss & Scaffold: the final structure and the individual transport modules do not have to be the same thing.
Clients normally understand the transport problem quickly.
If the door is 1.5 m wide, a 3 m wide welded frame obviously cannot pass through it.
But there is another reason for dividing large custom structures:
we also need to manufacture them efficiently inside the factory.
This is often invisible to the end user.
A large irregular aluminum structure may contain welding positions on several faces.
If we tried to fabricate the whole object as one enormous welded assembly, the production team could face very practical problems:
welders cannot easily reach internal joints;
some welds would be above or below the worker;
large structures occupy excessive workshop space;
jigs become difficult to use;
dimensional control becomes harder;
multi-face welding may require the complete assembly to be rotated repeatedly.
At a certain size, that becomes an unnecessarily awkward way to manufacture.
This is one of the most practical judgments from our factory experience.
A large custom structure may look impressive when fully assembled.
But that does not mean it should be welded in that final shape.
If the assembly has many internal welds, expecting workers to move around inside the structure with welding equipment is inefficient.
If the same component needs welding on different sides, another question appears:
Are we supposed to keep turning the entire large structure over every time we need access to another face?
For a small part, rotating the workpiece is normal.
For a very large irregular structure, repeatedly turning the entire assembly can become impractical.

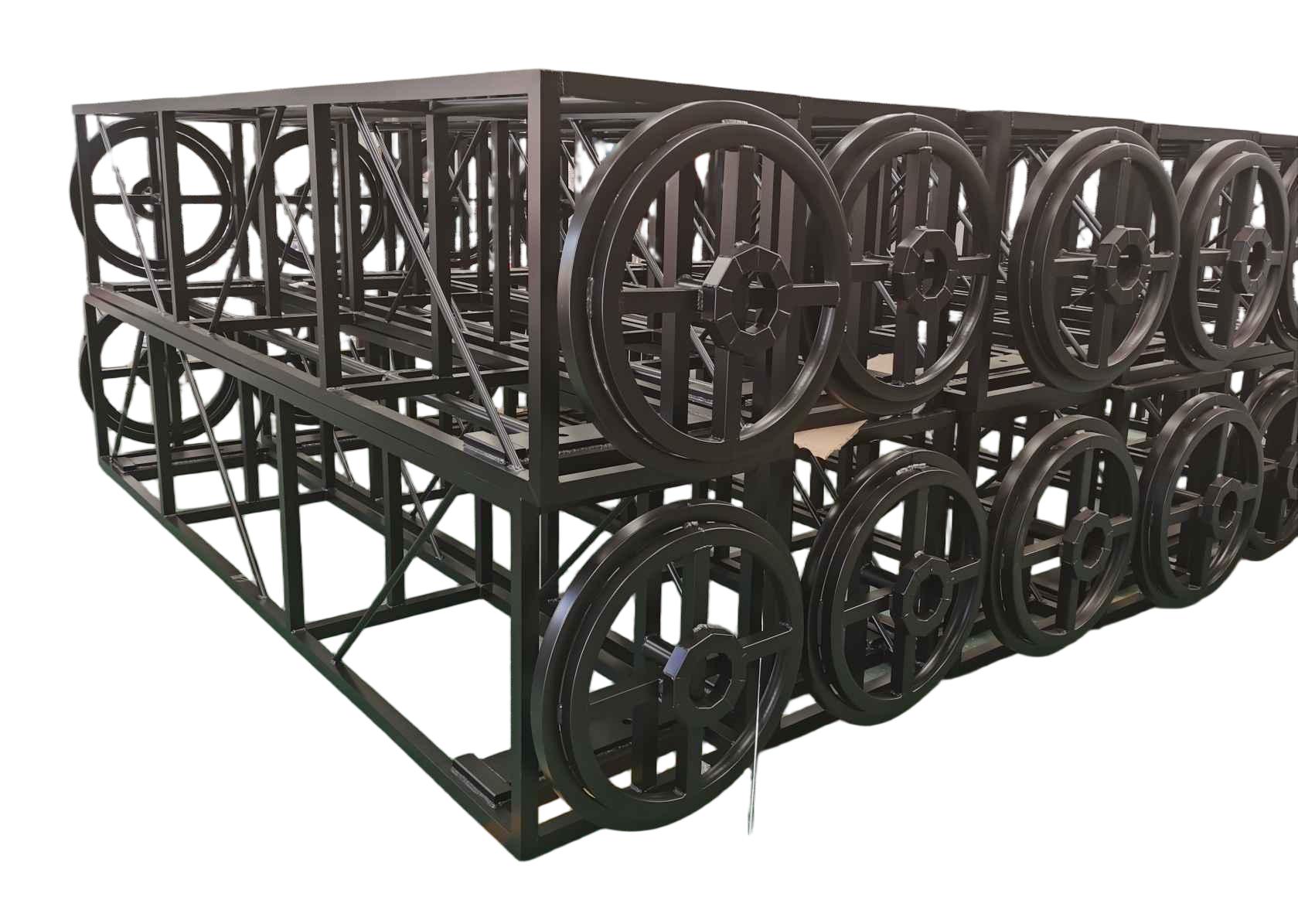

So instead, we split the structure into smaller manufacturable modules.
Each module can be:
positioned properly;
fixed in a jig;
welded from accessible directions;
checked dimensionally;
handled by the workshop team;
finished separately.
Then the modules are joined into the complete structure later.
This is simpler for production and usually produces a more controllable manufacturing process.
When we break a custom bar truss into modules, each piece has to pass through two different environments.
The module must be practical for:
cutting;
jig positioning;
welding;
turning;
surface treatment;
inspection;
packing.
The same module must also be practical for:
truck unloading;
carrying;
door openings;
corridors;
elevators or stairs;
final assembly position.
A good breakdown works for both.
This is why simply saying:
“Make every piece shorter than the doorway.”
is not enough.
The module division also has to make sense structurally and from a manufacturing point of view.
There is a temptation to think that any large truss can simply be cut into smaller pieces.
That is not how we approach it.
The connection locations need to be chosen deliberately.
Depending on the structure, we may consider:
natural corners;
changes in direction;
straight sections;
areas with easier site access;
locations where connectors are less visually intrusive;
positions that remain practical for assembly;
manufacturing subassemblies that can be welded accurately.
The point is not to maximize the number of connections.
Too many sections create:
more assembly work;
more hardware;
more connection points;
more pieces to identify on site.
So there is always a balance:
small enough to manufacture and transport, but large enough to avoid unnecessary fragmentation.
That is manufacturer judgment rather than a fixed formula.
Temporary outdoor event truss is often installed in open spaces.
Bars and clubs are different.
The final structure may need to pass through an existing building containing:
finished walls;
narrow corridors;
staircases;
ceilings;
elevators;
fixed furniture;
mechanical services.

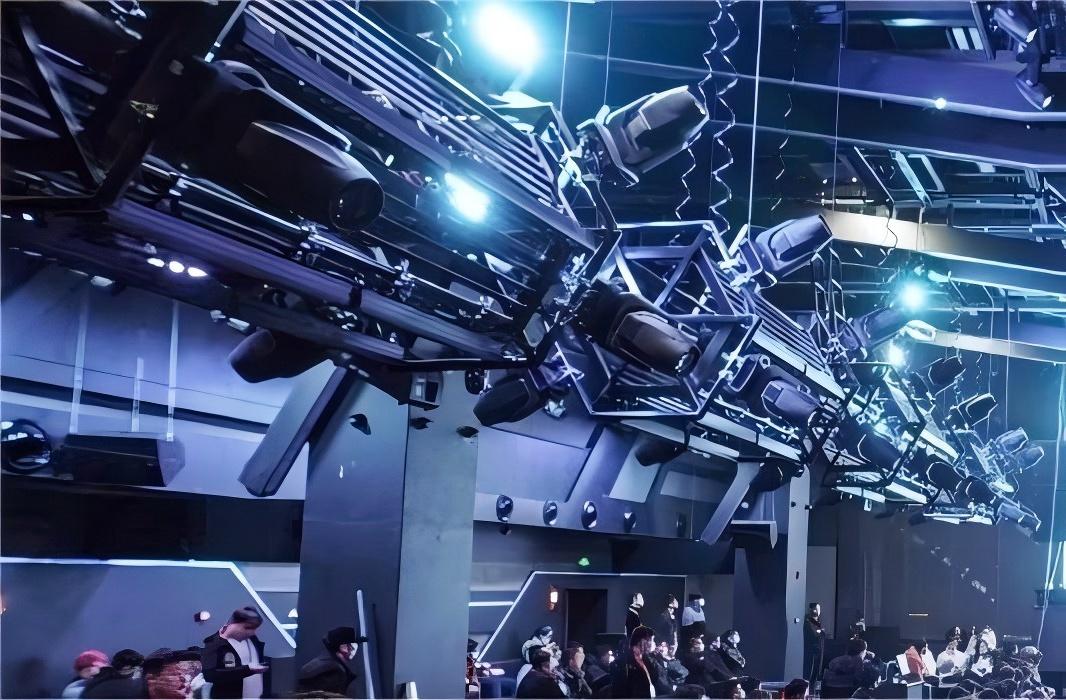

The structure may ultimately occupy a large volume above the dance floor, DJ area or performance zone.
But every component still has to reach that space somehow.
This is why access-route planning becomes especially important in indoor entertainment venues.
The customer may focus on the finished effect.
We have to think backward from that effect to the loading door.
Access cannot be the only design priority.
The final structure still needs to perform the function requested by the bar owner or design team.
For example, it may need to integrate:
lighting fixtures;
LED screens;
sound equipment;
decorative elements;
moving lights;
cables.
So we do not shrink or divide components arbitrarily just to make transportation easier.
The final installed structure still controls:
geometry;
equipment positions;
connection logic;
overall dimensions.
Only after those requirements are established do we decide how the system can be modularized for manufacturing and delivery.
For general aluminum truss systems and component families, readers can refer to our Aluminum Truss section.
For these custom indoor venue structures, the design process can be summarized as:
Stage | Main Question |
|---|---|
Stage 1 — Overall Design | What must the final installed structure look like and do? |
Stage 2 — Breakdown Design | How should that structure be divided so it can be manufactured, transported and installed? |
Stage 1 normally deals with:
overall dimensions;
structural form;
equipment compatibility;
lighting / LED / sound integration;
visual concept.
Stage 2 deals with:
doorway dimensions;
access route;
transport limitations;
module length and width;
connector positions;
welding access;
workshop handling;
packing;
installation sequence.
These two stages solve different problems.
Both are necessary.
Clients sometimes wonder why we ask for additional measurements after the main drawing has already been approved.
It can feel as if the design is changing.
Actually, this is normally the point where the design becomes more practical.
The first approval tells us:
This is the structure the customer wants.
The access information tells us:
This is how we have to manufacture and divide it so the customer can actually receive and install it.
Typical dimensions we may ask for include:
narrowest door width;
narrowest door height;
elevator internal dimensions;
stair width;
corridor width;
smallest turning area;
distance from unloading point to installation area.
Without this information, a custom structure can be correct on paper and still be impossible to bring into the building.
This case also illustrates something customers do not always see:
Manufacturing is not a separate activity that happens after design. Manufacturing constraints feed back into the design itself.
If a connection allows us to divide one large irregular part into two smaller assemblies, that may:
make welding easier;
reduce handling difficulty;
improve dimensional control;
simplify packing;
solve the doorway problem at the same time.
That is a much better solution than designing one idealized giant object and leaving the factory to figure out how to build it afterward.
This is why our Installation Methodology for Modular Stage, Truss & Scaffold Systems is relevant to custom work as well: installation logic should be considered before the components are finalized.
From experience, we try to avoid two opposite mistakes.
This creates a beautiful complete model but ignores:
transportation;
doors;
corridors;
lifting;
workshop handling.
The structure may become difficult to manufacture or impossible to install.
This solves transportation but can create:
unnecessary connectors;
longer installation time;
more loose components;
more potential alignment work.
The better approach is to finalize the overall structure first, then create the largest practical modules that still satisfy manufacturing and site-access limits.
This article is based on recurring experience from custom bar and indoor entertainment-venue truss projects.
It is not one single completed project with one fixed dimension set.
Our recurring workflow is:
understand the final structural and visual requirement;
complete the overall concept;
collect site-access dimensions;
split the structure into manufacturable and transportable modules;
define site connections and installation sequence.
The manufacturing reasons for modular breakdown are also based on factory experience:
welding access;
jig use;
component handling;
dimensional control;
avoiding unnecessary rotation of very large assemblies.
It does not provide project-specific:
structural calculations;
allowable loads;
connection capacities;
suspension limits;
certification;
code compliance.
If lighting, LED, speakers or other equipment will be supported by the structure, the final configuration and loads still need project-specific verification.
The DragonStructure Case Study standard requires us to keep practical manufacturing judgment separate from verified engineering conclusions. 粘贴的 markdown (1)。md
The public discussion that triggered this topic focused on:
Can equipment get from the loading area to the stage?
That is an important venue-planning question.
But our bar-project experience adds another layer.
For a manufacturer, the transport route does not begin at the venue door.
It begins inside the factory.
The structure has to pass through two realities:
Can we manufacture it efficiently?
and
Can the customer physically get it into the final room?
So the most useful conclusion from these projects is:
The final structure can be large. The individual modules should only be as large as the factory and the building can realistically handle.
Or even more simply:
We design the whole structure first, then we design how to break it apart.
That is the core of this case.
If you are planning a bar, club or indoor entertainment structure, useful information includes:
overall room dimensions;
ceiling height;
required truss shape;
lighting layout;
LED layout;
sound equipment;
decorative requirements;
installation height;
unloading location;
entrance-door width and height;
corridor dimensions;
elevator dimensions;
stair dimensions;
narrow turning points;
photos or drawings of the complete access route.
Do not send only the final room dimensions.
For a large custom indoor structure, the route to the room can be just as important as the room itself.
Because the final structural and visual requirement should be understood first. If the system is fragmented too early, transportation constraints may unnecessarily control the overall design and create too many connection points.
Ideally before production drawings are finalized. Once the overall structure is approved, the access route can be used to determine the maximum practical module dimensions.
No. Elevators, stairs, corridor turns, ceiling height and carrying space can all control the maximum component size.
Very large irregular assemblies can make welding access, jig positioning, turning and dimensional control difficult. Smaller subassemblies can usually be produced more practically and joined later.
Not always. Smaller pieces are easier to transport, but too many modules create more connections and more site assembly. The goal is the largest practical module, not the smallest possible module.
No. Connection locations should be selected according to the actual geometry, manufacturing method, assembly sequence and structural requirements.
