How We Prepare a Roof for an Existing 12×8m Aluminum Truss System from Another Supplier

Project Background

One of our long-term customers contacted us about a friend's existing aluminum truss system.

His friend already owned a complete freestanding truss structure, but the system had no roof.

The approximate overall size provided to us was:

• 12 m wide

• 8 m deep

The request sounded simple:

Can you manufacture a complete aluminum rain roof for the truss structure they already own?

The difficulty was that the existing truss had not been manufactured by us.

That immediately changed the project from a normal roof quotation into a compatibility problem.

We could not assume that a roof designed around our standard truss dimensions would automatically connect correctly to another manufacturer's system.

So before designing or quoting the roof, our engineer first prepared a simplified dimensional drawing and identified five measurements that had to be confirmed.

That became the starting point of the project.

Why 12m × 8m Was Not Enough Information

From the customer's description, we knew the approximate overall footprint.

But an overall length and width only tell us how large the structure is.

They do not tell us whether a new roof can physically connect to the existing towers and sleeve blocks.

For a compatible roof system, we still needed to understand:

• the actual truss cross-section;

• the main chord diameter;

• the outside width of the truss;

• the size of the existing sleeve block;

• the length of the connection section around the sleeve block.

These dimensions determine the interface between the existing ground-support structure and any new roof components.

So our first judgment was:

Do not design the roof from the overall footprint alone. First identify the dimensions that control compatibility.

Step 1 — Reconstruct the Existing Layout

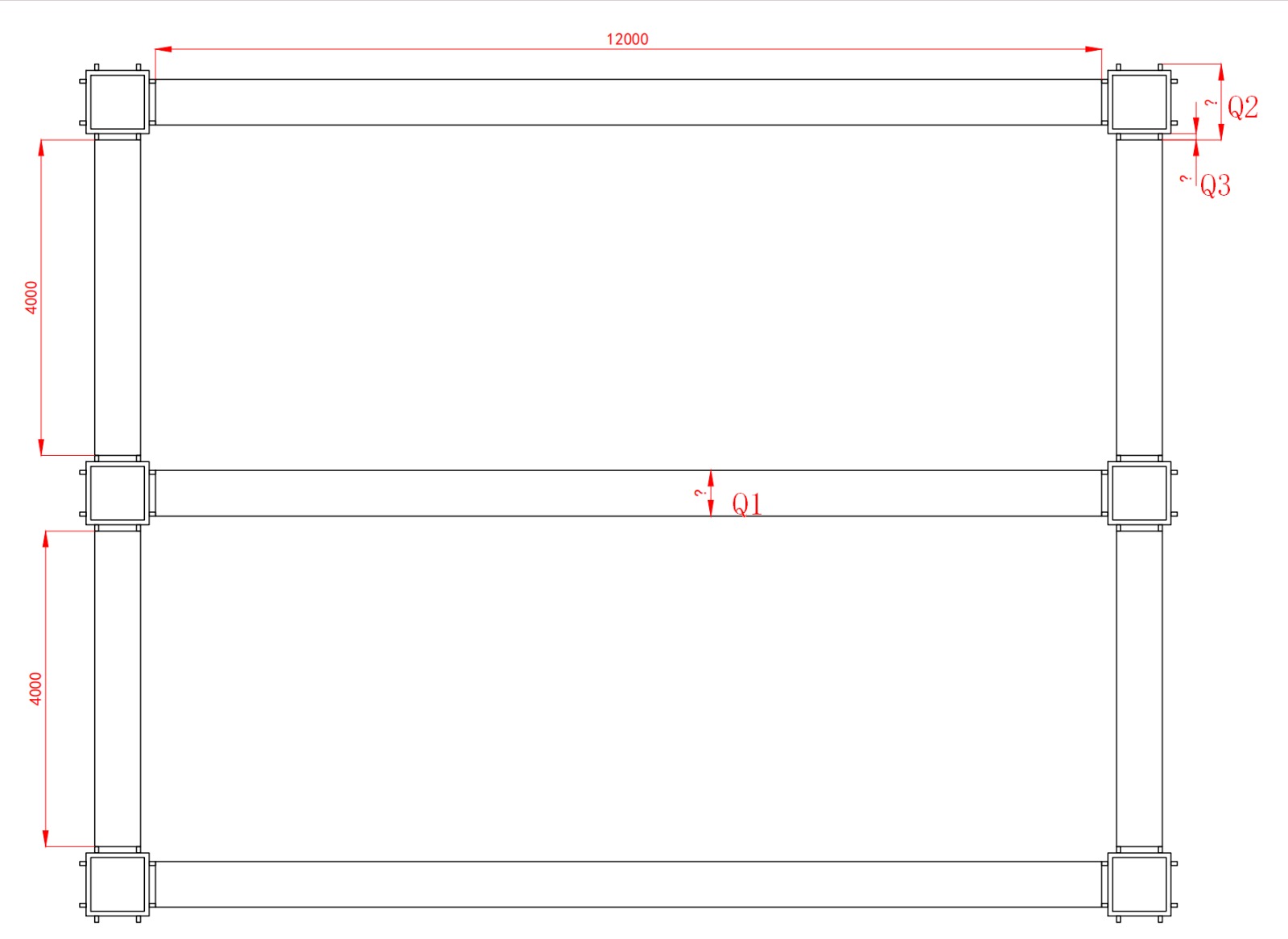

Based on the information supplied by the customer, our engineer prepared a preliminary top-view drawing.

The sketch assumed:

• 12,000 mm overall width

• two 4,000 mm depth sections

• approximately 8,000 mm total depth

Suggested caption: Our engineer first converted the customer's approximate 12×8m description into a simple dimensional layout so the client could confirm whether we had understood the existing structure correctly.

The first question we sent back was therefore very basic:

Are the length and width shown on our drawing correct?

If the answer was no, the customer needed to mark the correct dimensions before we continued.

This sounds obvious, but it matters.

If the basic footprint is wrong, every roof beam length, canopy dimension and connection position developed afterward will also be wrong.

Step 2 — Confirm the Main Chord Diameter

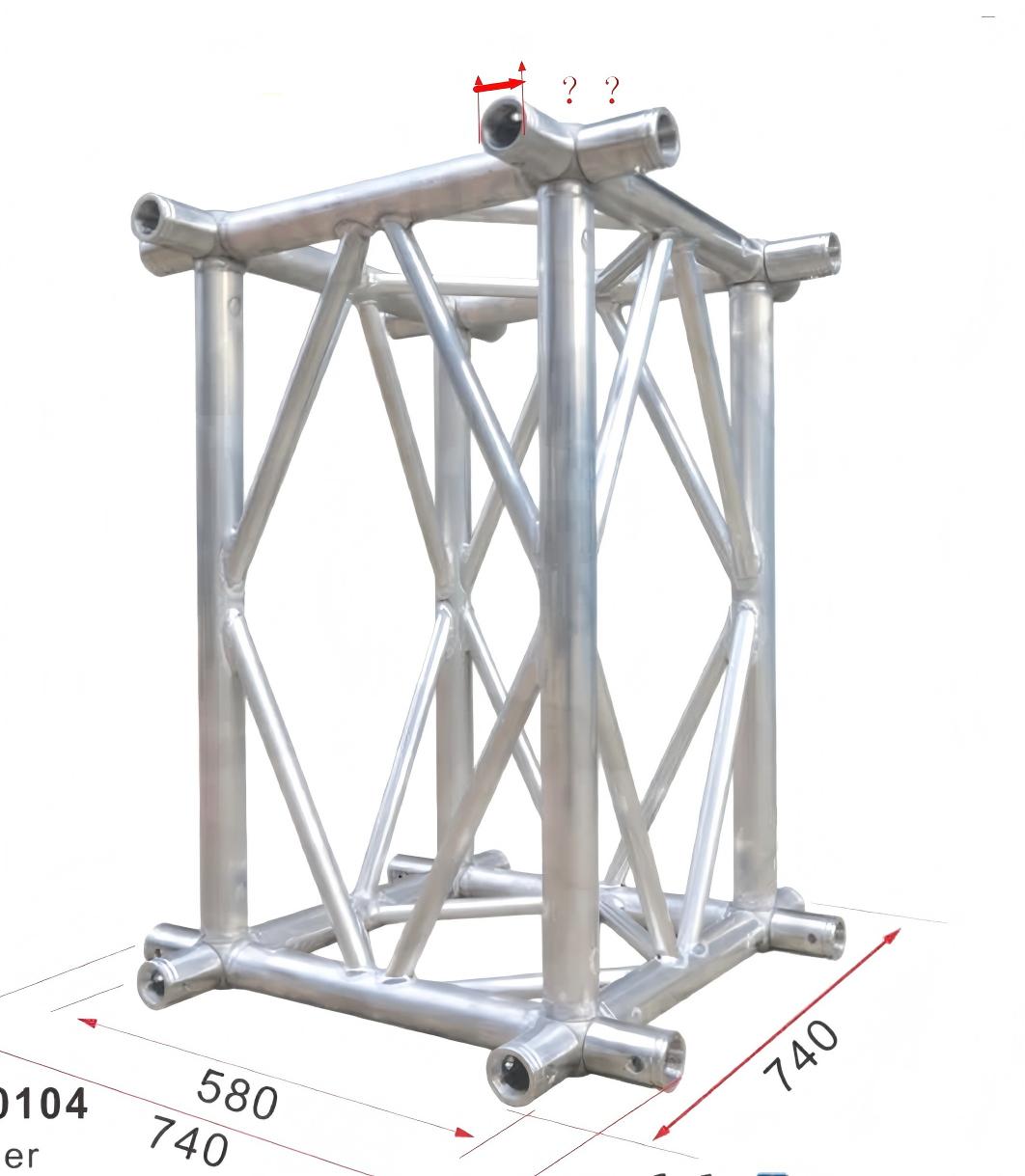

The customer also sent us a reference image of the existing aluminum truss.

From a photograph, we could see the general truss type.

But we could not reliably determine the main chord diameter.

So Question 2 was:

What is the diameter of the main truss tube?

Suggested caption: The main chord diameter is one of the dimensions that cannot be safely assumed from a photograph.

This dimension matters because roof connection hardware, clamps and interface components must match the actual chord size.

A truss that looks visually similar to one of our standard systems may still use a different chord diameter.

For general aluminum-truss product families, readers can refer to our Aluminum Truss range. But for compatibility work, the actual measured dimensions matter more than the product name.

Step 3 — Confirm the Actual Truss Width

The next unknown dimension was marked as Q1 on the engineer's drawing.

We asked the customer to confirm:

What is the total width of the truss when viewed from above?

This is not necessarily the same as the nominal model name a supplier uses.

For example, two manufacturers may both describe a product as a “400 mm truss,” while the actual outside dimensions, tube-center spacing or connector geometry can still differ.

For a new roof to connect correctly, we need the real physical width.

That is why we ask customers to measure the structure rather than relying only on terms such as:

• 290 mm truss;

• 400 mm truss;

• box truss;

• standard spigot truss.

Readers looking for our standard connection family can refer to Standard Spigot Truss, but another supplier's truss should never be assumed compatible simply because the nominal size sounds similar.

Step 4 — Measure the Sleeve Block Width

Question 4 concerned the sleeve block.

The customer already had a ground-support structure using sleeve blocks at the tower positions.

So we asked:

What is the total outside width of the sleeve block?

This dimension was marked as Q2 on the drawing.

Why does it matter?

Because the sleeve block defines the local geometry around the tower.

A new roof or roof-lifting interface must be designed so that:

• the roof connection clears the sleeve block;

• the new truss geometry aligns with the existing tower;

• lifting and connection parts do not interfere with one another.

If the sleeve block is larger or smaller than expected, a detail that works with our standard system may not fit this existing structure.

Step 5 — Confirm the Length of the Small Connection Section

The last measurement was marked as Q3.

We asked the customer to confirm the length of the short projecting section associated with the sleeve-block / tower connection.

This small dimension may look less important than the overall 12 m width.

But in compatibility work, small interface dimensions can be more important than the overall structure size.

A roof that is 12 m wide can always be redesigned around a slightly different beam length.

A connector that misses its mating position by even a relatively small amount may not assemble at all.

That is why Question 5 was:

What is the length of this small connection section?

The Five Questions We Sent to the Customer

The complete request was:

1. Are the length and width in our preliminary drawing correct?
   If not, please mark the correct dimensions.

2. What is the diameter of the main truss chord?

3. What is the total outside width of the truss?
   This was marked as Q1.

4. What is the total outside width of the sleeve block?
   This was marked as Q2.

5. What is the length of the small connection section shown on the drawing?
   This was marked as Q3.

These five questions were not additional bureaucracy.

They were the minimum information we felt we needed before responsibly moving from:

“approximately 12×8m existing truss”

to:

“a roof designed to fit this specific existing system.”

Why We Did Not Simply Ask for the Truss Brand

The easiest question might seem to be:

What brand is the existing truss?

That information would certainly help.

But even a brand name does not always solve the compatibility problem.

A manufacturer may have:

• different product generations;

• different truss series;

• different connector systems;

• custom dimensions;

• modified sleeve blocks.

And sometimes the current owner simply does not know the exact model.

So our working rule is:

If the actual dimensions can be measured, we can work from the structure itself rather than relying only on a product label.

That is especially important when the existing equipment comes from another supplier.

This Was Not Yet a Roof Design

At this stage, the engineer's drawing was not the final roof design.

It was a measurement and confirmation drawing.

That distinction is important.

We had not yet finalized:

• roof shape;

• roof beams;

• ridge configuration;

• roof covering;

• lifting arrangement;

• ballast;

• wind-management requirements;

• final roof dimensions.

The drawing existed to answer one earlier question:

What exactly does the customer already own?

Only after that information is confirmed can the roof structure be developed around it.

This follows the DragonStructure rule that proposal drawings and quotation-stage concepts should not be presented as completed engineering designs.

Why Existing-Equipment Projects Often Require More Information, Not Less

At first glance, reusing an existing truss system appears simpler and cheaper than buying a completely new roof-and-truss package.

And commercially, it may be.

But technically, reuse can actually require more information.

If we manufacture the complete structure ourselves, we already know:

• truss dimensions;

• connector positions;

• sleeve-block geometry;

• tower geometry;

• spigot specifications;

• component relationships.

If we only supply the new roof while keeping another manufacturer's structure, we first have to reconstruct those interface conditions.

So there is a useful paradox:

The more of the customer's existing equipment we want to reuse, the less we can afford to guess about it.

This is similar to many other compatibility projects we see in temporary structures.

Reuse can reduce the BOQ.

But it increases the importance of accurate interface data.

Why Small Dimensions Can Decide Whether a Large Roof Fits

The customer originally described a structure approximately 12 m wide and 8 m deep.

Those are the largest dimensions in the project.

Yet the dimensions most likely to decide whether the new roof physically connects are much smaller:

• tube diameter;

• truss outside width;

• sleeve-block width;

• connector projection length.

That is an important lesson from this case.

Large structures are often controlled by small interfaces.

A 12 m roof can be manufactured accurately.

But if the interface was designed around the wrong chord diameter or the wrong sleeve-block size, the roof may still fail to connect to the existing system.

So our engineering discussion began with the small parts before moving to the large roof.

What Can Remain Existing—and What Would Be New

The project was intended to reuse the customer's existing:

• vertical towers;

• horizontal truss structure;

• sleeve blocks;

• main ground-support system.

The new scope would potentially include:

• roof truss components;

• roof-shape-specific members;

• roof covering;

• new interface/connection components where required;

• other roof-specific accessories.

Exactly which existing parts can remain and which new components are required depends on the five measurements and later structural review.

So at this stage, we intentionally did not prepare a final BOQ.

That would have been premature.

Why We Prefer Measuring Before Customizing

There are two ways a supplier can respond to this kind of inquiry.

The first is:

“It looks like a standard truss. We can probably make the roof.”

The second is:

“Before we manufacture anything, let us identify the dimensions that control the connection.”

We prefer the second approach.

The additional measurement work takes more time at the beginning.

But it can avoid much larger problems later:

• incompatible connectors;

• wrong roof width;

• sleeve-block interference;

• site drilling or modification;

• new parts having to be remanufactured after delivery.

For a customer trying to reuse an existing structure, compatibility is part of the product.

Roof Compatibility Is Not the Same as Structural Verification

There is another important boundary in this project.

Even if all five dimensions match and we can manufacture a roof that physically connects to the existing truss system, that does not automatically prove that the complete structure is suitable for the intended roof application.

Physical compatibility answers:

Can these components connect?

Engineering verification answers different questions, such as:

Can the complete structure support the intended roof and project loads under the actual site conditions?

Those are not the same question.

A roof structure involves issues such as:

• roof self-weight;

• covering;

• suspended equipment if any;

• wind effects;

• support configuration;

• tower capacity;

• connections;

• ballast or foundations;

• site conditions.

No project-specific calculation was supplied in the information used for this Case Study.

Therefore, we should not claim a verified roof capacity, wind rating or ballast requirement.

Readers looking at broader roof-support configurations can continue to DragonStructure's Roof Support Structure section, but final verification must always consider the actual project configuration and site requirements.

Current Project Status

This case is still at the measurement and compatibility-confirmation stage.

The current process is:

Existing third-party truss identified

↓

Approximate footprint supplied: 12 m × 8 m

↓

Engineer prepares preliminary dimensional sketch

↓

Five key compatibility dimensions identified

↓

Customer checks dimensions with equipment owner

↓

After confirmation: roof concept and BOQ can be developed

So there is currently:

• no final roof design;

• no final BOQ;

• no confirmed roof shape;

• no verified load calculation;

• no final wind or ballast conclusion.

That is exactly how this stage of the project should be described.

What This Case Shows

The most obvious interpretation of this inquiry is:

A customer wants to add a roof to an existing truss.

But I think the more useful lesson is:

When new equipment has to connect to someone else's existing structure, the first design task is not designing the new equipment. It is understanding the old equipment accurately enough to create a reliable interface.

The roof may ultimately be large.

The first questions were small.

That is not accidental.

The 12 m and 8 m dimensions told us the scale of the project.

The five detailed measurements told us whether the project could actually connect.

The sentence I would keep as the core takeaway is:

Before we design the roof, we first need to know exactly what the roof has to connect to.

That is the real value of this case.

Planning a Roof for an Existing Truss System?

If your existing truss was manufactured by another supplier and you want to add a roof, the most useful information is:

• overall structure length;

• overall structure width;

• tower height;

• clear photos of the existing truss;

• main chord diameter;

• truss outside width;

• sleeve-block outside dimensions;

• connector details;

• spigot dimensions;

• top-section details;

• existing bases and outriggers;

• required roof shape;

• intended roof covering;

• equipment to be suspended from the roof, if any;

• indoor or outdoor use;

• project location.

With this information, we can first assess compatibility and then prepare a preliminary roof configuration.

FAQ

Can you add a roof to aluminum truss made by another supplier?

Potentially, yes.

But we first need to confirm the actual dimensions and connection geometry of the existing structure.

Nominal truss size alone is not enough.

Is knowing that the structure is 12×8m enough?

No.

The overall size tells us the footprint, but not whether our roof components can connect to the customer's truss and sleeve blocks.

We still need detailed interface measurements.

Why do you need the main chord diameter?

Because clamps, connection parts and other interface components must match the actual chord size.

This cannot be reliably confirmed from a photograph alone.

Why measure the sleeve block?

The sleeve block controls the geometry around the vertical tower and horizontal truss connection.

A new roof interface must fit around that existing geometry without interference.

Can two trusses with the same nominal size still be incompatible?

Yes.

Two products described by the same nominal size can still differ in:

• outside width;

• chord spacing;

• chord diameter;

• spigot geometry;

• connector positions.

That is why actual dimensions should be confirmed.

Once the five dimensions are confirmed, is the roof automatically safe?

No.

Those measurements help establish physical compatibility.

The complete roof still requires project-specific structural verification according to the final roof configuration, loads, site conditions and applicable local requirements.
