Why We Suggest a 2×1m Ringlock Stage When Weight, Labor, Footfall Noise and Future Expansion All Matter

A Manufacturer’s View on Building Long-Term Stage Platform Inventory

When a theatre, rental company or venue starts rebuilding its stage-platform inventory, the first question is often:

How light can the platform be?

That question is understandable.

A lighter platform usually means:

• easier manual handling;

• fewer people needed for moving components;

• faster loading and unloading;

• less physical effort during installation.

But from a manufacturer's point of view, weight alone is not enough to select a long-term stage system.

Once the same stage inventory is expected to remain in use for years, several other questions become equally important:

• How many people normally install it?

• How much movement occurs between the decks?

• Will performers create noticeable footfall noise?

• How often will stairs and guardrails need to move?

• Will the stage be expanded later?

• Can replacement parts still be added without reproducing special custom components?

When all of these factors matter at the same time, our starting recommendation would usually be to consider a 2 × 1 m Layher-type Ringlock stage system rather than simply choosing the lightest platform available.

Why We Do Not Start With “The Lightest Stage Possible”

If the stage is part of a touring production and every platform must be loaded into a truck every day, minimum weight can become one of the dominant requirements.

But a theatre or venue building a long-term platform inventory usually faces a different operating situation.

The platforms may be:

• assembled inside the same venue;

• stored locally;

• rearranged several times per year;

• expanded gradually;

• combined with stairs and guardrails;

• reused for different performances.

In that situation, making every individual platform as light as possible does not automatically make the whole system easier to live with.

A lighter deck may save effort during carrying.

But if the platform:

• moves more under dynamic use;

• produces more joint noise;

• requires more special accessories;

• cannot be easily expanded;

• uses custom interfaces that are difficult to reproduce later,

then the initial weight saving may not create the best long-term inventory.

That is why, as a manufacturer, we prefer to look at the complete system.

Why We Would Start With a 2×1m Ringlock Stage Module

For this type of application, our first recommendation would normally be a 2 × 1 m stage deck used with a Layher-type Ringlock support system.

A typical 2 × 1 m deck in the configuration we use is approximately 40 kg.

That is not extremely light.

It should still be included in the venue's manual-handling planning.

But it is also not so heavy that we would automatically redesign the entire stage system just to remove a few kilograms from each platform.

The more important question is:

What does the customer get in exchange for accepting that moderate deck weight?

From our point of view, the answer is:

• standard module size;

• predictable beam-and-column support;

• mechanical deck connection;

• standard stairs;

• standard guardrails;

• easy future expansion;

• fewer special parts.

General product information can be found under the DragonTruss Ringlock Stage System page, while DragonStructure groups project-oriented stage support systems under Stage Platform Structure.

Weight and Labor Are Related—but They Are Not the Same Question

When customers say:

“We have limited labor, so we need a very light stage.”

we normally ask another question:

How is the stage actually handled?

For example:

• Are the decks carried by one person or two?

• How far do they need to be moved?

• Are trolleys used?

• Does the stage stay inside one venue?

• Is it assembled weekly or only a few times per year?

• Does it need to go through narrow corridors?

• Is truck loading part of the routine?

These answers matter.

If one technician is expected to carry every platform alone over a long distance, approximately 40 kg may be inconvenient.

If two people handle the deck inside a venue and the platform is not constantly transported, that same weight may be acceptable.

So from a manufacturer's point of view:

“Lightweight” is not a useful specification until we understand the handling process.

Why Footfall Noise Makes the Decision More Complicated

The more interesting part of this problem is noise.

A stage platform does not create noise only because someone steps on the top surface.

There can also be movement inside the system.

When performers walk, dance or jump, the deck and support structure experience small deformations.

If adjacent components move relative to one another, they can produce:

• knocking;

• squeaking;

• rubbing;

• joint movement noise.

So if a customer says:

“I need a quiet stage,”

we do not immediately think:

add more sound-absorbing material.

Our first question is:

Can we reduce unnecessary movement between the structural components themselves?

Why We Prefer the Decks to Be Mechanically Connected

In the Ringlock stage configuration we use, adjacent stage decks can be connected with screws or bolts.

This changes the behavior of the top surface.

Instead of many independent deck units:

deck + deck + deck + deck

the connected surface begins to act more like:

one larger platform field made from modular sections.

The purpose is to reduce unnecessary relative movement between adjacent platforms.

From our practical experience, that can also reduce one common source of noise during walking, dancing and other dynamic use.

This should not be presented as a tested acoustic rating.

We do not have decibel measurements showing an exact noise reduction.

It is a manufacturer's practical judgment based on reducing movement between modules, not a laboratory acoustic claim.

Why the Layher-Type Beam-and-Column Structure Also Helps

The stage we are discussing is not simply a set of loose panels placed on adjustable legs.

The Layher-type Ringlock stage uses a defined beam-and-column support arrangement.

Typical structural components include:

• standards;

• ledgers;

• diagonal braces;

• stage beams;

• modular decks.

The support geometry is therefore repeatable.

When the stage beams, vertical standards and deck modules fit correctly, there is less opportunity for the platform to move unpredictably relative to the support structure.

That matters not only for geometry.

It also matters for noise.

The fewer loose or poorly matched interfaces there are, the fewer opportunities there are for components to knock, rub or move against each other during performance use.

Again, this is practical manufacturing and installation experience—not a formal acoustic conclusion.

Carpet Addresses a Different Type of Noise

There are really two noise sources to think about.

The first is:

structural movement noise

generated between:

• decks;

• beams;

• connections;

• support members.

The second is:

surface impact noise

generated when performers' shoes or feet contact the stage surface.

If the performance requires carpet or another suitable floor covering, that surface layer can help reduce direct impact noise.

So our preferred noise-control logic would be:

stable support structure

↓

mechanically connected stage decks

↓

surface covering where the production requires it

rather than relying on one hidden damping material to solve everything.

Why We Would Not Add Internal Sound-Absorbing Material First

Some lightweight stage systems use internal damping or sound-absorbing material to reduce noise.

That can be useful in certain designs.

But as a manufacturer, we also ask:

What happens to that material after several years?

A long-term theatre inventory may experience:

• dust;

• repeated impact;

• moisture;

• transport;

• storage;

• vibration;

• repeated assembly.

Every additional hidden material creates another possible maintenance item.

So our preference would normally be:

1. control structural fit;

2. reduce relative movement;

3. connect the decks;

4. use suitable surface covering;

5. only then consider additional acoustic treatment if the venue still requires it.

This keeps the platform system simpler and easier to maintain.

Why Standardization Matters More Than It First Appears

When a customer builds a new stage inventory, the first order is rarely the final order.

Several years later they may need:

• another 10 or 20 decks;

• a longer platform;

• a different stage height;

• additional guardrails;

• another stair;

• choir risers;

• backstage working platforms.

This is where standardization becomes valuable.

A 2 × 1 m platform built around standard Ringlock components is easier to expand than a one-off stage designed only for the first layout.

The customer does not need to recreate a special project.

They can add:

• more standard decks;

• more standards;

• more ledgers;

• more braces;

• more stairs;

• more guardrails.

This is the broader principle behind Modular System Logic for Stage, Truss & Scaffold: reusable temporary structures gain long-term value when standard components can be rearranged rather than replaced.

Stairs Should Follow the Same Logic

Stairs are a good example of why stage inventory should be considered as a system.

There are at least two practical directions.

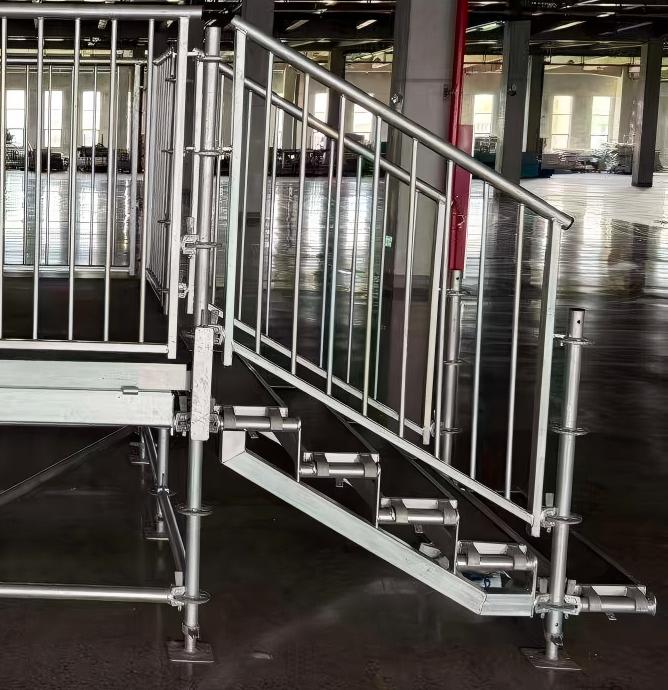

Option 1 — Integrated Steel Stair

A steel stair can be fabricated as one complete unit.

Its main advantage is simple:

less assembly work.

The crew places the stair in position and connects it.

But the trade-off is also clear:

it is heavier.

For a venue where the stair stays mostly in one building and installation speed matters more than individual component weight, that may be completely acceptable.

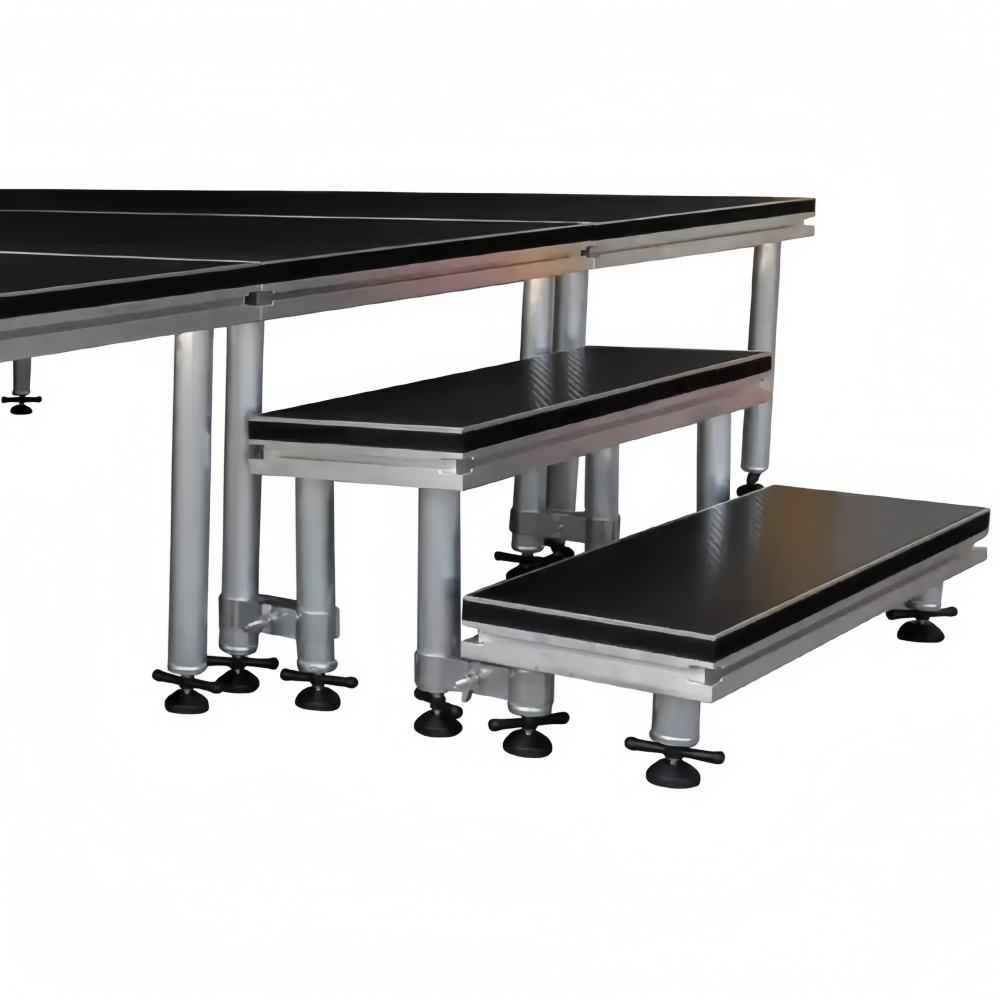

Option 2 — Separate Aluminum Stair Modules

Another option is to use individual aluminum stair units.

Each unit is lighter.

Different stair heights can be achieved by combining the individual modules and bolting them together when required.

This creates a different trade-off:

lighter individual parts

in exchange for

more assembly work.

For a venue where manual handling is a bigger concern, this may be the better direction.

Neither option is universally better.

The correct answer depends on the customer's operating priorities.

Guardrails Should Also Be Standard Components

The same logic applies to guardrails.

A stage inventory may later be used with:

• rear guardrails only;

• three-sided guardrails;

• multiple stair openings;

• different platform shapes;

• different stage heights.

If the guardrails use standard connection points, they can move with the platform configuration.

That is much more useful than manufacturing a special rail arrangement that only fits the first stage layout.

This is why we prefer to think of:

stage + stairs + guardrails

as one modular inventory rather than three unrelated products.

What We Would Recommend as a Manufacturer

For the scenario described, our starting recommendation would be:

This is not a universal specification for every theatre.

It is the configuration we would investigate first when the buyer needs to balance:

weight + labor + noise + maintenance + standardization + future expansion.

What We Would Not Recommend Doing First

As a manufacturer, we would not immediately:

• chase the lightest possible deck;

• redesign every component;

• add hidden acoustic material before controlling movement;

• create non-standard deck sizes without a strong reason;

• develop special stairs that only fit one layout;

• optimize the system only for today's stage plan.

The reason is simple:

the customer is building an inventory, not one stage.

A decision that looks efficient for the first configuration may become inconvenient after five years of expansion.

A Stage Inventory Should Be Designed Differently From a Single Stage

This distinction is important.

If someone asks:

“I need a 6 × 4 m platform for one event.”

the problem is mainly about building a 6 × 4 m platform.

But if someone says:

“We are rebuilding our platform stock.”

the problem becomes:

What system do we want to live with for the next several years?

Now we need to consider:

• handling;

• storage;

• noise;

• stairs;

• guardrails;

• expansion;

• replacement parts;

• crew familiarity.

This is why, from a manufacturer's point of view, standard modular Ringlock stage systems can become more attractive than simply selecting the lightest standalone platform.

What This Recommendation Is Based On

This article is a manufacturer's case analysis, not a completed DragonStage customer project.

The original scenario came from a publicly discussed theatre-platform inventory problem involving:

• limited labor;

• platform weight;

• footfall noise;

• maintenance;

• make-versus-buy questions;

• future inventory planning.

Our recommendation is based on our practical stage-system experience.

The DragonStructure Case Study standard explicitly allows experience-based supplier judgment, but requires it to remain separate from formal calculation or verified testing.粘贴的 markdown (1)。md

Experience-Based Judgment vs. Verified Performance

What We Can Say From Experience

Based on our manufacturing and stage-system experience, we would expect advantages from:

• mechanically connecting adjacent decks;

• using a defined beam-and-column support grid;

• keeping stairs and guardrails standardized;

• using common module dimensions;

• planning future expansion from the first purchase.

What We Cannot Claim From This Analysis

This article does not provide verified:

• acoustic decibel reduction;

• formal footfall-noise testing;

• maximum stage load;

• occupational lifting limits;

• local manual-handling compliance;

• stair code compliance;

• guardrail compliance;

• project-specific structural calculations.

Those questions depend on the actual stage system, intended loads, venue conditions and applicable local requirements.

What This Case Shows

The obvious question is:

How do we choose between a light stage and a quiet stage?

But as a manufacturer, we think the better question is:

How do we build an inventory that the customer's crew can use, maintain and expand for years?

That means balancing:

weight

with

labor

with

structural movement

with

noise

with

maintenance

with

future expansion.

The lightest platform is not automatically the lowest-labor system.

The heaviest platform is not automatically quieter.

And the most customized stage is not automatically the best long-term inventory.

Our recommendation is therefore based on the whole operating system, not one isolated specification.

The sentence I would keep as the core of this article is:

As a manufacturer, we do not try to minimize one number. We try to reduce the number of problems the customer has to manage over the life of the stage inventory.

That is the real reason we would start with a standardized 2 × 1 m Ringlock stage system.

Planning a New Stage Platform Inventory?

Before recommending a stage system, we would normally ask for:

• typical stage length and width;

• maximum stage height;

• number of installation crew;

• typical carrying distance;

• whether trolleys are available;

• setup and dismantling frequency;

• indoor or outdoor use;

• importance of footfall noise;

• expected floor covering;

• guardrail requirements;

• stair requirements;

• storage limitations;

• expected future expansion.

With this information, we can evaluate the platform as a complete long-term inventory rather than comparing only deck weight or purchase price.

FAQ

Why do you suggest a 2x1m deck instead of a smaller lightweight panel?

Because a larger standard module can reduce the total number of platforms and connections while still remaining modular.

The correct choice still depends on the customer's handling method and crew size.

Is a 40kg deck easy to handle?

It depends on the site.

Approximately 40 kg should not be treated as insignificant.

The venue should consider crew size, carrying distance and handling procedures before selecting the module.

Does connecting the decks really reduce noise?

From our practical experience, reducing relative movement between adjacent decks can reduce one source of knocking and movement noise.

We are not claiming a tested decibel reduction.

Why not simply add acoustic material inside the deck?

Internal damping may be useful in some systems, but it also introduces another material that must survive long-term use and maintenance.

We would first control structural movement and surface impact before adding more hidden materials.

Which stair is better: steel or aluminum?

It depends on the customer's priority.

A complete steel stair is heavier but simpler to install.

Separate aluminum stair modules are lighter to handle but require more assembly.

Can the Ringlock stage be expanded later?

That is one of the main reasons we suggest a standardized system.

Additional compatible decks, Ringlock components, stairs and guardrails can be added later as the venue's inventory grows.
