1. What Is This Structure?

At first glance, this looks like a tall Ringlock tower.

But that description misses the most important part of the structure.

The better way to read the drawing is:

A narrow 12m central sound tower rises from a much wider, cross-shaped 4m-high Ringlock support base.

The central tower provides the required vertical position for the sound-support/lifting system.

The four surrounding lower structures expand the Ringlock configuration outward in four directions.

So instead of:

one tall tower from ground to top

the geometry becomes:

wide lower support zone

↓

narrower central tower

↓

upper line-array lifting position

This changing geometry from bottom to top is the main structural characteristic of this product.

2. Why This Is Different from a Conventional Line Array Tower

A conventional Ringlock line-array tower may use a relatively consistent footprint through most of its height, possibly supplemented by braces or other project-specific support arrangements.

This structure is visually and geometrically different.

Its lower 4m is intentionally much wider than its upper tower.

Conceptually:

                 LINE ARRAY
                     │
              LIFTING POSITION
                     │
                ┌─────────┐
                │         │
                │  12m    │
                │ CENTRAL │
                │  TOWER  │
                │         │
                │         │
          ┌─────┼─────────┼─────┐
          │     │         │     │
          │ 4m  │ CENTRAL │ 4m  │
          │BASE │  TOWER  │BASE │
          │     │         │     │
          └─────┼─────────┼─────┘
                │ 4m BASE │
                └─────────┘

The actual plan extends in four directions, not merely left and right.

That distinction deserves to be made very clear on the DragonStructure page.

3. Confirmed Overall Geometry

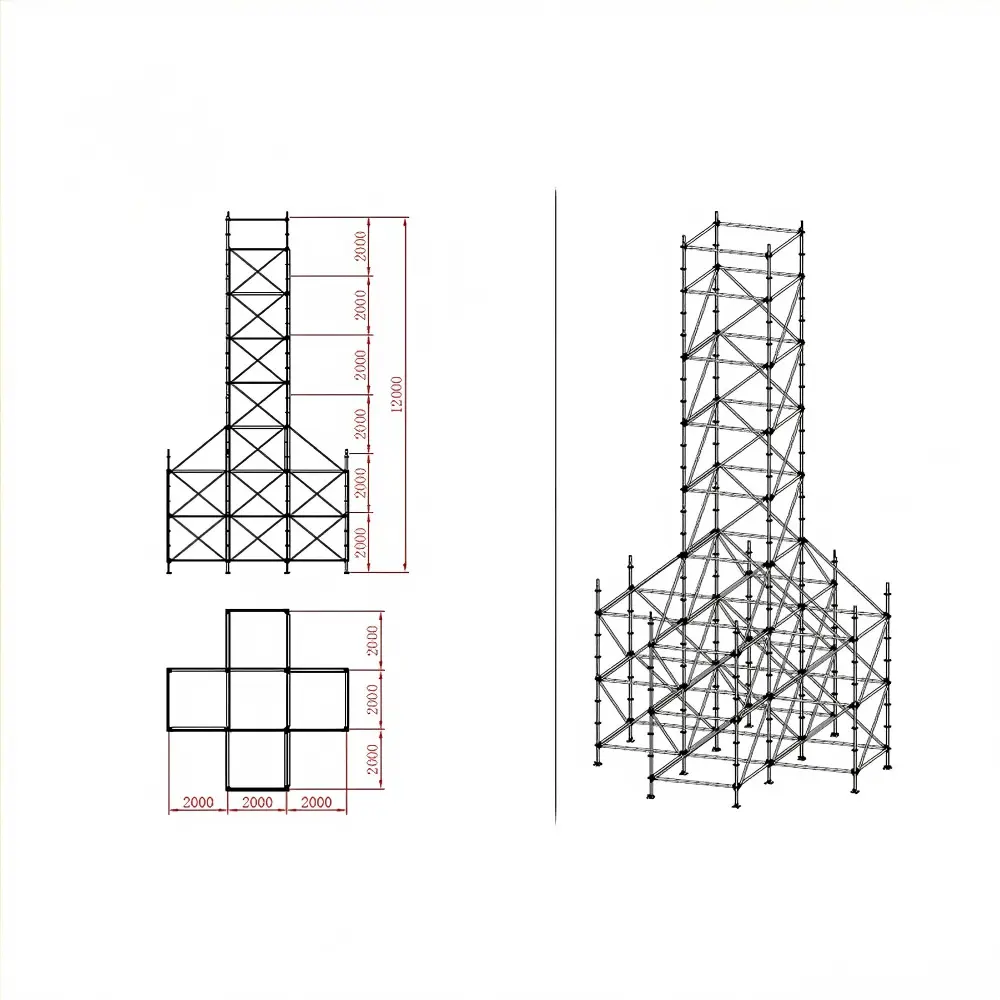

The supplied drawing shows a 12,000mm overall vertical dimension, divided into repeated 2,000mm Ringlock modules.

The lower expanded support section reaches approximately 4,000mm high, after which the narrower central tower continues upward.

The plan view uses repeated 2,000mm modules around the central structure.

Based on the supplied drawing and your confirmed project information:

The original product BOQ confirms the component and packing data.

4. The Most Important Structural Feature: Four 4m-High Buttress Bases

This is the section I would emphasize most strongly on DragonStructure.

The four lower structures should not be described as four additional line-array towers.

They are part of the same overall sound-support structure.

Their relationship is:

Central Tower

↔

Four Surrounding Buttress Structures

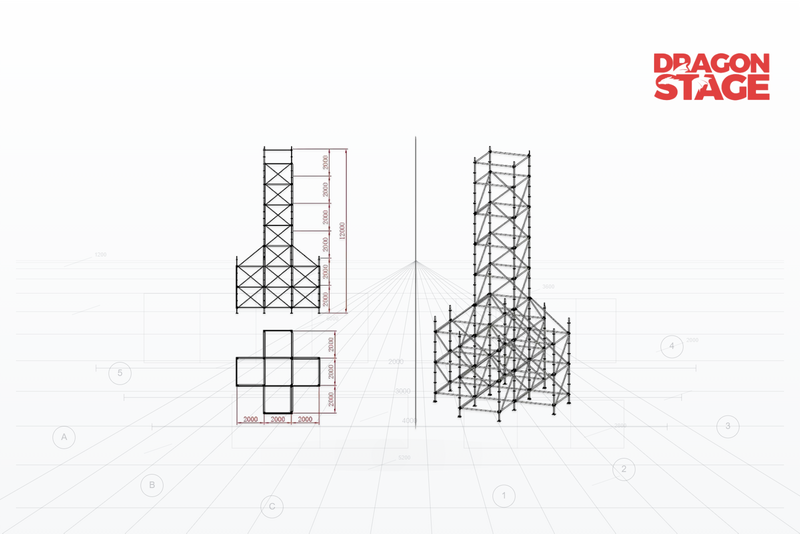

The plan drawing shows the lower structure expanding in four directions around the central tower.

Each direction uses approximately 2m Ringlock modules.

The resulting plan resembles a cross:

              BUTTRESS
                 │
                 │
BUTTRESS ── CENTRAL TOWER ── BUTTRESS
                 │
                 │
              BUTTRESS

Vertically, however, the geometry changes after approximately 4m:

0–4m:
Central Tower + Four Buttress Bases

4–12m:
Central Tower Continues Upward

That is the core structural breakdown of this product.

5. Why “Buttress Base” Is Better Than “Four Towers”

The terminology matters.

If we call these:

four auxiliary towers

a reader may reasonably imagine five separate towers:

1 main tower + 4 independent towers.

That is not what the drawing shows.

The lower modules are structurally integrated with the central Ringlock tower.

For DragonStructure, four 4m-high buttress bases or four surrounding braced support bases is therefore a more precise description.

This also creates a clear SEO/content distinction from your other Ringlock line-array tower products.

6. Central 12m Ringlock Tower

The central tower provides the primary vertical geometry.

The BOQ confirms:

40 × LR1 Ringlock Pillars, L = 2m.

The drawing shows the structure using repeated 2m vertical modules:

2m

↓

4m

↓

6m

↓

8m

↓

10m

↓

12m

The important point is that the tower does not maintain the same external width through all six vertical modules.

The first approximately 4m belongs to the expanded lower structural zone.

Above that level, the central tower continues upward on its own narrower plan.

7. Horizontal Ringlock Framework

The confirmed BOQ includes:

72 × LR2 Horizontal Pipes, L = 2m.

The 2m ledger is therefore one of the main dimensional modules throughout the structure.

These horizontal members connect the vertical standards and create the repeating Ringlock bays visible in the drawing.

In the lower section, those bays extend outward into the four buttress bases.

In the upper section, they continue within the narrower central tower.

This means the same modular Ringlock component system creates two different geometric zones:

Lower Zone

Wide, four-direction support geometry.

Upper Zone

Tall, compact vertical tower geometry.

This is a useful example of what modular Ringlock systems can do: the same standard components can be rearranged according to the structural function rather than forcing the whole tower to maintain one footprint.

8. Diagonal Bracing

The BOQ confirms:

60 × LR3 Diagonal Pipes, L = 2.44m.

The drawing shows extensive diagonal members in both:

• the 12m central tower;

• the 4m-high surrounding buttress zones.

At a structural-breakdown level, the configuration can be read as:

Standards

Ledgers

Diagonal Braces

=

Braced Ringlock Bays

The diagonals are particularly visually important in this structure because the four lower extensions are not simply empty 2m grids; they contain diagonal bracing integrated with the central tower.

However, this page should not convert the presence or quantity of braces into an unsupported claim about allowable lateral load or wind resistance.

9. Twelve Adjustable Base Positions

The BOQ contains:

12 × LR4 Adjustable Bases, H = 0.25m.

This is another clue that this structure is fundamentally different from a simple four-leg tower.

The expanded lower geometry creates multiple ground-interface positions around the central tower.

The adjustable bases provide the ground interface for the Ringlock standards in the supplied configuration.

Their confirmed height is:

0.25m / 250mm

but the BOQ does not establish project-specific:

• foundation requirements;

• ground-bearing capacity;

• allowable adjustment under load;

• ballast requirements;

• anchoring requirements.

These must remain separate from the structural breakdown.

10. Additional Steel Braces

The BOQ separately identifies:

2 × steel braces, L = 2m, H = 0.5m.

These should not be confused with the 60 standard Ringlock diagonal pipes.

They are a separate component group in the original package.

For DragonStructure, it is useful to preserve that distinction rather than merging every diagonal-looking component into one generic “brace” category.

11. Upper Line-Array Lifting Module

The top of the structure introduces another system.

The BOQ confirms:

• 1 × CS40 square aluminum truss, 389 × 389 × 2500mm

• 1 × Manual Hoist, T1

• 1 × Fibre Sling, T4

• 4 × Double Clamps

This means the tower is not purely a Ringlock frame.

Its primary structural body is steel Ringlock, while the upper equipment-support/lifting area integrates an aluminum truss component.

Conceptually:

Steel Ringlock Tower

↓

Upper Truss Interface

↓

389 × 389mm Aluminum Square Truss

↓

Fibre Sling / Manual Hoist

↓

Line-Array Equipment

This makes the upper section a functional interface between the Ringlock support structure and the sound-system lifting arrangement.

12. Why the 2.5m Aluminum Truss Matters

The aluminum truss is only one component in the entire BOQ, but functionally it is important.

Confirmed specification:

CS40 Square Truss

389 × 389mm section

2500mm length

Quantity: 1 pc.

The main tower provides the vertical structural framework.

The aluminum truss provides the upper interface associated with the speaker lifting arrangement.

Therefore the complete system is better understood as:

Ringlock Support Structure

Aluminum Lifting Member

rather than simply calling everything a “steel truss tower.”

This is another reason I would remove the word Truss from the main DragonStructure product name.

The primary tower itself is a Ringlock structure; the aluminum truss is an integrated upper component.

13. Manual Hoist and Fibre Sling

The original package includes:

1 × Manual Hoist T1

and

1 × Fibre Sling T4.

These components identify the intended function much more clearly than the Ringlock frame alone.

Without the sound/lifting equipment context, the steel structure could visually resemble a tall temporary scaffold tower.

With the upper truss, sling and hoist, its intended role becomes clear:

It is a dedicated event sound-support structure developed around a line-array lifting position.

However, the source does not provide a verified allowable suspended equipment weight.

Therefore, the presence of a hoist must not be translated into a claimed lifting capacity for the complete tower.

14. Structural Zoning

For practical understanding, the structure can be divided into three zones.

Zone A — Ground / Expanded Support Zone

Height: approximately 0–4m

Contains:

• central Ringlock tower;

• four surrounding buttress bases;

• horizontal ledgers;

• diagonal bracing;

• adjustable bases.

This is the widest part of the structure.

Zone B — Upper Central Tower

Height: approximately 4–12m

The four external buttress bases stop at approximately 4m.

The central Ringlock tower continues upward.

This creates the characteristic stepped profile visible in the elevation drawing.

Zone C — Sound Lifting Interface

At the upper tower area:

• aluminum square truss;

• double clamps;

• fibre sling;

• manual hoist

form the confirmed equipment-related module.

This three-zone explanation is much more useful on DragonStructure than simply listing the tower as “12m high.”

15. Structural / Functional Relationship

The structure can be understood through a simple functional hierarchy:

Central Ringlock Tower

Creates the required vertical framework.

Four 4m-High Buttress Bases

Expand the lower geometry around the central tower.

Ringlock Ledgers and Diagonals

Connect and brace the modular bays.

Adjustable Bases

Create the multiple ground-interface points.

Aluminum Square Truss

Creates the confirmed upper truss component for the sound-support arrangement.

Hoist + Fibre Sling

Provide the confirmed lifting-related equipment interface.

So the overall configuration is:

Expanded Ground Structure

→ 12m Vertical Tower

→ Upper Lifting Interface

→ Line Array Application

This describes the functional arrangement without pretending to provide a calculated structural load path.

16. Confirmed BOQ

Packing Weight: approximately 1500kg

Packing Volume: approximately 3CBM.

17. What the BOQ Tells Us About the Structure

The BOQ becomes much more meaningful when read together with the drawing.

40 × 2m Standards

These create both the tall central tower and the lower surrounding Ringlock structures.

72 × 2m Ledgers

These create the repeating horizontal 2m bay geometry.

60 × 2.44m Diagonals

The quantity shows that diagonal bracing is a substantial part of the supplied configuration rather than a minor accessory.

12 Adjustable Bases

The ground system has far more support positions than a simple four-corner tower.

One Aluminum Truss + One Hoist + One Sling

The top of the structure changes from a generic Ringlock framework into a specific sound-equipment support/lifting interface.

The BOQ therefore describes not just a tall scaffold, but a purpose-configured Ringlock sound-support structure.

18. Assembly Logic

At product-structure level, the practical assembly logic can be understood as follows:

1. Establish the complete ground layout, including the central tower and four buttress directions.

2. Position the confirmed adjustable-base locations according to the project drawing.

3. Assemble the first Ringlock standards and 2m horizontal ledgers.

4. Extend the lower bays outward in four directions.

5. Install the corresponding diagonal members through the central and surrounding lower zones.

6. Continue building the expanded lower structure to approximately 4m.

7. Above the 4m level, continue only the central tower upward.

8. Repeat the 2m modular tower levels until the approximately 12m overall height is reached.

9. Complete the upper Ringlock configuration.

10. Integrate the 2.5m CS40 aluminum square truss using the confirmed connection components.

11. Install the lifting-related equipment according to the finalized sound-system configuration.

12. Verify the final equipment, site and engineering requirements before use.

This is modular assembly logic, not a complete engineered erection procedure.

DragonStructure's Product Prompt specifically calls for explaining useful assembly logic while avoiding unsupported claims that the page is a complete engineered installation method.

19. Why This Structure Should Not Be Grouped with Every Line Array Tower

This is important for your DragonStructure product library.

If every sound tower is simply named:

• 6m Ringlock Sound Tower;

• 8m Ringlock Sound Tower;

• 10m Ringlock Sound Tower;

• 12m Ringlock Sound Tower;

• 16m Ringlock Sound Tower;

then the website gradually becomes another specification catalogue.

That is exactly what DragonStructure should avoid.

The real structural distinction here is:

How does the ground configuration change when the tower is no longer a narrow single tower?

This product gives a very clear answer:

The central tower reaches 12m, while four separate lower Ringlock buttress zones expand the structure in four directions and terminate at approximately 4m.

Therefore, the page's identity should be based on geometry and structural configuration, not merely height.

20. Difference from a Conventional Ringlock Line Array Tower

So this is not simply “another 12m line-array tower.”

Its lower support geometry is the product's defining feature.

21. Suitable Applications

This structural concept can be considered for project-specific applications such as:

• outdoor concert line-array support;

• festival PA support;

• temporary sound-system towers;

• concert speaker lifting positions;

• event sound-support structures requiring a tall central tower;

• projects where the lower structural footprint can accommodate four surrounding buttress zones.

The actual suitability depends on the speaker system, site, environment and verified project requirements.

22. Configuration Variables

A similar structure can change significantly according to the project.

Main Tower Height

This configuration uses a 12m central tower.

Changing tower height changes the Ringlock configuration and should not be treated as simple proportional scaling.

Buttress Height

This configuration uses four 4m-high buttress bases.

The relationship between tower height and surrounding support configuration is a project variable.

Buttress Geometry

The supplied drawing uses four directions around the main tower.

Another project should not automatically copy this geometry without confirming requirements.

Line Array Dimensions and Weight

The actual speaker system must be defined before finalizing a new structure.

Hanging / Lifting Position

The required speaker elevation and equipment arrangement affect the upper configuration.

Aluminum Truss

This package contains one 389 × 389 × 2500mm square truss.

Different sound-support arrangements may require a different interface.

Site Conditions

Indoor/outdoor environment, available footprint and ground/site conditions all need to be known before adapting the structure.

23. Information Needed for a Similar Sound Support Structure

For a new structural proposal, provide:

• required line-array elevation;

• line-array brand/model;

• complete array dimensions;

• total suspended equipment weight;

• number of speaker cabinets;

• proposed lifting method;

• required main tower height;

• available ground footprint;

• preferred or existing Ringlock module sizes;

• existing Ringlock inventory, if reuse is intended;

• site drawing;

• tower position relative to the stage;

• indoor/outdoor use;

• site/ground information;

• photos or equipment drawings.

For this type of structure, speaker weight is especially important.

A photograph saying “I need a 12m speaker tower” is not enough information to verify whether an existing configuration can simply be reused.

24. Engineering / Verification Boundary

Confirmed Facts

From the supplied drawing, your project information and original BOQ:

• primary application is sound speaker / line array;

• main tower height is 12m;

• four additional buttress bases surround the main tower;

• each buttress base is 4m high;

• the drawing uses repeated 2m Ringlock modules;

• 72 × 2m horizontal pipes;

• 60 × 2.44m diagonal pipes;

• 40 × 2m Ringlock pillars;

• 12 × 0.25m adjustable bases;

• 2 steel braces;

• 1 manual hoist;

• 1 fibre sling;

• 1 × 389×389×2500mm CS40 square truss;

• 4 double clamps;

• packing weight approximately 1500kg;

• packing volume approximately 3CBM.

Experience-Based Structural Interpretation

Based on the supplied geometry and normal modular Ringlock structural interpretation:

• the lower 4m should be understood as an expanded support zone rather than five independent towers;

• the four surrounding modules are better described as buttress bases/support structures;

• the structure changes from a broad lower footprint to a narrower central tower above 4m;

• the aluminum truss, hoist and sling form the sound/lifting-related upper interface;

• the four-direction base arrangement is the main feature distinguishing this structure from a conventional narrow line-array tower.

These are structural interpretations of the supplied configuration, not formal engineering calculations.

Not Established by the Supplied Information

The source does not establish:

• allowable suspended line-array weight;

• maximum number of speaker cabinets;

• allowable hoist load for the complete assembled structure;

• allowable truss load in this integrated configuration;

• allowable point load;

• wind rating;

• operating wind speed;

• ballast requirement;

• anchoring requirement;

• foundation requirement;

• ground-bearing requirement;

• safety factor;

• certification;

• code compliance;

• engineering approval.

Those require project-specific verification.

The DragonStructure rules explicitly require confirmed facts, experience-based judgment and verified engineering conclusions to remain separate.

25. Related DragonStructure Pages

Sound Support Structure

https://www.dragonstructure.com/Sound-Support-Structure-pl08155276.html

This should be the primary internal link. The registered Internal Link Library specifically says to use it for sound-support structures, PA towers, line-array support and Ringlock sound towers, while not inferring project-specific load suitability without verification.

Ringlock Structure

https://www.dragonstructure.com/Ringlock-Structure-pl04775276.html

This is the broader Ringlock structural-system path. The registered library identifies it for DragonStructure Ringlock structures including sound-support applications.

26. Original DragonTruss Product

Original Product Name:
12m Steel Scaffolding Ringlock Truss for Sound Speaker Line Array

Original Product URL:
https://www.dragontruss.com/12m-Steel-Scaffolding-Ringlock-Truss-for-Sound-Speaker-Line-Array-pd506175548.html

The original DragonTruss page provides the commercial product identity, BOQ and packing information.

The two pages should intentionally answer different questions.

DragonTruss

What 12m steel Ringlock speaker-support package can DragonStage manufacture and supply?

DragonStructure

How is a 12m line-array tower configured around a central vertical tower and four 4m-high surrounding Ringlock buttress bases?

This is exactly the distinction required by the DragonStructure Product Prompt: the page should explain what the complete structure is and how it is configured, rather than reproduce a conventional manufacturer product page.

FAQ

Why does this 12m sound tower have four additional 4m-high structures around the base?

They are part of the lower Ringlock configuration surrounding the central tower. They expand the structure in four directions and terminate at approximately 4m, while the central tower continues to 12m. Their presence should not be interpreted as four additional speaker towers.

Are the four surrounding structures outriggers?

I would not use outrigger as the primary product term. They are substantial 4m-high Ringlock braced structures rather than simple projecting outrigger members. Buttress bases or surrounding braced support bases describes the geometry more accurately.

Are there five towers in total?

Not in the way the structure should be understood. There is one 12m central sound tower, with four integrated 4m-high surrounding buttress bases.

Why is the lower structure wider than the upper tower?

Structurally, that is the confirmed geometry of this configuration. The supplied material does not contain engineering calculations establishing the exact design basis, so the page should describe the geometry rather than claim a calculated reason for the dimensions.

Is the tower made entirely from steel Ringlock?

The primary tower and surrounding structure are Ringlock. The BOQ also includes one 389×389×2500mm aluminum square truss at the equipment-support/lifting interface.

Does the package include lifting equipment?

Yes. The confirmed BOQ includes one manual hoist and one fibre sling, together with the aluminum square truss and four double clamps.

How much line-array equipment can this tower support?

The supplied information does not provide a verified allowable suspended load for the complete structure. The actual line-array model, cabinet quantity, total weight, hanging arrangement, site and structural requirements must be confirmed before making such a claim.

Can the same BOQ be used for a different 12m speaker tower?

Not automatically. A 12m tower with a conventional footprint is structurally different from this 12m central tower + four 4m buttress bases configuration. Height alone is not enough to determine the BOQ.

Structure Classification

Short Description

A 12m-high Ringlock line-array support tower distinguished by four integrated 4m-high buttress bases extending around the lower section of the central tower. The confirmed configuration uses 2m Ringlock standards and ledgers, extensive diagonal bracing, 12 adjustable ground interfaces, and an upper 389×389mm aluminum truss module with manual hoist and fibre sling for the sound-system lifting arrangement. Unlike a conventional narrow line-array tower, its defining feature is the transition from a broad four-direction lower support zone to a narrower 12m central tower above.
