1. What Is This Structure?

This structure is best understood as:

a mobile elevated access and working tower used during outdoor event tent roof installation.

There are two different structures involved.

Structure Being Installed

Event Tent / Event Roof Structure

Temporary Installation Structure

5.68m Mobile Aluminum Scaffold Tower

The second structure exists so installers can reach the first.

That distinction is important because the tower should not be described as an event-tent roof column or permanent tent support.

Its primary role is:

installation access.

2. Why Is Elevated Access Needed for Event Tent Roof Work?

During tent or temporary roof installation, some work positions move above normal ground-level reach.

Depending on the actual tent system, installers may need access for activities such as:

• connecting elevated roof members;

• adjusting roof-frame components;

• working around roof-cover positions;

• checking connections;

• carrying out fixing or finishing work;

• reaching roof members for later maintenance.

The scaffold tower creates a working position close to those elevated areas.

This is different from using only a ladder.

A ladder mainly solves:

How do I reach the height?

This tower solves:

How do I reach the height and have a temporary platform from which to work?

3. Overall Configuration

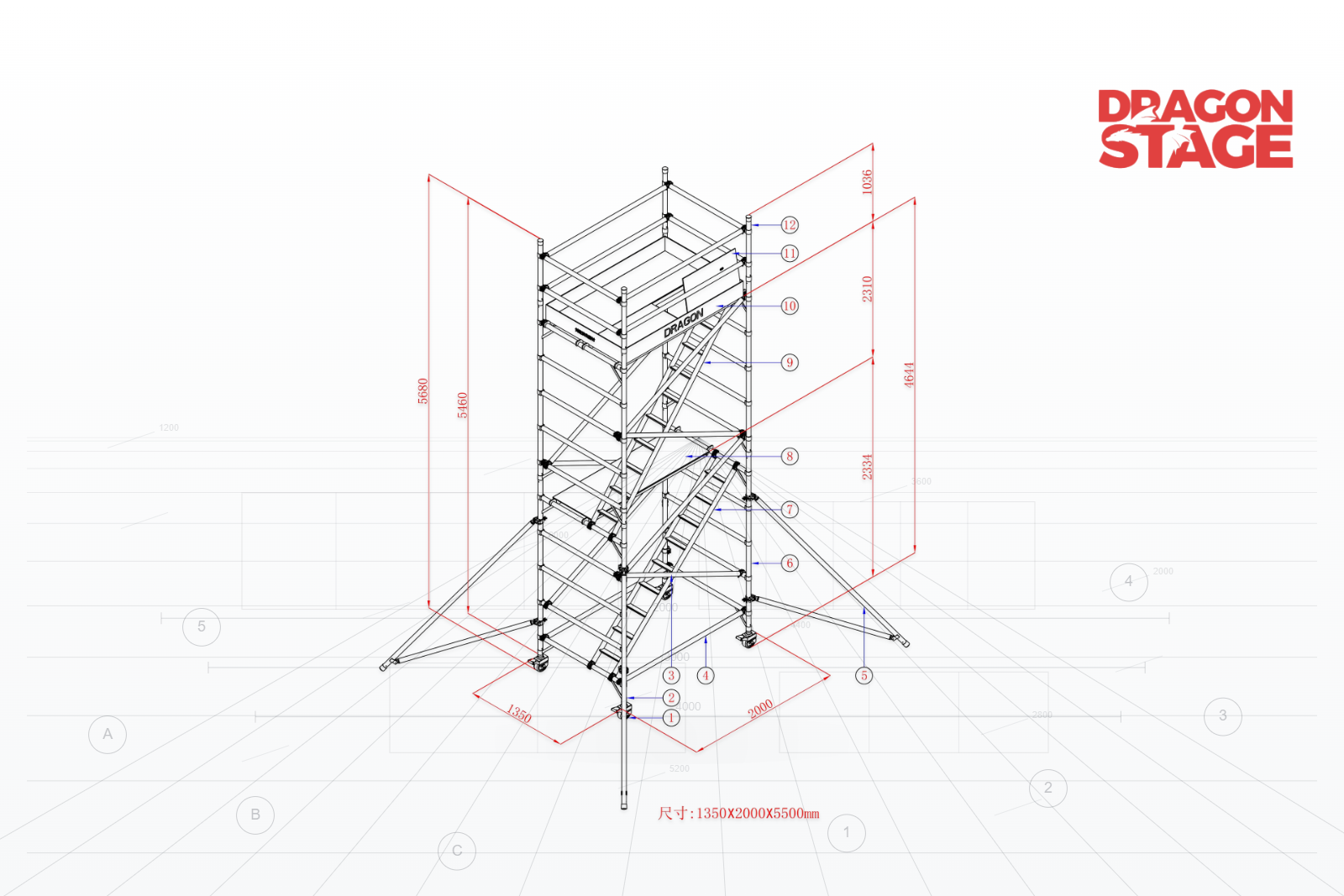

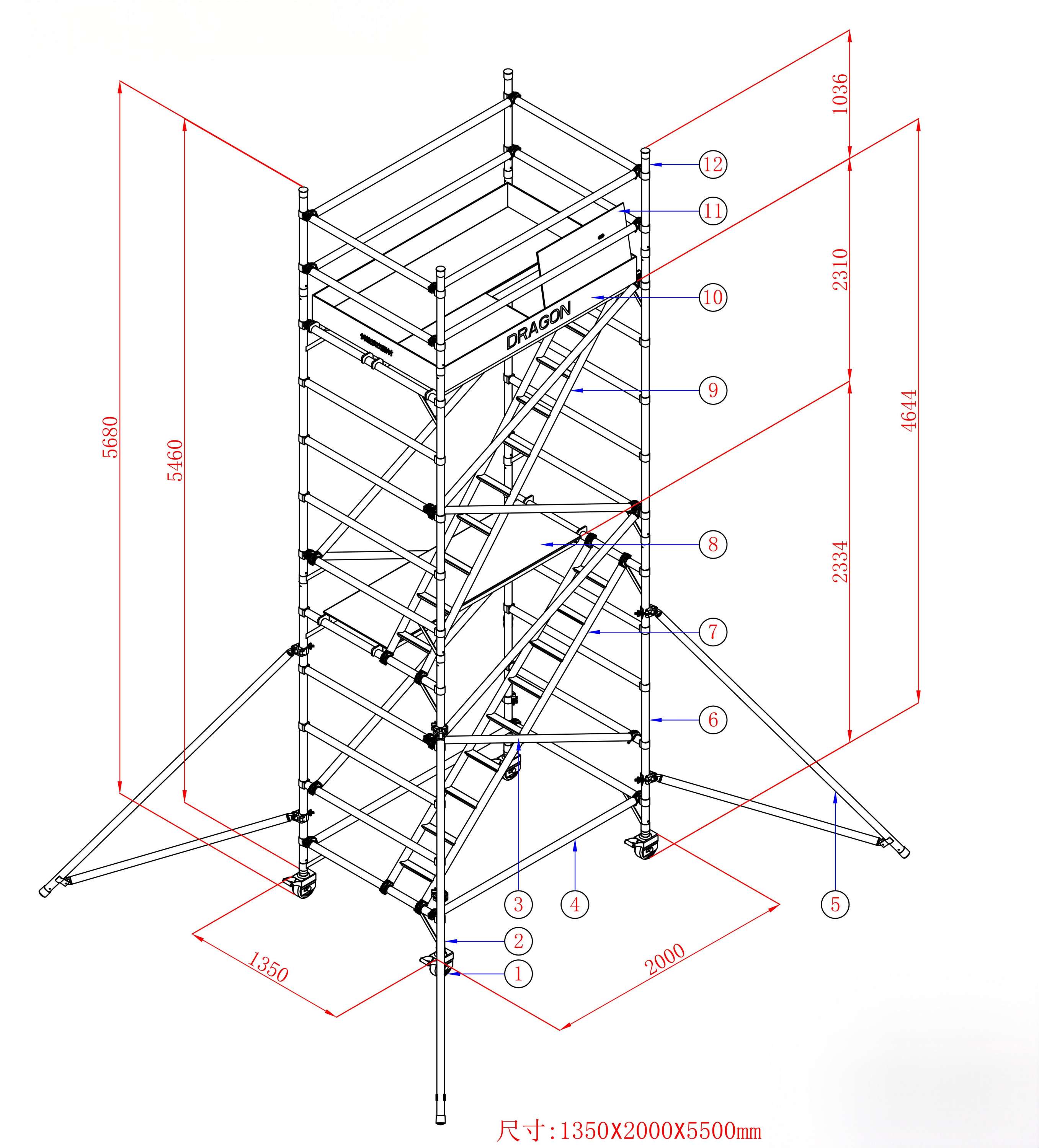

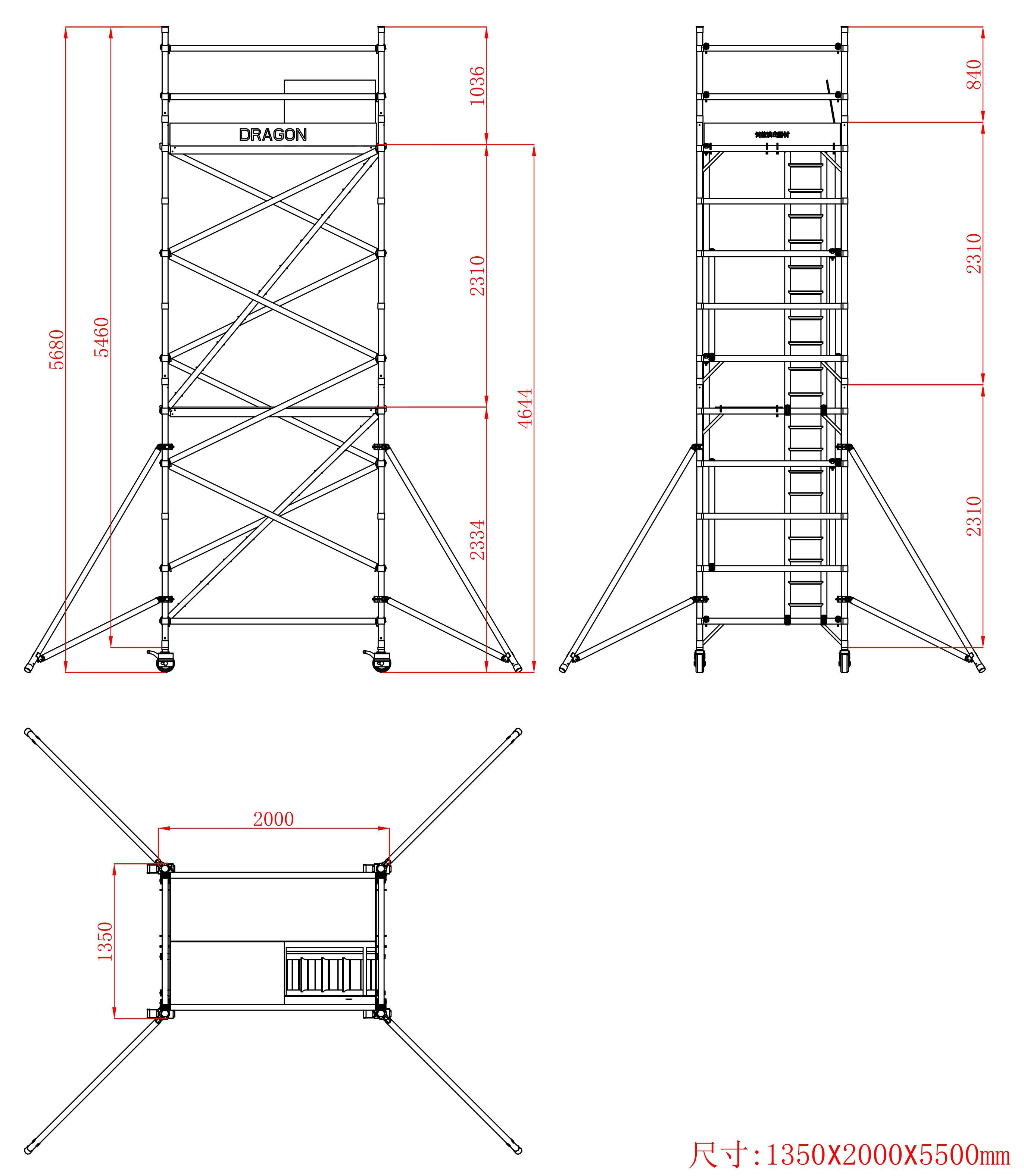

The original DragonTruss commercial product identifies this configuration as:

1.35 × 2 × 5.68m Portable Double Scaffolding

The BOQ confirms a 1.35m-wide modular aluminum frame system, using four 5-rung frames as the primary tower modules.

The complete tower consists of:

4 × 5-rung frames

horizontal and diagonal bracing

2 × 45° stair flights

3 platform components

guardrail + toe board

4 mobile caster bases

4 × 3m outriggers

This produces a double-width mobile work tower rather than a narrow ladder scaffold.

4. Main Scaffold Frame System

The confirmed main tower module is:

5-Rung Frame

Size: 1.35 × 2.31m
Quantity: 4 pcs

The four frames form the primary side structures of the tower.

Because the configuration uses matching frame modules on both sides, they can be stacked vertically to establish the tower height while also creating connection positions for:

• horizontal bars;

• diagonal braces;

• stair flights;

• platforms;

• upper guardrail members.

The BOQ also lists 4-rung and 3-rung frames as possible component types, but no quantities are assigned to them in this specific configuration.

Therefore they should not be included in the confirmed 5.68m BOQ.

5. Why Four 2.31m Frames Do Not Mean a 9.24m Tower

The BOQ contains:

4 × 2.31m frames

but these four frames do not stack into one single vertical line.

They form two sides of the double-width tower.

Conceptually:

Left Side:
2.31m frame + 2.31m frame

Right Side:
2.31m frame + 2.31m frame

The upper work/guardrail configuration then creates the final commercial tower height identified by the original product as approximately 5.68m.

This is an important example of why component quantity should not be converted directly into overall height without understanding how the modules are arranged.

6. Double-Width Working Tower

The main frame width is:

1.35m

and the original product identifies the tower footprint as approximately:

1.35 × 2m.

This double-width arrangement gives the tower enough internal space to integrate:

• stair flights;

• working/access platforms;

• vertical circulation;

• an upper work area.

Functionally, this makes it more than a climbing tower.

It becomes a compact temporary workspace at height.

7. Diagonal Bracing System

The confirmed BOQ contains:

Diagonal Bar SD1

Quantity: 8 pcs

The diagonal members connect different points of the scaffold frame and form the visible braced geometry of the tower.

The practical relationship is:

Vertical Frames

Horizontal Bars

Diagonal Bars

=

Connected Three-Dimensional Tower

This is a description of the confirmed component arrangement, not a calculated stiffness, capacity or stability conclusion.

8. Horizontal Bar System

The confirmed configuration contains:

Horizontal Bar SD2

Quantity: 6 pcs

These members connect the scaffold frames horizontally and help establish selected tower levels.

At a structural-breakdown level:

Frames create height

Horizontal bars connect the tower geometry

Diagonal bars create braced bays

Platforms create usable working surfaces

The tower only functions as a complete access structure when these component groups work together.

9. 45° Internal Stair Access

The BOQ confirms:

6-Rung 45° Stair

Quantity: 2 pcs

This is one of the defining features of the product.

Instead of using only a vertical climbing ladder, installers can move through the tower using inclined stair flights.

The access logic becomes:

Ground Level

↓

First 45° Stair

↓

Intermediate Platform

↓

Second 45° Stair

↓

Upper Working Platform

This creates a clearer internal circulation route through the elevated structure.

The original component table also lists 5-rung and 4-rung 45° stairs, but no quantities are assigned to them, so they are not confirmed parts of this specific configuration.

10. Multiple Platform Levels

The BOQ confirms three platform components:

These platforms perform different functional roles within the tower.

They can create:

• stair transfer positions;

• intermediate standing areas;

• upper working levels.

The tower should therefore not be thought of as:

ground → one long stair → top

but rather as:

stair → platform → stair → platform → work area.

That stepped access logic is one of the main advantages of the tower for repeated installation work.

11. Trap-Door Platform

The confirmed configuration contains:

1 × Trap-Door Platform SD7

The trap-door platform works together with the vertical access arrangement.

Rather than blocking the access path at a platform level, the opening allows the installer to transition between:

stair / climbing route

and:

working platform.

It therefore belongs to both:

access

and:

working-area

functions within the tower.

12. Upper Working Platform

At the upper part of the scaffold, the platform gives installers a temporary elevated work zone from which roof-related installation work can be carried out.

This is the functional heart of the structure.

The tower is not valuable simply because it reaches approximately 5.68m overall.

It is valuable because it creates a usable technician position below that overall height.

This distinction matters:

Overall tower height is not automatically the same as technician standing height.

For another event tent, the correct configuration should be selected according to the actual working position required.

For related elevated work structures, see Working Platform Structure. The Dragon Internal Link Library specifically identifies this category for temporary installation and maintenance work platforms.

13. Guardrail and Toe Board

The confirmed BOQ includes:

Guardrail SD9

Quantity: 2 pcs

Toe Board SD7

Quantity: 1 pc

These components complete the upper working-area configuration.

Conceptually:

Platform

Guardrails

Toe Board

=

Defined Elevated Work Zone

Their presence is a confirmed product fact.

However, the BOQ itself does not establish compliance with any particular local working-at-height code or project-specific safety requirement.

Those items require separate verification where applicable.

14. Mobile Caster Base

The tower uses:

6-Inch Wheel with Adjustable Leg

Quantity: 4 pcs

This gives the structure two useful characteristics:

Mobility

The tower can be repositioned when appropriate during the installation process.

Base Adjustment

The adjustable-leg component provides setup adjustment at the lower support points.

The caster arrangement is especially useful when roof work progresses from one part of a temporary tent structure to another.

But mobility should be understood as a relocation function.

It should not be interpreted as meaning the tower is intended to move while occupied at height.

15. Four 3m Long Outriggers

The BOQ confirms:

Long Outrigger / Supporter

Length: 3m
Quantity: 4 sets

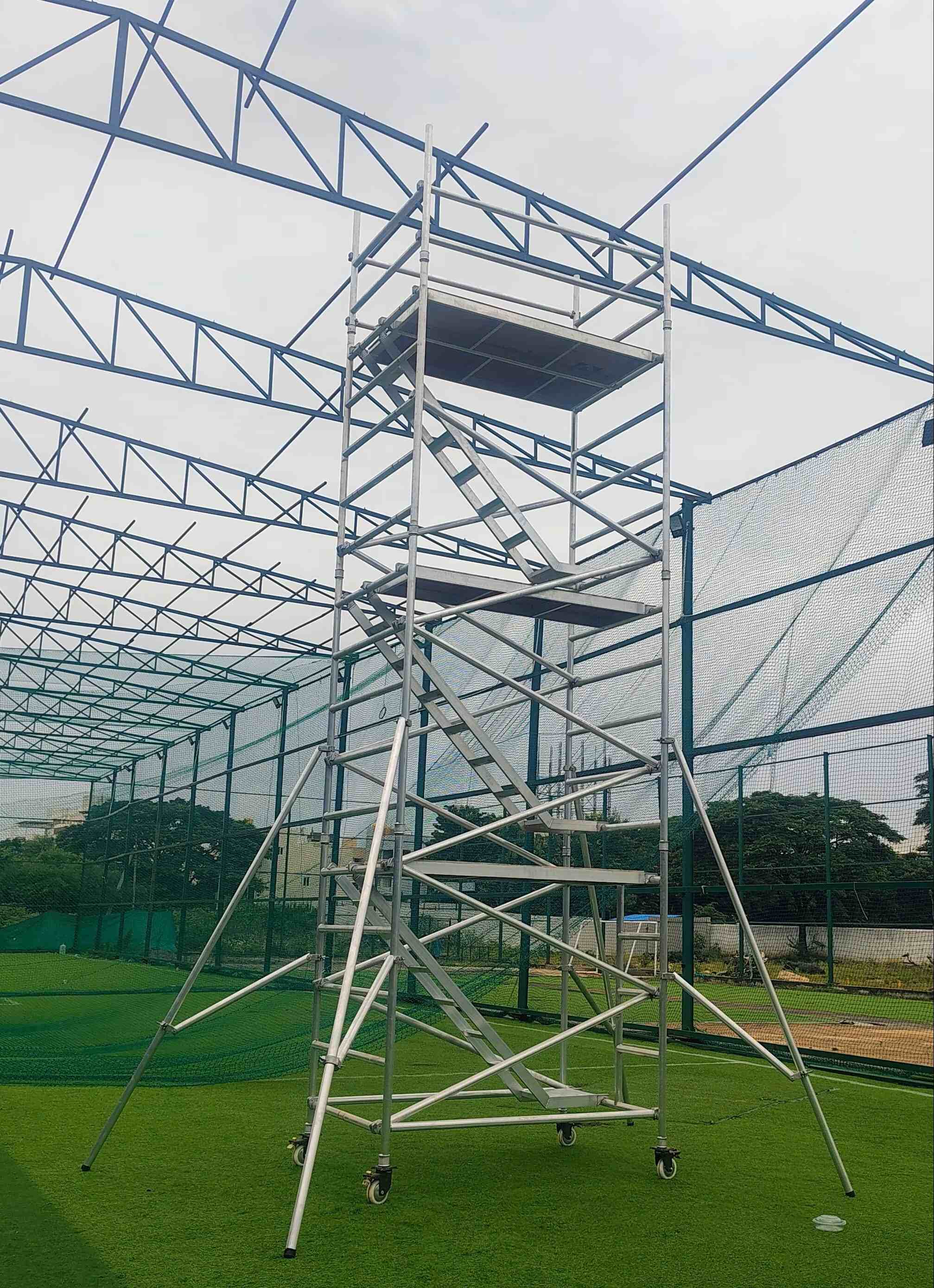

The supplied project photo shows the same general configuration clearly: the narrow vertical tower is surrounded by long outward supports at ground level.

This means there are two different dimensions to consider:

Central Tower Footprint

Approximately:

1.35 × 2m

Installed Support Envelope

Larger because of the four extended outriggers.

This distinction is important when using the tower beside:

• tent frames;

• sports-event structures;

• seating areas;

• stage wings;

• temporary fencing;

• narrow event-service zones.

Enough space must exist for the complete installed tower, not just the 1.35 × 2m central frame.

16. Why Casters and Outriggers Appear in the Same Structure

At first glance, wheels and long supports seem contradictory.

But they solve different operating requirements.

Caster Wheels

Solve:

How can the tower be relocated?

Outriggers

Form part of:

How is the tower configured when positioned for elevated work?

So the structure can be understood through two operational states.

Relocation

Caster Base → Move Tower

Working Position

Tower + Outrigger Arrangement → Elevated Access

The exact transition between these states should follow the relevant equipment/site procedures rather than assumptions made from this product page.

17. How the Tower Works with an Event Tent Roof

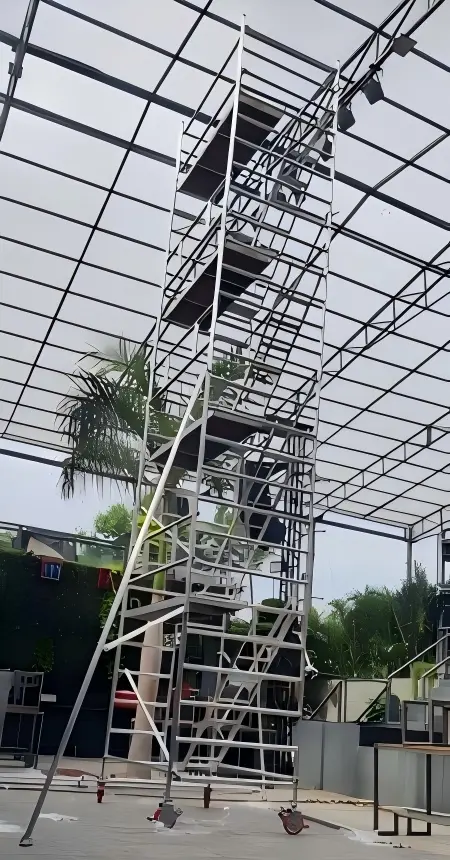

The supplied photograph shows a mobile aluminum scaffold tower used within a larger outdoor framed event/sports structure.

The important relationship is:

Large Roof / Tent Framework

and

Smaller Mobile Installation Tower

remain structurally separate.

The scaffold can be positioned where installers need access to the upper frame.

Once work at that location is complete, the tower can be repositioned when appropriate.

Conceptually:

Position Tower

↓

Configure Base / Outriggers

↓

Climb Through Internal Stairs

↓

Reach Required Working Platform

↓

Perform Roof Installation / Fixing Work

↓

Return to Ground

↓

Prepare Tower for Relocation

↓

Continue at Another Roof Position

This describes practical installation logic only and is not a complete engineered erection procedure.

18. Why the Tower Should Not Be Called a Tent Roof Support

This distinction is worth stating clearly.

Because the scaffold may physically stand directly beneath the event tent roof, a photo can make it look like part of the roof-support structure.

That is not how this DragonStructure product is being defined.

The tower's function is:

temporary worker access and elevated working position during installation or fixing work.

Therefore I would avoid product names such as:

Tent Roof Support Tower

or:

Scaffold Roof Support Structure

Those names suggest a permanent support role.

The correct structural description is:

Event Tent Roof Installation Access Tower.

19. Why 5.68m Overall Height Does Not Mean a 5.68m Working Height

The original DragonTruss commercial product uses the 5.68m model designation.

But for DragonStructure, the more useful question is:

At what elevation does the installer actually stand?

The overall scaffold tower includes:

• lower support/base;

• frame modules;

• platform system;

• vertical posts continuing above the working deck;

• guardrail zone.

Therefore the worker's standing level is below the tower's maximum overall dimension.

For another project, choosing the correct tower should be based primarily on:

required technician standing height

and:

target roof connection height

rather than simply matching the nominal roof height.

20. Confirmed BOQ

Listed but Not Included in the Confirmed Quantity

The original component table also lists:

• 4-rung frame — 1.35 × 1.848m;

• 3-rung frame — 1.35 × 1.386m;

• 5-rung 45° stair;

• 4-rung 45° stair.

No quantity is assigned to these items in this particular configuration.

They should therefore not be counted in the confirmed 5.68m BOQ.

This treatment follows the DragonStructure rule that a confirmed BOQ should be presented clearly while missing quantities must not be invented.

21. Assembly Logic

At structural-product level, the system can be understood through the following modular sequence.

Step 1 — Establish the Mobile Base

Install the caster / adjustable-leg assemblies and lower frame positions.

Step 2 — Connect the Lower Frames

Use the horizontal and diagonal members to form the lower scaffold bays.

Step 3 — Install the First Stair and Platform Level

Create the first internal access section and transfer position.

Step 4 — Continue the Upper Frame Modules

Stack the next pair of 5-rung frames and complete the corresponding bracing.

Step 5 — Install the Second Stair

Continue the internal access route toward the upper work level.

Step 6 — Install the Upper Platform System

Complete the upper working platform, trap-door relationship and platform arrangement.

Step 7 — Install Guardrails and Toe Board

Finish the defined upper work zone.

Step 8 — Configure the Four Outriggers

Deploy the 3m long support members according to the intended installed configuration.

Step 9 — Position Relative to the Tent Roof Work Zone

The tower can then be used as temporary elevated access according to the project installation plan.

This is a modular configuration sequence, not a substitute for the manufacturer's installation manual or a project-specific safe-work method.

22. Why This Is Useful for Event Tent Installation

Event tent installation creates a particular access problem.

The roof framework can extend across a wide area, but installers do not necessarily need a full scaffold platform under the complete roof.

A mobile tower provides another option:

bring the working platform to the part of the roof where the installer currently needs it.

This can make the structure useful for repeated tasks around:

• roof-member connections;

• cover fixing points;

• local roof adjustments;

• inspection;

• later maintenance.

This is practical system reasoning, not a claim that one mobile tower is always sufficient for every tent erection method.

23. Comparison with the Other Mobile Access Towers

This product now helps create a very clear DragonStructure Mobile Access Structure family.

The hardware families may be similar, but the structural pages answer different installation questions.

That is exactly what DragonStructure should do: classify by the function and search intent, not merely repeat the physical scaffold product. The Product Prompt explicitly requires classification by what the complete structure is designed to do.

24. Mobile Access Structure vs. Working Platform Structure

This configuration overlaps two DragonStructure categories.

Primary Category — Mobile Access Structure

https://www.dragonstructure.com/Mobile-Access-Structure-pl07055276.html

This is the strongest classification because the complete tower is designed to be repositionable and to bring installers to elevated work positions. The Internal Link Library defines this category for mobile access towers and movable work structures.

Secondary Function — Working Platform Structure

https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

The multiple decks create temporary working areas for installation and maintenance.

The internal stairs are important, but the product should not primarily be classified as Stair & Walkway Structure because the stair is an access module inside a larger mobile working tower.

25. Suitable Applications

This type of mobile access structure can be considered for temporary elevated work such as:

• outdoor event tent roof installation;

• event tent roof-cover fixing;

• tent-frame connection work;

• temporary event roof maintenance;

• roof inspection;

• temporary lighting-frame installation;

• outdoor event-structure installation;

• elevated technical maintenance;

• temporary event infrastructure work.

The correct tower height and platform arrangement should be selected according to the actual work position.

26. What Changes When the Required Work Height Changes?

The 5.68m tower is one confirmed configuration.

Another project may require:

• fewer frame modules;

• different frame-height combinations;

• different stair modules;

• different platform elevations;

• another guardrail arrangement;

• different outrigger configuration.

The important planning sequence is:

Roof Work Position

→ Required Technician Standing Height

→ Tower Height

→ Frame Combination

→ Stair Configuration

→ Platform Levels

→ Base / Outrigger Arrangement

This is more useful than choosing a tower simply because its commercial model name contains a similar height.

27. What Changes When Ground Space Is Limited?

The central tower is relatively compact, but the four 3m outriggers substantially increase the installed support envelope.

For outdoor event sites, nearby obstacles may include:

• tent columns;

• truss bases;

• audience fencing;

• sports-field fencing;

• stage structures;

• equipment cases;

• cable routes;

• seating;

• existing buildings.

Therefore the practical question is not merely:

“Do we have space for a 1.35 × 2m tower?”

but:

“Do we have space for the complete tower plus its installed outrigger arrangement?”

That can materially affect whether this configuration is suitable for a particular work position.

28. Original DragonTruss Product

The original commercial product is:

1.35x2x5.68M Portable Double Scaffolding with Climbing Ladder

Original product URL:

https://www.dragontruss.com/1-35x2x5-68M-Portable-Double-Scaffolding-with-Climbing-Ladder-pd45642041.html

The DragonTruss page answers the commercial product question:

What portable aluminum scaffold system can be manufactured and supplied?

The DragonStructure page answers a different question:

How can this 5.68m mobile scaffold be configured and understood as an installation-access structure for outdoor event tent roof work?

That preserves the three-site content boundary defined in the DragonStructure Master Rules.

29. Engineering and Verification Boundary

Confirmed Facts

The supplied BOQ and project image confirm:

• 5.68m-class original commercial scaffold model;

• 1.35m-wide 5-rung frames;

• four 2.31m-high 5-rung frame components;

• eight diagonal bars;

• six horizontal bars;

• four 6-inch caster / adjustable-leg units;

• two 6-rung 45° stairs;

• one trap-door platform;

• two standard platforms;

• two guardrails;

• one toe board;

• four 3m long outriggers;

• outdoor event/tent-roof installation application.

Not Verified by the Supplied Material

The supplied information does not establish:

• maximum platform load;

• maximum number of workers;

• allowable caster load;

• allowable outrigger reaction;

• maximum permitted tower height for another configuration;

• wind rating;

• allowable operating wind speed;

• ballast requirements;

• ground-bearing requirements;

• overturning resistance;

• safety factor;

• certification;

• local-code compliance;

• engineering approval.

These values should not be inferred from the photo, BOQ or commercial height designation.

The DragonStructure Master Rules specifically require practical experience and confirmed configuration facts to remain separate from verified engineering conclusions.

30. Information Needed to Adapt This Tower

For another event tent or temporary roof project, provide:

• tent / roof type;

• overall roof dimensions;

• roof connection height;

• required technician working height;

• available floor/ground footprint;

• indoor or outdoor use;

• required number of working levels;

• preferred access arrangement;

• site photos;

• tent or roof drawings;

• ground-surface information;

• nearby obstacles;

• existing scaffold components, if reuse is intended;

• project location and relevant site requirements.

The configuration can then follow:

Tent Roof Geometry

→ Installation Position

→ Working Height

→ Tower Height

→ Frame Combination

→ Stair Layout

→ Platform Layout

→ Caster / Outrigger Configuration

→ Final Mobile Access Structure

Structure Classification

Product Type: Mobile Aluminum Scaffold Access Tower
Recommended DragonStructure Name: 5.68m Mobile Scaffold Access Tower for Outdoor Event Tent Roof Installation & Fixing
Primary Function: Temporary Elevated Installation Access
Primary Category: Mobile Access Structure
Secondary Function: Working Platform Structure
Application: Outdoor Event Tent Roof Installation / Fixing
Original Commercial Model: 1.35 × 2 × 5.68m Portable Double Scaffolding
Main Frame Module: 1.35 × 2.31m 5-Rung Frame
Main Frame Quantity: 4 pcs
Access: 2 × 6-Rung 45° Stairs
Platforms: 2 Standard + 1 Trap-Door Platform
Mobility: 4 × 6-Inch Adjustable Caster Units
Outriggers: 4 × 3m Long Supporters
Guardrails: 2 pcs
Toe Board: 1 pc
Core Structural Logic: Mobile Base → Outriggers → Braced Double-Width Frames → 45° Stairs → Intermediate Platforms → Upper Working Platform → Event Tent Roof Work Position

Short Description

5.68m mobile aluminum scaffold access tower with 45° stair access, multiple working platforms, guardrails, adjustable caster wheels and four 3m outriggers, configured for outdoor event tent roof installation, fixing and elevated maintenance work.
