1. Structural Function

The primary function of this structure is not simply to support 34 chairs.

It creates an elevated, tiered audience viewing area.

The difference matters.

If 34 seats were simply placed on level ground, the product would mainly be a seating arrangement.

Here, the Ringlock structure creates several progressively higher seating positions between the confirmed 0.3m front level and 1.2m rear level.

The complete product is therefore a structural system consisting of:

**seating

• elevation

• platform

• circulation surface

• edge protection**

This makes it a typical DragonStructure Ringlock Structure application.

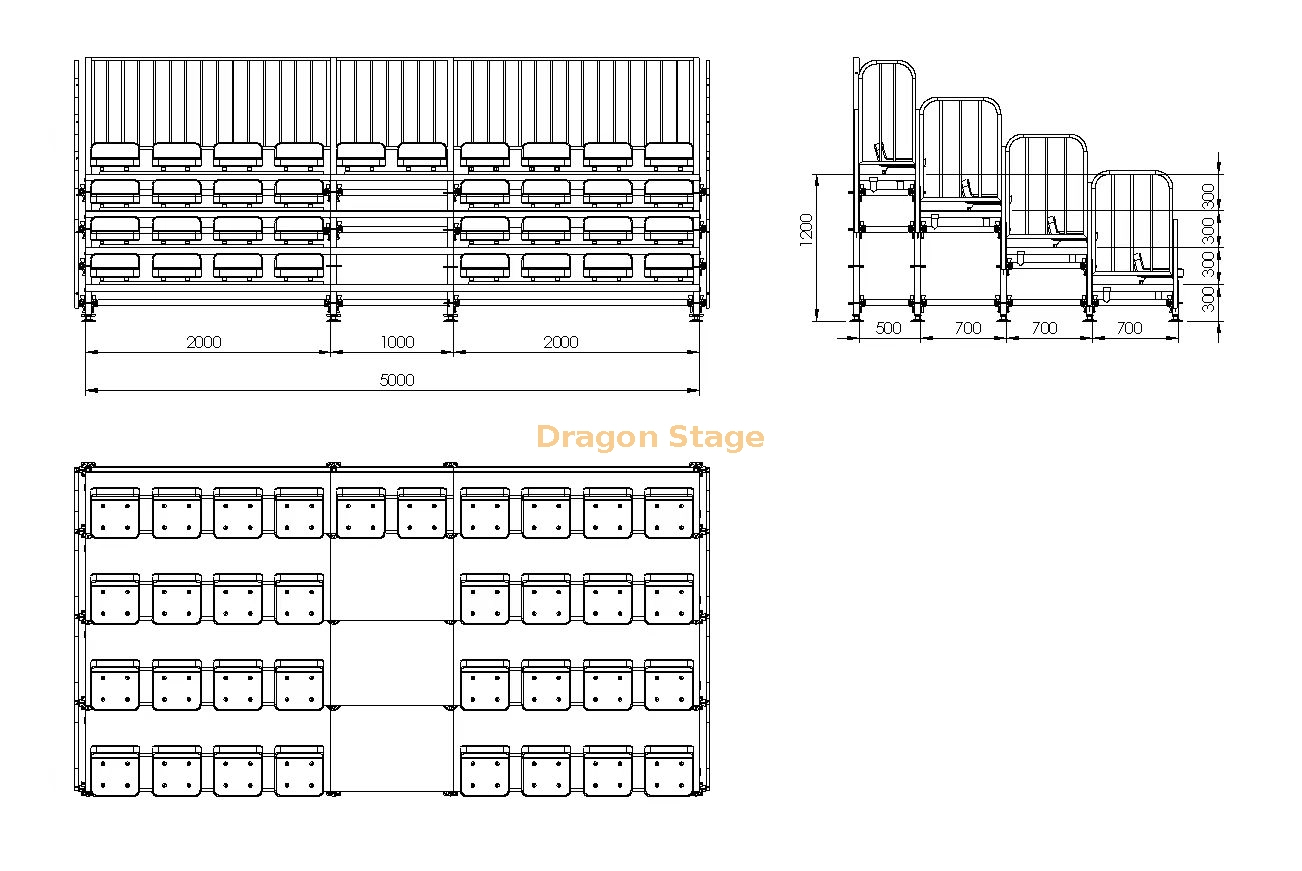

2. Overall Configuration

The most important geometric feature is the change in elevation from 0.3m to 1.2m.

Instead of building the complete 2.6m depth at one level, the structure uses different platform elevations to create a compact stepped grandstand.

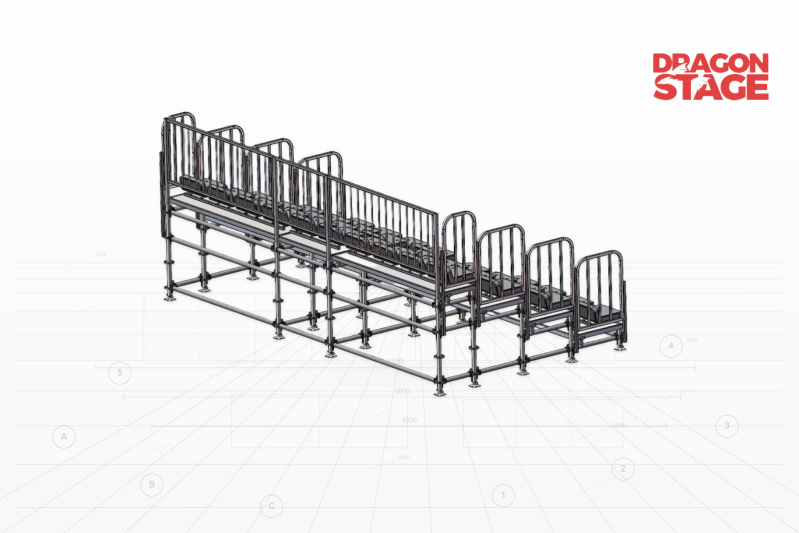

3. Main Structural Modules

The complete seating stand can be divided into five functional modules.

Module 1 — Ringlock Base and Support Structure

The Ringlock framework forms the supporting skeleton beneath the seating area.

Typical Ringlock structural logic uses combinations of:

• vertical standards;

• horizontal ledgers;

• diagonal bracing;

• base support components;

• platform-support members.

The supplied product page does not provide a detailed component BOQ, so exact quantities should not be assumed from this page.

What can be confirmed is that Ringlock is the main structural system supporting the stepped seating platform.

4. Stepped Seating Platform

The key structural feature is the gradual increase in platform level.

The front begins at approximately:

0.3m

while the highest rear position reaches approximately:

1.2m.

This produces a total confirmed elevation difference of:

0.9m

across the seating depth.

That does not mean every seating tier rises by a specific fixed amount—the source does not provide individual tier heights.

What it does confirm is the overall stepped arrangement:

Lower Front Seating
→ Intermediate Seating Levels
→ Higher Rear Seating

This stepped geometry is fundamental to the structure.

A Ringlock grandstand is therefore not merely a Ringlock stage with chairs placed on top.

The support grid underneath must follow the changing platform elevations required by the seating layout.

5. Why the Ringlock Grid Changes with the Seating Level

A normal flat Ringlock platform can repeat one finished floor elevation across its footprint.

A grandstand cannot.

As the audience rows move toward the rear, the required platform level increases.

This means the Ringlock support structure below the deck must also transition between different heights.

In practical configuration terms:

Seat Position Changes
→ Platform Elevation Changes
→ Ringlock Support Height Changes

The seating layout and the supporting structure therefore have to be developed together.

This relationship is one of the main reasons seating/grandstand structures deserve their own category instead of being treated as ordinary Ringlock Structure platforms.

6. Aluminum Anti-Slip Platform Surface

The supplied configuration uses an aluminum sheet anti-slip deck.

This surface performs two functions within the seating structure.

First, it creates the horizontal standing and circulation surface around the seats.

Second, it closes the upper part of the Ringlock support structure so that the audience interacts with a continuous usable platform rather than with the scaffold framework underneath.

The functional relationship is therefore:

Ringlock Structure
→ Platform Support
→ Aluminum Anti-Slip Deck
→ Audience Area

For a seating system, the deck is not only where the seats are installed.

It also forms the surface used when people enter, leave and move around the seating positions.

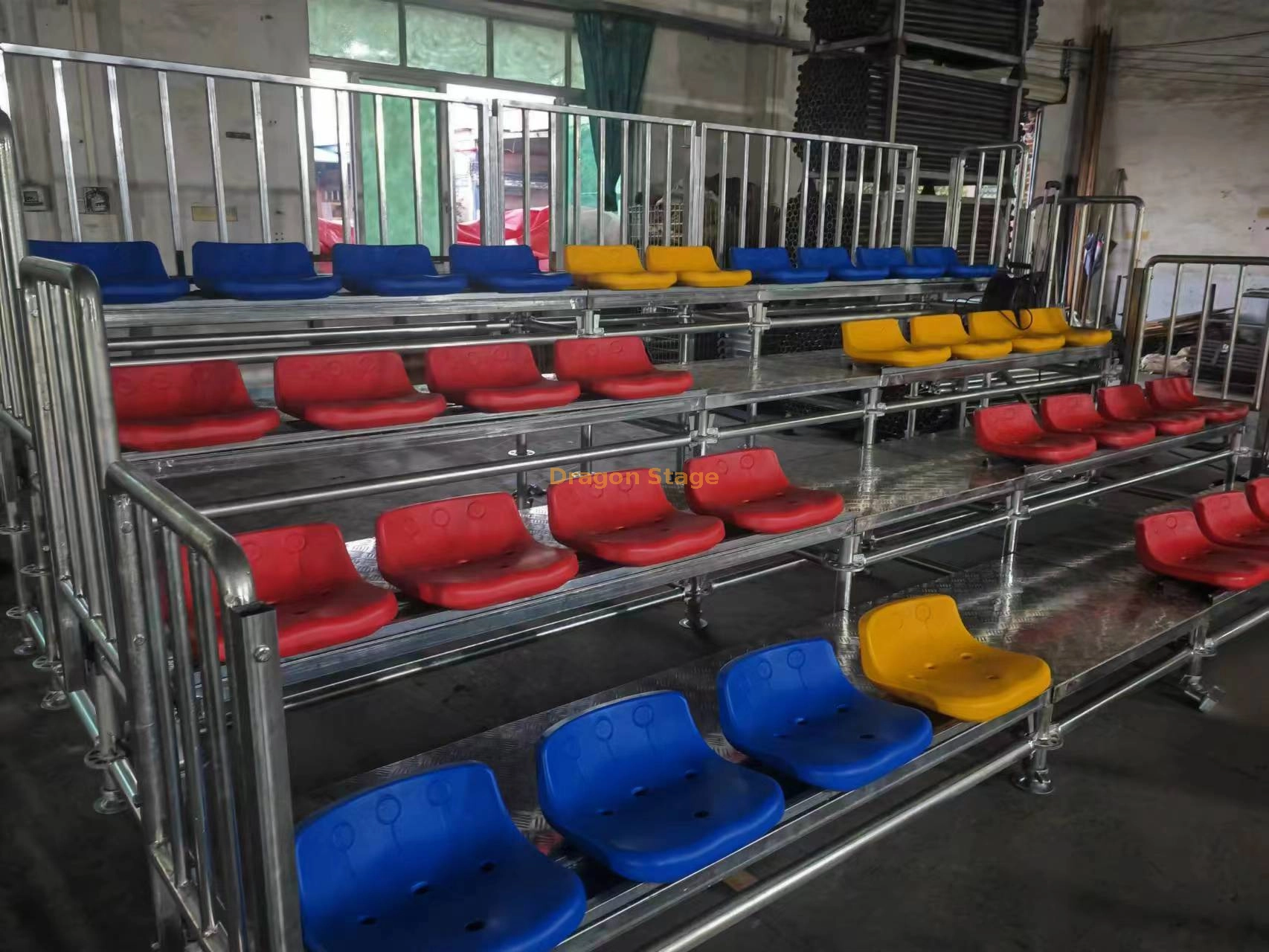

7. Plastic Seating Module

The package includes 34 plastic seats.

These seats form the final audience interface above the structural platform.

Within the complete system, however, the seating capacity should not be separated from the structural geometry.

Increasing the number of seats can affect:

• total grandstand length;

• number of seating positions;

• platform dimensions;

• Ringlock support grid;

• access arrangement;

• handrail length.

For this reason, “34 persons” is not merely a product quantity.

It is one of the main inputs defining this particular grandstand configuration.

8. Handrail System

Handrails are included in the supplied package.

For a raised audience structure, edge protection is part of the complete configuration rather than an unrelated accessory.

As the seating rises from approximately 0.3m to a maximum of 1.2m, the platform perimeter contains elevated edges.

The handrail system therefore belongs to the seating structure itself:

**Raised Platform

• Audience Area

• Exposed Edges
  → Handrail / Edge Protection Module**

The attachment does not provide the individual handrail lengths or exact positions, so these should be determined from the final seating and access layout rather than inferred from the product title alone.

9. How the Structural Modules Work Together

The system can be understood through a simple functional sequence.

Ground Level

The ground provides the base condition for the temporary structure.

↓

Ringlock Support Grid

Ringlock components create the modular structural framework and different support heights.

↓

Stepped Platform Levels

The support framework establishes the progressively higher seating tiers.

↓

Aluminum Anti-Slip Deck

The deck closes the platform surface and creates usable seating and circulation areas.

↓

Plastic Seats

The audience seats are arranged on the stepped levels.

↓

Handrails

The perimeter protection completes the elevated seating configuration.

In short:

Ringlock creates the shape.
Decking creates the usable surface.
Seats create the audience function.
Handrails complete the elevated seating zone.

10. Why This Is Different from a Flat Ringlock Stage

Both structures may use the same basic Ringlock system, but their geometry responds to different functions.

This demonstrates an important DragonStructure principle:

The same physical Ringlock components can become completely different structures depending on the function they are configured to perform.

11. Assembly Logic

The supplied page does not contain a complete engineered erection procedure, but the modular configuration can be understood through a practical sequence.

Step 1 — Set Out the Grandstand Footprint

Establish the confirmed overall area:

5m × 2.6m

and identify the front and rear directions.

Step 2 — Establish the Ringlock Base Grid

Position the supporting Ringlock structure according to the required seating footprint and platform levels.

Step 3 — Build the Different Elevation Zones

Progressively form the support structure from the approximately 0.3m front level toward the 1.2m rear level.

Step 4 — Complete Horizontal and Diagonal Connections

Connect the Ringlock support zones into the complete modular framework.

Step 5 — Install Platform Decking

Install the aluminum anti-slip platform surface above the supporting framework.

Step 6 — Install the Seating

Position the 34 plastic seats according to the final seating layout.

Step 7 — Complete Handrails and Edge Protection

Install the required perimeter handrail components according to the final platform and access arrangement.

This sequence explains the modular construction logic, not a substitute for project-specific erection drawings or site engineering.

12. What Changes When Seating Capacity Changes?

A useful way to understand a modular grandstand is to start with the audience requirement rather than the scaffold quantity.

For example:

More Seats

→ more seating width and/or additional rows
→ larger platform area
→ larger Ringlock supporting structure
→ more deck surface
→ revised handrails and access.

Likewise:

Fewer Seats

→ shorter or smaller seating area
→ reduced platform dimensions
→ reduced supporting structure.

The Ringlock structure follows the required seating geometry.

The seating geometry should not simply be forced to fit a fixed scaffold package.

13. What Changes When the Rear Height Changes?

The supplied configuration reaches approximately 1.2m maximum height.

If the required rear platform becomes higher or lower, the supporting geometry changes.

A different rear height may affect:

• Ringlock vertical configuration;

• number and arrangement of platform levels;

• diagonal bracing arrangement;

• access;

• handrails;

• overall viewing geometry.

The important relationship is:

Required Seating Elevation
→ Platform Geometry
→ Ringlock Configuration

The attachment does not provide verified design limits for alternative heights, so any major change should be reviewed as a new configuration rather than assumed to use the same component arrangement.

14. What Changes When the Grandstand Becomes Longer?

The supplied structure is 5m long.

If a project requires more audience capacity by extending the stand horizontally, the modular Ringlock logic makes longitudinal expansion possible in principle.

However, extending from 5m to another length does not mean simply adding seats.

The complete configuration may require changes to:

• Ringlock bays;

• decking;

• seat quantity and spacing;

• handrail length;

• circulation/access positions.

For larger projects, it is usually more useful to define:

required audience capacity + available footprint

before developing the structural arrangement.

15. Suitable Applications

This type of compact temporary Seating & Grandstand Structure can be adapted for applications such as:

• temporary event audience seating;

• sports viewing areas;

• competition spectator seating;

• temporary ceremony seating;

• exhibition or demonstration viewing areas;

• temporary performance audiences.

The exact suitability of a configuration depends on the project requirements, site conditions and applicable regulations.

16. Configuration Variables

The 34-person package represents one specific seating arrangement.

A customized grandstand may change according to:

Seating Capacity

34 persons may become a smaller or larger audience requirement.

Overall Length

The confirmed system is 5m long, but seating width can vary according to the project.

Overall Depth

The confirmed depth is 2.6m.

Changing the number of rows or circulation layout may change the required depth.

Front Platform Height

This configuration begins at approximately 0.3m.

Rear Platform Height

This configuration reaches approximately 1.2m.

Seat Type

The supplied package uses plastic seats.

Access Layout

Entry positions and circulation requirements should be defined for the actual site.

Handrail Layout

Handrail quantities and locations depend on the final platform perimeter and access arrangement.

17. Information Needed for a Different Grandstand

To adapt this structure for another project, the most useful starting information is:

• required seating capacity;

• available overall length;

• available overall depth;

• desired front platform level;

• desired maximum rear platform level;

• seat type;

• required entrance/access positions;

• aisle requirements;

• handrail requirements;

• indoor or outdoor use;

• site surface and ground conditions;

• project location;

• drawings, sketches or photos of the intended layout.

From these inputs, the grandstand can be broken into:

Seating Layout
→ Tier Geometry
→ Platform Layout
→ Ringlock Support Structure
→ Access
→ Handrails

rather than beginning with a fixed quantity of Ringlock parts.

18. Engineering and Verificaton Boundary

This page explains the confirmed configuration and practical structural relationship of the supplied 34-person Ringlock seating stand.

The source confirms:

• 34-person seating capacity;

• 5m overall length;

• 2.6m depth;

• approximately 0.3m minimum height;

• approximately 1.2m maximum height;

• aluminum anti-slip deck;

• plastic seats;

• handrails.

The supplied product page does not provide verified information for:

• allowable structural load;

• crowd-load calculation;

• design load per seat;

• lateral-load calculation;

• wind resistance;

• ground bearing requirements;

• ballast or anchoring;

• safety factor;

• certification;

• local code compliance;

• engineering approval.

Those items must therefore not be inferred from this product configuration.

For another project, structural and regulatory requirements should be reviewed according to the actual audience capacity, geometry, location and applicable rules.

19. Original Product Configuration

The original DragonTruss page remains the commercial/product source for this specific package:

View Original DragonTruss Product — 34 Person Ringlock Seating Stands Package

DragonStructure uses the same real configuration for a different purpose:

DragonTruss: the seating product/package itself.

DragonStructure: how a 34-person temporary Ringlock grandstand is structurally organized.

Related Structure References

Seating & Grandstand Structure — DragonStructure category for modular temporary audience seating and grandstand systems.

Ringlock Structure — broader Ringlock structural system category covering stage, roof, FOH, LED, sound, seating and other project-oriented configurations.

Modular System Logic for Stage, Truss & Scaffold — general explanation of how modular structural systems are built from repeatable components and bays.

Safety Standards & Engineering Constraints — general boundary between structural configuration information and project-specific engineering verification.

Structure Classification

Primary Function: Temporary Audience Seating
System Family: Ringlock Structure
DragonStructure Category: Seating & Grandstand Structure
Seating Capacity: 34 Persons
Overall Length: 5m
Overall Depth: 2.6m
Minimum Platform Height: 0.3m
Maximum Platform Height: 1.2m
Main Modules: Ringlock Support + Stepped Platform + Aluminum Anti-Slip Deck + Plastic Seats + Handrails
