Structure Configuration & Breakdown

Project Specifications

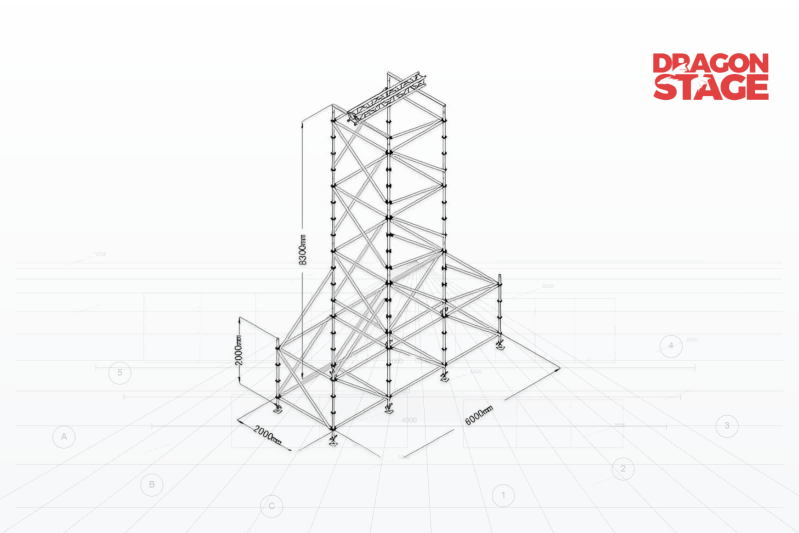

The 8.3m dimension represents the overall tower configuration. The final equipment arrangement and structural requirements depend on the actual line array system, lighting equipment and site conditions.

Structural Modules

Ringlock Main Tower

The primary vertical structure is a modular Ringlock tower system.

The tower uses:

Horizontal Pipes;

Diagonal Pipes;

Vertical Pillars;

Adjustable Bases.

The Ringlock system provides the main vertical support and stability framework.

For a sound tower application, the advantage of Ringlock is not only height adjustment. The three-dimensional connection system allows the tower to create a rigid supporting frame for suspended equipment loads.

The component configuration includes:

Suspended Truss Section

The upper part of the system uses a suspended truss structure connected with the Ringlock tower.

The purpose of this section is different from the main tower.

The Ringlock structure provides:

vertical support;

structural stability;

modular height adjustment.

The suspended truss provides:

equipment hanging interface;

line array connection point;

lighting installation position.

This separation allows each structural system to perform the function it is better suited for.

Motor Lifting System

A motor hoist system is integrated into the configuration for lifting suspended equipment.

The listed motor configuration includes:

A motorized lifting solution allows production teams to adjust equipment height during installation instead of relying only on manual assembly methods.

3. Structural Logic & Configuration Analysis

Why Use Ringlock Instead of a Traditional Truss Tower?

For line array applications, the main structural challenge is not only creating height.

The tower needs to solve:

equipment suspension;

vertical stability;

temporary installation requirements.

A traditional aluminum truss tower is suitable for many lightweight applications, but larger sound systems often require a stronger supporting framework.

This is why this configuration uses:

Ringlock Tower → Main Load Supporting Structure

Suspended Truss → Equipment Mounting Structure

The result is a hybrid structural logic within the Ringlock system.

Sound Equipment Determines Structural Configuration

A sound tower cannot be designed only according to height.

The actual configuration depends on:

line array weight;

hanging method;

required elevation;

outdoor conditions;

ballast or foundation situation.

For example:

If the customer increases speaker quantity:

→ upper suspension load changes;

→ truss configuration may need adjustment;

→ Ringlock support arrangement may need review.

The tower is therefore a structural system, not simply a vertical frame.

Difference Between 6m Sound Tower and 8.3m Heavy Duty Tower

Compared with a compact 6m Ringlock Sound Tower, this system focuses on heavier production requirements.

The higher tower height and lifting configuration indicate a different engineering requirement.

4. Component Function Analysis

Horizontal Pipes

Horizontal pipes connect the Ringlock vertical members and create the tower grid.

Their role is to maintain tower geometry and provide horizontal stiffness.

Diagonal Pipes

Diagonal members resist deformation and improve tower stability.

For taller temporary structures, diagonal arrangement becomes increasingly important because the tower experiences greater influence from equipment loading and environmental conditions.

Adjustable Bases

Adjustable bases provide:

leveling adjustment;

connection between tower and ground condition;

installation tolerance compensation.

The base condition should always be considered together with the complete structure.

Fibre Sling Safety Component

The configuration includes a fibre sling safety belt.

For suspended equipment structures, safety components are part of the overall installation method rather than optional accessories.

5. Assembly Logic

The installation sequence normally follows:

Position adjustable bases;

Assemble Ringlock tower modules;

Install horizontal and diagonal members;

Build the upper suspended truss section;

Install motor lifting system;

Connect sound or lighting equipment.

The modular assembly principle follows the same controlled installation approach used for temporary stage and scaffold structures. More details about modular installation logic can be found in Installation Methodology for Modular Stage, Truss & Scaffold Systems.

6. Configuration & Pricing

DragonStructure focuses on the structural configuration, component relationship and design logic behind this type of temporary support system.

For the complete commercial configuration, specifications and quotation information, please refer to the original DragonTruss product page:

View Full Configuration & Pricing

Related Structure Cases

[Ringlock Sound Support Structure](INTERNAL LINK TO BE ADDED)

[Ringlock LED Screen Support Structure](INTERNAL LINK TO BE ADDED)

[Ringlock FOH & Control Structure](INTERNAL LINK TO BE ADDED)

[Hybrid Ringlock + Aluminum Structure](INTERNAL LINK: Hybrid Structure)

Design Note

This 8.3m Heavy Duty Layher Truss Tower represents a typical configuration for temporary line array and lighting support.

The final structural design should be reviewed according to actual equipment loads, tower dimensions, installation environment and project requirements.

A sound tower is not defined only by height. The relationship between suspension equipment, supporting structure and installation conditions determines the final configuration.
