Structure Configuration & Breakdown
Project Specifications
Project Item | Configuration |
|---|

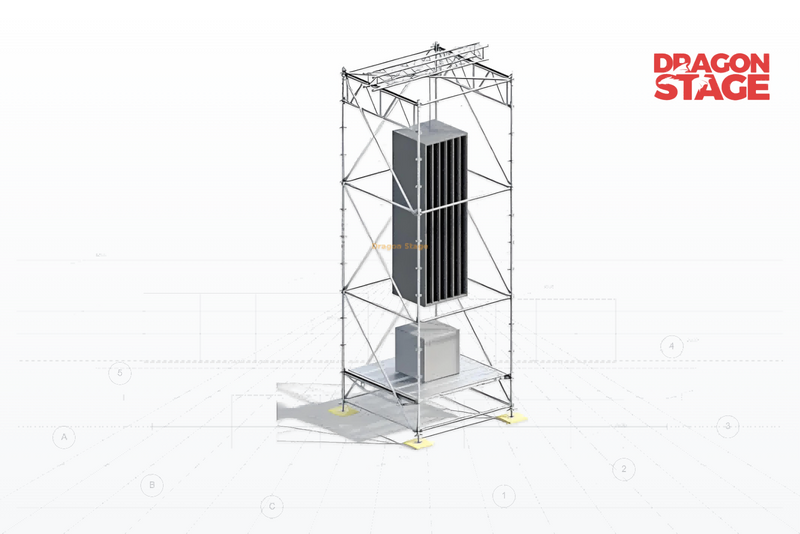

Structure Type | Ringlock Sound Tower |
Height | 6m |
Tower Dimension | 2m × 2m |
Main Structure | Steel Ringlock System |
Top Structure | 2 × 0.5m brace truss + 3m aluminum truss |
Base System | Water tank ballast platform |
Application | Sound support / event production structure |
Packing Weight | 750kg |
Packing Volume | 2cbm |
The 6m height represents the nominal tower height. The final equipment arrangement, hanging position and required stability method depend on the actual sound system configuration and site conditions.
Structural Modules
Ringlock Vertical Tower
The main body of this structure is a modular Ringlock tower formed by vertical pillars, horizontal pipes and diagonal braces.
The practical advantage of using Ringlock for this application is that the tower height and geometry can be adjusted through repeated modular components. Instead of creating a fixed-size sound stand, the structure becomes a configurable support tower that can adapt to different event layouts.
For this type of structure, the Ringlock grid provides the main load path:
Equipment Support Area
→ Ringlock Tower Frame
→ Base Connection
→ Ground / Ballast System
The modular principle is similar to other Ringlock applications such as Ringlock stage and platform structures, but the functional purpose changes from supporting people to supporting production equipment.
Aluminum Truss Top Section
At the top of the tower, two 0.5m brace trusses and one 3m 400mm aluminum truss section create the equipment support interface.
The reason for combining Ringlock and aluminum truss is that the two systems have different advantages.
Ringlock provides:
vertical height;
modular adjustment;
three-dimensional support.
Aluminum truss provides:
lightweight equipment mounting structure;
compatibility with event production hardware;
a cleaner working area above the tower.
This is a typical hybrid approach where each system performs the function it is best suited for.
The bottom of the structure uses a water tank platform made from two Ringlock ledgers and six pallets with 0.25m width.
For temporary outdoor structures, the base condition is often one of the most important considerations. A tower structure does not only need sufficient height; it also needs an appropriate connection between the tower and the installation surface.
The ballast platform provides a practical method when permanent foundations are not available.
Component List, Quantity & Function
Component | Specification | Quantity | Function |
|---|
Horizontal Pipe | LR2, L:2M | 19 pcs | Forms horizontal Ringlock connections |
Diagonal Pipe | LR3, L:2.44M | 15 pcs | Provides diagonal stability |
Pillar | LR1 | 10 pcs | Main vertical tower members |
Adjustable Base | Ringlock base | 4 pcs | Supports and levels tower structure |
Brace Truss | 0.5m height | 2 pcs | Transition structure at tower top |
Aluminum Truss | 400mm, 3m | 1 pc | Equipment support beam |
Ringlock Ledger | Base platform component | 2 pcs | Forms ballast platform frame |
Pallet | 0.25m width | 6 pcs | Supports water tank platform |
The listed configuration has a packing weight of 750kg and packing volume of 2cbm.
3. Structural Logic & Configuration Analysis
Why This Configuration?
The main idea behind this structure is separating the support function into two different systems.
A complete sound tower needs to solve three problems:
Reach the required equipment height;
Provide a stable support frame;
Offer a practical connection point for sound equipment.
A pure aluminum truss tower may provide a lightweight upper structure but is not always the most efficient solution for creating a tall temporary support frame.
A pure Ringlock structure can achieve height and stability but may not provide the most convenient equipment mounting interface.
The hybrid configuration solves this by using:
Ringlock → Main Tower Support
Aluminum Truss → Equipment Mounting Section
This creates a practical production structure without making every component perform the same role.
How the Structure Works
The structural relationship can be simplified as:
Sound Equipment
↓
400mm Aluminum Truss
↓
Brace Truss Transition Section
↓
Ringlock Tower Frame
↓
Adjustable Base + Ballast Platform
↓
Ground
The upper aluminum section creates the working area for equipment installation, while the Ringlock structure transfers the vertical and horizontal forces down to the base system.
Key Structural Considerations
1. Height Changes Affect the Ringlock Configuration
A 6m tower is a relatively compact configuration, but increasing the height changes the structural requirement.
If the customer requires:
higher speaker position;
larger sound system;
different equipment arrangement;
the Ringlock vertical members, bracing arrangement and base solution normally need to be reviewed together.
2. Equipment Type Determines the Top Structure
A sound tower supporting a small speaker cluster and a tower supporting a large line array system are different structural questions.
The aluminum truss size, connection method and tower arrangement depend on:
equipment weight;
hanging point;
center of gravity;
required position.
The tower should therefore be configured from the equipment requirement rather than only from the desired height.
3. Base Conditions Are Part of the Structure
For temporary event structures, the base is not an independent accessory.
The complete structure depends on:
Tower Frame
+
Base Connection
+
Ballast / Ground Condition
This is why we normally confirm installation environment before finalizing a sound tower configuration.
4. Modular Transport Advantage
This structure is designed around modular components.
The packing information shows that the complete structure can be transported within approximately 2cbm volume, making it suitable for event companies that need reusable equipment rather than permanent installations.
What Changes When Project Requirements Change?
Higher Tower Height
Requirement change:
Increase tower height
↓
Affected structure:
Ringlock vertical section;
diagonal bracing;
base stability.
↓
Configuration change:
Additional Ringlock modules and a revised support arrangement may be required.
Larger Speaker System
Requirement change:
Increase sound equipment size
↓
Affected structure:
top aluminum truss;
connection point;
tower loading condition.
↓
Configuration change:
The upper support section normally requires redesign based on actual equipment requirements.
Outdoor Installation
Requirement change:
Indoor → Outdoor application
↓
Affected structure:
ballast method;
environmental conditions;
installation stability.
↓
Configuration change:
The base system needs to be considered together with the site condition.
4. Assembly Logic
The installation normally starts from the base platform and Ringlock tower frame.
Adjustable bases are positioned first, followed by vertical pillars, horizontal pipes and diagonal braces. After the Ringlock tower reaches the required height, the upper brace truss and aluminum truss section are installed.
The final step is connecting the production equipment according to the actual event layout.
For larger modular structures, the same installation principle of controlled assembly and system connection can be found in our Installation Methodology for Modular Stage, Truss & Scaffold Systems.
5. Configuration & Pricing
DragonStructure focuses on explaining the structural configuration, component function and design logic behind this type of sound support system.
For commercial specifications, current pricing and complete product configuration, please refer to the original DragonTruss product page:
View Full Configuration & Pricing
Ringlock Stage Structure with Aluminum Roof System
[INTERNAL LINK TO BE ADDED]
Ringlock LED Screen Support Structure
[INTERNAL LINK TO BE ADDED]
Ringlock FOH & Control Tower Structure
[INTERNAL LINK TO BE ADDED]
Hybrid Ringlock and Aluminum Event Structure
[INTERNAL LINK: Hybrid Structure]
Design Note
This 6m Ringlock Sound Tower represents one modular configuration for event production support. The final structure should be adjusted according to equipment weight, installation environment, required height and complete project conditions.
A sound tower is not defined only by height. The equipment arrangement and base condition are equally important parts of the final structural configuration.
