1. What Is This Structure?

This is not part of the finished dome roof itself.

It is a temporary mobile access and working structure used during installation.

The distinction is important.

The dome roof truss is the structure being installed.

The scaffold tower is the structure helping workers install it.

In simple terms:

Dome Roof Truss

= Final Event Roof Structure

while:

Mobile Scaffold Tower

= Temporary Installation Access Structure

Once the dome roof has been assembled and the tower is no longer required at that position, the mobile tower can be relocated or removed according to the installation sequence.

2. Why Is a Working Tower Needed for a Dome Roof?

A large dome roof is assembled from multiple curved and straight aluminum truss sections.

As the roof develops upward, some connection points are no longer conveniently reachable from ground level.

Installers therefore need access to positions where they can work on:

• truss connections;

• curved roof sections;

• intermediate roof members;

• roof-cover related work;

• connection inspection;

• other elevated assembly operations.

Instead of relying only on a ladder, the tower provides a larger temporary work area.

The practical relationship becomes:

Roof Connection Position

↑

Working Platform

↑

Internal Stair Access

↑

Mobile Scaffold Tower

↑

Ground

The important function is therefore not simply “getting a worker 4m high.”

It is creating an accessible elevated work position close to the part of the dome roof being assembled.

3. Overall Configuration

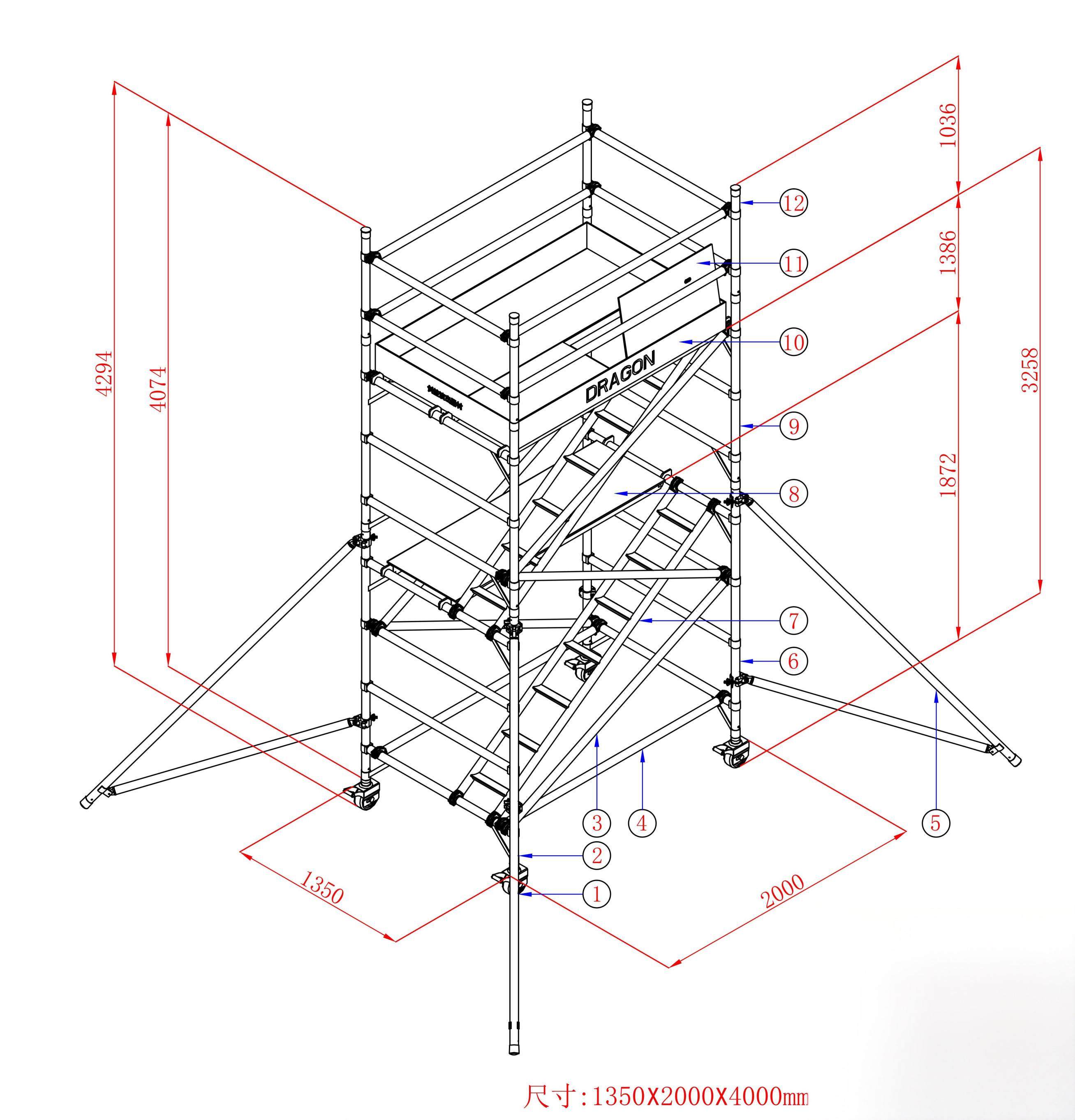

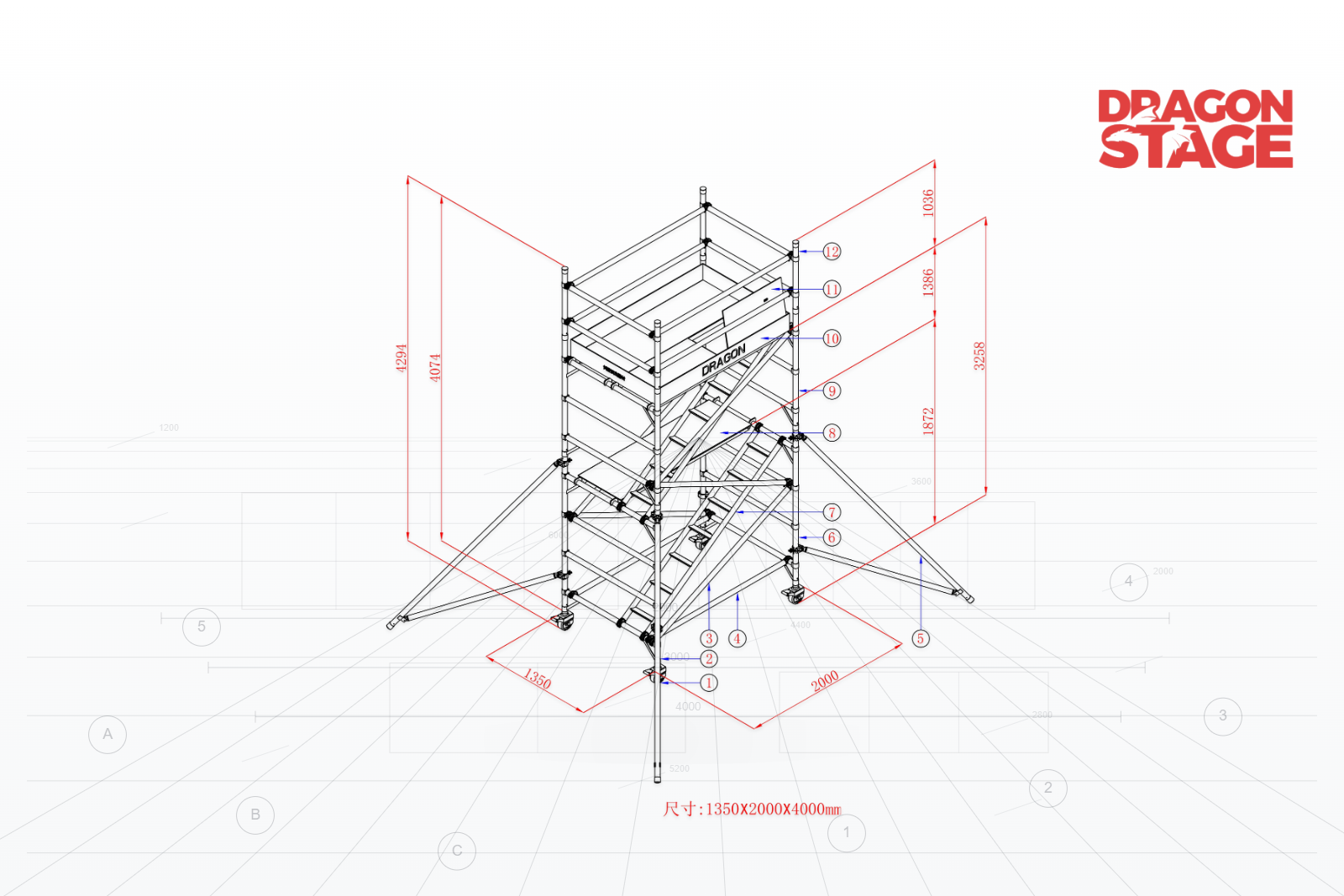

According to the supplied drawing, the basic tower dimensions are approximately:

This gives the tower a relatively compact rectangular footprint compared with the much larger dome roof around it.

That compact footprint is useful because the tower needs to work inside or around the developing roof structure, rather than occupying the entire work area.

The configuration can be understood as:

1350 × 2000mm Mobile Base

Vertical Scaffold Tower

Internal Stair System

Multiple Working Levels

Upper Guarded Work Area

External Stabilizers

=

Temporary Dome Roof Installation Access Tower

4. The Structure Can Be Divided into Six Main Modules

For structural breakdown purposes, the complete tower is easier to understand as six functional modules.

Module A — Mobile Base

The bottom of the tower includes caster wheels.

These allow the tower to be repositioned when appropriate during the installation process.

This is one of the main differences between this structure and a fixed scaffold arrangement.

The tower is intended to function as a mobile access unit, not simply as a scaffold erected permanently at one point.

Module B — Vertical Tower Frame

The vertical scaffold members create the main height of the tower.

Horizontal members connect the verticals and establish the different levels.

Together they create the basic three-dimensional tower:

Vertical Members

Horizontal Members

Bracing

=

Scaffold Tower Frame

This frame provides the structure around which the stairs, platforms and guardrails are organized.

Module C — Diagonal Bracing

Diagonal members can be seen across the sides of the tower.

Their practical role is to brace the rectangular scaffold frame and maintain the tower geometry.

So the tower should not be understood simply as:

four vertical posts + platforms.

It is a braced three-dimensional frame.

Conceptually:

Verticals

Horizontals

Diagonals

=

Braced Tower Geometry

No calculated stiffness or load capacity is inferred here; this is simply the visible structural arrangement shown in the supplied drawing.

5. Internal Stair Access

One of the most important characteristics of this tower is the internal stair system.

Workers do not need to climb directly up the outside of the structure to reach the upper work position.

Instead, the access route develops inside the tower.

Conceptually:

Ground Entry

→ First Stair Flight

→ Intermediate Level

→ Second Stair Flight

→ Upper Working Level

This makes the structure much more accurately described as an:

Access Tower

rather than merely a scaffold frame.

The stair system is part of the structure's core function.

6. Intermediate Working Levels

The tower contains more than one horizontal working/access level.

This matters during dome roof assembly because not every connection point occurs at exactly the same height.

A worker may need to operate from:

lower level

then:

intermediate level

then:

upper level

as different sections of the roof are assembled.

Therefore the tower provides a vertical sequence of usable positions, rather than only one platform at the very top.

7. Upper Working Platform

The upper part of the tower provides the principal elevated work position.

This is the area that brings installers closer to the curved aluminum truss members during roof assembly.

The working platform changes the nature of the access system.

A ladder mainly provides:

vertical access.

A working tower provides:

vertical access + standing work area.

That difference is important when installers need time to:

• align components;

• connect truss sections;

• handle connection hardware;

• inspect joints;

• coordinate with workers at other positions.

The tower therefore functions as both:

Access Structure

and:

Temporary Working Platform.

For other elevated work-platform configurations, see:

Working Platform Structure
https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

8. Guardrail System at the Working Levels

The drawing shows horizontal guardrail members around elevated working areas.

These form the perimeter of the work zone.

Structurally and functionally, the sequence is:

Platform

Vertical Posts

Horizontal Guardrails

=

Defined Elevated Working Area

The guardrail arrangement is therefore not decorative.

It is part of how the upper working position is physically organized.

Exact project safety requirements still need to follow the applicable installation plan, site requirements and relevant regulations.

9. Caster Wheels Make the Tower Mobile

Caster wheels are visible at the base of the tower.

This allows the tower to be used differently from a fixed access scaffold.

For a large dome roof, installation work may progress from one location to another.

Conceptually:

Work at Position A

↓

Complete Required Connection Work

↓

Return / Prepare Tower for Relocation

↓

Move to Position B When Appropriate

↓

Re-establish Working Position

↓

Continue Installation

The tower can therefore follow the installation work instead of requiring a full scaffold structure beneath the complete roof.

This is the key logic behind the mobile access configuration.

10. External Stabilizers / Outriggers

The drawing and project photograph show long diagonal stabilizer members extending outward from the lower part of the tower.

These increase the effective support footprint around the relatively narrow tower.

The relationship is easy to see:

Compact 1350 × 2000mm Tower Body

Outward Stabilizer Members

=

Wider Ground Support Geometry

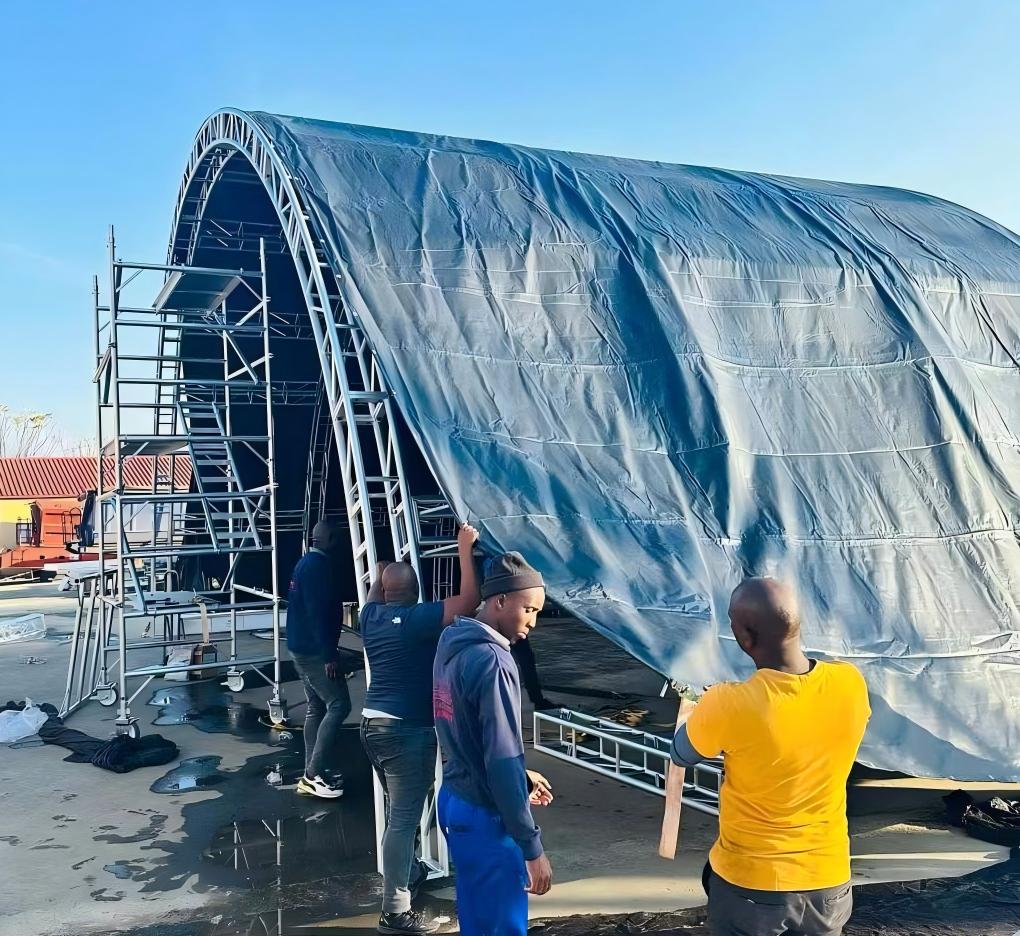

This is especially visible in the actual dome-roof installation photograph, where the stabilizers extend beyond the tower body into the surrounding work area.

However, the drawing alone does not establish a universal stabilizer requirement for every site, nor does it provide verified overturning calculations.

Actual use must follow the project-specific installation and safety requirements.

11. Why Mobility and Stabilizers Exist Together

At first glance, caster wheels and long stabilizers may appear to serve opposite purposes.

The wheels make the structure movable.

The stabilizers enlarge the support arrangement while it is being used as a work tower.

That gives the structure two different operating states conceptually:

Relocation Function

Caster Wheels → Mobility

Working Function

Tower + Stabilizer Arrangement → Working Position

This is a useful way to understand the product.

It is not designed simply to roll around continuously while workers are carrying out elevated installation work.

Mobility is a relocation function.

The configured tower and stabilizer arrangement create the working function.

Actual locking, stabilizing and relocation procedures must follow the applicable manufacturer's/site installation instructions.

12. How the Tower Works with the Dome Roof

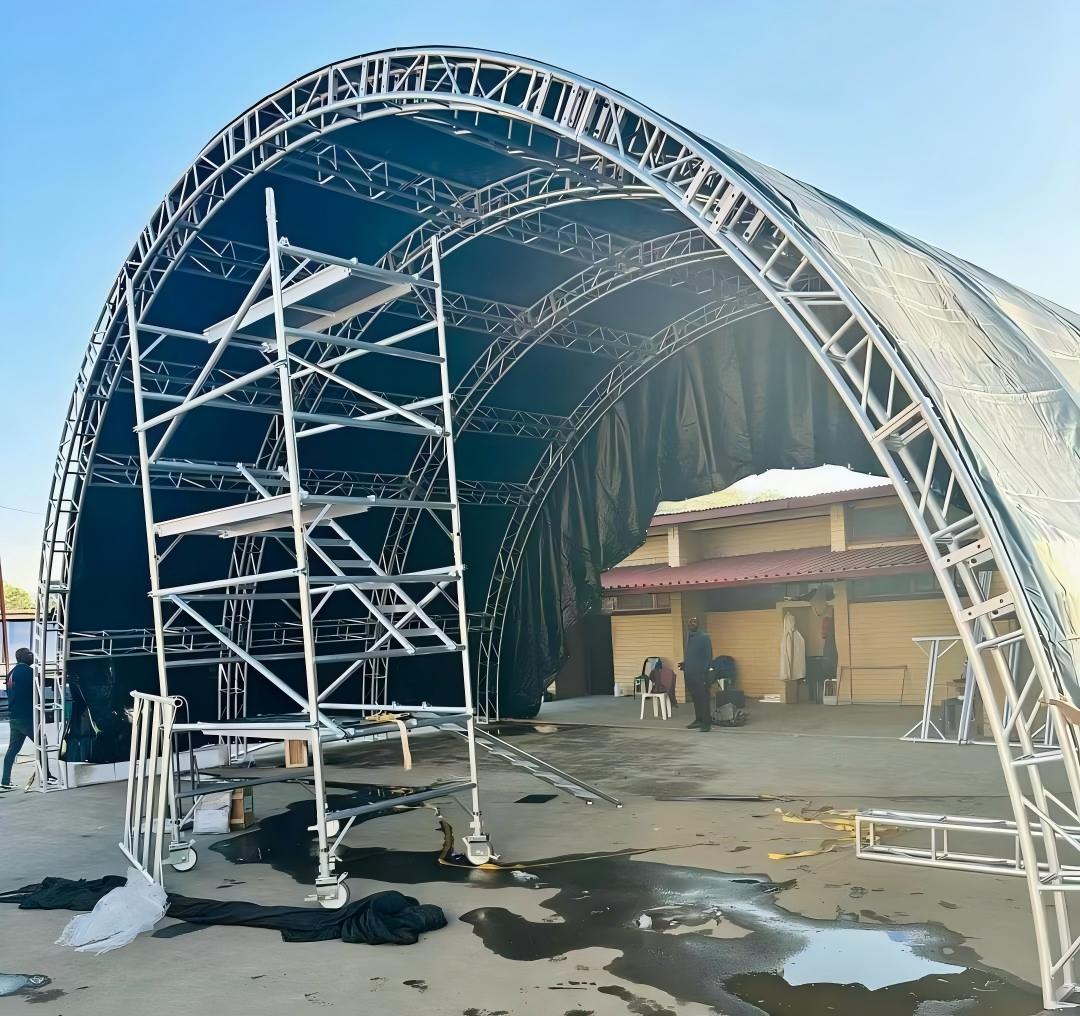

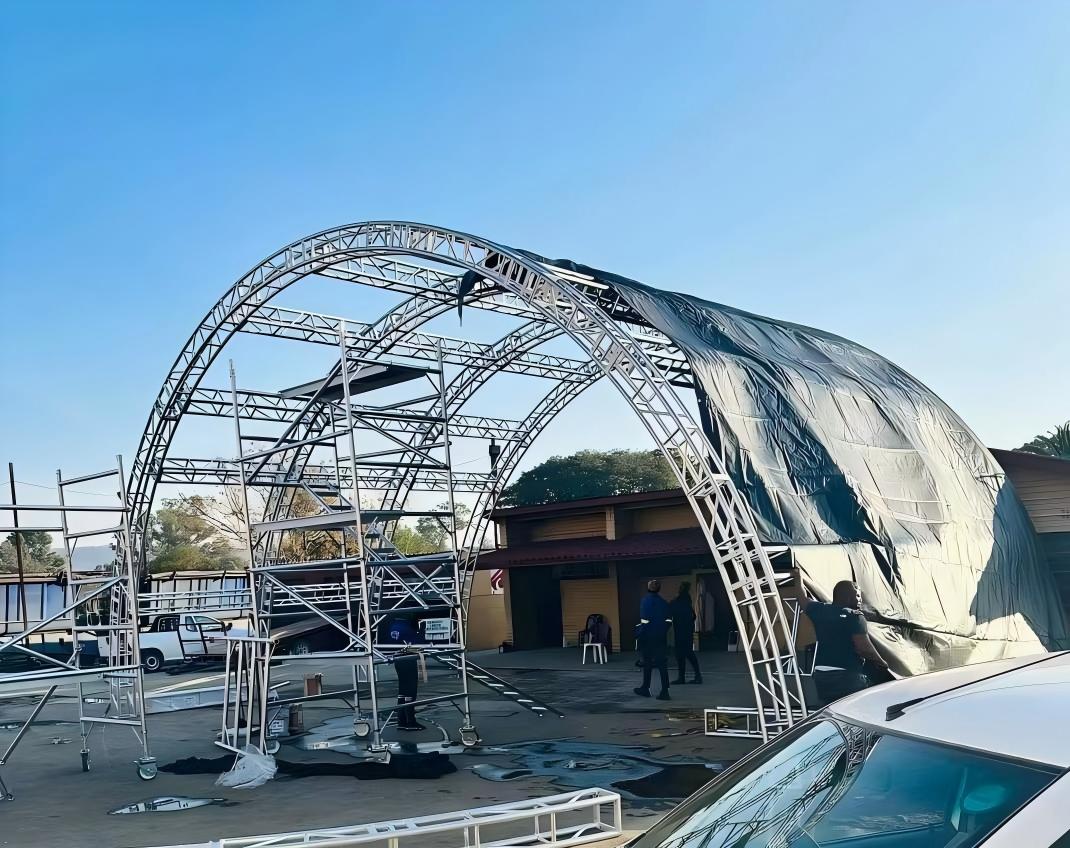

The project photograph makes the relationship particularly clear.

The mobile scaffold tower stands inside the dome roof structure.

Around it are the much larger curved aluminum truss arches.

So the installation system can be understood as two completely separate structures:

Structure Being Installed

Aluminum Dome Roof Truss

Temporary Installation Structure

Mobile Scaffold Access Tower

The tower is moved or positioned where workers need access to elevated connection areas.

It does not become a permanent supporting component of the dome roof.

This distinction is essential.

13. The Tower Does Not Support the Dome Roof as Its Main Function

Because the scaffold tower is physically close to the roof during assembly, a photograph could easily create the wrong impression that the roof is permanently supported by the tower.

That is not the correct way to read this configuration.

Its primary role is:

worker access and temporary elevated working space during roof installation.

It should therefore not automatically be described as:

Dome Roof Support Tower.

A more accurate description is:

Dome Roof Installation Access Tower.

This is why I recommend keeping the word Access in the product title.

14. Why a 4m Tower Can Be Useful Even When the Dome Roof Is Much Higher

The nominal tower height does not need to equal the final maximum height of the entire dome roof.

The tower is intended to reach specific installation work zones, not necessarily the highest point of the completed roof.

During installation, the relevant question is:

Where does the installer need to stand to reach the connection being worked on?

not:

What is the total finished height of the dome?

Therefore:

Finished Roof Height

and

Required Working Platform Height

are two different dimensions.

A different dome roof or installation sequence may require a different access-tower configuration.

15. Why the 1.35 × 2m Footprint Matters

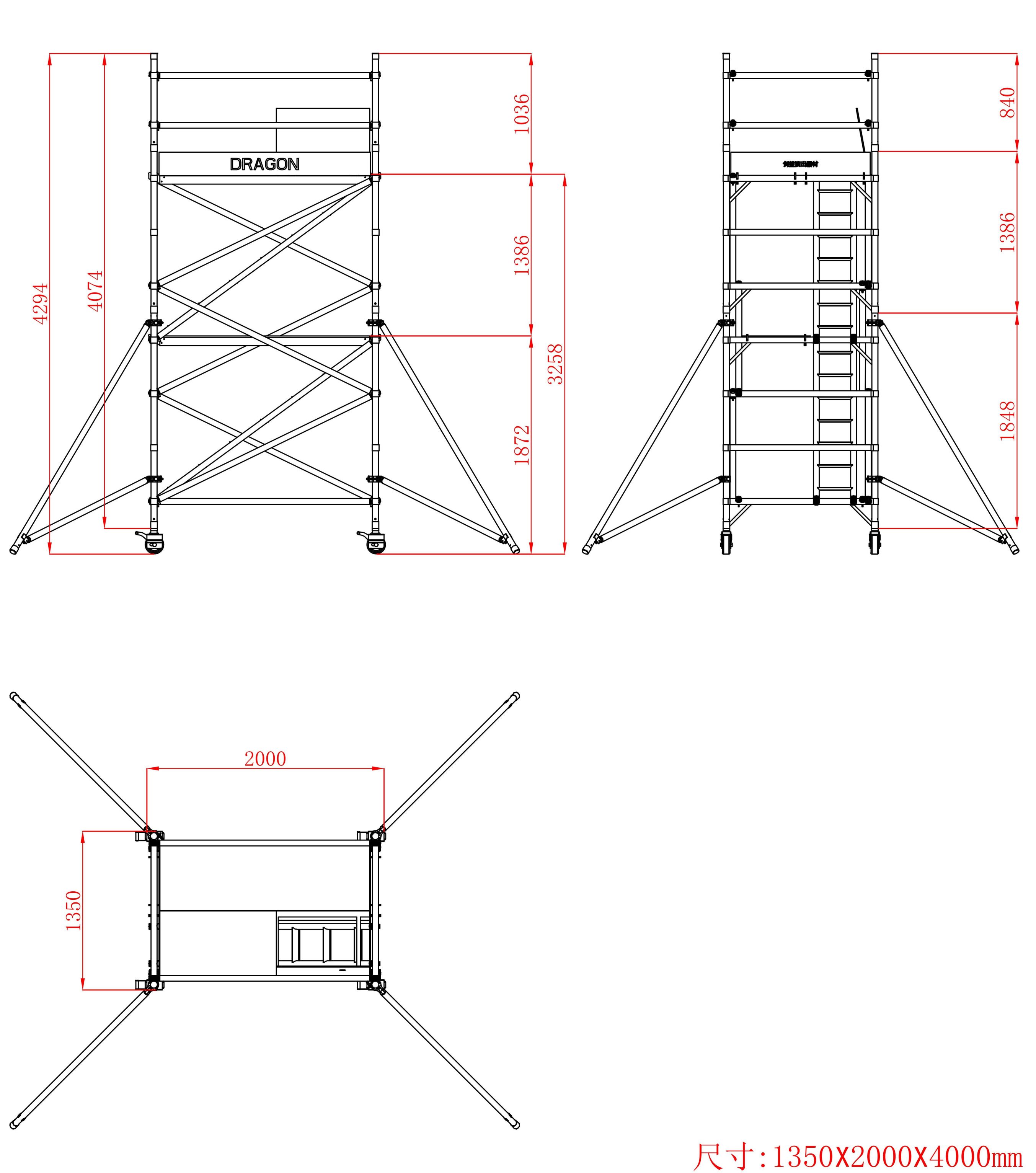

The drawing shows a relatively narrow tower body:

1.35m × 2.0m.

This compact geometry helps explain how it can be positioned within the larger roof assembly area.

A very wide working scaffold could interfere with:

• roof truss members;

• ground assembly space;

• equipment movement;

• installation routes;

• other workers.

The tower therefore balances two different practical needs:

Enough internal space for stairs and work platforms

while remaining:

compact enough to operate inside the installation area.

This is a structural/function interpretation based on the supplied configuration, not a claim that 1.35 × 2m is universally optimal.

16. Internal Stairs vs. External Ladder Access

For this configuration, internal stairs are a defining feature.

A simple ladder tower would mainly solve:

How do I climb upward?

This structure solves a broader problem:

How do installers repeatedly move between several elevated working levels while carrying out roof assembly?

That is why the configuration contains:

Stairs

Landings / Platforms

Working Decks

Guardrails

rather than only a vertical ladder.

17. Structural Breakdown from Ground to Top

The complete tower can be read vertically.

Ground Level

Caster wheels and the tower base establish the mobile footprint.

Lower Tower Zone

Vertical and horizontal members create the first structural bay.

Stabilizer Zone

External diagonal stabilizers extend outward from the tower.

Lower Access Zone

The first stair flight begins the internal access route.

Intermediate Zone

Platforms create intermediate transfer/work positions.

Upper Access Zone

Additional stair access continues upward.

Upper Working Zone

The main elevated work platform provides access to the roof installation area.

Guardrail Zone

Upper verticals and horizontal rails define the perimeter of the elevated work position.

In shorthand:

Caster Base

→ Braced Tower

→ Internal Stair

→ Intermediate Platform

→ Upper Stair

→ Working Platform

→ Guardrails

This is the core structural logic of the product.

18. Practical Dome Roof Installation Logic

The actual installation sequence depends on the dome roof design and site method, so this page should not pretend to provide a complete engineered erection procedure.

At a structural-concept level, however, the tower can be used in a workflow such as:

Assemble Roof Sections at Accessible Level

↓

Position Access Tower Near Required Work Zone

↓

Installers Reach Elevated Platform Through Internal Stairs

↓

Carry Out Required Truss Connection / Installation Work

↓

Complete Work at That Position

↓

Relocate Access Tower When the Installation Sequence Requires It

↓

Continue at the Next Work Zone

This explains why mobility is useful for a large-span roof.

One relatively compact access structure can serve different positions during the assembly process rather than creating a full working scaffold beneath the entire roof.

19. Why This Is an Installation Structure, Not Event Infrastructure

DragonStructure contains many structures that remain in place during the event:

• stage platforms;

• FOH towers;

• LED support structures;

• sound towers;

• roof-support structures;

• grandstands;

• stairs and walkways.

This tower is different.

Its main value exists primarily during:

assembly / installation / maintenance work.

Once its job is finished, it can be removed.

That makes it a good example of an installation-support structure within the broader Mobile Access Structure family.

20. Main Component Groups

Based on the supplied drawing and photograph, the system can be divided into the following confirmed/reasonably visible component groups:

I would not add exact component quantities unless you have the actual BOQ corresponding to the numbered 1–12 components in the drawing.

That avoids turning visible drawing information into an invented BOM.

21. Suitable Applications

Although this example is shown inside an outdoor dome roof installation, the structural concept can also be relevant to other temporary elevated installation work where a similar mobile access configuration is appropriate, such as:

• dome roof truss installation;

• curved roof truss assembly;

• event roof installation;

• temporary truss connection work;

• lighting-truss installation access;

• roof-cover installation access;

• elevated inspection work;

• event structure maintenance;

• temporary installation work platforms.

The actual tower height and configuration should be selected for the required work position rather than copied automatically from this 4m example.

22. When Should the Tower Height Change?

The 4m configuration is a reference configuration, not a universal height.

The required tower should depend on:

• roof connection height;

• required working-platform height;

• dome geometry;

• installation sequence;

• surrounding truss members;

• available ground area;

• access requirements;

• site conditions.

For example, a different project may need a lower working level even if the completed roof is taller.

Conversely, another connection position may require a taller access configuration.

The key dimension is therefore:

required working height

rather than simply:

finished roof height.

23. Customization Variables

The configuration may change according to the installation requirement.

The 1.35 × 2.0 × 4.0m configuration should therefore be viewed as one practical structural example.

24. Mobile Access Structure vs. Working Platform Structure

This product overlaps two DragonStructure categories.

Its strongest classification is:

Mobile Access Structure

because the entire tower is designed to be repositionable and to provide elevated access.

See:

https://www.dragonstructure.com/Mobile-Access-Structure-pl07055276.html

Its secondary functional characteristic is:

Working Platform Structure

because workers can stand and work at elevated platform levels.

See:

https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

This distinction follows the DragonStructure rule of classifying by the primary function of the complete structure, rather than by one physical component.

So I recommend:

Primary Category: Mobile Access Structure
Secondary Function: Working Platform / Installation Access

25. Why This Product Is Useful in DragonStructure

This page fills a useful structural-information gap.

Most event-structure pages explain the finished structure.

This one explains something different:

How do workers physically reach the elevated areas while that structure is still being built?

That means it creates a natural information chain:

Dome Roof Structure

→ Installation Requirement

→ Mobile Access Tower

→ Working Platform

→ Elevated Installation Position

It shows that temporary event construction is not only about the final stage or roof.

There are also temporary structures needed to build the temporary structure itself.

That is the real informational value of this product.

26. Original Product / Source Page

Original DragonTruss Product:
https://www.dragontruss.com/1-35x2x4-29-M-Aluminum-Wooden-Double-Aluminum-Double-Scaffolding-with-Climbing-Ladder-pd45484041.html

27. Relationship with DragonTruss

When the original DragonTruss product page is added, the two pages should serve different purposes.

DragonTruss

Focus on:

PRODUCT + MANUFACTURING + SUPPLY

For example:

• scaffold product configuration;

• aluminum components;

• dimensions;

• production;

• packing;

• customization;

• supply.

DragonStructure

Focus on:

STRUCTURE BREAKDOWN + INSTALLATION FUNCTION

This page explains:

How a mobile scaffold tower is configured as an elevated access and working structure for dome roof truss installation.

That prevents the two websites from competing with near-identical product descriptions.

28. Engineering and Safety Boundary

The supplied drawing and photograph support the following facts:

• the tower is used with a dome roof truss installation;

• nominal tower dimensions are approximately 1350 × 2000 × 4000mm;

• the drawing shows an upper overall dimension reaching approximately 4294mm;

• the tower contains multiple elevated levels;

• internal stair access is provided;

• elevated platforms are provided;

• guardrails are shown;

• caster wheels are shown;

• external stabilizers/outriggers are shown;

• the tower is mobile in configuration.

The supplied information does not establish:

• allowable platform load;

• maximum number of workers;

• allowable tower height for other configurations;

• wind rating;

• maximum wind speed for use;

• stabilizer design capacity;

• wheel capacity;

• allowable movement procedure;

• ground-bearing requirements;

• leveling requirements;

• ballast requirements;

• safety factor;

• certification;

• local regulatory compliance;

• engineering approval.

Those items should not be inferred from the drawing or photograph.

In particular, because this is an elevated mobile work structure used outdoors, site-specific setup and safe-use requirements need to be verified for the actual project.

29. Information Needed for a Customized Installation Tower

To adapt this structure to another roof installation, provide:

• roof type;

• roof drawing;

• required work position;

• required working-platform height;

• overall roof height;

• truss dimensions;

• available ground footprint;

• number of working levels required;

• preferred stair/access arrangement;

• indoor or outdoor use;

• required mobility;

• site surface information;

• photographs of the installation area;

• existing scaffold/access equipment, if any;

• applicable project/site requirements.

The configuration can then be developed around:

Roof Geometry

→ Connection / Work Height

→ Required Platform Height

→ Tower Height

→ Tower Footprint

→ Internal Access

→ Working Platforms

→ Stabilizer Arrangement

→ Final Mobile Access Configuration

Structure Classification

Product Type: Mobile Scaffold Access Tower
Primary Function: Temporary Elevated Installation Access
Primary Category: Mobile Access Structure
Secondary Function: Working Platform Structure
Application: Outdoor Dome Roof Truss Installation
Nominal Tower Footprint: 1350 × 2000mm
Nominal Tower Height: 4000mm
Highest Dimension Shown in Drawing: Approx. 4294mm
Access Method: Internal Stair Flights
Working Areas: Multiple Elevated Platform Levels
Perimeter Protection: Guardrail Configuration
Mobility: Caster-Wheel Base
Additional Support Geometry: External Stabilizers / Outriggers
Relationship to Dome Roof: Temporary Installation Access — Not the Permanent Roof Support Structure
Core Structural Logic: Mobile Base → Braced Tower → Internal Stairs → Intermediate Platforms → Upper Working Platform → Dome Roof Installation Position
