1. Structural Function

A flat seating area can accommodate spectators, but every row remains approximately at the same elevation.

For sports viewing, that creates an obvious problem:

people in front can obstruct the view of people behind them.

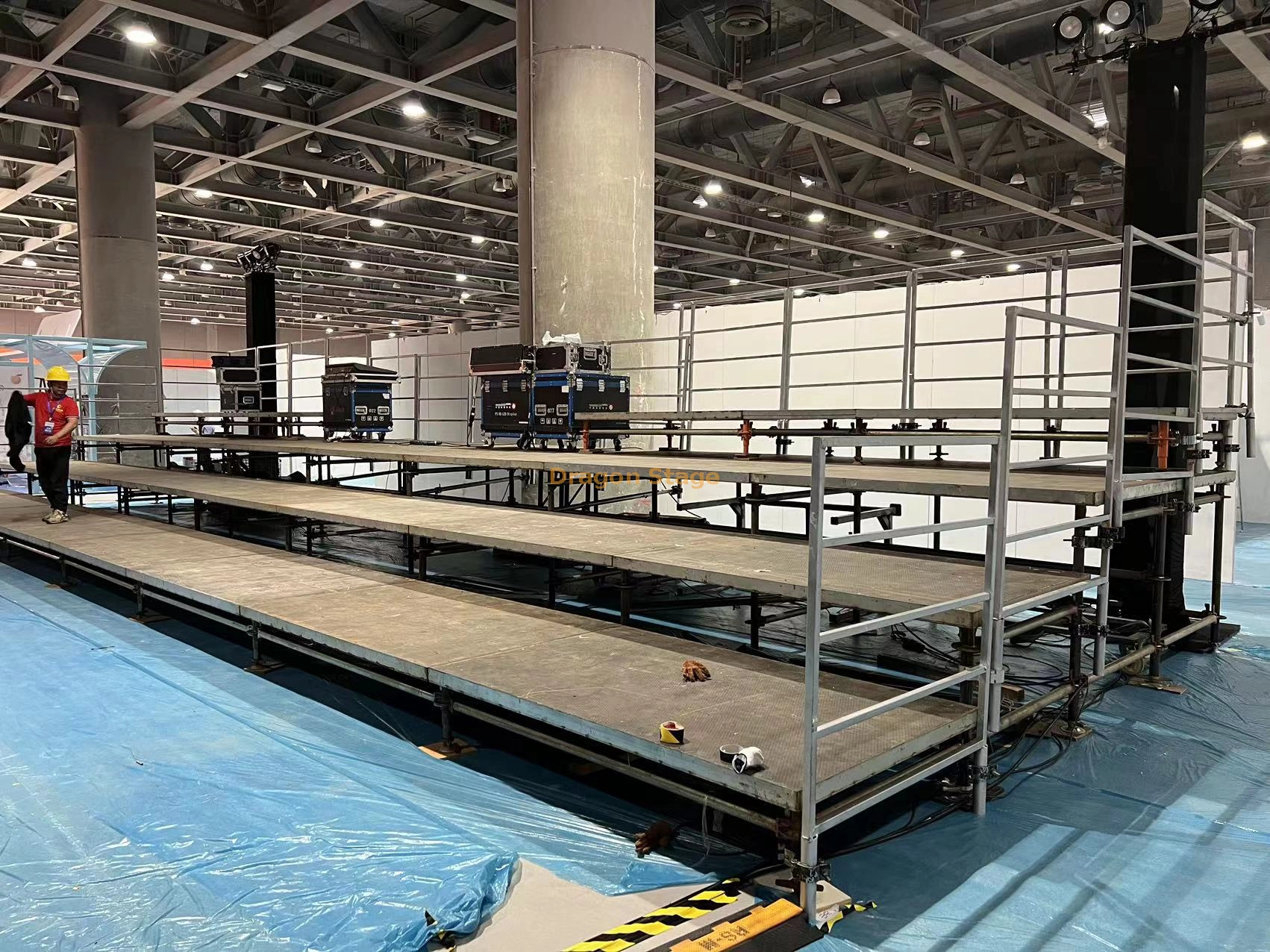

A tiered grandstand changes the geometry.

Instead of:

Row 1 → Row 2 → Row 3 → Row 4

all remaining at approximately the same floor level, the structure creates:

Front Row

↓

Second Elevated Row

↓

Third Elevated Row

↓

Fourth Elevated Row

Each seating level rises progressively toward the rear.

The Ringlock system underneath therefore performs a different function from an ordinary flat scaffold platform. It creates the stepped structural geometry required to support the spectator seating arrangement.

2. Overall Configuration

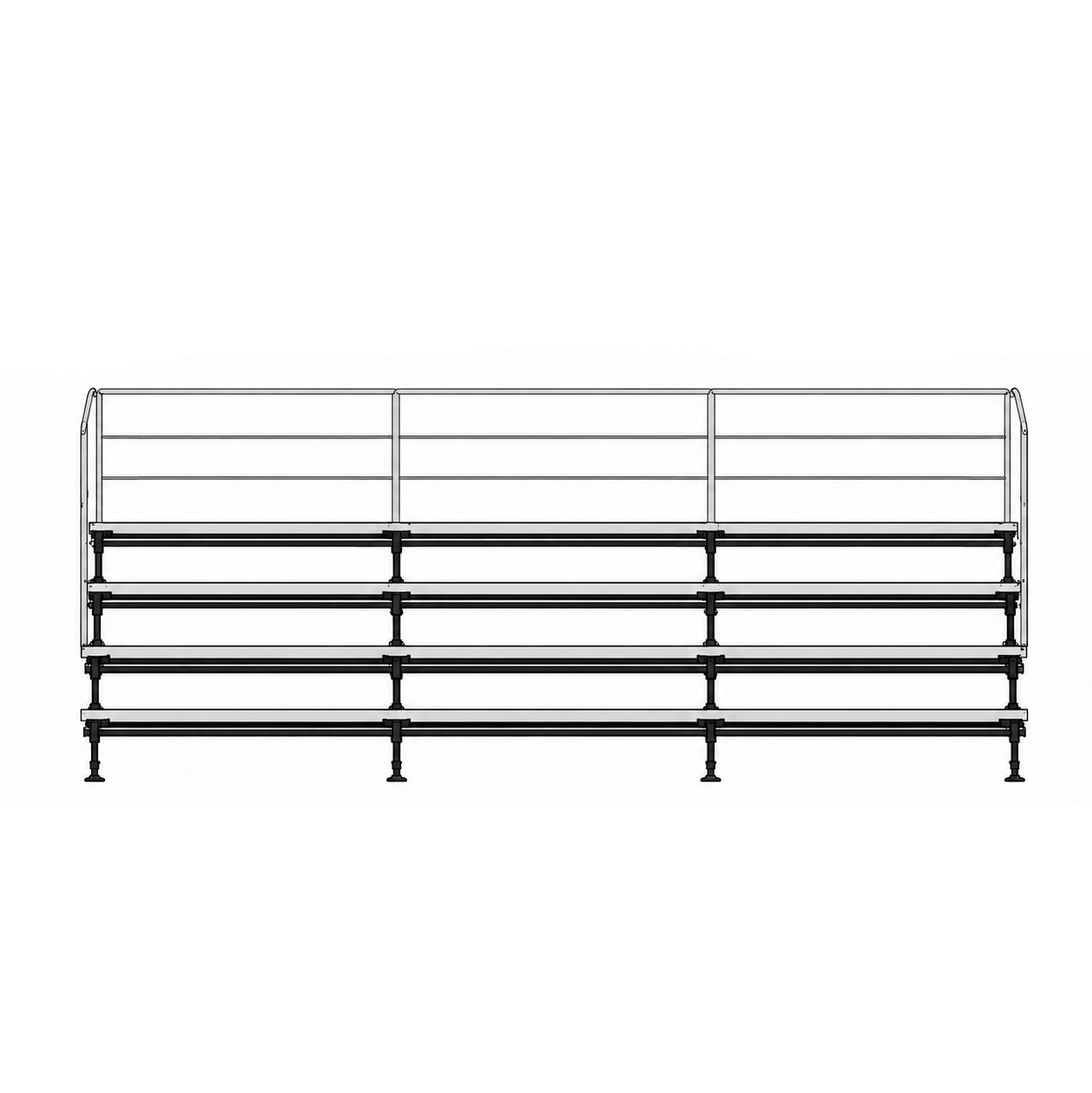

The confirmed arrangement is a 40-seat, four-level temporary grandstand.

Its main functional zones can be broken down as:

Ringlock Base Structure

↓

Stepped Support Levels

↓

Tiered Audience Platforms

↓

40 Spectator Seats

1.1m Central Walkway

Guardrail / Edge Protection

This means the grandstand is not one single elevated deck.

It is a sequence of interconnected platform elevations designed around seating and circulation.

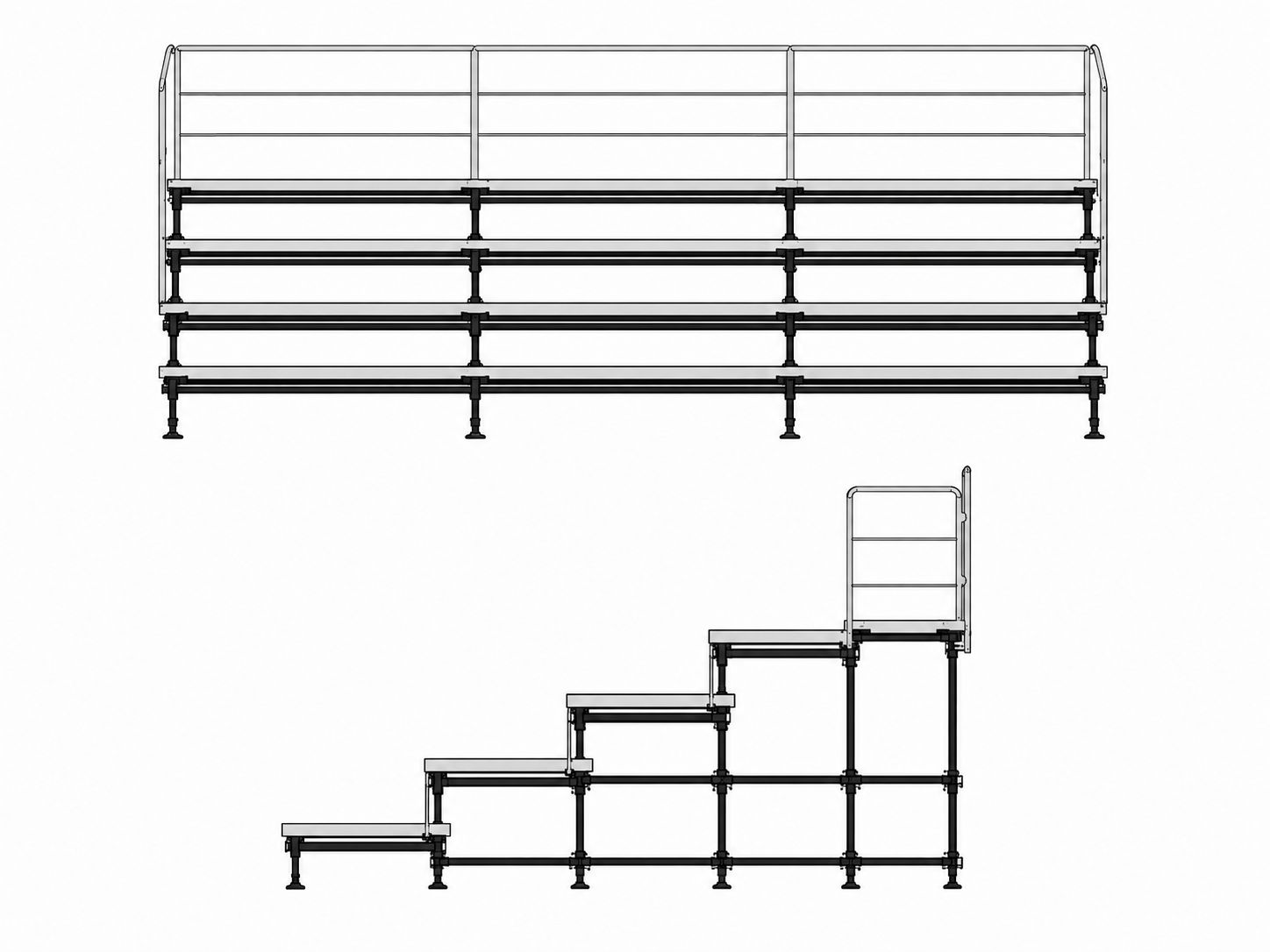

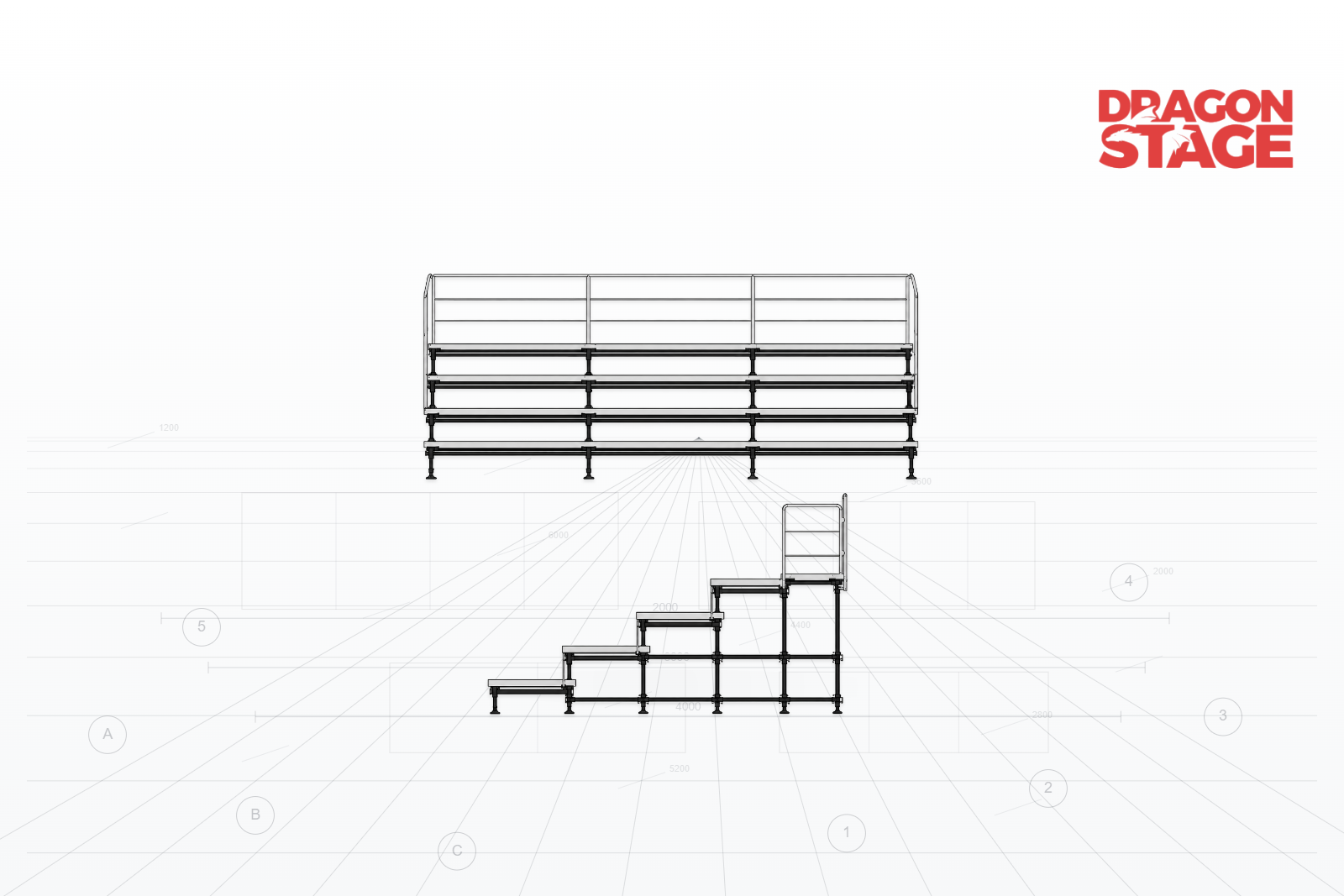

3. Four-Level Tiered Seating Geometry

The most important structural characteristic is the four-layer stepped configuration.

Each successive audience row is supported at a different elevation.

Conceptually:

This stepped arrangement is what converts an ordinary Ringlock support structure into a Seating & Grandstand Structure.

The exact riser height and dimensional difference between each seating level are not confirmed in the supplied source page, so they should not be invented.

What is confirmed is the four-level tiered arrangement.

4. Ringlock Supporting Structure

Underneath the audience area is a modular Ringlock scaffold framework.

At a system level, the supporting structure is formed through combinations of:

• vertical standards;

• horizontal ledgers;

• diagonal bracing;

• platform-supporting members;

• base components;

• connections at different elevations.

The Ringlock system is particularly useful for this type of structure because the same modular component family can be arranged at several heights.

For a flat platform, many supporting points may terminate at the same elevation.

For a tiered grandstand, they do not.

Instead, the supporting framework must progressively create:

Level 1 → Level 2 → Level 3 → Level 4

That changing elevation is the central structural feature of the seating system.

Readers comparing this with other modular configurations can also explore the broader Ringlock Structure family.

5. Why Ringlock Works Well for Tiered Seating

The important advantage here is not simply that Ringlock is scaffolding.

It is that the system is modular in three dimensions.

Standards establish vertical positions.

Ledgers connect those standards horizontally.

Diagonal members stabilize the assembled geometry.

Platform-support components create the required audience levels.

That allows one component system to produce a structure that is:

• low at the front;

• progressively higher toward the rear;

• divided into seating and access zones;

• expandable when more audience capacity is required.

This is a practical system interpretation based on the modular configuration shown in the supplied product, not a project-specific structural calculation.

6. 40-Seat Audience Arrangement

The original product is configured for 40 VIP audience seats.

The important DragonStructure distinction is:

40 chairs alone do not define the grandstand.

The seating capacity affects the complete structural arrangement.

When seat quantity changes, several other variables can also change:

Number of Seats

↓

Number of Rows

↓

Grandstand Length / Width

↓

Platform Area

↓

Ringlock Support Grid

↓

Access Arrangement

↓

Guardrail Quantity

Therefore, a 40-seat grandstand should be treated as a complete structural configuration rather than simply “40 chairs installed on scaffolding.”

7. 1.1m Central Walkway

One of the distinctive features of this particular configuration is the 1.1m-wide middle walkway confirmed by the original product description.

This central route divides the seating structure into two audience zones.

Conceptually:

Left Seating Block

← 1.1m Central Walkway →

Right Seating Block

This walkway provides a circulation route through the tiered seating arrangement.

That is structurally important because access consumes real space inside the grandstand.

If the walkway were removed, moved to one side, widened or supplemented with stairs, the seating layout and supporting Ringlock arrangement could also change.

So the walkway is not an accessory added after the grandstand has been designed.

It is part of the overall seating geometry.

8. Seating + Circulation as One Structure

A temporary grandstand has to solve two different spatial requirements:

Where do spectators sit?

and

How do spectators reach those seats?

The 1.1m central walkway is therefore part of the circulation system.

The basic relationship is:

Entry

↓

Central Walkway

↓

Individual Seating Rows

↓

Spectator Positions

This is one of the reasons seating structures are more complex than a simple raised platform.

A platform primarily creates usable horizontal area.

A grandstand must coordinate:

support + elevation + seating + circulation + edge protection.

9. Guardrail System

The original configuration specifically includes guardrails around the middle walkway and grandstand arrangement.

Guardrails define exposed edges and circulation areas within the elevated seating structure.

Their location depends on the actual geometry.

For example, changes to:

• number of seating rows;

• overall height;

• walkway position;

• stair position;

• side access;

• seating block width;

can also change where guardrails are required.

This is why guardrail quantity should follow the final grandstand layout rather than being treated as a fixed accessory quantity for every 40-seat structure.

10. Structural / Functional Relationship

The complete grandstand can be understood from top to bottom as:

Spectators

↓

Individual Seats

↓

Tiered Seating Platforms

↓

Platform Support Members

↓

Ringlock Standards + Ledgers + Bracing

↓

Base Support

↓

Site Surface

At the same time, spectators move through a second functional path:

Venue

↓

Grandstand Entry

↓

1.1m Central Walkway

↓

Individual Seating Rows

These two systems must coexist:

the Ringlock structure carries the seating geometry, while the access arrangement allows people to use that geometry.

This describes the practical configuration of the system. It should not be interpreted as a verified engineering load-path calculation.

11. Main Structural Components

The structure can be divided into six main modules.

A. Base Support

The lowest support interface between the Ringlock framework and the site surface.

B. Ringlock Supporting Grid

Vertical standards and horizontal members create the main modular framework.

C. Diagonal Bracing

Bracing connects the modular scaffold framework and helps maintain its assembled geometry.

D. Tiered Platform Structure

Different support elevations create the four audience levels.

E. Seating System

Individual spectator chairs are arranged on the tiered platform zones.

F. Access and Guardrail System

The 1.1m central walkway and guardrails create the internal circulation and protected edge zones.

Together:

Base
→ Ringlock Grid
→ Bracing
→ Tiered Platforms
→ Seating
→ Walkway + Guardrails

form the complete temporary grandstand.

12. Assembly Logic

At a structural-product level, the modular assembly logic can be understood in stages.

Step 1 — Establish the Base Geometry

Lay out the footprint according to the required grandstand dimensions and seating arrangement.

Step 2 — Build the Ringlock Support Grid

Install the vertical standards and horizontal members that establish the primary modular bays.

Step 3 — Create the Progressive Elevations

Configure the supporting structure so the seating platforms rise from the front toward the rear.

Step 4 — Install Bracing

Connect the structural bays with the required bracing arrangement according to the intended configuration.

Step 5 — Install the Tiered Platform Areas

Create the four confirmed seating levels.

Step 6 — Establish the Central Access Route

Maintain the 1.1m middle walkway through the seating arrangement.

Step 7 — Install Guardrails

Complete the exposed-edge and access protection arrangement.

Step 8 — Install the Seating

Position the spectator chairs according to the final row layout.

This sequence explains the modular configuration logic only. It is not a substitute for project-specific erection drawings, installation instructions or engineering verification.

13. Why This Is Different from a Ringlock Stage

At first glance, both a Ringlock stage and a Ringlock grandstand may contain:

• standards;

• ledgers;

• braces;

• platform components;

• access components;

• guardrails.

But their functional geometry is different.

Ringlock Stage

Primarily creates:

one main performance level

Ringlock Grandstand

Primarily creates:

multiple progressively elevated audience levels

That distinction determines how the Ringlock structure is arranged.

This is why DragonStructure classifies this product according to its complete function—Seating & Grandstand Structure—rather than simply calling everything made from Ringlock “Ringlock scaffolding.”

14. Why Capacity Alone Is Not Enough to Configure a Grandstand

A customer may initially ask:

“I need seating for 40 people.”

But 40 people is not enough information to define the structure.

Forty seats could theoretically be arranged as:

• 2 rows × 20 seats;

• 4 rows × 10 seats;

• two separated seating blocks;

• seating divided by a central aisle;

• seating with side access;

• seating with front access.

All of these could still be “40 seats,” but they would not produce the same Ringlock structure.

For this particular product, the confirmed solution is:

**40 seats

• four levels

• central 1.1m walkway

• guardrails

• Ringlock tiered support**

That complete combination defines the structure.

15. What Changes When Audience Capacity Changes?

This 40-seat configuration should be treated as a reference module, not a universal grandstand size.

Increasing capacity can affect:

• overall length;

• overall depth;

• number of seating rows;

• number of Ringlock bays;

• platform quantity;

• standards and ledgers;

• bracing;

• access routes;

• guardrails;

• seating quantity.

For example, changing from 40 to 80 spectators does not necessarily mean simply placing two identical grandstands together.

The final configuration depends on whether the additional seats are added:

sideways,

rearward through additional tiers,

or

as another independent seating block.

Each approach produces a different structural arrangement.

16. What Changes When the Number of Tiers Changes?

The supplied product has four seating levels.

If a project requires only two or three levels, the rear structure can become lower.

If more tiers are required, the rear support structure becomes progressively higher.

That affects more than appearance.

It can influence:

• Ringlock standard configuration;

• bracing arrangement;

• platform elevations;

• access;

• guardrail geometry;

• total structural footprint.

For this reason:

seat quantity and tier quantity should always be considered together.

17. What Changes When the Walkway Moves?

This product uses a central walkway.

But another project may use:

• one side stair;

• two side stairs;

• central stairs;

• multiple aisles;

• front access;

• separated seating sections.

Moving the access route changes how spectators circulate through the grandstand.

It can also divide the supporting structure differently.

Therefore:

Access Layout → Seating Layout → Ringlock Layout

are interconnected.

This is particularly important for larger temporary grandstands.

18. Suitable Applications

This type of modular tiered seating structure can be adapted for temporary spectator areas such as:

• sports competitions;

• VIP viewing zones;

• temporary stadium seating;

• school sports events;

• racing events;

• indoor competitions;

• outdoor event viewing areas;

• temporary tournament seating;

• ceremonies;

• exhibition demonstrations;

• event audience areas.

The supplied source specifically identifies the original structure as a VIP tiered seat stand for sports.

Applications with substantially different size, occupancy, site conditions or environmental exposure require their own project assessment.

19. Customization Variables

The Ringlock system makes the grandstand modular, but “modular” does not mean every project uses the same BOQ.

The configuration commonly changes according to:

This is why DragonStructure treats a grandstand as a configured structural system, not simply a catalog seating product.

20. BOQ / Component Groups

The supplied original product page confirms the overall configuration but does not provide a complete component-by-component BOQ with exact quantities.

Therefore, quantities should not be invented.

The confirmed/reasonably supported component groups are:

If the historical quotation or original BOQ is later available, this section can be upgraded to exact component quantities without changing the basic product-page structure.

21. Original DragonTruss Product

The original commercial product page is:

40 VIP Audiences Ringlock Tiered Seat Stand for Sports — DragonTruss

The uploaded original page confirms this as its canonical DragonTruss URL.

The two pages serve different purposes:

DragonTruss original product

→ commercial product / manufacturing / supply reference

DragonStructure structural breakdown

→ explains how the Ringlock system is configured into a four-tier 40-seat temporary grandstand.

This separation avoids simply copying the old DragonTruss product onto the new site.

22. Related Structure References

For more temporary audience-platform configurations, see the Seating & Grandstand Structure category.

For other project-oriented structures built primarily from modular Ringlock components, see Ringlock Structure.

For the original commercial seating-system family on DragonTruss, see Typical Seating System. The original product's breadcrumb confirms that it belongs to this DragonTruss category.

23. Engineering / Verification Boundary

The supplied original product page confirms:

• 40-seat capacity;

• Ringlock tiered seating concept;

• four seating levels;

• 6 × 4m squares/bays as described by the source;

• 1.1m central walkway;

• guardrail arrangement;

• sports/VIP audience application.

The supplied material does not establish verified values for:

• allowable spectator load;

• platform design load;

• maximum grandstand height;

• crowd-induced horizontal load;

• wind load;

• base reactions;

• ground-bearing requirement;

• ballast or anchorage;

• safety factor;

• evacuation capacity;

• code compliance;

• certification;

• engineering approval.

These should not be inferred from the historical product page.

For a real grandstand project, structural capacity, access, guardrails, foundations/base support, occupancy requirements and applicable local regulations should be verified for the actual configuration and site.

24. Information Needed to Adapt This Structure

To develop another Ringlock tiered grandstand from this configuration, provide:

• required number of spectators;

• number of preferred seating tiers;

• available site length and depth;

• required seat type;

• seat width and spacing if already selected;

• preferred central or side aisle arrangement;

• required walkway width;

• stair/access requirements;

• indoor or outdoor application;

• site photos or drawings;

• floor/ground condition;

• project location;

• any existing Ringlock components intended for reuse.

The configuration can then be developed through:

Audience Capacity
→ Row Arrangement
→ Tier Geometry
→ Walkway / Access
→ Ringlock Support Grid
→ Platforms
→ Guardrails
→ Final Component Configuration

Structure Classification

Primary Function: Temporary Tiered Spectator Seating
System Family: Ringlock Structure
DragonStructure Category: Seating & Grandstand Structure
Audience Capacity: 40 Seats
Tier Configuration: 4 Levels
Access Configuration: 1.1m Central Walkway
Primary Support System: Modular Ringlock Scaffold
Application: Sports / VIP Audience Viewing
Original Source: DragonTruss Typical Seating System
Core Structural Logic: Ringlock Base + Progressive Support Levels + Tiered Platforms + Seating + Central Access + Guardrails
