1. Structural Function

For indoor event installation, the problem is often not the lighting equipment itself.

The problem is:

How does the technician physically reach the lighting position?

In a theater, auditorium, stage or event venue, lighting equipment may be installed several meters above floor level.

A temporary working structure therefore needs to provide:

• vertical access;

• intermediate working/rest positions;

• an upper work area;

• lateral stability;

• mobility before work begins;

• perimeter protection around the working platform.

This tower combines those functions into one temporary access structure.

The functional sequence is:

Floor Level
→ Mobile Scaffold Base
→ Internal Ladder Access
→ Intermediate Platforms
→ Upper Working Platform
→ Lighting / Ceiling Work Position

2. Overall Configuration

The footprint of the central tower itself is only 1.35 × 2.0m.

However, the complete working footprint is larger once the four outriggers are deployed.

This distinction is important:

Tower Size ≠ Installed Footprint

When planning a structure like this inside an auditorium, aisle, backstage zone or stage-side working area, the user needs enough space not only for the tower body but also for its stabilizing supports.

3. Modular Height Configuration

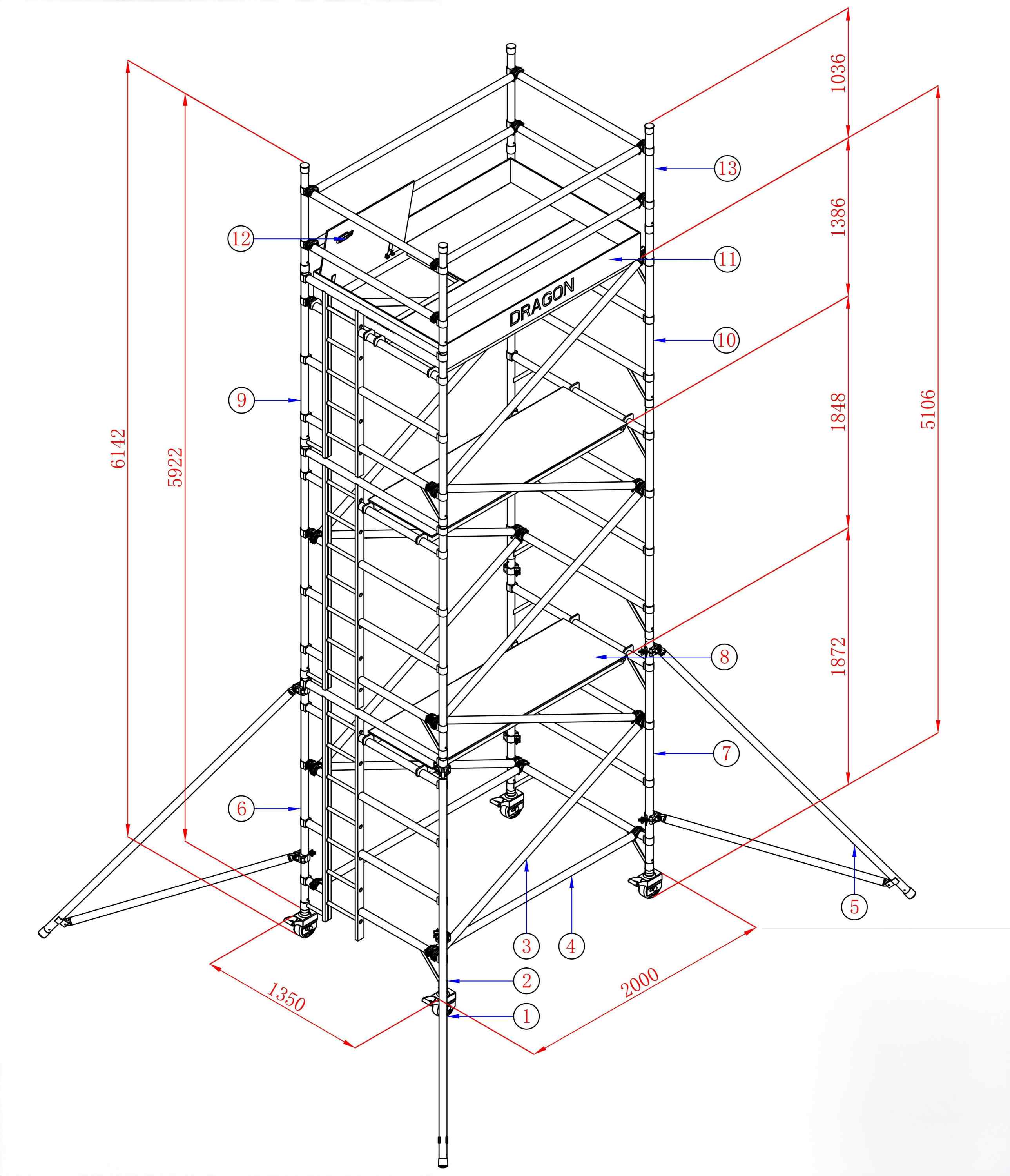

One of the clearest features in the drawing is that the tower does not use identical frame sections from bottom to top.

The BOQ combines:

• 4-rung frames;

• 3-rung frames.

The confirmed vertical frame components are:

The 5-rung 2.31m frames are listed in the source BOQ but have a quantity of 0 pcs, so they are not part of this specific configuration.

That matters because the final 6m-class height is not created from one standard tower module repeated blindly.

It is created from:

1.848m frame modules
+
1.848m frame modules
+
1.386m upper frame module
+
base / caster adjustment
+
upper guardrail zone

This is a good example of modular access-system logic: the final height can be created by combining different standard frame heights.

4. Double-Width Tower Geometry

The central tower is approximately:

1.35m wide × 2.0m long

This is a double-width scaffold configuration.

The wider frame allows the tower to accommodate:

• a larger working platform;

• internal ladder access;

• platform transitions;

• technician movement within the tower.

Structurally, the tower consists of two vertical side-frame lines connected together through horizontal and diagonal members.

The basic relationship is:

Left Frame
↔ Horizontal / Platform Members ↔
Right Frame

with diagonal members preventing the complete tower from behaving like a set of unbraced rectangles.

5. Diagonal Bracing System

The BOQ includes:

10 × Diagonal Bar SD1

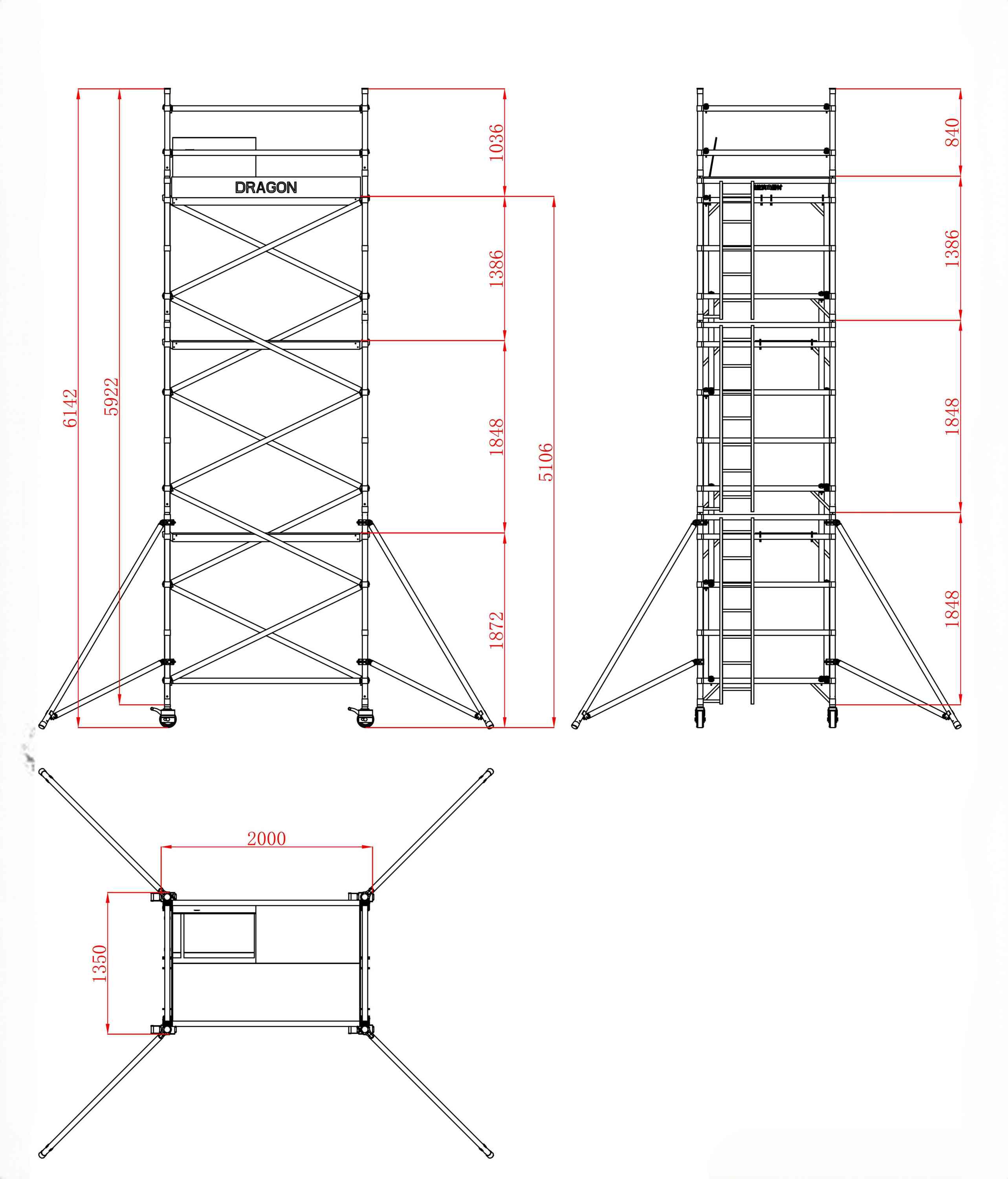

The drawings show repeated X-type diagonal patterns along the tower elevation.

Their practical role is to connect vertical frame sections into a three-dimensional tower rather than allowing each frame plane to act independently.

At a system level:

Vertical Frames provide height

while:

Diagonal Braces maintain tower geometry

This distinction is important.

Simply stacking aluminum ladder frames would create vertical elevation, but not the complete working tower shown in the drawing.

The diagonals are part of what turns those repeated frames into one connected structure.

6. Horizontal Connections

The BOQ includes:

8 × Horizontal Bar SD2

These members connect and organize the tower at selected levels.

Together with the frames, platforms and diagonal braces, they create the horizontal geometry needed for the complete tower.

The system can therefore be understood as:

Frames → Height

Horizontal Bars → Width / Longitudinal Connection

Diagonal Bars → Braced Geometry

Platforms → Work and Access Surfaces

7. Internal Ladder Access

A major functional feature of this tower is that several side frames incorporate ladder sections.

The BOQ specifically includes:

• 2 × 4-rung frame with ladder;

• 1 × 3-rung frame with ladder.

The drawing shows those ladder sections arranged vertically through the tower.

This allows technicians to move upward inside the structural envelope, rather than relying on an independent external ladder placed beside the tower.

The access logic becomes:

Lower Platform
→ Integrated Ladder
→ Intermediate Platform
→ Integrated Ladder
→ Upper Platform

This is particularly useful for indoor installation work because the tower is not just a high platform—it contains its own vertical circulation route.

8. Multiple Platform Levels

The BOQ includes:

The real photograph and drawing both show that the tower has more than one usable horizontal level.

These intermediate platforms matter because a tower of this height should not be understood simply as:

floor → one ladder → top

Instead, its structural and access logic is:

lower section
→ intermediate platform
→ next ladder section
→ another level
→ final working zone

The trapdoor platform also works together with the internal ladder arrangement by allowing vertical passage through the platform level.

9. Upper Working Platform

The top of the tower forms the principal technician work zone.

According to the drawing, the main upper platform level is around the 5.1m elevation, while the complete guardrail structure continues upward to approximately 6.14m overall height.

That distinction is important.

Calling this a “6m working platform” could incorrectly imply that the technician stands at 6m.

A more accurate description is:

A 6.1m overall mobile tower with an upper working platform around the 5.1m level in this configuration.

The working platform gives the technician a stable elevated surface from which installation or maintenance work can be performed.

10. Guardrail and Toe-Board Zone

The supplied BOQ contains:

• 2 × Guardrail SD9

• 1 × Toe Board SD7

The top drawing clearly shows the guardrail structure extending above the upper platform.

This creates a defined upper work zone rather than leaving the technician standing on an unprotected open deck.

Functionally:

**Platform

• Guardrail

• Toe Board
  = Upper Working Area**

The exact safety performance or regulatory compliance of that arrangement is not established by the supplied drawing alone and therefore should not be inferred.

11. Mobile Caster Base

The BOQ includes:

4 × 6-inch wheels with adjustable legs

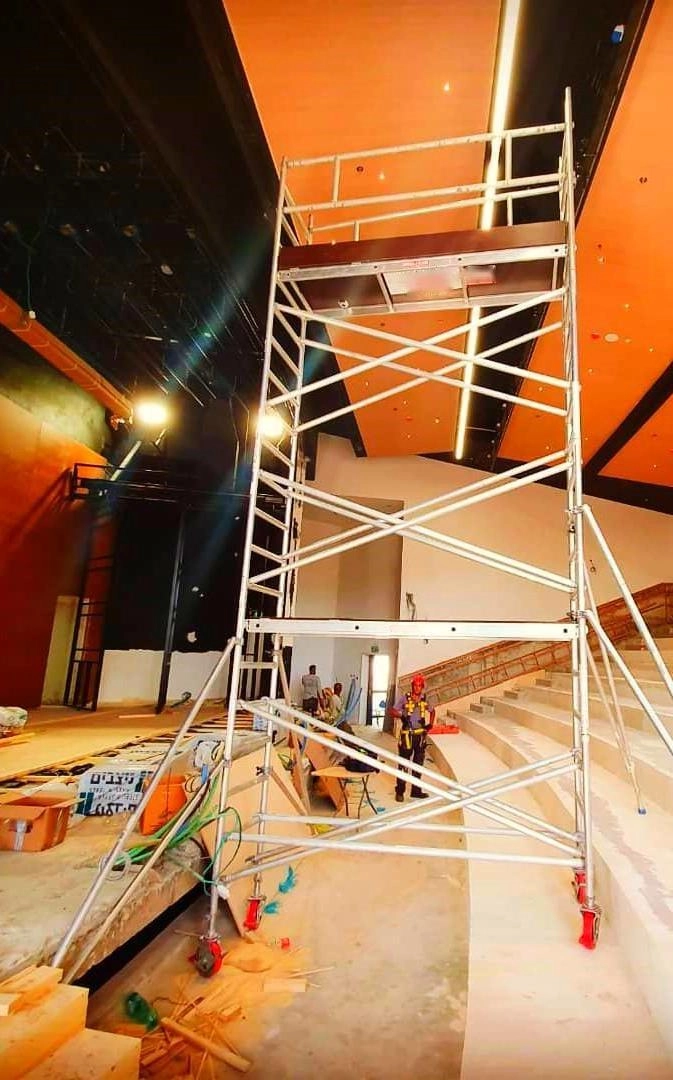

The photograph confirms the tower is mounted on casters.

This gives the structure an important operational characteristic:

it can be repositioned within an indoor venue before work is carried out.

For event production, this can be useful when technicians need to work sequentially on different ceiling or lighting positions.

However, mobility and working stability are different operating states.

The wheels make relocation possible; they should not be interpreted as meaning the structure is intended to be moved while personnel are working on the elevated platform.

Any operational procedure should follow the applicable scaffold instructions and project requirements.

12. Four Long Outriggers

The BOQ includes:

4 sets × Long Outrigger, 3m

The drawings show one stabilizer projecting outward from each corner zone.

This dramatically changes the geometry at ground level.

Without the outriggers, the tower body is approximately:

1.35 × 2.0m

With the outriggers deployed, the effective ground-support envelope becomes substantially larger.

This is why the photograph shows the tower taking up more floor space at its base than its upper working platform.

For indoor venues, this is an important planning issue.

A client may say:

“I have a 1.35 × 2m space.”

But that does not automatically mean this 6m-class configuration fits there.

The surrounding space required for the stabilizers must also be considered.

13. Functional Structural Relationship

At a practical system level, the structure can be read from top to bottom as:

Technician / Working Position

↓

Upper Platform

↓

Platform Support + Horizontal Members

↓

Aluminum Side Frames

↓

Diagonal Bracing

↓

Adjustable Caster Base

↓

Indoor Floor

At the same time, lateral stabilization is supplemented by:

Tower Frame
→ Outrigger Connections
→ Four Extended Supports
→ Floor

This is a practical structural interpretation of the supplied configuration, not a calculated engineering load path.

14. BOQ — Confirmed Component List

This BOQ is particularly useful because it shows exactly how a 6m-class mobile access tower is assembled from standard frame modules rather than requiring one custom-made 6m side frame.

15. Assembly Logic

At a structural-product level, the assembly sequence can be understood as follows.

Step 1 — Establish the Mobile Base

Install the four caster / adjustable-leg assemblies and establish the first frame level.

Step 2 — Connect the Lower Frames

Install horizontal and diagonal members so the lower frame pair becomes a connected tower module.

Step 3 — Add the Next Frame Level

Stack the next 1.848m frame modules and continue the required horizontal and diagonal connections.

Step 4 — Install Intermediate Platforms

Fit the working/access platforms at their intended elevations.

Step 5 — Add the 1.386m Upper Module

Complete the upper frame section using the 3-rung frames.

Step 6 — Complete Internal Access

Coordinate the ladder-frame sides and trapdoor platform so the vertical access route remains continuous.

Step 7 — Install the Upper Work Zone

Install the final platform, guardrails and toe board.

Step 8 — Deploy the Outriggers

Extend and position all four long outriggers according to the intended installed configuration.

For the broader principles behind modular scaffold erection, see Installation Methodology for Modular Stage, Truss & Scaffold Systems.

This sequence explains system configuration only; it is not a substitute for the manufacturer's installation instructions or project-specific safety procedure.

16. Why This Structure Fits Indoor Event Work

This tower is especially relevant to DragonStructure because the supplied real photograph shows it being used in an auditorium / performance environment rather than on a conventional construction façade.

Its practical function can include access for:

• stage lighting installation;

• ceiling lighting maintenance;

• auditorium electrical work;

• overhead event-equipment adjustment;

• venue fit-out;

• temporary installation work;

• inspection of elevated event infrastructure.

That does not turn the scaffold into lighting equipment.

It remains an access structure whose purpose is to bring the technician to the equipment.

This distinction is important:

Lighting Truss supports equipment.

Working Platform supports the technician who installs or services the equipment.

17. Mobile Access vs Fixed Working Position

This structure performs two jobs at different times.

During Repositioning

Casters allow the tower to be moved to another work location.

During Elevated Work

The full base, braces, platforms and stabilizing arrangement form the installed working configuration.

This is why a mobile scaffold should not be thought of as a “tall trolley.”

Its wheels solve the relocation problem.

The rest of the structure solves the elevated-access problem.

18. What Changes When the Required Working Height Changes?

Height is the most obvious customization variable.

If the technician needs a lower position, fewer or shorter frame modules may be required.

If the required access becomes higher, the complete structure may need changes to:

• frame combination;

• number of diagonal braces;

• number and position of platforms;

• ladder arrangement;

• caster / base configuration;

• outrigger size or configuration;

• overall installation footprint.

This is why a scaffold BOQ should be configured from the required work elevation, not merely from a nominal product name such as “6m scaffold.”

19. What Changes When Floor Space Is Limited?

Indoor venues often introduce a very practical constraint:

there may be enough vertical clearance, but not enough floor space.

The central tower footprint is compact, but the outriggers extend outward.

Therefore, when adapting this structure for:

• a theater aisle;

• backstage corridor;

• narrow stage wing;

• seating area;

• wall-side installation;

the available floor envelope should be confirmed before the tower configuration is finalized.

A narrower access structure may solve the footprint problem, but it would represent a different configuration and should not automatically be assumed equivalent to this double-width tower.

20. What Changes When Access Requirements Change?

This configuration uses integrated ladder frames.

Another project may require a different access method.

That could change:

• side-frame type;

• platform positions;

• trapdoor locations;

• tower length;

• internal circulation.

So “same height” does not necessarily mean “same BOQ.”

A 6m-class scaffold with internal ladder frames and a 6m-class scaffold with another access arrangement can require different components.

21. Suitable Applications

This Working Platform Structure configuration is particularly suitable as a reference for:

• indoor event lighting installation;

• auditorium ceiling work;

• theater technical installation;

• exhibition hall installation;

• event venue maintenance;

• temporary stage-side access;

• elevated inspection work;

• indoor electrical and AV installation.

Outdoor use or unusual site conditions should not be assumed from this indoor-event configuration without separate assessment.

22. Information Needed to Adapt This Structure

For another project, provide:

• required technician standing height;

• target equipment / lighting height;

• available floor width and length;

• total ceiling clearance;

• indoor or outdoor use;

• whether the tower needs to be frequently repositioned;

• preferred access method;

• number of technicians expected on the work level;

• photos or drawings of the venue;

• obstacles around the base;

• floor / site condition;

• project location.

The configuration can then be developed through:

Required Work Height
→ Frame Combination
→ Platform Levels
→ Access Route
→ Stabilization Geometry
→ Installed Footprint

23. Engineering and Verification Boundary

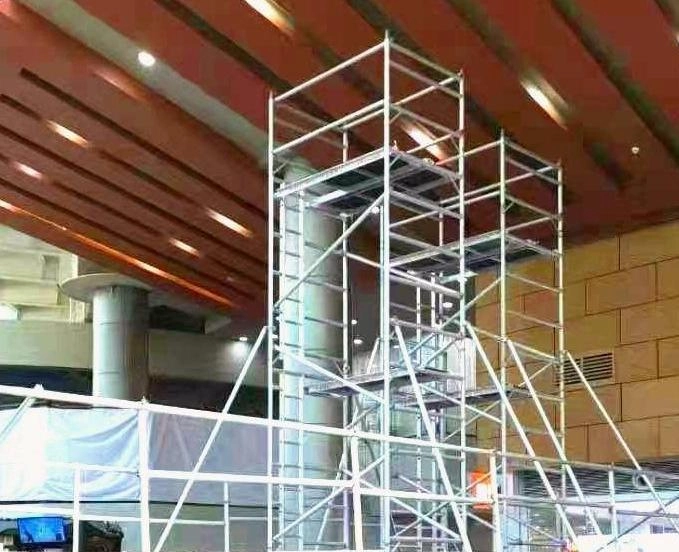

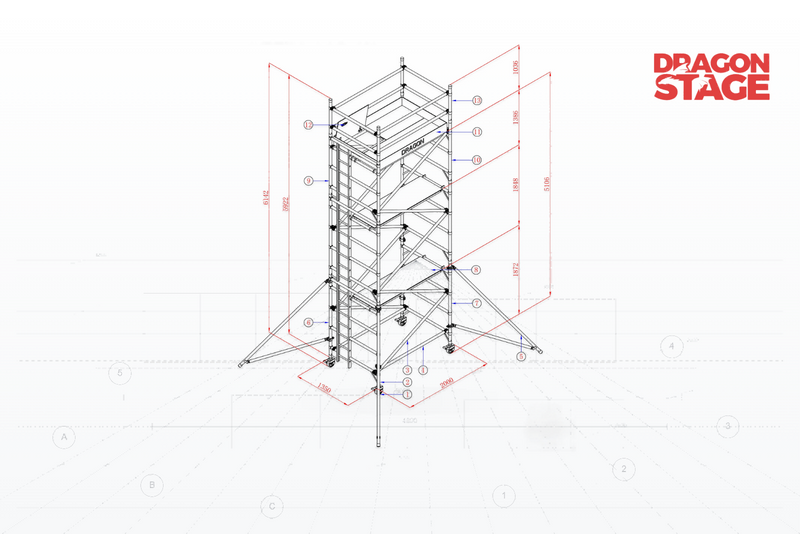

The supplied drawing, photograph and BOQ confirm the physical configuration of this tower.

They support statements about:

• overall geometry;

• frame dimensions;

• modular component combination;

• platform arrangement;

• caster system;

• ladder access;

• guardrails;

• outriggers;

• intended indoor event installation use.

They do not provide verified values for:

• maximum platform load;

• number-of-person design load;

• lateral load;

• allowable caster load;

• outrigger reaction;

• overturning resistance;

• safety factor;

• floor capacity;

• certification;

• code compliance;

• engineering approval.

Those items should therefore not be invented or inferred from the image.

Where project-specific safety or structural verification is required, refer to the broader Safety Standards & Engineering Constraints framework.

24. Original DragonTruss Product Configuration

The nearest verified DragonTruss commercial configuration matching the supplied 1.35 × 2m, approximately 6.14m double-width aluminum scaffold tower is:

View Original DragonTruss Product — Aluminum Double Width Portable Scaffolding 6.14m

That DragonTruss page represents the commercial scaffold product family, while this DragonStructure page answers a different question:

DragonTruss:
What double-width aluminum scaffold product can be supplied?

DragonStructure:
How is a 6m-class mobile aluminum working platform configured for indoor event lighting installation?

Related Structure References

Working Platform Structure — DragonStructure category for elevated temporary work platforms used in installation, maintenance and event-support work.

Installation Methodology for Modular Stage, Truss & Scaffold Systems — general principles for modular scaffold and temporary-structure assembly sequencing.

Safety Standards & Engineering Constraints — explains the boundary between configuration guidance and project-specific engineering verification.

Structure Classification

Primary Function: Elevated Indoor Working Access
System Family: Access Structure
DragonStructure Category: Working Platform Structure
Structure Type: Mobile Double-Width Aluminum Scaffold Tower
Main Tower Size: 1.35 × 2.0m
Overall Height: Approx. 6.142m
Upper Working Platform Zone: Approx. 5.1m
Mobility: 4 Adjustable Casters
Access: Integrated Ladder Frames + Trapdoor Platform
Stabilization: 4 × 3m Long Outriggers
Main Modules: Mobile Base + Aluminum Frames + Horizontal/Diagonal Bracing + Internal Ladder Access + Intermediate Platforms + Upper Working Platform + Guardrails + Outriggers
