1. What Is This Structure Designed to Do?

The unusual part of this product is not the Ringlock components themselves.

It is how ordinary Ringlock components are reorganized around an audience-layout requirement.

The original event problem was:

How can spectators be divided into clearly defined individual viewing zones while still facing the same concert stage?

The structural answer was a repeated:

2m × 2m modular audience pod

with:

low floor + perimeter definition + one controlled open side.

So the structure performs three simple functions:

Create a Defined Audience Area

Provide a Finished Floor

Control the Direction of Entry

The result is very different from a stage, working platform or grandstand even though similar modular components may appear in those structures.

2. Overall Configuration

These dimensions make the product much closer to an individual audience enclosure/platform than a conventional bleacher.

3. Why This Is Not a Grandstand

A conventional grandstand normally creates:

multiple audience rows

progressively increasing elevations

so people behind can see over those in front.

This structure does not do that.

Its platform is approximately:

0.2m high

and the whole viewing zone remains essentially at one level.

So its structural logic is:

individual audience zone

rather than:

tiered audience seating.

The distinction can be summarized as:

That is why this page should use Audience Viewing Pod prominently rather than calling it a mini-grandstand.

4. Ringlock Structural Frame

The main framework consists of:

1.5m Ringlock Vertical Standards

Quantity: 4 pcs

One vertical is positioned at each corner of the 2 × 2m unit.

These four standards establish the primary rectangular geometry:

2m

×

2m

with a vertical frame extending upward to support the guardrail arrangement.

The Ringlock standards perform more than one function in this design.

They form:

• the corner structure;

• the lower platform frame connection points;

• the upper guardrail connection positions.

That multifunction use of the same vertical member is one reason the system remains structurally simple.

5. Horizontal Ledger System

The confirmed configuration contains:

Horizontal Ledgers

Quantity: 10 pcs

These 10 horizontal members do not all perform exactly the same function.

Within the assembled pod, they contribute to:

• lower structural connections;

• platform-level framing;

• three-sided guardrails.

This is an important feature of the design.

The same Ringlock horizontal member type can be reorganized according to position:

lower level → structural connection

while:

upper level → audience-zone guardrail.

This demonstrates the basic modular logic of Ringlock: one standardized component family can serve different positions within the same structure.

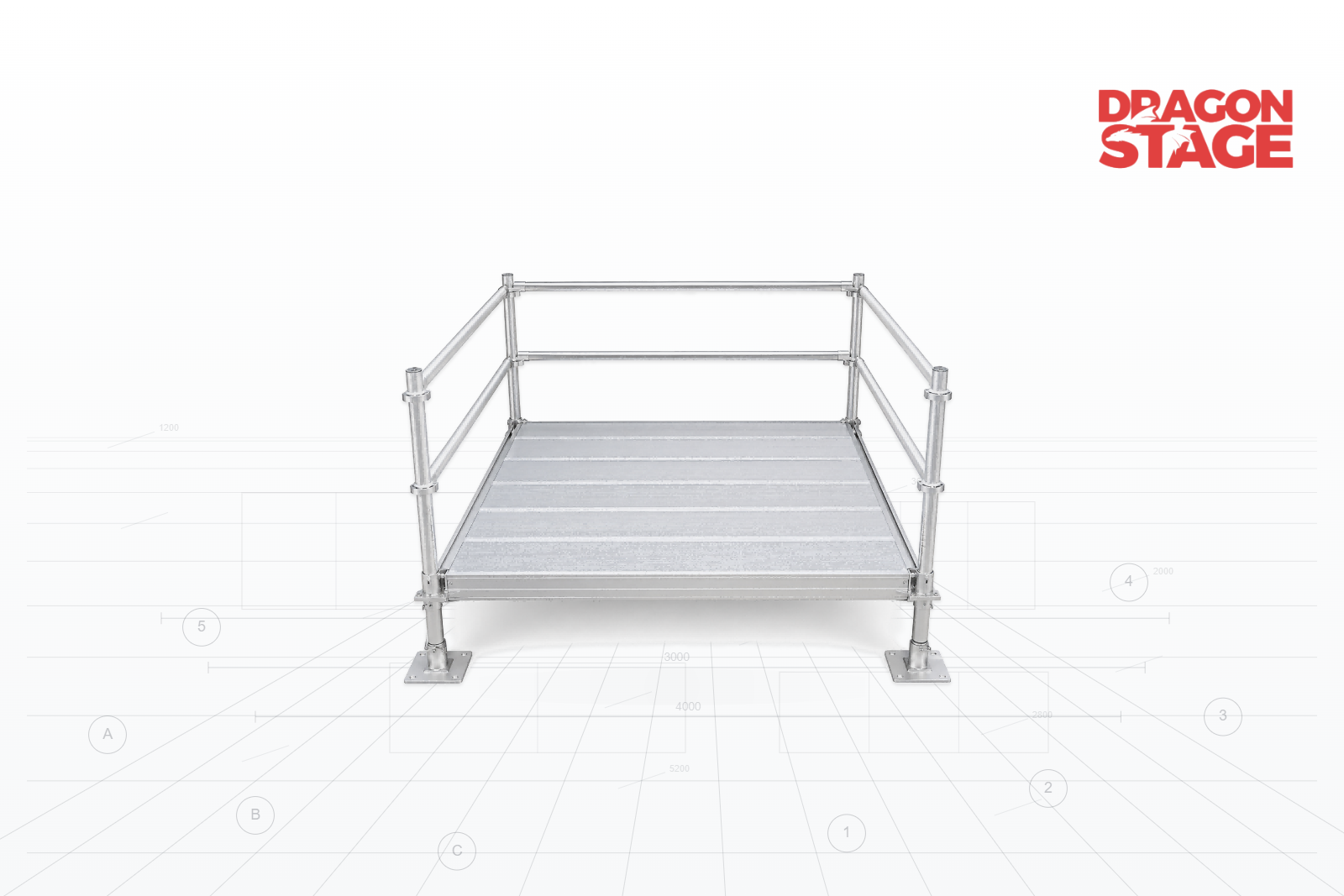

6. Three-Sided Double-Rail Guardrail Layout

Three sides of the platform are enclosed.

Each enclosed side uses:

two horizontal rails.

So the audience-zone logic is:

Front Side — enclosed

Left Side — enclosed

Right Side — enclosed

Rear Side — open

The front side faces the concert stage.

The rear side faces away from the performance area and acts as the entrance and exit.

This means the structure does not need a separate gate component.

Instead, circulation is created by deliberately omitting the rear guardrail section.

That is a very simple but useful structural decision.

7. Entrance Direction Is Part of the Configuration

The open rear side is not merely a missing component.

It defines how the audience uses the structure.

The circulation path becomes:

Audience Circulation Area

↓

Open Rear Side

↓

2 × 2m Viewing Pod

↓

Spectator Faces Stage

The guardrails therefore help orient the pod.

They do not just surround the spectator.

The physical structure reinforces the event-layout direction:

entrance behind

and:

performance in front.

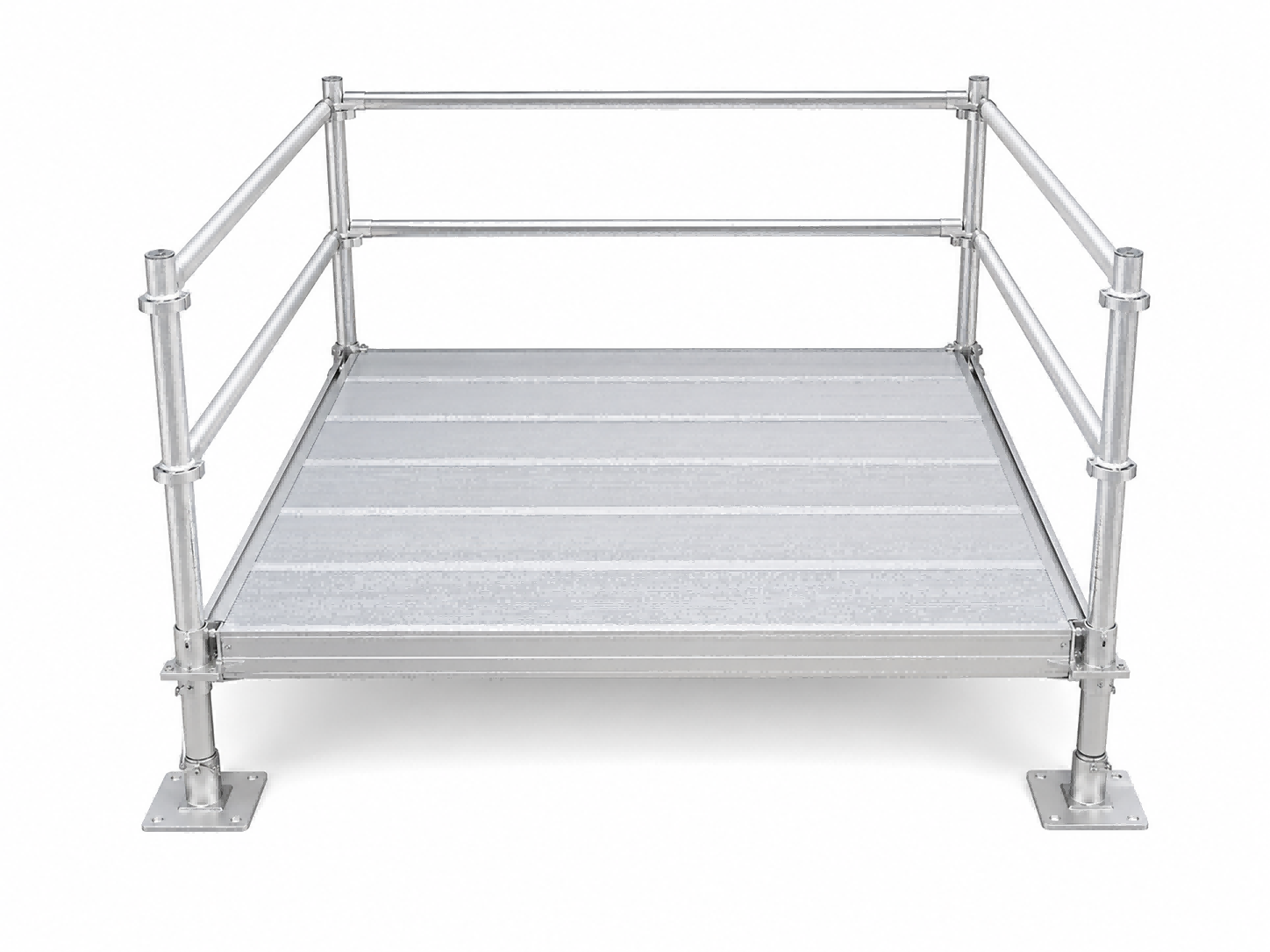

8. 0.2m-High Aluminum Pallet Platform

The spectator floor is positioned approximately:

0.2m above ground level.

This is a deliberately low platform compared with:

• grandstands;

• stage platforms;

• FOH platforms;

• working towers.

Its primary role in this configuration is not to elevate spectators substantially.

It creates:

a defined finished audience floor surface

inside the 2 × 2m zone.

The confirmed floor system uses:

2m Aluminum Pallets

Quantity: 6 pcs

These pallets are positioned together to create the audience platform.

9. Why Six Aluminum Pallets Are Used

The platform surface is made from multiple narrow modular aluminum pallet sections rather than one large 2 × 2m panel.

This means:

individual aluminum pallets

↓

side-by-side arrangement

↓

continuous 2 × 2m audience floor

This modular arrangement helps keep the structure dismantlable.

After the event, the floor does not remain as one 2 × 2m custom-made slab.

It returns to individual aluminum pallet modules.

That matches the same modular principle used throughout the Ringlock structure.

10. Four Adjustable Steel Bases

Each Ringlock vertical standard is supported by:

Adjustable Steel Base Jack

Quantity: 4 pcs

The basic relationship is:

Vertical Standard

↓

Adjustable Base

↓

Ground

The adjustable base provides practical leveling capability during assembly.

However, this should not be interpreted as meaning that the structure can automatically be installed safely on any uneven or soft ground.

Actual ground conditions remain a project/site consideration.

11. Front Poster / Branding Position

The stage-facing side of the pod can carry a:

• concert poster;

• sponsor graphic;

• audience-zone number;

• event branding;

• decorative panel.

This is an event-use feature rather than a structural Ringlock component.

The distinction is useful:

Ringlock Guardrail

= structural/configuration component

Poster

= event communication / branding layer

The same front-facing position can therefore change visually from event to event without changing the core audience-platform structure.

12. Confirmed BOQ

This is an unusually compact BOQ.

Only four main component groups create the complete audience pod:

Standards

Ledgers

Bases

Pallets

That simplicity is one of the strongest structural characteristics of the product.

13. How the Structure Works

The structure can be read vertically from ground level.

Ground

Supports the four adjustable bases.

Adjustable Bases

Provide the interface between the ground and vertical standards.

Ringlock Standards

Create the four corner positions.

Lower Horizontal Members

Connect the corner structure.

Aluminum Pallets

Create the finished audience floor.

Upper Horizontal Members

Form the three-sided double-rail enclosure.

Open Rear Side

Provides entry and exit.

The complete logic is:

Ground

→ 4 Adjustable Bases

→ 4 Ringlock Standards

→ Lower Horizontal Frame

→ 6 Aluminum Pallets

→ Three-Sided Double Guardrails

→ 2 × 2m Audience Viewing Zone

14. Why Ringlock Is Useful for This Application

The practical advantage is that the product does not require a new proprietary audience-pod structure.

The same basic modular system creates:

• vertical corners;

• lower frame connections;

• guardrail connections;

• floor support;

• adjustable base positions.

This means the physical product can be dismantled back into standard modular components after use.

That is useful for temporary event infrastructure because the structure exists only when the event layout requires it.

When dismantled:

Audience Pod

becomes:

individual Ringlock and aluminum components again.

This reuse logic is one of the main reasons modular systems can be useful for unusual temporary-event applications.

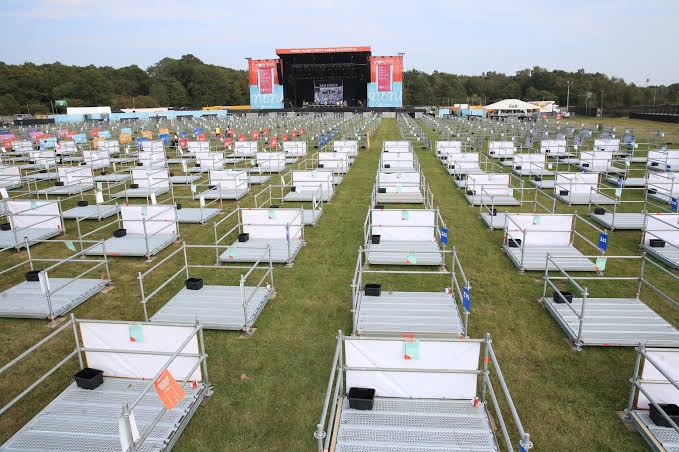

15. Original Socially Distanced Concert Function

This product originated from a very specific event requirement:

socially distanced concert seating / viewing areas.

Instead of creating one large shared audience zone, multiple independent 2 × 2m platforms could be distributed across the venue.

Conceptually:

Pod — space — Pod — space — Pod

rather than:

one continuous crowd area.

That historical application is worth preserving because it explains why the structure looks the way it does.

However, “socially distanced” should not be interpreted as a current regulatory specification or universal spacing requirement.

It describes the original use case.

16. From Pandemic-Specific Product to Reusable Audience Structure

The original requirement was unusual, but the resulting structural idea is broader.

A 2 × 2m modular viewing zone can also be considered as a reference concept for:

• VIP audience pods;

• sponsor viewing areas;

• small guest zones;

• temporary spectator platforms;

• controlled viewing spaces;

• festival audience pods;

• individually numbered audience areas.

This is why I recommend dropping Socially Distanced from the main DragonStructure product title.

The original history remains in the article, but the structural product gains a longer useful life.

17. Why This Should Not Be Classified as Stage Platform Structure

Physically, the product does contain a small platform.

But its primary function is not:

performance

or:

equipment support.

Its function is:

audience viewing.

DragonStructure classification should follow the primary function of the complete structure.

Therefore:

Primary Category

Seating & Grandstand Structure

Secondary System

Ringlock Structure

The Internal Link Library specifically defines the Seating & Grandstand category for temporary seating structures, audience platforms and viewing applications, so this pod fits that functional boundary even though it is not tiered.

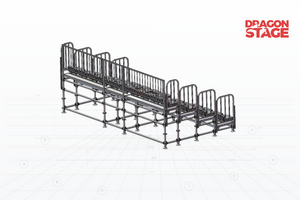

18. Comparison with the 34-Person Ringlock Grandstand

The difference between these two products demonstrates how the same Ringlock system can create very different audience structures.

2x2m Audience Pod

one low level

→ individual audience zone

34-Person Grandstand

multiple stepped levels

→ shared tiered audience seating

The key difference is not the material.

It is the structural function and geometry.

This is one of the most important principles behind DragonStructure:

The same Ringlock components can become different structures when the required function changes.

19. Comparison with the 40-Seat VIP Grandstand

The 40-seat VIP structure organizes:

multiple people + tiered rows + central circulation

while this 2 × 2m pod organizes:

one small audience group + one level + one rear entrance.

So the Seating & Grandstand category can now cover three very different scales:

Individual Audience Pod

→ Compact Grandstand

→ Larger Tiered VIP Grandstand

This creates a much more useful structural library than simply listing different seating products.

20. What Changes When Platform Size Changes?

This specific configuration is:

2m × 2m.

If the customer changes it to another size, several parts may change together:

• ledger lengths;

• number of pallets;

• guardrail dimensions;

• entrance opening;

• overall Ringlock layout.

Therefore a larger pod is not necessarily created by simply adding one more pallet.

The entire rectangular module needs to remain coordinated.

The configuration path becomes:

Required Audience Zone

→ Platform Length / Width

→ Ringlock Grid

→ Floor Pallet Layout

→ Guardrail Arrangement

→ Entrance Position

21. What Changes When Guardrail Layout Changes?

This structure uses:

three enclosed sides + one open side.

Another event might require:

• two enclosed sides;

• three sides with a gate;

• different entrance direction;

• side entrance;

• additional separation rails.

Changing the entrance position affects which horizontal members are installed at guardrail level.

Therefore:

Audience Circulation Plan

directly affects:

Ringlock Guardrail Configuration.

That makes entrance direction a real structure-design variable rather than a decorative choice.

22. What Changes When Platform Height Changes?

The original audience floor is only:

approximately 0.2m high.

If the platform becomes substantially higher, the structural problem changes.

A higher viewing platform may affect:

• vertical support arrangement;

• access method;

• guardrail requirement;

• bracing;

• platform geometry;

• project-specific load and safety assessment.

For that reason, a 1m-high audience platform should not automatically be treated as the same structure with longer bases.

It becomes a different configuration.

23. Assembly Logic

At the Structure Product level, the basic modular sequence can be understood as follows.

Step 1 — Position the Four Base Jacks

Establish the four corner points of the 2 × 2m module.

Step 2 — Install the Four Ringlock Standards

Connect one vertical standard to each base.

Step 3 — Build the Lower Horizontal Frame

Connect the standards using the horizontal members required for the platform geometry.

Step 4 — Install the Aluminum Pallet Floor

Arrange the six 2m pallets to form the platform surface.

Step 5 — Install the Guardrail Members

Use the remaining horizontal members to create two rails on each of the three enclosed sides.

Step 6 — Keep the Rear Side Open

Do not close the intended rear entrance with guardrail members.

Step 7 — Add Poster / Identification if Required

Install event graphics on the front-facing side according to the event layout.

This explains the modular assembly logic only and is not a substitute for project-specific installation or safety instructions.

24. Suitable Applications

The same structural concept can be adapted for temporary uses such as:

• concert audience pods;

• festival viewing zones;

• VIP spectator areas;

• sponsor guest platforms;

• controlled audience sections;

• temporary event viewing areas;

• individually numbered spectator pods.

The exact number of occupants should not be assumed from the 2 × 2m dimension alone.

Actual occupancy depends on the event layout, intended use and applicable requirements.

25. Original DragonStage Product

The original commercial product is:

2x2m Ringlock Socially Distanced Concert Audience Platform with Guardrails

Original Product URL:

https://www.dragontruss.com/2x2m-Ringlock-Socially-Distanced-Concert-Audience-Platform-with-Guardrails-pd190108238.html

The original DragonTruss page preserves the historical commercial application and supplied product configuration.

The two websites should answer different questions.

DragonTruss

What Ringlock audience-platform product can be manufactured and supplied?

DragonStructure

How can four Ringlock standards, ten ledgers, six aluminum pallets and four bases be organized into a 2 × 2m individual audience viewing pod?

That keeps the Product vs. Structure boundary clear.

26. Related Structure References

Seating & Grandstand Structure

https://www.dragonstructure.com/Seating-Grandstand-Structure-pl09155276.html

Use this to explore other temporary audience structures, from individual viewing platforms to tiered grandstands.

Ringlock Structure

https://www.dragonstructure.com/Ringlock-Structure-pl04775276.html

Use this to explore how the same modular Ringlock system can be configured for stage platforms, audience structures, FOH, access, sound and other temporary event functions.

Modular System Logic

https://www.dragontruss.com/Modular-System-Logic-for-Stage-Truss-Scaffold.html

This is particularly relevant because this product is a good example of standard components being reorganized for an unusual temporary-event function.

27. Engineering and Verification Boundary

Confirmed Facts

The original product information confirms:

• 2m × 2m platform size;

• 1.5m Ringlock vertical standards;

• approximately 0.2m platform height;

• four vertical standards;

• ten horizontal ledgers;

• four adjustable steel bases;

• six 2m aluminum pallets;

• three-sided guardrails;

• two horizontal rails on each enclosed side;

• open rear entrance;

• stage-facing front side;

• optional poster / branding position;

• original socially distanced concert application.

Not Established by the Product Information

The supplied material does not establish:

• maximum number of occupants;

• allowable platform load;

• crowd load;

• guardrail design load;

• allowable impact load;

• ground-bearing requirement;

• wind resistance;

• ballast requirement;

• safety factor;

• event-code compliance;

• certification;

• engineering approval.

These should not be inferred from the product size or component quantities.

The phrase socially distanced concert audience platform describes the historical use of the product. It should not be presented as a current regulatory distancing specification.

28. Information Needed to Adapt This Audience Pod

For another event application, provide:

• required audience-zone size;

• expected use of each pod;

• event/site layout;

• entrance direction;

• stage/viewing direction;

• platform height;

• desired guardrail sides;

• preferred pallet layout;

• poster/branding requirement;

• ground condition;

• indoor or outdoor use;

• required number of identical pods;

• project location and applicable event requirements.

The configuration can then follow:

Audience Layout

→ Pod Dimensions

→ Ringlock Corner Grid

→ Platform Floor

→ Guardrail Layout

→ Entrance Direction

→ Branding / Identification

→ Final Modular Configuration

Structure Classification

Recommended Product Name: 2x2m Modular Ringlock Audience Viewing Pod with Three-Sided Guardrails
Original Product Name: 2x2m Ringlock Socially Distanced Concert Audience Platform with Guardrails
Primary Function: Individual Temporary Audience Viewing Zone
Primary Category: Seating & Grandstand Structure
Secondary System: Ringlock Structure
Footprint: 2m × 2m
Platform Height: Approx. 0.2m
Standard Height: 1.5m
Vertical Standards: 4 pcs
Horizontal Ledgers: 10 pcs
Adjustable Steel Bases: 4 pcs
Floor: 6 × 2m Aluminum Pallets
Guardrails: Three Sides / Two Horizontal Rails per Side
Entrance: Open Rear Side
Front Orientation: Faces Concert Stage
Optional Functional Layer: Poster / Sponsor / Zone Identification
Original Application: Socially Distanced Concert Audience Layout
Core Structural Logic: Adjustable Bases → Four Ringlock Corner Standards → Lower Frame → Aluminum Pallet Floor → Three-Sided Double Guardrails → Rear Entrance → Individual Viewing Zone

Short Description

2x2m modular Ringlock audience viewing pod with a low 0.2m aluminum pallet floor, three-sided double-rail guardrails, open rear entrance and adjustable steel bases, originally developed for socially distanced concert audience layouts and adaptable for VIP or controlled temporary viewing zones.
