This structure combines two major temporary event systems with different functions.

The first is a tall Ringlock framework measuring 20m wide × 2m deep × 12m high, intended for an LED screen or other stage-background installation.

The second is a separate aluminum brace stage measuring 20m wide × 10m deep × 2m high, providing a nominal 200m² performance surface.

Two aluminum stair units provide access to the elevated stage.

The complete structural relationship is:

20×2×12m Ringlock LED Backdrop

20×10×2m Aluminum Brace Stage

Two Eight-Step Access Stairs

This is not a roofed concert-stage system. The published configuration does not include an aluminum roof, roof canopy or dedicated roof-support towers.

The defining feature is the combination of a 12m-high background-support structure and a 2m-high performance platform, with both systems sharing a nominal 20m width.

1. What Is This Structure?

The structure is best understood as an open-air performance stage with a tall modular background-support framework.

The Ringlock module creates the vertical background structure behind the stage.

The aluminum brace stage creates the horizontal performance surface in front of it.

These modules are coordinated spatially, but they perform different structural functions.

The overall arrangement can be summarized as:

Tall Background Framework → Elevated Stage → Ground Access

The backdrop and performance platform should not be treated as one continuous Ringlock-supported structure.

2. Why “LED Backdrop Support Structure” Instead of “LED Background Wall”?

The original product name uses the term Ringlock LED Background Wall.

For DragonStructure, LED Backdrop Support Structure more clearly identifies the structural function.

The Ringlock assembly is not the LED screen itself.

It is a modular supporting framework that may be configured around a confirmed LED installation or other background equipment.

The published framework has a depth of 2m, so it is not simply a flat line of posts.

It contains vertical standards, horizontal members and diagonal braces arranged into a three-dimensional Ringlock system.

The actual LED screen size, weight, cabinet arrangement and attachment method must be determined separately.

For related support configurations, see LED Screen Structure.

3. Overall Structural Dimensions

The two modules share the same nominal width, but they have different depths and heights.

The Ringlock framework extends vertically to 12m.

The performance platform extends horizontally to a depth of 10m and is elevated 2m above ground.

That difference defines the structural character of this product.

4. Main Ringlock LED Backdrop Framework

The Ringlock background structure measures:

20m W × 2m D × 12m H

It is assembled from modular steel Ringlock components.

The framework contains four principal component groups:

• Vertical standards

• Horizontal pipes

• Diagonal braces

• Adjustable bases

These components create the large background-support structure.

Complete Ringlock BOQ

Ringlock Packing Weight: approximately 6,066kg
Ringlock Packing Volume: approximately 10CBM

The quantities describe the supplied modular package. They do not establish allowable equipment loads or wind resistance.

5. Understanding the Ringlock Framework

Vertical Standards

The 165 vertical standards form the main vertical modular arrangement.

Each listed standard is 2m long.

The repeated modular lengths provide the basis for assembling the confirmed 12m-high framework.

The exact distribution of standards between individual bays and levels must follow the project drawing.

Horizontal Members

The 370 horizontal pipes connect the standards and establish the horizontal Ringlock grid.

Each horizontal pipe is listed as 2m long.

These members help define the 20m-wide and 2m-deep modular arrangement.

Diagonal Bracing

The 312 diagonal members provide bracing within the Ringlock framework.

The confirmed diagonal length is 2.44m.

The relatively large number of diagonal members is an important characteristic of this structure.

The exact brace distribution should be confirmed from the final assembly drawing rather than inferred from the total quantity alone.

Adjustable Bases

The structure contains 39 adjustable bases.

The source lists each base with a height of 0.25m.

These components provide adjustable support positions at the lower part of the Ringlock framework.

The BOQ does not establish the required foundation, ground-bearing capacity, anchoring or ballast for a particular installation.

For the underlying modular system, see Ringlock Structure.

6. Why the Ringlock Backdrop Is 2m Deep

The confirmed framework has three dimensions:

20m width × 2m depth × 12m height

The 2m depth distinguishes it from a simple flat background arrangement.

It allows the Ringlock system to be configured as a three-dimensional modular framework containing horizontal and diagonal bracing.

However, the 2m depth should not be interpreted as proof that the structure can support any particular LED-screen weight or resist any particular wind condition.

Those questions require the actual equipment arrangement and project-specific engineering verification.

The published dimensions describe the physical geometry, not an approved loading capacity.

7. LED Screen and Supporting Structure Are Different

This distinction is particularly important for this product.

The confirmed Ringlock framework measures:

20×2×12m

But that does not mean the actual LED display measures:

20×12m.

The screen could occupy only part of the framework, depending on the final project.

The required structural configuration depends on information such as:

• LED screen width and height

• Cabinet dimensions

• Total screen weight

• Screen installation elevation

• Connection and mounting method

• Required maintenance access

• Cable-routing arrangement

Actual LED cabinets, processors, electrical equipment and mounting accessories are not automatically included merely because the product is described as an LED background structure.

The LED-support interface must be confirmed separately.

8. Independent 20x10m Aluminum Brace Stage

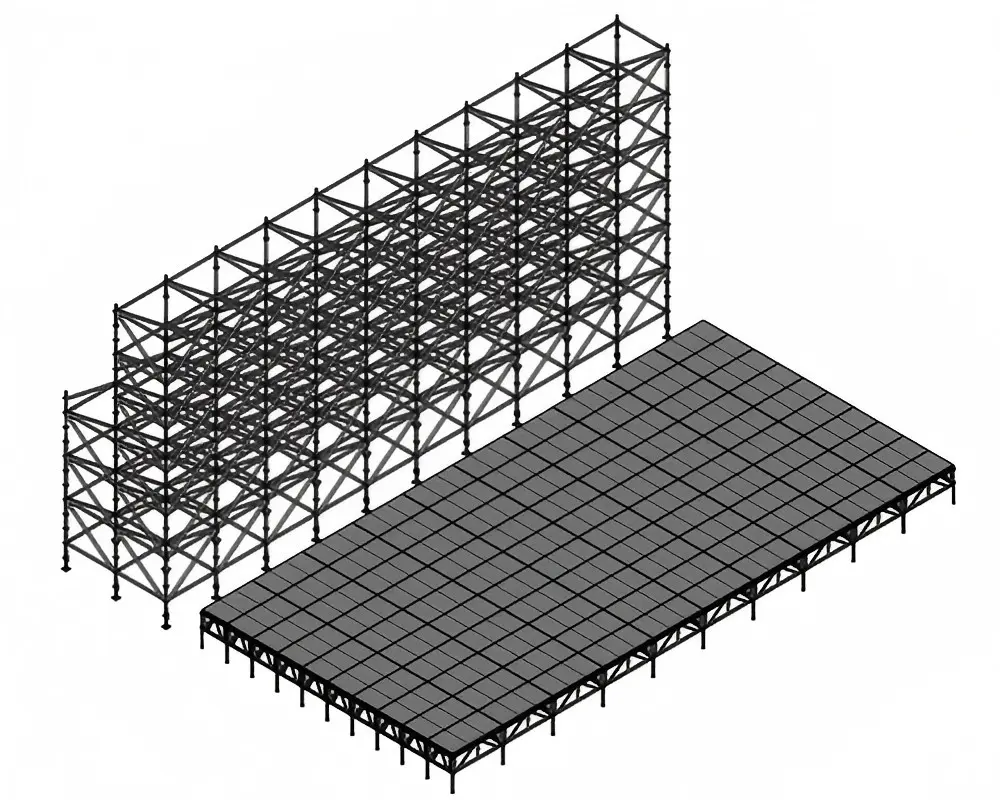

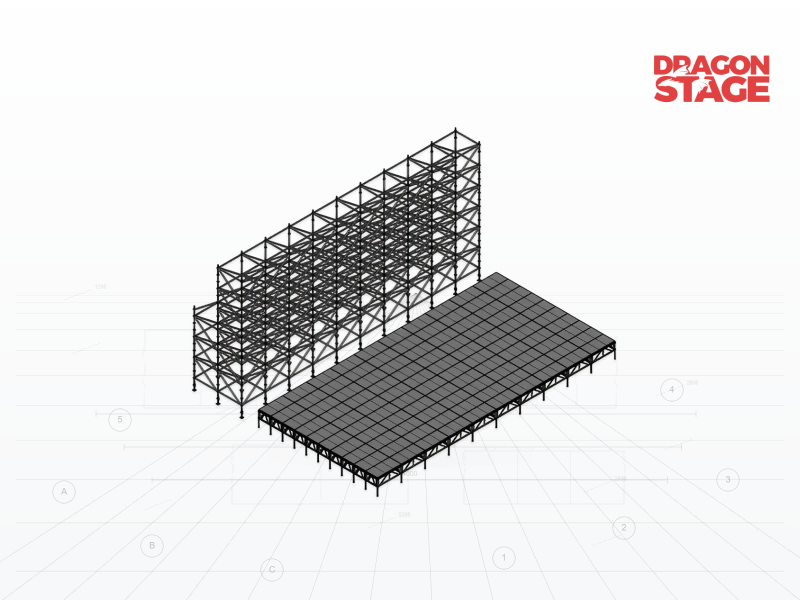

In front of the Ringlock backdrop is a separate aluminum brace stage.

Its dimensions are:

20m wide × 10m deep × 2m high

The nominal performance area is:

20m × 10m = 200m²

The stage uses 100 modular aluminum stage decks, each measuring 1m × 2m.

The deck-area calculation is:

100 × 2m² = 200m²

This matches the confirmed stage footprint.

The stage is supported by its own brace and extendable-stand system.

It is not described in the source as a Ringlock-supported stage platform.

9. Complete Aluminum Brace Stage BOQ

Stage Packing Weight: approximately 5,980kg
Stage Packing Volume: approximately 32CBM

Combined Packing Summary

These are commercial packing figures, not calculated installed structural weights.

10. How the Aluminum Brace Stage Works

The stage contains four main functional component groups.

Stage Decks

The 100 aluminum-framed stage decks create the nominal 200m² performance surface.

Each deck measures 1m × 2m and has 18mm plywood topping.

Stage Braces

The stage package contains:

110 × 1m braces

and

110 × 2m braces.

These members form part of the modular stage-support arrangement.

Extendable Supports

The stage includes 121 stands with extendable tubes.

These provide the stage-support positions within the supplied configuration.

Adjustable Bases

The 121 stage adjustable bases belong to the aluminum brace-stage system.

They should not be confused with the 39 adjustable bases supplied for the separate Ringlock backdrop.

The two groups belong to different structural modules.

For other platform configurations, see Stage & Platform Structure.

11. Why the Stage Uses a Separate Support System

One important feature of this product is that the Ringlock backdrop and the stage are not forced into one supporting system.

The structural division is:

Ringlock

→ tall LED/background-support framework

Aluminum Brace Stage

→ elevated performance floor

This is different from a project where the stage itself is assembled from Ringlock standards, ledgers and stage decking.

The published arrangement demonstrates how different modular systems can be combined in one event layout without treating them as interchangeable.

For related hybrid configurations, see Ringlock + Aluminum Structure.

12. Two Eight-Step Access Stairs

The performance stage is approximately 2m high.

The confirmed package contains:

2 × eight-step stage stairs

and

4 × 3.762m stair handrails.

The basic access relationship is:

Ground Level

↓

Eight-Step Stair

↓

2m-High Performance Stage

The two stairs provide two access locations within the supplied configuration.

Their exact positions should be confirmed from the event layout.

The published quantity does not establish that two stairs satisfy all circulation, emergency-egress or local regulatory requirements for every event.

13. Why the Backdrop Is 12m High While the Stage Is 2m High

The structure contains two different vertical functions.

The 12m-high Ringlock framework creates the background-support zone.

The 2m-high aluminum stage creates the elevated performance floor.

This produces a large difference in height:

12m backdrop height

versus

2m stage height.

The backdrop therefore extends significantly above the performance surface.

This relationship is useful for understanding the overall visual and structural layout, but it does not establish the final LED screen height.

The actual screen position must be confirmed separately.

14. Why the Shared 20m Width Matters

Both the Ringlock backdrop and the aluminum stage are nominally 20m wide.

This gives the two systems a consistent overall width.

However, they differ substantially in depth:

Ringlock Backdrop: 2m

Performance Stage: 10m

The background-support structure is therefore a relatively narrow, tall structural zone, while the stage is a broad horizontal working platform.

This is the core geometric relationship of the complete configuration.

The final relative position and any spacing between the two systems should follow the project drawing.

15. Difference from the 14m Ringlock Backdrop with Quick Stage

A related DragonStructure configuration uses a 14×6×8m Ringlock framework with an 8×4×0.8m aluminum quick stage.

This 20m product is structurally different in several important ways.

The important distinction is not merely the larger size.

The 20m structure introduces a much taller, narrower LED-support framework and a substantially larger brace-supported performance platform.

That makes it a separate structural configuration rather than simply another dimension of the same quick-stage package.

16. Difference from a Roofed Concert Stage

This product should not be confused with the larger hybrid concert-stage structures that include complete aluminum roofing systems.

The confirmed configuration includes:

• Ringlock LED backdrop

• Aluminum brace stage

• Stage access stairs

It does not include a confirmed:

• Aluminum roof perimeter

• Roof pillars

• Roof lifting system

• Roof canopy

• Roof-support tower package

Therefore, its primary structural relationship is:

LED Backdrop Support + Elevated Performance Stage

rather than:

Roof Support + Covered Stage + LED Wings.

This distinction helps customers identify the correct structural approach before requesting a quotation.

17. Structural Assembly Logic

At a Product level, the system can be understood through the following general sequence:

1. Establish the 20m-wide Ringlock backdrop position and the 20×10m stage layout.

2. Position the Ringlock adjustable bases according to the confirmed drawing.

3. Assemble the Ringlock vertical standards and horizontal members.

4. Install the specified diagonal bracing.

5. Complete the Ringlock background framework to the confirmed 12m configuration.

6. Establish the independent aluminum brace-stage support layout.

7. Install the 121 extendable support positions and stage adjustable bases according to the stage drawing.

8. Assemble the 1m and 2m stage bracing.

9. Install the 100 aluminum stage decks to form the 20×10m platform.

10. Install the two eight-step stairs and four handrails.

11. Coordinate any LED installation with the actual screen dimensions, weights and mounting requirements.

12. Complete all project-specific structural checks, stabilization and installation requirements.

This explains modular composition only. It is not an approved erection sequence or engineering method statement.

18. Typical Applications

This configuration may be considered for:

• Concerts and music festivals

• Large temporary performance stages

• Public ceremonies

• Corporate events

• Stage LED background installations

• Outdoor event productions

• Branded stage presentations

• Other events requiring a tall structural backdrop behind a large elevated stage

The suitability of the structure for any particular event depends on the final equipment arrangement and project conditions.

19. Customization Options

The published dimensions represent one structural configuration.

The Ringlock background may be customized in width, depth, height, bay arrangement and bracing layout.

The aluminum stage may be customized in width, depth, height and access arrangement.

The LED-support interface must be considered separately according to the actual display.

For example, changing the LED screen dimensions may change the required background-support geometry.

Changing the stage height may affect the stage-support arrangement and access configuration.

Therefore, the complete structure should be coordinated as a project rather than treating each dimension as an isolated variable.

20. Information Required for a Similar Project

For a similar structure, please provide:

• Required Ringlock backdrop width, depth and height

• LED screen width and height

• LED cabinet model and dimensions

• Total LED screen weight

• LED mounting or support method

• Required LED installation elevation

• Stage width and depth

• Stage height

• Required number of stairs

• Preferred stair positions

• Indoor or outdoor installation

• Project location

• Site and ground conditions

• Available plan or elevation drawings

• Any existing compatible Ringlock or aluminum stage equipment

For a 12m-high LED-support structure, the actual screen configuration is particularly important.

The overall framework dimensions alone are not sufficient to determine the allowable screen installation.

21. Engineering and Verification Boundary

The published source confirms the following configuration:

Ringlock LED Backdrop

20×2×12m, with 370 horizontal pipes, 312 diagonal pipes, 165 vertical standards and 39 adjustable bases.

Aluminum Brace Stage

20×10×2m, with 100 stage decks, 220 stage braces, 121 extendable supports and 121 adjustable bases.

Access

Two eight-step stairs and four stair handrails.

The published information does not establish:

• Allowable LED-screen weight

• Maximum attached or suspended load

• Stage allowable load

• Maximum performer or equipment capacity

• Wind resistance

• Required ballast

• Anchoring or foundation requirements

• Ground-bearing requirements

• Safety factors

• Structural certification

• Local regulatory compliance

• Engineering approval

These matters require project-specific confirmation and, where applicable, engineering verification.

22. Related DragonStructure Pages

LED Screen Structure

LED Screen Structure

Relevant to the main Ringlock backdrop function and the distinction between LED display equipment and its supporting structure.

Ringlock + Aluminum Structure

Ringlock + Aluminum Structure

Relevant to the integration of two different modular systems in one temporary event layout.

Stage & Platform Structure

Stage & Platform Structure

Relevant to the 200m² aluminum brace-stage system, support grid and elevated working platform.

Ringlock Structure

Ringlock Structure

Relevant to the standards, horizontal members, diagonal bracing and adjustable bases used in the 12m-high backdrop framework.

23. Original DragonTruss Product and Pricing

The original commercial product is:

20x12m Ringlock LED Background Wall with 20x10m Aluminum Brace Stage and 2 Stairs

For current pricing, supply specifications and quotation details, please visit:

Original DragonTruss Product — 20x12m Ringlock LED Background Wall with 20x10m Aluminum Brace Stage and 2 Stairs

DragonStructure explains how the Ringlock LED backdrop, aluminum brace stage and access components form one temporary event configuration.

DragonTruss provides the original commercial listing, current product pricing and supply information.

For customized dimensions or additional LED equipment, the final quotation may differ from the published configuration.

FAQ

1. What is the overall size of the Ringlock LED backdrop?

The confirmed Ringlock structure measures approximately 20m wide, 2m deep and 12m high.

2. What is the size of the performance stage?

The aluminum brace stage measures 20m wide, 10m deep and 2m high, providing a nominal 200m² performance surface.

3. Is the stage supported by Ringlock?

No. The published configuration uses a separate aluminum brace-stage system with its own supports, braces and adjustable bases.

4. Are LED screens included?

LED screens are not automatically included. The confirmed BOQ describes the Ringlock background-support structure and the aluminum performance stage.

5. Does the Ringlock wall have to carry a full 20x12m LED screen?

No. The 20×2×12m dimensions describe the Ringlock framework, not a confirmed LED display size. The screen dimensions and weight must be specified separately.

6. Why is the backdrop 2m deep?

The 2m depth creates a three-dimensional Ringlock framework rather than a single flat row of standards. It does not, by itself, establish allowable screen weight or wind resistance.

7. How many stage decks are included?

The stage package contains 100 aluminum-framed deck modules, each measuring 1m × 2m with 18mm plywood topping.

8. How many stairs are included?

The confirmed configuration includes two eight-step stairs and four stair handrails.

9. Does this structure include a roof?

No. The confirmed configuration contains a Ringlock LED backdrop and an aluminum brace stage, without a dedicated aluminum roofing system.

10. Can the backdrop and stage dimensions be customized separately?

Yes. The two systems are separate modular assemblies, although their final layout and any equipment interfaces must be coordinated.

11. Is the 12m-high Ringlock structure approved for outdoor wind loads?

The published information does not provide a verified wind rating or project-specific engineering approval. Outdoor use requires appropriate structural verification for the actual installation.

12. Where can customers check the current price?

Please visit the original DragonTruss product page for the current commercial configuration and pricing.
