Project Background

The customer was an event rental company working on large outdoor concert projects.

At their event sites, there were normally two different types of access.

One was the formal route used by performers and other front-of-stage personnel.

The other was much less visible but still necessary:

a backstage access route for technicians and staff who needed to reach equipment, platforms or working areas during setup and maintenance.

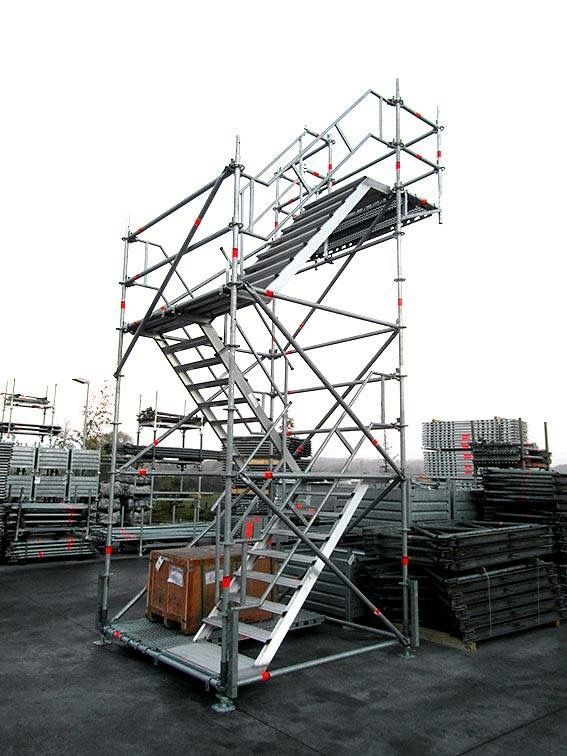

For this backstage function, the customer had traditionally used steel inclined access stairs with their temporary structure.

That system was familiar and usable, but steel access components were heavier to transport, carry and install repeatedly from one event site to another.

The customer did not originally come to our factory specifically looking for a replacement stair.

The idea appeared almost by accident.

The Customer Saw Another Ladder in Our Factory

The customer visited our factory to purchase truss and stage equipment.

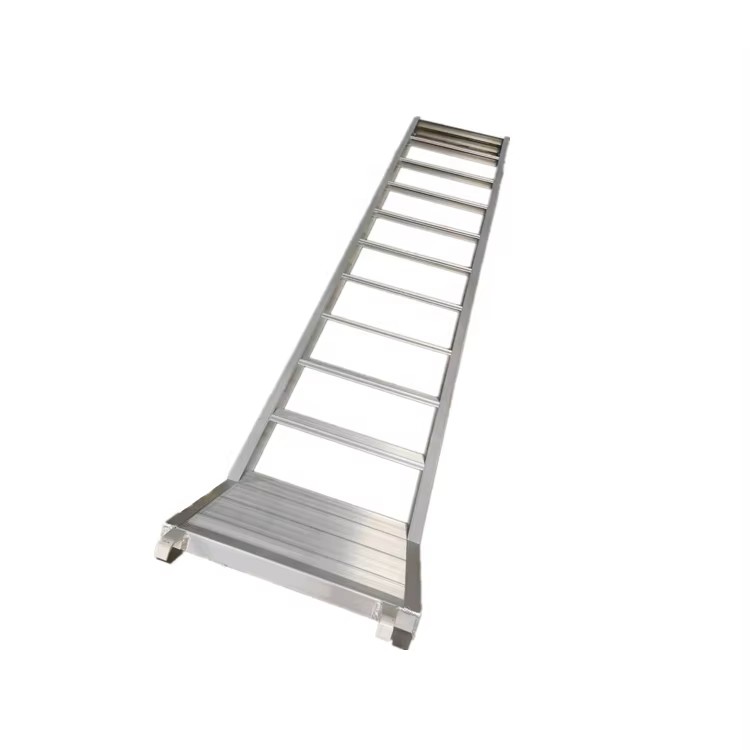

During the visit, he noticed one of our European-style aluminum scaffold access ladders.

It was not being presented as a Ringlock event-stage product.

It belonged to another scaffold/access system.

But the customer immediately connected it with a problem from his own projects.

He asked us about the width of the scaffold system used with that ladder.

We told him that the scaffold width was approximately 2 meters.

His next question was the important one:

Can you make this stronger and use it with our Layher/Ringlock structure?

That question changed the product from something he happened to see in the factory into a project-specific access solution.

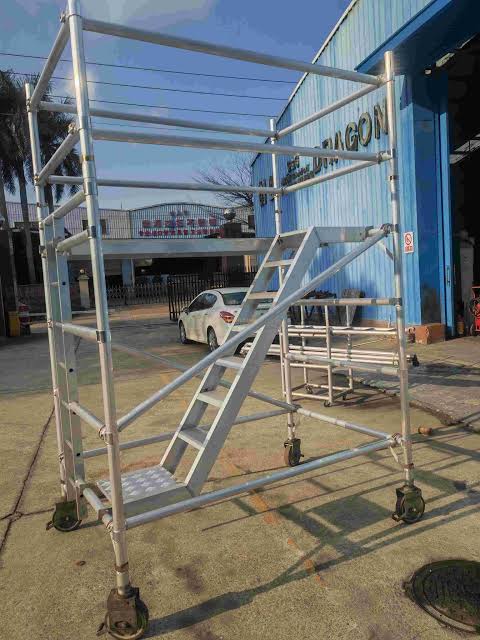

Suggested caption: The customer first noticed this aluminum access ladder during a factory visit and asked whether the same basic idea could be adapted for his event Ringlock structure.

The Original Problem Was Not the Stair Layout

The customer was not asking us to invent a completely different way of accessing the backstage structure.

He already knew how inclined access stairs worked.

He had already been using steel versions.

The practical issue was simpler:

Could the same type of backstage access function be achieved with an aluminum component that was easier to handle during repeated rental-event installation?

Based on our manufacturing experience with aluminum stage, truss and scaffold components, we considered this a reasonable customization direction.

The design principle did not need to change completely.

The main changes were:

• material;

• width/span;

• material thickness;

• interface with the customer's Ringlock structure.

This is an important distinction.

The project was not:

steel stair → completely new access system

It was closer to:

existing access idea → aluminum adaptation for the customer's Ringlock geometry

Why Aluminum Made Sense for This Particular Use

The customer's existing steel stair could perform the access function.

The reason for changing materials was mainly practical handling.

Event-rental equipment is repeatedly:

• loaded;

• transported;

• unloaded;

• carried around site;

• installed;

• removed;

• stored;

• transported again.

For this kind of repeated temporary use, reducing the weight of an individual access component can make handling easier.

That does not mean that aluminum is automatically the correct material for every stair or that replacing steel with aluminum automatically gives equivalent structural capacity.

In this project, the material change was a manufacturing and practical-use decision, and the aluminum stair was made specifically for the customer's required configuration.

The Key Decision: Keep the Basic Idea, Customize the Ladder

When the customer asked whether the scaffold ladder could be adapted, our answer was essentially:

The dimensions can be changed, and we can use heavier aluminum sections where required for the customized version.

The customer then ordered 10 units.

The required span was approximately 2 meters, corresponding to the intended Ringlock access arrangement.

The main ladder structure was manufactured from 6061 aluminum alloy with thicker aluminum material than the lighter access ladder that originally attracted the customer's attention.

Again, the point was not to copy one product directly into another system.

The original ladder gave us the idea.

The final ladder was produced according to the customer's required Ringlock geometry.

From Factory Reference to Ringlock Access Component

The development path was therefore very short but very clear:

Existing steel access stair used by customer
↓
Customer sees aluminum scaffold ladder in our factory
↓
Customer asks whether the concept can be made stronger and adapted
↓
2m Ringlock geometry confirmed
↓
Heavier aluminum construction selected
↓
Custom ladder produced
↓
Trial installation carried out

This is exactly the type of small decision process that can easily disappear if the final article only says:

“We supply custom aluminum Ringlock stairs.”

But the useful information is actually why this version existed at all.

The Final Solution

The final component was a custom aluminum inclined access ladder intended for integration with the customer's Ringlock event structure.

The confirmed project information includes:

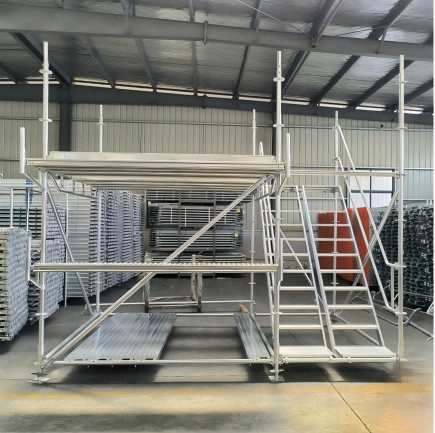

The completed ladder was then installed with a representative scaffold structure at the factory to check the intended arrangement.

Suggested caption: The customized aluminum access ladder was trial-installed with the temporary scaffold structure before delivery.

This trial assembly was useful for confirming the practical fit and arrangement.

It should not be interpreted as a formal structural load test unless such test data is separately available.

The Ladder Itself Was Simple

The main customized component was a 2 m aluminum inclined ladder/stair unit.

The ladder provided the inclined access surface between the lower level and the elevated working/platform level.

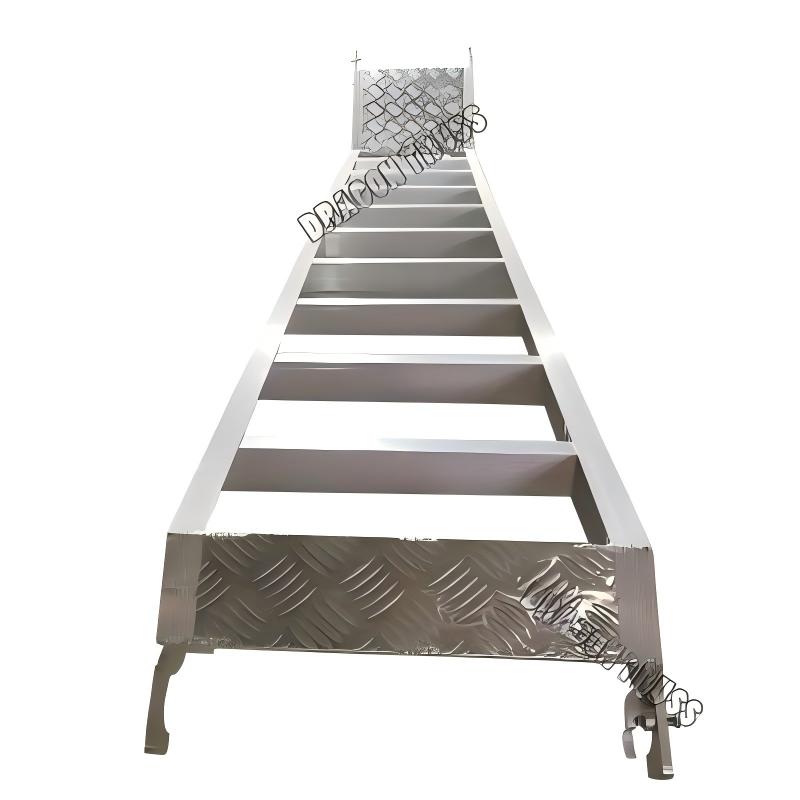

Suggested caption: The main customized component: a 2m-span aluminum inclined access ladder manufactured for the customer's Ringlock structure.

There is no need to turn this Case Study into a long product specification sheet.

The structural idea is simple:

• Ringlock provides the main temporary support structure;

• the aluminum inclined ladder provides the access route;

• the interface dimensions must match the intended structure;

• the access component can be customized rather than forcing the customer to use the original steel stair.

Readers looking specifically at access configurations can continue to the DragonStructure Ringlock Access Structure section, which groups Ringlock-based stairs, walkways and access platforms.

What Changed — and What Did Not

This case can be summarized very clearly.

This is why the phrase “same design, different material” fits the project well.

But there is one qualification.

Changing material is not literally a one-to-one substitution.

Steel and aluminum have different material properties, so when the material changes, dimensions and section selection may also need to change.

In this project, the solution therefore retained the functional concept, while the aluminum construction was customized for the intended application.

Why This Became a Hybrid Access Solution

The main structure remained Ringlock.

The new access component was aluminum.

So from the DragonStructure point of view, this can also be understood as a small Ringlock + aluminum integration.

That does not mean every mixed-material structure needs to be called a complicated “hybrid engineering system.”

Here, the idea is very practical:

Keep the main Ringlock structure the customer already uses, but replace one frequently handled access component with a customized aluminum version.

For readers researching other mixed Ringlock/aluminum combinations, the Ringlock Aluminum Structure section shows the broader integration category.

Why Backstage Access Should Be Considered Separately

Large concert projects often focus first on the visible structures:

• main stage;

• roof;

• LED;

• sound;

• lighting.

But backstage access is a different operational requirement.

Performers may use a formal stair or ramp, while technicians may need a more direct route to:

• working platforms;

• equipment areas;

• backstage levels;

• maintenance positions.

Those two access routes do not necessarily need to use the same component.

That is what this customer's existing practice already showed.

They had a dedicated staff access route.

The change in this project was not about adding a new function.

It was about making an existing backstage function easier to handle as rental equipment.

Related temporary access and circulation configurations are grouped under Stair & Walkway Structure.

Experience-Based Judgment vs. Engineering Verification

This case contains very little formal engineering information, so the boundary should remain clear.

Confirmed from the project

The supplied project information confirms:

• the customer was an event rental company;

• steel access stairs had previously been used;

• the customer saw an aluminum scaffold ladder during a factory visit;

• the customer asked for a stronger customized version;

• the intended span was approximately 2 m;

• the material was 6061 aluminum alloy;

• 10 units were ordered;

• the completed version was trial-installed.

Experience-based judgment

The decision to move toward aluminum was based on the practical advantage of easier handling and our manufacturing experience with aluminum temporary-structure components.

The decision to use heavier aluminum sections was also part of the customization logic supplied for this project.

What is not established by the supplied information

This case does not provide:

• calculated stair load capacity;

• verified maximum occupancy;

• formal structural calculations;

• certification;

• project-specific compliance data.

Therefore, none of those values should be inferred from the photographs or from the fact that a trial installation was completed.

Where access structures are used in public or elevated working environments, the final application should be checked according to the actual structure, connection, use conditions and applicable project requirements.

This follows the DragonStructure rule that practical manufacturing experience should not be presented as a verified engineering calculation.

What This Case Shows

This was not a complicated structural redesign.

That is exactly why it is useful.

The customer saw a component intended for one scaffold application and immediately asked:

Can this idea be adapted to the structure I already use?

The answer was yes, but not by simply taking the original ladder and putting it into another system.

We changed:

• the dimensions;

• the material specification;

• the intended interface;

• the application.

What we kept was the basic access idea.

So the lesson from this case is very simple:

Sometimes customization starts not from designing something new, but from recognizing that a useful component from one system can solve a problem in another system after the right dimensions and interfaces are changed.

That is much closer to how real temporary-structure customization happens.

Planning a Similar Ringlock Access Stair?

If you want to replace an existing steel access stair or add an aluminum inclined ladder to a Ringlock structure, useful information to provide includes:

• horizontal span;

• required platform height;

• Ringlock bay dimensions;

• photos of the existing structure;

• existing stair dimensions;

• connection/interface details;

• intended staff or operational use;

• required quantity;

• any transport or handling constraints.

With those details, we can determine whether an existing access component can be adapted or whether a new customized geometry is required.

FAQ

Can a standard aluminum scaffold ladder be used directly with Ringlock?

Not necessarily. The ladder width, span, platform height and connection/interface need to match the Ringlock structure. In this case, the original aluminum ladder was only the starting reference; the final unit was customized.

Why did the customer replace the steel stair with aluminum?

The main reason was practical handling. The customer's event equipment was repeatedly transported and installed, and the aluminum version was easier to handle than the steel access stair they had previously used.

Is the aluminum ladder exactly the same design as the steel version?

The function and basic access concept were similar, but material substitution should not be understood as an identical structural copy. The aluminum version used customized dimensions and heavier aluminum sections for this application.

Can the width or span be changed?

Yes, access components can be customized according to the intended Ringlock geometry. In this project, the confirmed span was approximately 2 m.

Does the trial installation prove the ladder's load capacity?

No. Trial assembly confirms practical fit and installation arrangement. It should not be described as a formal structural load test unless separate verified test or calculation data is available.
