Project Background

This project started with a young customer in Africa who was entering the outdoor event rental business for the first time.

He contacted us because he had seen that we were a manufacturer with more than ten years of experience in stage and truss equipment and had worked on many event projects. What he needed was not simply a quotation for one product. He wanted help putting together the first equipment package for his new rental business.

But by the time we became involved, one major purchasing decision had already been made.

The customer had spent a large part of his available budget on almost 60 m² of LED screens.

That left much less money for the other systems an event rental company would still need:

• sound equipment;

• stage;

• truss;

• roof structure;

• lighting.

The purchasing sequence therefore became highly budget-driven.

He bought the sound system first.

Then the stage.

The truss and lighting came last.

At one point, he was considering leaving the roof structure out completely.

That was where this case really began.

The First Proposal Was Deliberately Incomplete

Because the customer's remaining budget was limited, we did not insist that he purchase the complete structure in one order.

Our suggestion was simple:

Buy what is essential now. The roof can be added later.

The truss system could be planned so that the customer could start with a simpler configuration and expand it when additional funds became available.

For a customer entering the rental business, this was more practical than forcing the complete final configuration into the first purchase.

The important point was to avoid buying equipment that would later have to be discarded when the system expanded.

This kind of staged expansion is one of the practical advantages of a modular stage and truss system.

One Week Later, the Requirement Changed

About a week later, the customer came back with another decision.

He had managed to add approximately USD 10,000 to the project.

This changed the quotation again.

Now he wanted to purchase:

• the roof structure;

• the main stage truss;

• two side speaker towers.

That would have brought the structure much closer to the configuration he ultimately wanted.

Suggested caption: The fuller configuration originally considered after the customer added more budget, with speaker-tower wings on both sides.

But during the same discussion, another requirement appeared that was much more difficult than simply adding two speaker towers.

The customer wanted the option of hanging almost his entire 60 m² LED screen inventory from the rear truss beam and using it as a large stage backdrop.

This was not necessarily the configuration he would use at every event.

It was the maximum situation he wanted his equipment package to be capable of supporting in the future.

And that changed the structural question completely.

The Real Problem Was the Rear 12m Beam

The proposed roof used 400 × 400 mm aluminum spigot truss for the main beams, with a 12 m main span.

According to the load-reference information we were using during the quotation process, the standard 400 × 400 mm truss in that 12 m arrangement was considered around 1,200 kg for the relevant loading discussion.

The customer's estimated LED screen package, however, could approach 2 tonnes when he tried to use most of the approximately 60 m² screen inventory.

So the problem was no longer:

Can we provide a roof?

It became:

How can the customer eventually use this equipment package with a much heavier rear LED requirement without rebuilding the entire system?

Simply hanging more equipment from the existing beam was not an acceptable answer.

Our First Thought: Increase the Main Beam Capacity

The obvious direction was to strengthen the rear support arrangement.

We considered options such as:

Option A — Use a Larger Main Truss

The rear beam could be changed to a larger truss section.

This was structurally the more direct concept.

But it would also increase the cost of the truss package and potentially introduce a different truss family into a system that was otherwise based around the selected 400 × 400 mm sections.

For this customer, cost had already become the main constraint.

Option B — Add Another Beam and a Center Support

Another idea was to introduce additional truss underneath the rear beam and add another vertical support around the center.

This would change the long unsupported arrangement into shorter supported sections.

Again, the principle was understandable.

But it meant purchasing substantially more structural material.

The customer told us repeatedly that he had already raised as much additional money as he reasonably could.

There would be no meaningful further budget increase for this shipment.

At the same time, he wanted to use the remaining container space as effectively as possible because he was already paying for the shipment.

That forced us to look at the equipment differently.

The Turning Point: Stop Treating the Speaker Tower as Only a Speaker Tower

This became the most important decision in the case.

Instead of asking:

What additional structure should we sell him?

we started asking:

Is there something already included in the quotation that could perform another structural function when the customer does not need it for sound?

The answer was the speaker tower.

Originally, the customer wanted two side speaker towers.

But he did not necessarily need both towers immediately.

So instead of buying both now, the proposal changed again:

Purchase one speaker tower first. Add the second speaker tower later when the rental business generates more cash.

That alone reduced the immediate expenditure.

But the single tower also gave us another possibility.

It did not have to remain permanently at the side of the stage.

One Structure, Three Different Working Configurations

The final concept allowed the same equipment package to be rearranged according to the event.

That is the most useful part of this case.

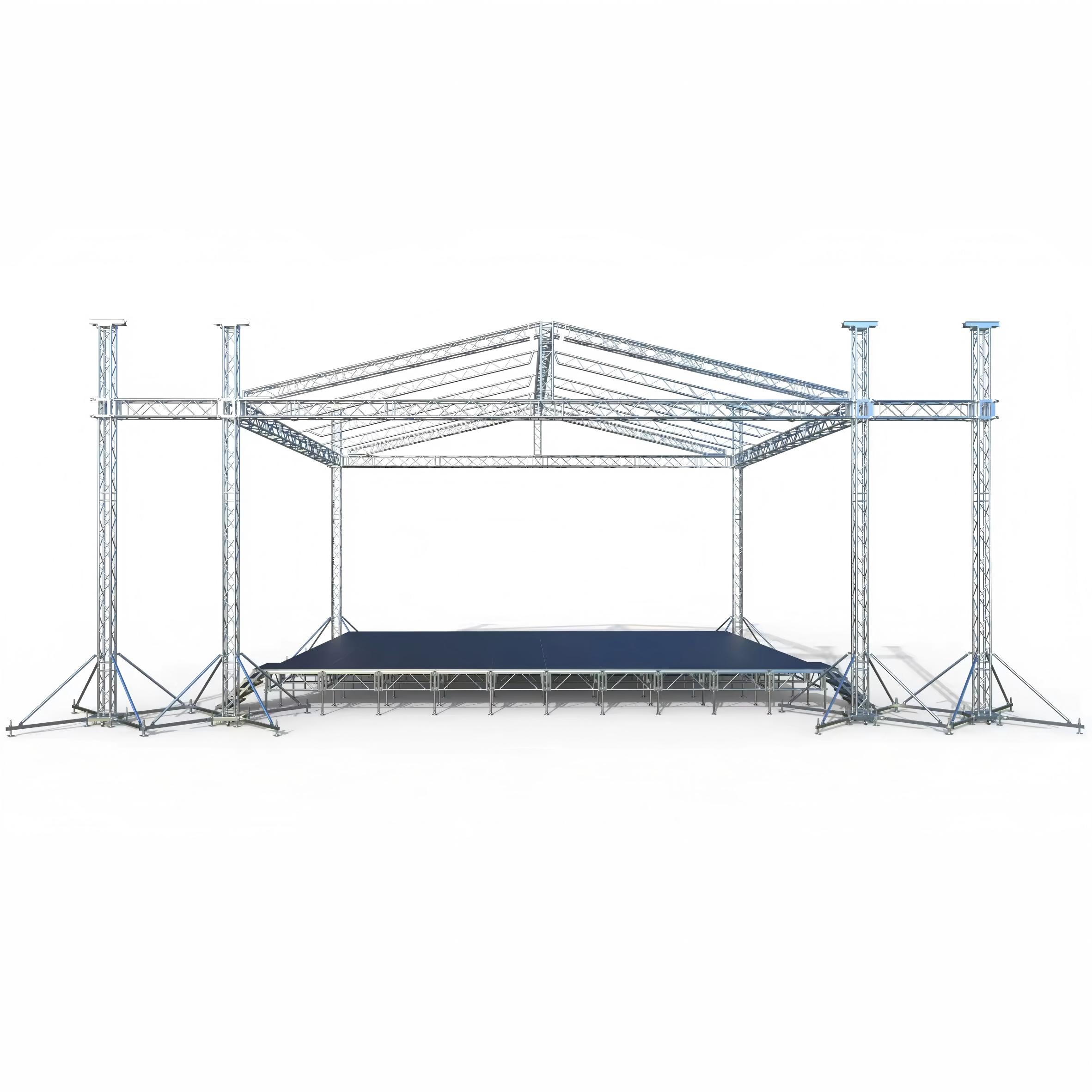

Configuration 1 — Full Future Configuration

When the customer eventually adds the second speaker tower, the structure can return to the originally intended arrangement:

main roof + left speaker tower + right speaker tower.

This represents the customer's longer-term configuration rather than what had to be purchased immediately.

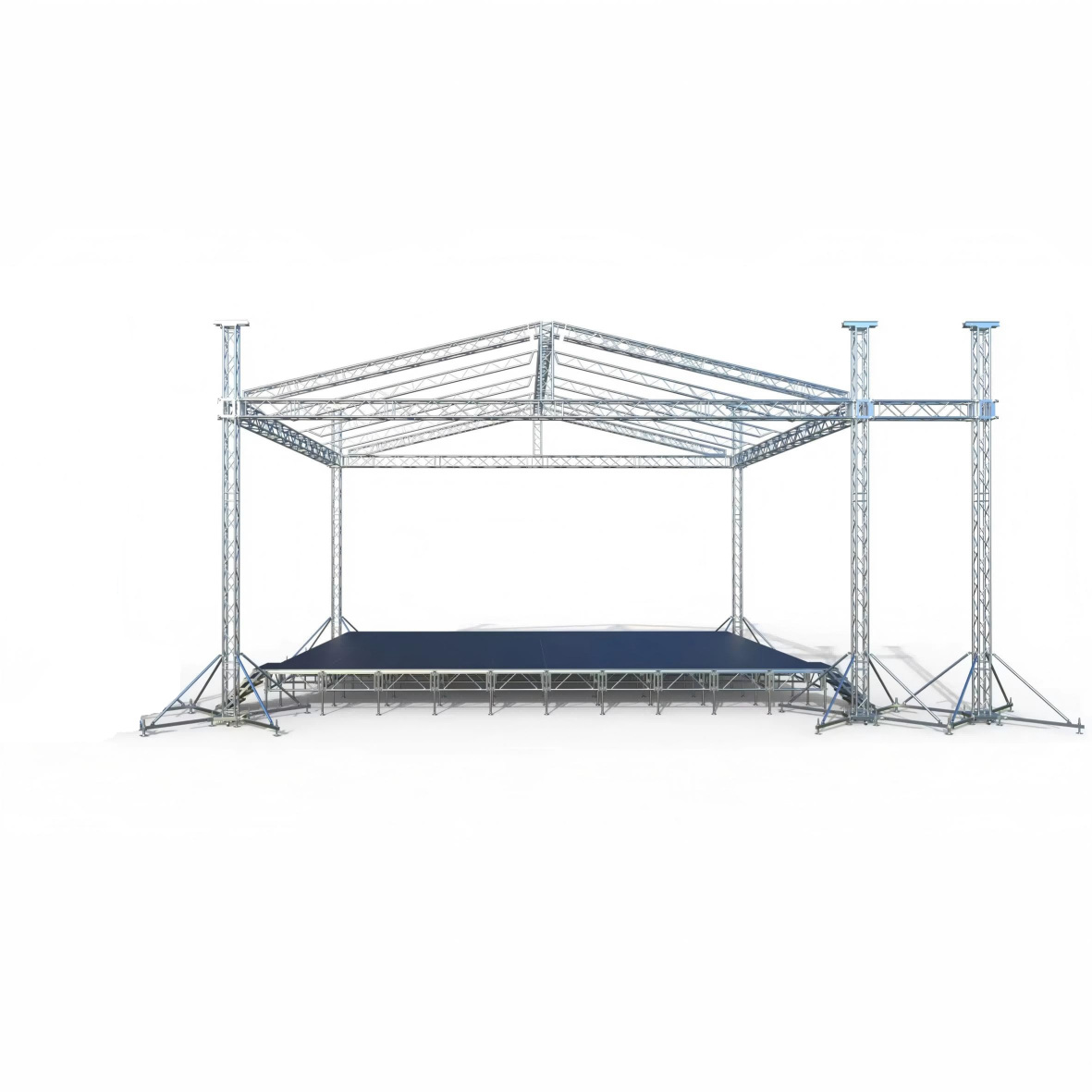

Configuration 2 — One Speaker Tower

For the first purchase, only one speaker-tower wing was included.

The customer could therefore operate:

main roof + one speaker tower.

The second side could be added later without changing the basic roof concept.

This was the first level of budget reduction.

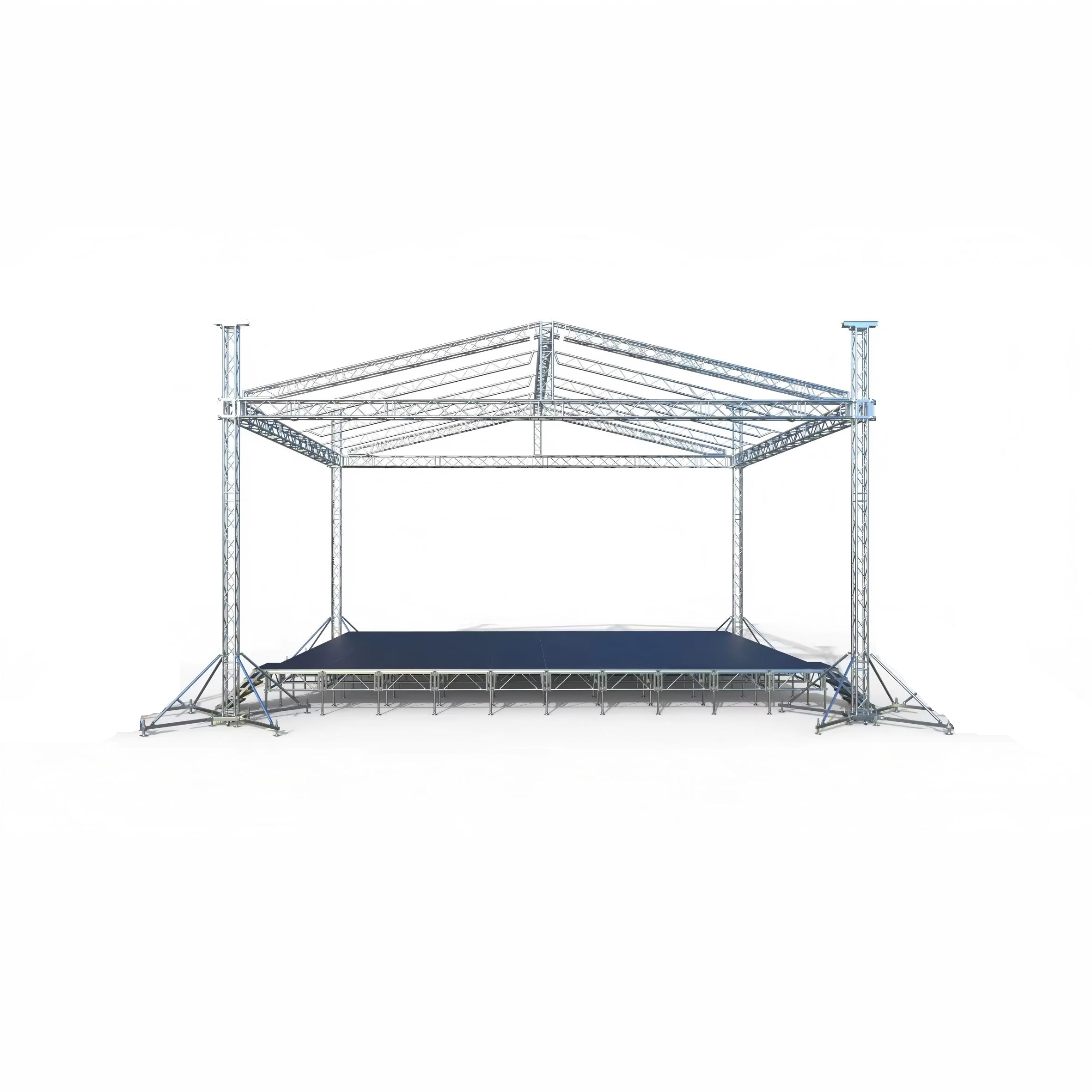

Configuration 3 — Main Roof Without Speaker Towers

For events that do not require a dedicated side speaker tower, the tower can be removed from the normal side-wing position.

The main roof then operates as the simpler stage structure.

This matters because rental equipment does not always need to remain in one fixed configuration.

The customer was buying a system, not a permanent building.

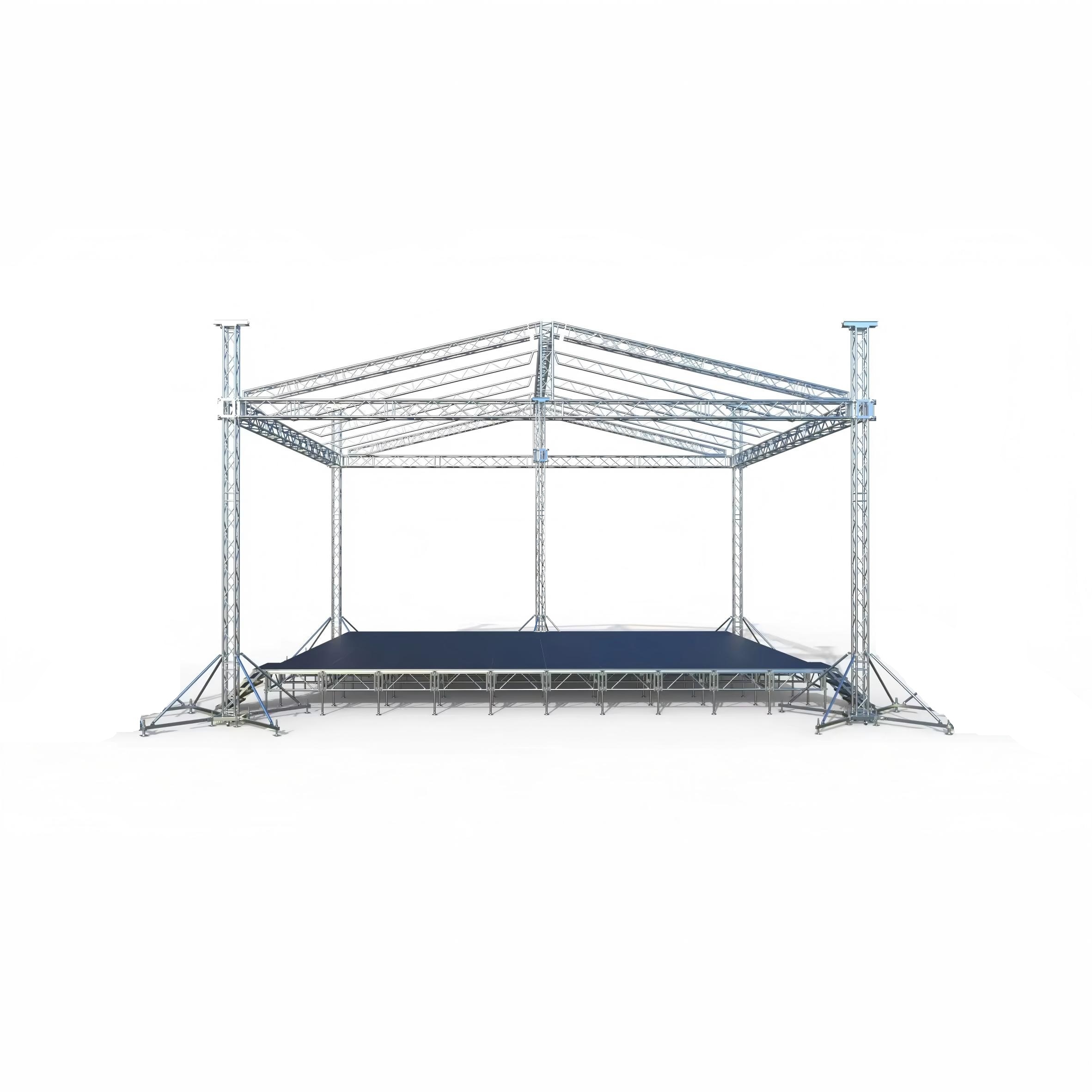

The Most Unusual Configuration: Move the Speaker Tower Behind the Stage

The customer's large LED requirement gave the speaker tower a second possible role.

When he needed the rear truss to support the unusually large LED arrangement, the tower could be removed from the side of the stage and repositioned at the center of the rear truss line.

The connection concept used a sleeve block together with conical clamps to integrate the vertical tower with the rear truss.

The rear structure then changed conceptually from:

support —— 12 m rear beam —— support

to:

support —— beam —— center support —— beam —— support

Suggested caption: Instead of buying a completely separate center tower, the existing speaker tower could be repositioned behind the stage when an additional center support was required.

This was the key modification.

We did not solve the budget problem by simply removing equipment.

We changed how the same equipment could be used.

Why the Center Support Changed the Proposal

During our quotation-stage review, introducing the center tower significantly changed the way the rear beam was supported.

Our internal reference at the time indicated that the standard 12 m rear-beam arrangement was around 1,200 kg for the loading condition being discussed, while the modified three-support arrangement was estimated at approximately 3,600 kg for proposal purposes.

Those figures were important in the historical decision process because they showed why simply keeping the original two-support arrangement did not match the customer's extreme LED requirement.

However, they should not be read as a universal published load rating for every 12 m truss configuration.

The actual allowable load depends on factors including:

• exact truss geometry;

• load position and distribution;

• connection arrangement;

• tower configuration;

• sleeve blocks and clamps;

• hoists and rigging;

• the LED hanging arrangement;

• overall structure;

• site conditions.

For readers working through similar questions, our general explanation of load analysis for modular stage systems explains why a component rating alone is not the same as verification of the complete structure.

What About the Two 2-Ton Hoists?

The project used 2-ton hoists in the lifting system.

During the original discussion, it was tempting to reason that two 2-ton hoists provided 4 tonnes of lifting capacity.

For planning purposes, the combined nominal ratings were certainly relevant.

But this cannot be treated as a complete engineering conclusion.

Two hoists rated at 2 tonnes each do not automatically prove that a 4-tonne load can safely be lifted by the complete structure.

The actual arrangement must also consider:

• how the load is shared between lifting points;

• rigging geometry;

• truss capacity;

• connection capacity;

• dynamic effects during lifting;

• synchronization and operating method;

• the complete supporting structure.

That distinction is particularly important for suspended LED equipment.

The Final Proposal

The final system was based on:

The most important part of this table is not the truss size.

It is the last few rows.

The final proposal deliberately allowed the function of the same components to change according to the event.

The BOQ Changed Because the Customer's Budget Did Not

This project is also a good example of why a BOQ cannot always be finalized simply by asking for the desired final structure.

If we had followed only the customer's ideal configuration, we would have quoted:

roof + two speaker towers + additional structure for the rear LED requirement.

The customer could not afford that package.

If we had followed only his immediate budget, we might have removed too much and left him with a structure that could not evolve toward the business he was trying to build.

So the quotation moved in a third direction:

keep the core roof → retain one useful speaker tower → postpone the second tower → give the first tower an additional possible function → preserve a later upgrade path.

That was the commercial and structural logic behind the final proposal.

Why We Did Not Simply Tell Him to Buy Less LED

There is another human part of this project worth keeping.

From our point of view, the customer's purchasing order was not ideal.

He had bought almost 60 m² of LED screen before properly planning the stage, roof, sound and truss systems.

By the time he came to us, that decision could not simply be reversed.

Telling him that he “should have bought differently” would not solve the actual problem.

Our job at that stage was to work with the equipment and budget he really had.

So the design question became:

How do we move him as close as possible to the final rental system he wants without forcing him to purchase everything at once?

That is a very different question from simply designing the largest possible structure.

A Small Rental Company Does Not Need Every Configuration on Day One

The customer was new to the rental industry.

His first equipment package therefore needed to do two things at the same time:

1. allow him to start taking jobs;

2. avoid blocking future expansion.

That is why the one-speaker-tower decision made sense within this particular quotation.

He could start with:

12 × 10 × 8 m roof + stage + one speaker tower

and later move toward:

full roof + two speaker towers

without discarding the first tower.

For some jobs, neither side tower would be required.

For the unusual LED-heavy configuration, the first tower could potentially be repositioned into the rear-center support arrangement, subject to project-specific verification.

The component had not changed.

Its position and function had.

Experience-Based Judgment vs. Engineering Verification

This distinction is particularly important in this case because it involves:

• a large LED screen;

• suspended equipment;

• long-span truss;

• hoists;

• overhead structure;

• an unconventional center-support configuration.

Confirmed from the project material

The project information confirms:

• approximately 60 m² of LED inventory;

• a 12 × 10 × 8 m proposed truss structure;

• 400 × 400 mm main truss;

• 290 × 290 mm vertical truss;

• one speaker tower in the reduced-budget proposal;

• the concept of moving that tower to the rear center;

• sleeve block and conical clamp connection concept;

• approximately USD 10,000 of additional customer budget;

• later expansion to a second speaker tower.

Historical quotation / experience-based judgment

The approximate 1,200 kg and 3,600 kg values were part of the load-reference and proposal reasoning remembered from this project.

They explain why the proposal changed.

They should not be interpreted as a project-independent certification or a substitute for engineering verification.

Likewise, using the speaker tower as a center support was a practical structural proposal developed during the quotation process.

What still requires project-specific verification

Before using such a configuration with an actual large LED wall, the complete arrangement should be checked against:

• actual LED screen weight;

• load distribution;

• suspension points;

• hoists and rigging;

• truss spans;

• center-support connection;

• tower configuration;

• environmental/site conditions;

• applicable local requirements.

That verification cannot be replaced by simply comparing the LED weight with one remembered truss-load figure.

This evidence discipline is also part of the DragonStructure Case Study standard: historical project decisions can be explained without pretending that every quotation-stage judgment was a verified engineering conclusion.

What This Case Shows

The obvious lesson from this project might appear to be:

A center support can reduce the effective unsupported span of a long rear beam.

But I think that is not the most interesting lesson.

The more transferable lesson is:

When the budget cannot increase, sometimes the solution is not to remove the customer's future requirement. It is to reconsider whether an existing component can perform more than one function.

The customer originally saw the tower as:

speaker tower = speaker tower.

During the quotation process, we began to see it as:

speaker tower when sound support is needed

and potentially:

rear-center structural support when the unusual LED configuration is required.

That change in thinking allowed us to remove one immediate purchase without abandoning the customer's longer-term plan.

For a rental company, this kind of flexibility can be more useful than simply owning more individual components.

Planning a Similar Expandable Event Structure?

If you are starting or expanding an event rental inventory, it is better to tell us both:

what you need now
and
what you eventually want the equipment to do.

Useful information includes:

• intended stage and roof dimensions;

• LED screen dimensions and actual total weight;

• sound-system arrangement;

• required speaker suspension positions;

• lighting equipment;

• expected maximum configuration;

• equipment already purchased;

• current budget;

• which components can be purchased later;

• transportation/container restrictions;

• reference photos or drawings.

A similar aluminum-roof and modular-stage arrangement can also be seen in this 10 × 8 × 8 m hybrid aluminum roof with Ringlock stage platform and side wings, although that page focuses on how the structure is configured, while this Case Study focuses on why a quotation evolved into a multi-use structural solution.

FAQ

Can a speaker tower always be moved to the center of a rear LED truss?

No. This was a project-specific proposal based on the geometry and components being discussed. The tower, connection method, truss span, LED load and complete structural arrangement need to be checked for the actual project.

Does adding a center tower automatically triple the load capacity?

No. The historical proposal used approximately 1,200 kg and 3,600 kg reference figures during the decision process, but there is no universal rule that adding one center support automatically triples the allowable load. The final value depends on the complete structural configuration and load distribution.

Can two 2-ton hoists lift a 4-ton load?

The sum of the nominal hoist ratings is 4 tonnes, but that alone does not establish a safe 4-tonne lift. Load sharing, rigging, truss capacity, suspension points and the supporting structure must all be considered.

Why did the customer buy only one speaker tower?

Budget was the immediate reason. Instead of removing the tower completely, the quotation retained one tower because it could serve the customer's current sound requirements, remain useful when the second tower was purchased later, and potentially be repositioned in the proposed rear-center support configuration.

Why not design the complete final structure and ask the customer to buy it later?

That was effectively the upgrade strategy. The main system was selected so that the customer could start with a reduced configuration and add the second speaker tower later rather than buying a temporary system that would eventually need to be replaced.
