Project Background

The customer was a large event equipment company in Africa preparing a performance stage for a choir and live musicians.

The main structure was a large Ringlock stage.

In front of the main performance platform, the customer wanted to create additional tiered performance areas so that singers and musicians could be arranged at different levels.

The original visual idea was ambitious:

the front edges of the upper tiers would follow large circular arcs based on approximately 18 m and 20 m diameters.

From the audience area—and especially in wide aerial shots—the customer wanted the stage to appear as a smooth, elegant curved composition rather than a conventional rectangular platform.

The curved appearance was therefore not an accidental detail.

It was part of the visual concept of the show.

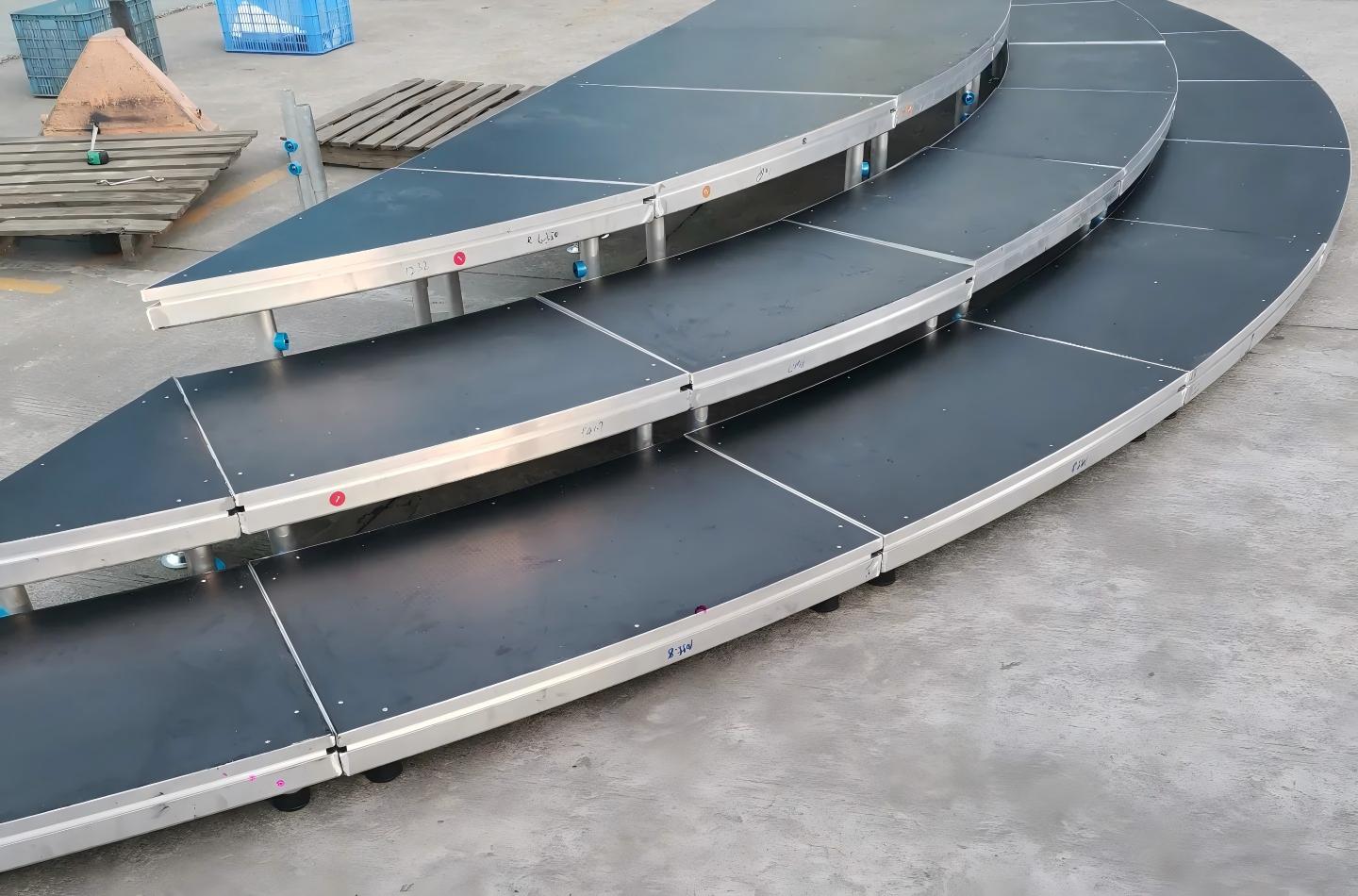

Suggested caption: The original concept used large-radius curved front edges for the tiered performance platforms.

The Original Requirement Looked Simple

At first, the request sounded straightforward:

Make the front edges of the two tiered platforms follow large circular arcs.

For a stage with diameters of approximately 18 m and 20 m, producing individual curved platform sections was possible.

The manufacturing difficulty itself was not the main reason we reconsidered the design.

The larger issue appeared when we stopped looking only at the platform and started looking at the whole stage system—including the stairs.

That changed our judgment.

The Curve Did Not Stop at the Stage Edge

The stage had several levels.

That meant performers needed stairs to move between:

• the main stage;

• the intermediate tier;

• the upper tier.

With a straight-edged stage, a standard straight stair can normally be positioned at different points along the platform edge, provided the required dimensions and support conditions are suitable.

With the original curved design, the stair geometry became linked to the radius of the platform it served.

The first stair connected one stage level to the platform whose front edge followed approximately an 18 m diameter arc.

Its upper interface therefore had to match that curve.

The next stair connected to the platform following approximately a 20 m diameter arc.

Its geometry was different again.

So although both pieces were simply “stage stairs,” they were no longer interchangeable.

A Small Visual Decision Was Creating Dedicated Stair Modules

This was the hidden cost of the original proposal.

The customer had asked for curved stage edges because of appearance.

But once that curve continued into the access system, it created several practical restrictions.

A stair made specifically for the 18 m arc could not simply be moved to the 20 m arc.

And neither curved stair could necessarily be placed freely at another position later.

The installation team would need to know:

Which stair belongs to which level?

and:

At which position does this particular stair need to be installed?

That meant the stage became more dependent on the original drawing.

This was especially important because the customer was an event equipment company, not an operator building one permanent theatre stage.

Their equipment would be dismantled, transported and reused for different shows.

For rental equipment, we normally try to avoid turning otherwise useful modules into components that work in only one position.

That became the real trade-off.

Option A — Keep the True Curved Edge

The first option was to follow the customer's original idea exactly.

The advantages were clear:

• the platform perimeter would form a continuous circular arc;

• the geometry would closely follow the original visual drawing;

• close-up views would show a genuinely curved edge.

But the same design also meant:

• curved stage modules had to be produced according to specific radii;

• the associated stairs also needed matching curved interfaces;

• different stair levels required different curvature;

• the stairs had fixed or limited usable positions;

• future reconfiguration would be more restricted.

Technically, the curved pieces were manufacturable.

The question became whether the customer actually gained enough from the true curve to justify those restrictions.

Our Judgment: At This Scale, the Eye Would Still Read a Faceted Edge as a Curve

The 18 m and 20 m reference diameters were large.

That mattered.

Based on our practical stage-production experience, we judged that if the large-radius perimeter was divided into several relatively short straight sections, the complete outline would still appear curved when viewed from normal audience distances.

The effect becomes even less obvious in a wide stage view or aerial photograph.

Instead of creating a mathematically continuous arc:

curve → curve → curve → curve

we could create:

straight segment → slight angle → straight segment → slight angle → straight segment

Across a large overall radius, those small direction changes collectively create the visual impression of a curve.

This is similar to how a large polygon can appear almost circular when viewed from far enough away.

That observation became the turning point of the proposal.

The Key Modification: Change the Edge, Not the Stage Concept

We did not remove the tiered stage.

We did not change the customer's visual concept into a rectangular stage.

We changed only one geometric principle:

continuous curved edge

became

multiple straight sections arranged along the same broad curved outline.

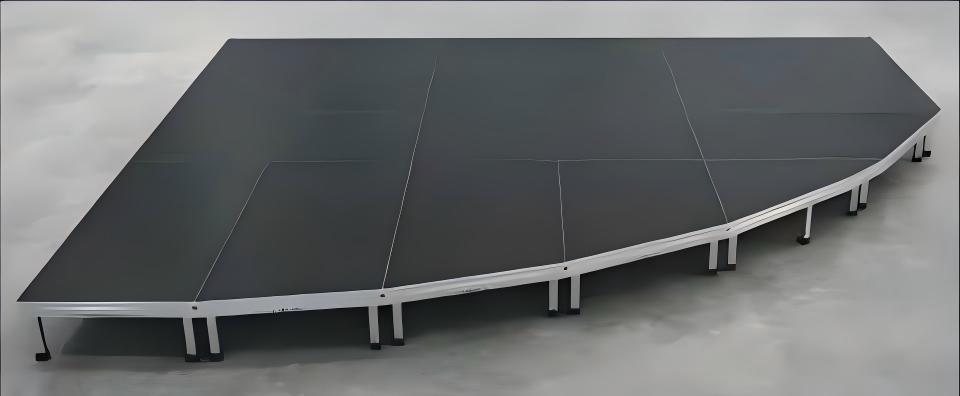

This produced a faceted or polygonal perimeter.

Seen close up, the individual straight sections can be identified.

Seen as part of the complete large stage, the outline still reads as a broad curve.

The actual event installation later supported this judgment.

Suggested caption: In the completed large-scale installation, the segmented front edge still reads visually as a broad curve from normal viewing distance.

I would deliberately use “visually reads as a curve” rather than saying “it is exactly the same as a curved stage.”

Geometrically, they are different.

The point is that the customer preserved the intended visual effect without requiring every component to be genuinely curved.

The Bigger Benefit Was Actually the Stairs

Simplifying platform production was useful.

But I think the more important long-term benefit was the staircase.

Once the relevant stage edges became straight segments, we no longer needed a dedicated:

18 m radius stair

and another:

20 m radius stair.

The stairs could use straight interfaces.

That made them much less dependent on one exact location.

For the customer, this meant the stair modules could potentially be repositioned according to the layout of future performances instead of permanently belonging to one radius and one point in one drawing.

That matters for rental inventory.

A component that works in several stage layouts normally has more practical value than a component that only works in one original configuration.

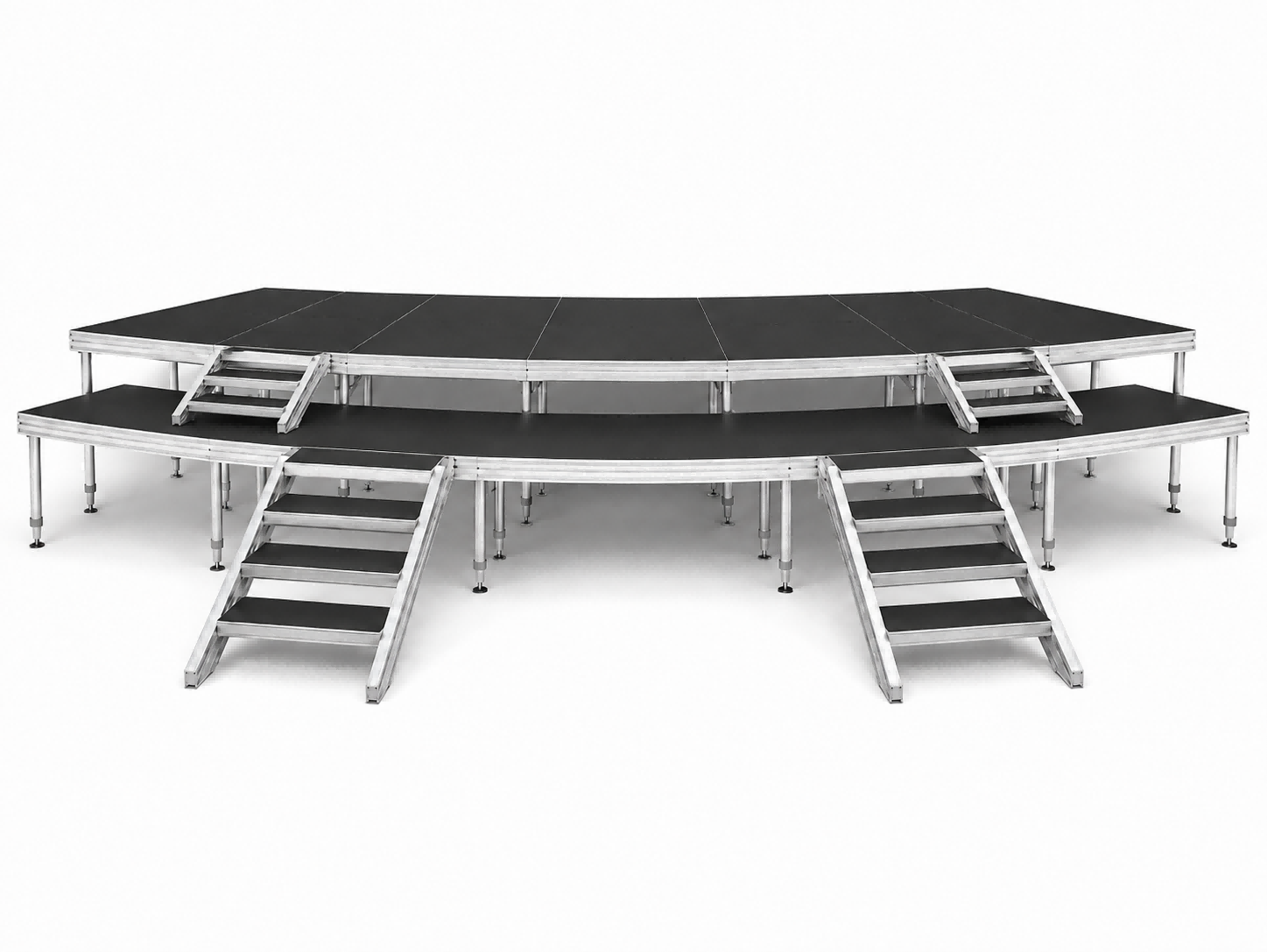

Curved Version vs. Faceted Version

This table explains the decision better than simply saying that the straight version was “easier to manufacture.”

Manufacturing was only one part of the reason.

The stronger reason was future reusability.

Why This Matters More for Rental Equipment Than for a Permanent Stage

If this had been a permanent installation that would never change, dedicated curved stairs might not have been such a major disadvantage.

They could be labelled, installed once and remain in their intended positions.

But event rental equipment lives differently.

It is:

• assembled;

• dismantled;

• transported;

• stored;

• assembled again;

• reconfigured for another event.

Today's choir arrangement may not be tomorrow's concert arrangement.

A staircase that only works at one curved interface therefore carries a hidden limitation.

This was why our decision was not simply:

Straight pieces are easier to make.

It was:

Do we want to make the customer six beautiful but geometry-specific modules, or preserve the visual concept while giving the stage components more freedom in future layouts?

For this project, we preferred the second direction.

The Customer Accepted the Modification

We explained our reasoning to the customer.

The proposed change did not remove the visual concept he cared about.

Instead, it separated two requirements:

Requirement 1 — Appearance

From a distance, the tiered stage should still create a large sweeping curved form.

Requirement 2 — Practical rental use

The modules—especially the stairs—should not become unnecessarily restricted to one radius and one installation position.

The customer accepted our judgment and the final structure used the segmented/faceted edge approach.

The completed site installation later showed why we had been comfortable recommending the change.

From the wider viewing distance shown in the event photograph, the individual straight sections are no longer the dominant visual feature.

The stage still presents itself as a broad curved tiered platform.

Final Structure

The confirmed project concept was:

The supplied project information does not include complete platform dimensions, deck specifications, material details or BOQ quantities.

I therefore would not add them to this Case Study merely to make the specification table look complete.

Readers wanting to understand other temporary stage configurations can continue to the DragonStructure Stage Platform Structure section:

https://www.dragonstructure.com/Stage-Platform-Structure-pl07675276.html

That page serves as the broader structural entry point for temporary stage-platform systems.

What Changed in the BOQ?

The important BOQ change was not necessarily the total quantity of stage units.

It was the type of customized components required.

Under the original concept, the project would have required radius-specific:

• curved platform edges;

• curved stair interfaces;

• stair modules corresponding to different platform radii.

After the modification, the perimeter could be formed from straight-edged modules arranged at angles, while the stairs could use conventional straight interfaces.

That reduced the number of components whose usefulness depended on one exact radius.

Because the detailed historical BOQ has not been supplied here, it would be incorrect to invent an exact quantity or cost saving.

The confirmed lesson is the change in component specialization, not a calculated percentage reduction in cost.

The Site Result Confirmed the Visual Judgment

This part is important because our original decision was based primarily on practical experience rather than a formal visual simulation study.

Our judgment was:

With an 18–20 m scale, the segmented edge should still appear broadly curved from normal viewing distance.

The later site photograph provides useful real-world evidence.

Seen as part of the complete concert structure, the stage edge does not visually present itself as a crude zigzag.

The viewer sees the overall sweeping form first.

That does not prove that every large curved stage should always be converted into straight segments.

It shows that for this particular project and viewing scale, the compromise worked visually.

Experience-Based Judgment vs. Engineering Verification

This case is primarily about geometry, manufacturing and rental-use flexibility, not load engineering.

Confirmed project facts

The supplied project information confirms:

• the customer was a large event equipment company;

• the stage was intended for choir and live musicians;

• two large tiered fan-shaped areas were planned;

• approximately 18 m and 20 m diameter geometries were involved;

• the original concept used curved edges;

• curved stairs would have required radius-specific interfaces;

• we proposed changing the continuous curve into segmented straight edges;

• the customer accepted the modification;

• the completed stage was installed and photographed.

Experience-based judgment

The following judgment came from practical stage/manufacturing experience:

At this large diameter, a correctly arranged faceted perimeter would still appear broadly curved from typical viewing distances while creating more flexible components.

The site photograph later supported that practical judgment visually.

What this case does not establish

The supplied information does not provide verified:

• platform load capacities;

• Ringlock structural calculations;

• crowd or performer loading;

• stair load calculations;

• wind calculations;

• foundations or ballast;

• certification or compliance.

Those should not be inferred from the final photograph.

This distinction between confirmed project facts, practical experience and verified engineering conclusions is mandatory in DragonStructure Case Studies.

What We Learned

The most obvious lesson might be:

Large-radius curves can sometimes be approximated by straight segments.

But I think the more useful lesson is deeper:

Do not evaluate a custom shape only by how difficult the main platform is to manufacture. Follow that geometry into every component it affects.

In this case, the curved platform itself was not especially difficult.

The hidden consequence appeared in the stairs.

One curved edge created:

radius-specific stage → radius-specific stair → fixed stair position → reduced future flexibility.

Once we followed that chain, changing the stage edge became much more logical.

There is also another principle worth remembering for rental structures:

If a visual detail can be preserved at the system level without making every individual component special, the simpler module may have greater long-term value.

That is what this project eventually demonstrated.

FAQ

Why not keep the true curved edge if it could be manufactured?

Because manufacturing was only one consideration. The true curve also created radius-specific stair interfaces and restricted where those stairs could be used. For rental equipment, we considered that limitation significant enough to propose a segmented alternative.

Does a faceted stage edge look exactly the same as a real curve?

No. Geometrically, they are different. However, with the large approximately 18–20 m scale used in this project, the segmented perimeter still read visually as a broad curve from normal stage-viewing distances. The completed site photograph supported that judgment.

Why were the curved stairs more restrictive?

The stairs had to connect to platform edges based on different radii. A stair designed for the approximately 18 m curve could not simply be assumed to match the approximately 20 m curve, so each staircase became associated with a particular level and installation position.

Can straight stairs be moved to different positions more easily?

In this project, changing the relevant interfaces to straight segments made the stair modules less radius-specific and therefore more flexible for future layouts. Actual stair placement still needs to match the stage geometry and intended access arrangement.

Should every large curved stage use faceted edges instead?

No. The choice depends on viewing distance, visual requirements, stage size, module dimensions, reuse requirements and how the curve affects stairs and other interfaces. A true curve may still be justified when the curved appearance itself is essential.
