Project Background

A five-star hotel in Hong Kong planned to renovate its outdoor rooftop swimming pool and wanted the pool to serve another function when required.

Instead of leaving it only as a swimming area, the hotel wanted to cover the pool with a transparent temporary stage/platform so the same rooftop space could be used for outdoor parties and events.

The visual requirement was important.

Because this was a luxury hotel rooftop, the completed platform needed to look clean and refined rather than like a conventional temporary stage installed over a swimming pool.

But the site itself was not simple.

The existing pool had:

• an irregular overall shape;

• approximately 40 mm of level variation/slope across part of the pool bottom;

• four built-in entry steps on one side;

• an existing concrete pool edge that the completed platform needed to meet;

• a wet and humid operating environment.

So the project was never only about supplying transparent stage panels.

It was also about deciding how the modular platform should connect, level and remain maintainable in a swimming-pool environment.

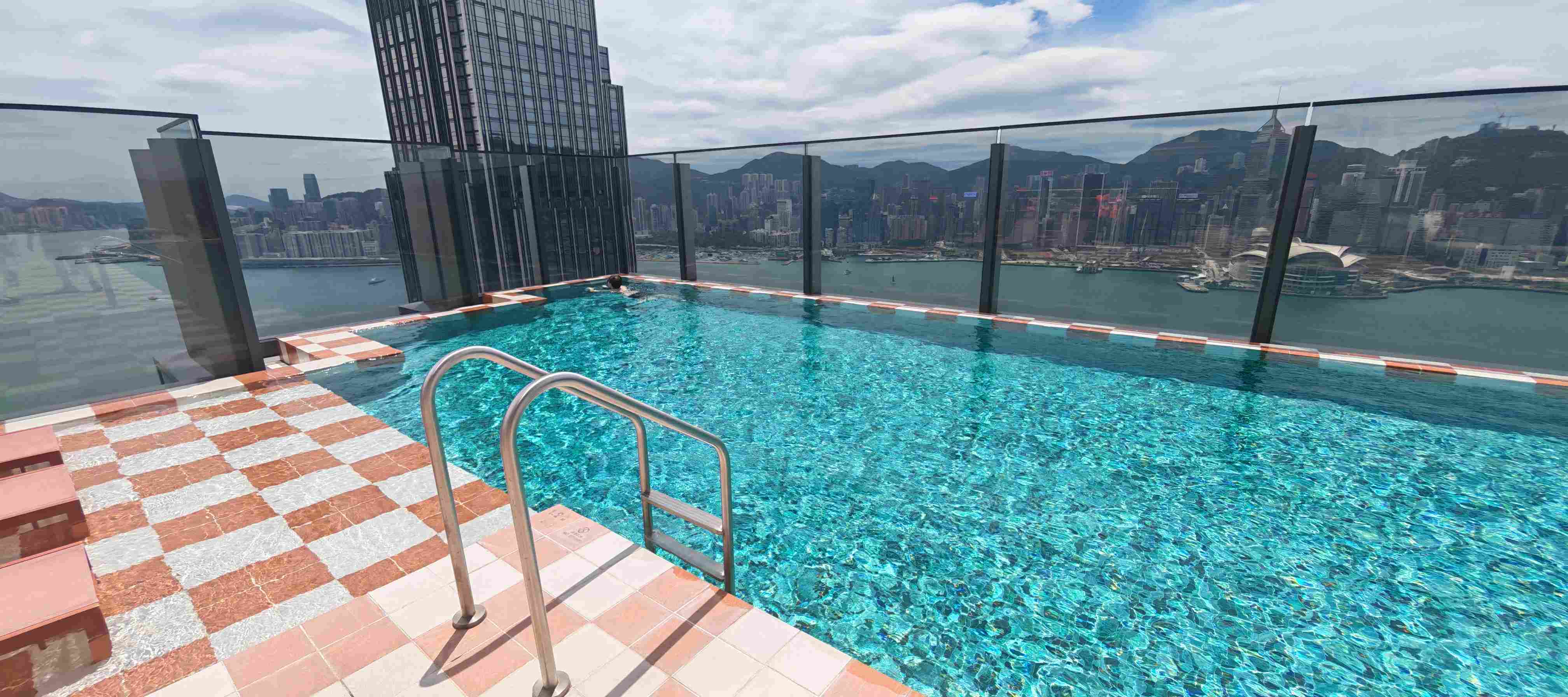

Suggested caption: The existing rooftop pool had an irregular plan, built-in access steps and changing bottom levels, while the finished transparent platform needed to meet the surrounding pool edge.

The Original Requirement: A Flush Transparent Pool Platform

The customer wanted the entire pool covered.

The finished platform needed to be approximately flush with the surrounding concrete pool bank so that the pool area could become one usable event surface.

Because the pool bottom was not perfectly level, simply using identical fixed supports underneath every platform would not have been sufficient.

The support system therefore also had to accommodate the existing level difference and irregular pool geometry.

But another requirement soon became more important in our discussion:

How should the individual Quick Stage modules be locked together?

The customer preferred our built-in locking system.

Their reason was understandable.

When the stage is assembled, the lock is hidden inside the aluminum frame.

There are fewer visible external pieces, and the operator can connect adjacent stage sections through the integrated mechanism.

For a luxury hotel project where appearance mattered, it seemed like the natural choice.

We Actually Had Three Connection Options

Our Quick Stage system can use different connection approaches.

For this project, the three relevant types were:

1. aluminum external lock;

2. built-in lock;

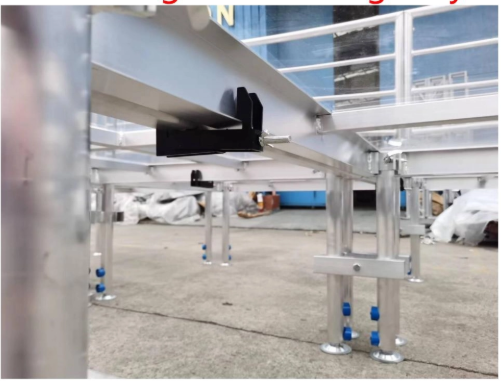

3. steel clamp.

Readers looking for the general product system rather than this particular project decision can refer to the DragonTruss Quick Stage page:

https://www.dragontruss.com/quick-stage.html

The Quick Stage entry is registered as the general product/system page, whereas this Case Study focuses specifically on why the locking method changed for a wet pool environment.

At first glance, the built-in lock had an obvious aesthetic advantage.

But the project environment changed the comparison.

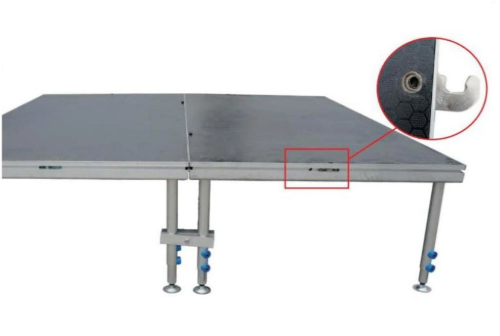

Option A — Built-In Lock: Cleaner Appearance

The built-in locking mechanism sits inside the stage frame.

That means the connection hardware is largely concealed rather than hanging outside the deck edge.

Suggested caption: The built-in locking system hides most of the connection mechanism inside the aluminum stage frame.

For a normal dry application, this can be an attractive solution because:

• the connection is integrated into the frame;

• fewer external pieces are visible;

• there is no separate lock hanging from the outside edge;

• assembly can be relatively direct once the mechanism is aligned.

This was exactly why the customer preferred it.

If we had considered only appearance and installation convenience, we might have agreed immediately.

But this was not a normal dry event stage.

It was going over a swimming pool.

The Problem Was Hidden Inside the Lock

Although the main stage frame is aluminum, the complete built-in mechanism is not made entirely from aluminum.

The version discussed for this project included steel parts with protective surface treatment, including a small rotating/internal operating component.

Based on our manufacturing and use experience, this created a concern in a swimming-pool environment.

If moisture enters the internal mechanism repeatedly—or the hardware is directly exposed to pool water—the protective surface can deteriorate over time.

Once the steel parts begin to corrode, the problem is not merely cosmetic.

The lock is a moving mechanism.

Corrosion or contamination around the internal moving parts can make the mechanism progressively harder to operate.

Eventually, the operator may find that:

• the tool does not turn the lock smoothly;

• additional force is required;

• the lock needs maintenance before installation;

• the internal mechanism becomes difficult to operate reliably.

Oil or grease can help protect moving steel components, but in our judgment that was not the maintenance direction we wanted to recommend for a platform installed over a swimming pool.

That changed the decision.

A Hidden Component Is Also Harder to Inspect and Maintain

The built-in lock's strongest visual advantage also creates a practical trade-off.

Because the mechanism sits inside the frame, much of it is hidden.

On a conventional dry stage this may not matter.

But in a wet application, a concealed moving steel component is less convenient if it later needs:

• drying;

• cleaning;

• lubrication;

• corrosion inspection;

• replacement.

The customer initially saw the built-in lock as:

cleaner and more beautiful.

We started looking at it as:

a concealed moving mechanism that would live next to swimming-pool water.

That is the point at which the same product feature changed from an advantage into a potential maintenance concern.

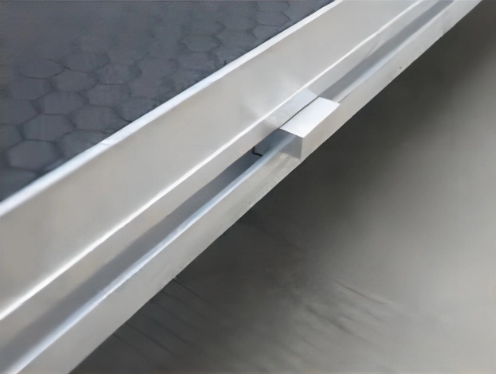

Option B — Aluminum Lock: Less Hidden, but Simpler for the Wet Environment

The aluminum lock has a different appearance.

It is an external locking piece associated with the edge of the stage frame.

When the platform is being stored or dismantled, the small lock component can remain visible.

Suggested caption: The aluminum lock is more visible when the platform is dismantled, but avoids the same concealed steel moving mechanism used in the built-in option.

That was its disadvantage.

The customer was building a luxury-hotel platform, so we understood why an exposed component might initially look like the less refined choice.

But once the stage is fully installed, the lock sits below/along the adjoining platform edges and is not the dominant visible feature of the completed floor.

More importantly, the aluminum lock does not rely on the same internal steel rotating mechanism.

For this swimming-pool application, we considered that a better trade-off.

We were not claiming that aluminum is unaffected by every wet or chemical environment.

The practical distinction here was narrower:

the selected aluminum locking piece avoids the iron-rusting failure mode that concerned us with the steel components inside the built-in mechanism.

For a pool-stage system expected to be repeatedly installed, dismantled and stored, reducing that maintenance concern was more important to us than having the neatest-looking lock while the stage was dismantled.

The Turning Point: What Matters More—Appearance When Stored or Reliability When Used?

This was the actual project decision.

The customer originally prioritized:

hidden connection → cleaner appearance → faster-looking installation

Our recommendation changed the priority to:

wet-environment suitability → simpler maintenance → long-term usability

Neither lock was badly designed.

They were designed around different compromises.

The discussion therefore became:

This is the part of the project that I would emphasize most.

The solution was not chosen because:

“aluminum lock is always better.”

It was chosen because:

for this particular pool application, we considered resistance to wet-environment maintenance problems more important than having a completely concealed lock.

We Also Considered the Customer's Aesthetic Concern

We did not simply tell the hotel:

“You have to accept a visible lock.”

There was another possibility.

If the customer strongly objected to having the small aluminum locking piece remain at the platform edge after dismantling, we could modify the aluminum frame so that the locking piece could be removed from its storage position.

Conceptually:

during installation:
use the aluminum lock normally;

after dismantling:
remove the small lock from the frame if a cleaner stored appearance is required.

The disadvantage is obvious:

once the lock becomes a removable loose component, someone must manage it.

The installation team has to:

• collect the removed locks;

• store them;

• count them;

• bring them back for the next installation.

A corrosion-resistant removable component introduces a different operational risk:

it can be misplaced.

Again, there was no solution with only advantages.

“两害相权取其轻” — Choosing the Smaller Disadvantage

This project reminded us of a very practical principle:

Every design is trying to solve something, but sometimes two advantages cannot be obtained at the same time. Then the job is not to find a perfect option—it is to choose the disadvantage that matters less in the real operating environment.

The built-in lock offered the cleaner appearance.

But in our judgment, it introduced a maintenance concern we did not want for a stage directly associated with a swimming pool.

The aluminum lock left a small external component.

But once the platform was installed, that component was not the main visual issue, while the more important wet-environment concern was reduced.

So for this project we chose:

a small aesthetic compromise when the stage is dismantled instead of a concealed maintenance problem that could appear later.

The customer accepted this reasoning.

That became the final locking approach.

The Final Proposal

The confirmed project direction included:

• a transparent temporary platform intended to cover an existing hotel swimming pool;

• Quick Stage-style modular platform construction;

• adjustable support to address the existing pool geometry and level differences;

• the platform surface intended to align with the surrounding concrete pool bank;

• customized modules required around the irregular pool plan and built-in entry steps;

• aluminum locks selected instead of built-in steel-containing locking mechanisms for connecting the modular stage sections.

The precise platform dimensions, acrylic panel specification, complete support layout and detailed BOQ were not supplied in the current project material, so I would not invent them for this Case Study.

Readers researching the broader structural role of temporary platforms can continue to DragonStructure's Stage Platform Structure section:

https://www.dragonstructure.com/Stage-Platform-Structure-pl07675276.html

That page is the registered DragonStructure entry point for project-specific temporary platform structures.

The Pool Geometry Was Another Reason This Was Not a Standard Stage

Although the locking decision became the central story, the project had another customization layer.

The customer was not placing a rectangular platform on a flat ballroom floor.

The stage had to work around:

• an irregular swimming-pool perimeter;

• an approximately 40 mm bottom-level difference;

• four existing built-in pool steps;

• a required final platform level corresponding to the surrounding pool edge.

That means even a fast modular locking system could not remove the need for site-specific platform planning.

The locking system solved:

how adjacent modules connect.

It did not solve:

how the entire irregular pool is divided, supported and leveled.

Those are different structural questions.

This distinction is useful because customers sometimes assume that a “quick stage” means every irregular site condition disappears.

It does not.

A quick connection can simplify one part of assembly while the underlying support geometry still requires customization.

What Changed in the Proposal

The important modification was relatively small in the BOQ but significant in the operating logic.

Initial preference

Quick Stage + built-in locks

Chosen primarily for:

• concealed appearance;

• clean platform edges;

• installation convenience.

Our review

Swimming-pool environment introduced concerns about:

• persistent moisture;

• possible water exposure;

• concealed steel moving parts;

• future corrosion and maintenance;

• lock operability after repeated wet exposure.

Final direction

Quick Stage + aluminum locks

The customer accepted a slightly less elegant dismantled appearance in exchange for the connection method we considered more suitable for this environment.

This is exactly the type of Case Study where a small component change matters more than the number of components changed.

The Case Study standard specifically treats this kind of trade-off and modification as valuable project reasoning rather than just a product specification.

Experience-Based Judgment vs. Engineering Verification

This case is primarily a material / connection / maintenance decision, not a structural-load calculation case.

Confirmed from the supplied project information

The project information confirms that:

• the site was a rooftop outdoor swimming pool at a five-star hotel in Hong Kong;

• the customer intended to cover the pool with a transparent event platform;

• the pool was irregular;

• there was approximately 40 mm of level variation/slope;

• one side incorporated four built-in pool entry steps;

• the customer initially preferred the built-in lock;

• our Quick Stage had aluminum-lock, built-in-lock and steel-clamp options;

• the built-in version contained steel components;

• we recommended the aluminum lock because of the wet environment;

• the customer accepted the recommendation.

Experience-based judgment

Our concern about the built-in lock came from practical material and product experience:

steel moving components exposed repeatedly to moisture or pool water can develop corrosion and become harder to maintain or operate.

Likewise, our preference for the aluminum lock was a practical maintenance judgment for this project.

What is not established by the current material

This Case Study does not provide verified:

• platform load capacity;

• acrylic panel load calculations;

• support-leg calculations;

• pool-floor bearing verification;

• waterproofing assessment;

• swimming-pool chemical compatibility testing;

• wind resistance;

• engineering approval;

• hotel/local regulatory compliance.

Those questions would require separate project-specific data and verification.

The DragonStructure rules require exactly this separation between confirmed facts, practical experience and verified engineering conclusions.

What This Case Shows

At first glance, the locking method may appear to be a minor hardware choice.

But this project shows why the environment around a structure can change the meaning of a component advantage.

In another project:

hidden built-in lock = cleaner solution.

In this pool project:

hidden built-in lock = concealed steel moving parts in a wet environment.

The product did not change.

The context changed the judgment.

That gives us the most transferable lesson from this case:

Do not choose a connection only by how it looks on installation day. Ask what will happen to that connection after repeated exposure, dismantling, storage and reuse.

And the second lesson is exactly the one you described:

When no option gives every advantage, choose the compromise whose disadvantage is easier to live with.

That is much more useful than saying one lock is simply “better.”

FAQ

Why didn't you use the built-in lock if it looks cleaner?

The customer originally preferred it for exactly that reason. However, the built-in version discussed for this project contained steel moving components inside the frame. Because the platform was intended for a swimming-pool environment, we considered long-term moisture exposure and maintenance more important than having the cleanest appearance while the stage was dismantled.

Does an aluminum lock never corrode?

No material should be described as completely unaffected by every environment. Aluminum can also be affected by particular chemical or environmental conditions. Our project decision was more specific: the aluminum locking option avoided the same iron-rusting concern associated with the internal steel components in the built-in mechanism.

Is the aluminum lock visible after the stage is installed?

It is an external connection component, but in the assembled platform it sits around/below the adjoining stage-frame area rather than becoming a prominent part of the walking surface. The customer's aesthetic concern was greater when considering the stage in its dismantled condition.

Can the aluminum lock be removed when the stage is stored?

A removable arrangement can be considered by modifying the frame/storage detail. The trade-off is that the removed locks then become loose accessories and must be carefully collected and stored for the next installation.

Why not use the steel clamp?

The project material confirms that a steel clamp was another available Quick Stage connection method, but the supplied history does not record a detailed final comparison of the steel clamp against the two other options. We therefore should not invent a reason that was not part of the actual discussion.

Does choosing a Quick Stage lock solve the pool's uneven bottom?

No. The locking system connects adjacent platform modules. Level differences, irregular pool geometry and the built-in stairs are separate issues that must be addressed through the support and platform layout.

Information Needed for a Similar Pool Stage

For a swimming-pool platform project, useful information should include:

• full pool plan or measured drawing;

• inside length and width at different positions;

• pool depth and bottom level changes;

• surrounding pool-bank elevation;

• built-in stairs or underwater obstructions;

• required finished platform level;

• transparent-deck material requirement;

• intended event use;

• installation frequency;

• whether the pool remains filled or is drained during installation/use;

• photographs and site drawings.

For this kind of project, connection choice should be decided after the operating environment is understood, not simply selected from a Quick Stage catalogue.
