Structural Function

During exhibition and event installation, workers often need temporary elevated access for:

• assembling exhibition truss;

• installing lighting fixtures;

• adjusting hanging equipment;

• connecting temporary structures;

• maintenance work above normal working height.

A normal ladder may provide height access, but it does not provide:

• a stable working position;

• space for tools;

• movement around the installation area;

• safer temporary working conditions.

This aluminum mobile scaffold creates:

mobile base

vertical access tower

working platform

guardrail protection

allowing installers to work at elevated positions during temporary event setup.

Overall Configuration

The confirmed configuration from the original product is approximately:

1350 × 2000 × 4000mm

The structure consists of:

1. Aluminum scaffold tower body

2. Double-width working platform

3. Internal climbing ladder

4. Guardrail system

5. Mobile caster base

6. Stabilizing support components

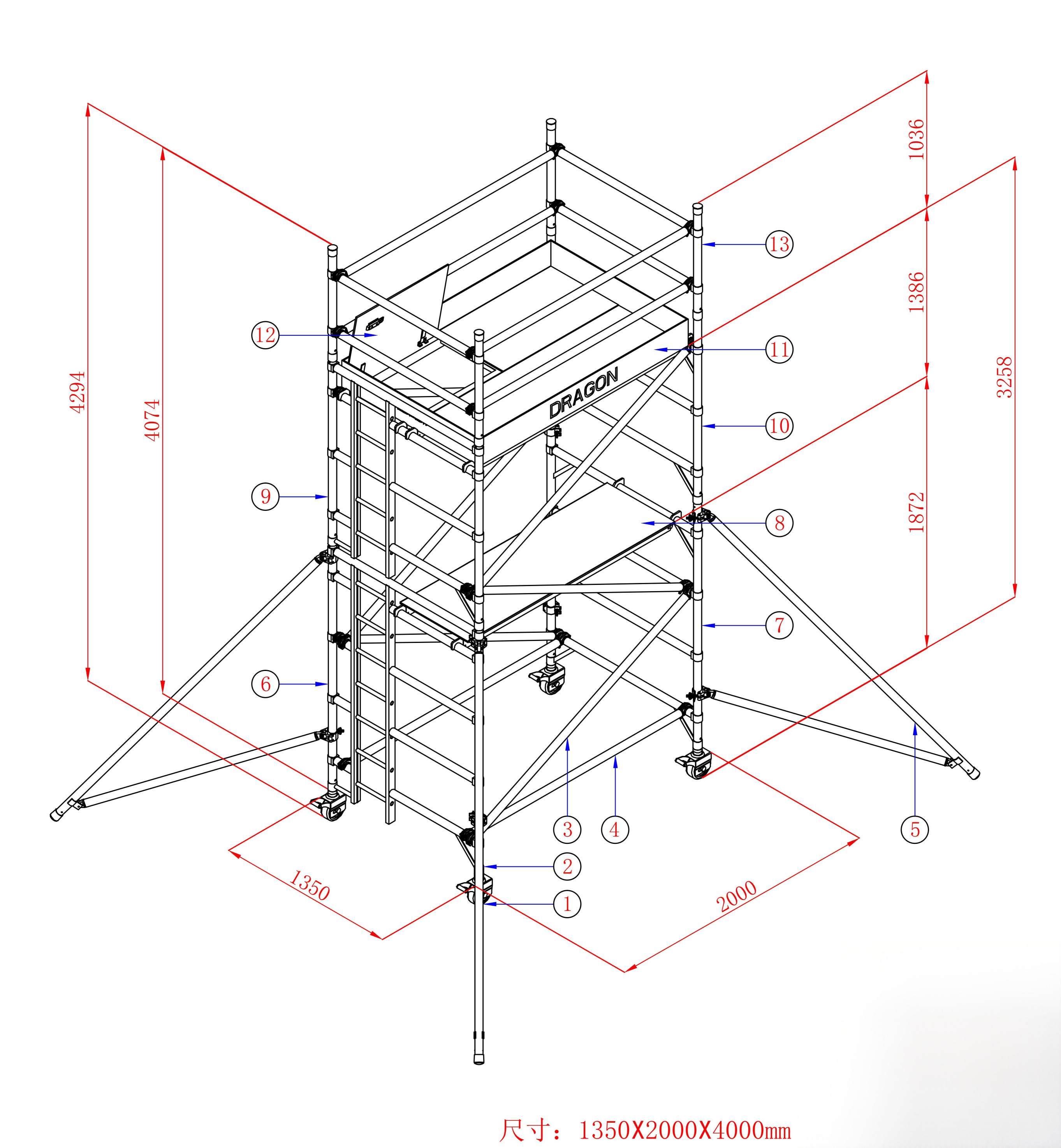

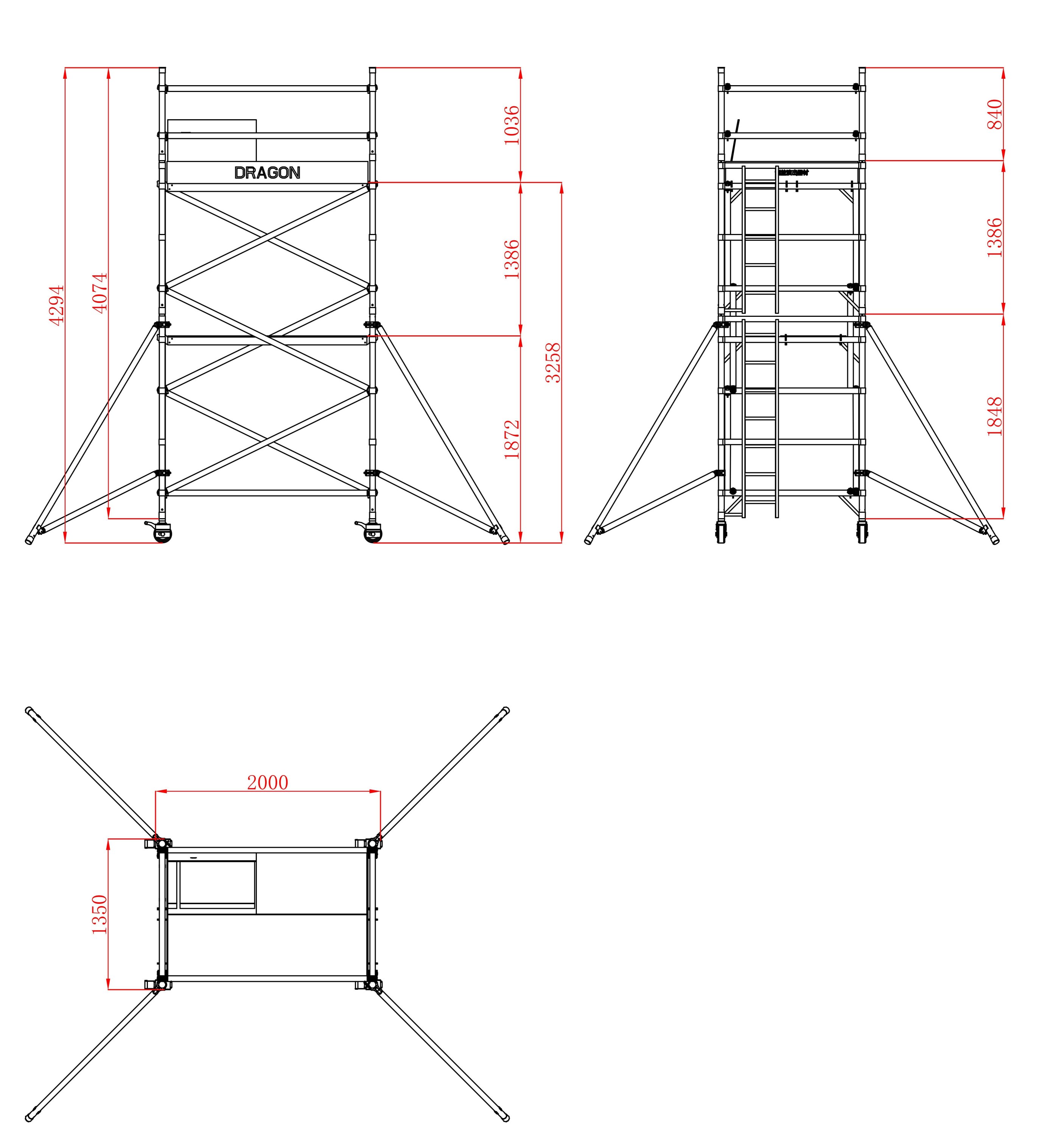

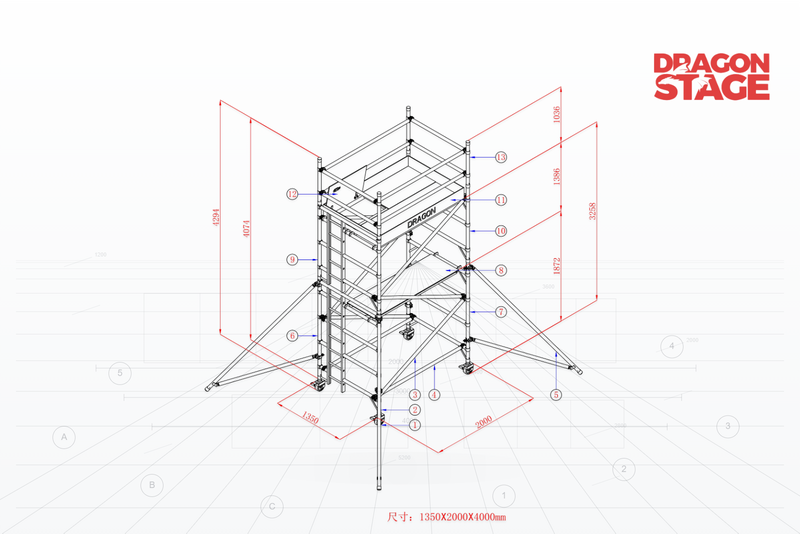

The original drawing identifies the overall dimension as 1350 × 2000 × 4000mm.

Main Structural Components

1. Aluminum Vertical Frame System

The main tower is constructed from lightweight aluminum vertical frames.

The vertical frame provides:

• working height;

• platform support;

• connection points for horizontal members;

• modular assembly.

Aluminum is commonly selected for this type of temporary access structure because it provides:

• lower weight compared with steel;

• easier transportation;

• faster manual assembly.

2. Horizontal Cross Members

Horizontal members connect the vertical frames and create the tower geometry.

Their functions include:

• maintaining the rectangular tower shape;

• supporting working levels;

• connecting opposite frames.

The structure follows modular scaffold logic:

Vertical Frames

↓

Horizontal Connections

↓

Stable Working Tower

3. Diagonal Bracing System

Diagonal braces are installed between vertical members.

Their purpose is to improve the overall stability of the assembled tower.

The structure uses repeated diagonal bracing rather than relying only on vertical frames.

This creates a rigid temporary access structure suitable for installation work.

4. Working Platform

The upper platform provides the working position for installers.

Typical uses include:

• exhibition booth installation;

• truss connection adjustment;

• lighting installation;

• temporary maintenance work.

The platform location defines the actual working height.

The overall tower height and the working platform height should be confirmed separately for each project.

5. Guardrail System

The upper working area includes surrounding guardrails.

The guardrail system provides:

• working-area definition;

• fall protection boundary;

• safer elevated operation.

The exact guardrail configuration should follow the supplied structure drawing and local requirements.

6. Climbing Ladder

The structure includes an integrated climbing ladder.

Compared with using an external ladder, the integrated ladder provides:

• fixed access route;

• repeatable installation method;

• easier movement between ground and working platform.

7. Mobile Caster System

The bottom section includes mobile wheels.

This allows the assembled tower to be repositioned during installation.

Typical workflow:

1. Assemble tower.

2. Move to installation position.

3. Perform elevated work.

4. Relocate when required.

The actual movement method and site requirements depend on the project environment.

Structural Relationship

The structure works as a complete temporary access system:

Mobile Base
      |
      |
Aluminum Tower Frame
      |
      |
Bracing System
      |
      |
Working Platform
      |
      |
Installer / Installation Work

The tower is not designed as an independent event structure.

Its purpose is to provide temporary elevated access for people performing installation or maintenance work.

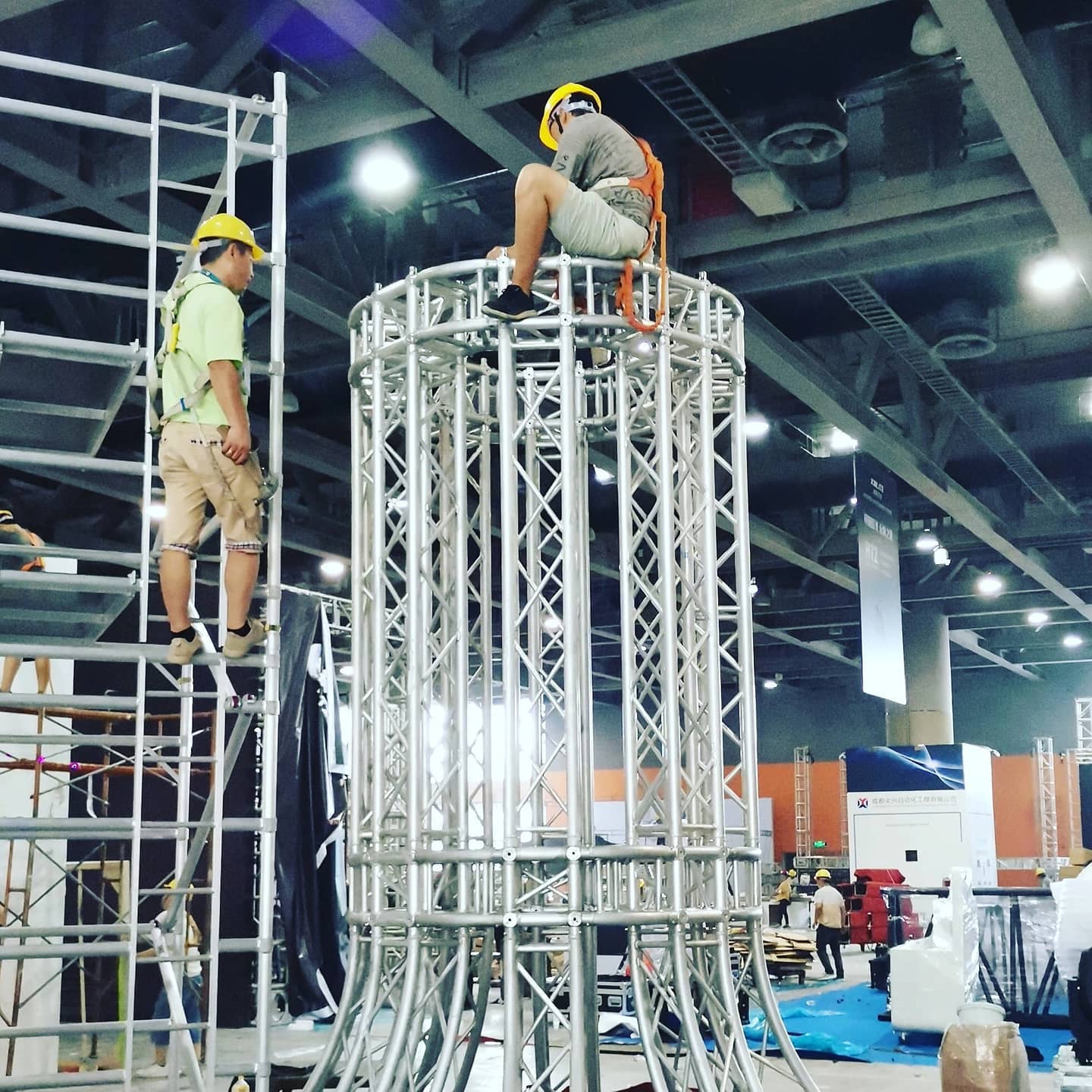

Application in Exhibition Truss Installation

For exhibition and event projects, this type of mobile scaffold can support installation activities such as:

• exhibition booth structure assembly;

• lighting truss installation;

• display structure adjustment;

• temporary overhead equipment installation;

• venue preparation work.

Compared with traditional fixed scaffolding, its main advantage is flexibility.

The installer can use one access structure in multiple positions during setup.

Assembly Logic

The practical assembly logic is:

Step 1

Prepare the mobile base components.

Step 2

Install aluminum vertical frames.

Step 3

Connect horizontal members.

Step 4

Install diagonal braces.

Step 5

Install climbing ladder.

Step 6

Install working platform.

Step 7

Install guardrails.

Step 8

Move the completed tower into the required working position.

This describes practical assembly logic.

It is not a replacement for a project-specific installation method or safety procedure.

BOQ / Component Groups

The original product is based on an aluminum portable double scaffolding system.

The main component groups are:

The detailed component quantity should follow the final production drawing for the customized 4m exhibition installation version.

Why This Version Is Different From Normal Construction Scaffold

Although this structure uses scaffold principles, its application is different from building construction scaffolding.

The main difference is:

Construction Scaffold

Usually:

• larger working areas;

• longer installation periods;

• building maintenance purpose.

Exhibition / Event Mobile Scaffold

Usually:

• temporary use;

• frequent relocation;

• lightweight transportation;

• installation-focused access.

This makes it closer to an:

event installation access platform

rather than a conventional construction scaffold.

Customization Variables

For exhibition and event applications, common customization points include:

Working Height

The structure can be adjusted according to:

• exhibition booth height;

• truss installation height;

• lighting position;

• maintenance requirement.

Platform Size

Platform dimensions may change according to:

• available working area;

• required tools;

• number of installers.

Wheel Configuration

Different applications may require different mobility arrangements.

Access Arrangement

Possible variations include:

• ladder position;

• platform access direction;

• guardrail arrangement.

Integration With Event Structures

When used with:

• exhibition truss;

• lighting structures;

• temporary displays;

the installation environment should be provided before final configuration.

Experience-Based Application Judgment

Based on practical exhibition installation experience:

A mobile aluminum scaffold is often more efficient than repeatedly assembling fixed scaffolding when the installer needs to move between multiple installation positions.

For event projects, the important consideration is not only height.

It is also:

• how often the structure needs to move;

• available floor space;

• installation sequence;

• access convenience.

This is practical application experience, not a calculated engineering conclusion.

Engineering / Verification Note

Confirmed Facts

Confirmed from the supplied product information:

• aluminum mobile double scaffolding structure;

• approximate overall dimension:
  1350 × 2000 × 4000mm;

• platform;

• ladder;

• guardrail;

• mobile scaffold configuration.

Experience-Based Judgment

Based on event installation practice:

• this type of structure is suitable as a temporary elevated access solution;

• mobility is a major advantage for exhibition installation;

• configuration should match the installation environment.

Not Established

The supplied information does not establish:

• allowable working load;

• maximum number of workers;

• wind rating;

• outdoor operating limitation;

• safety factor;

• certification;

• compliance approval;

• engineering approval.

These require project-specific verification.

Information Needed for Similar Projects

For a customized exhibition installation scaffold, please provide:

• required working height;

• required platform height;

• platform size;

• installation purpose;

• truss size;

• exhibition booth dimensions;

• indoor or outdoor application;

• floor condition;

• required mobility frequency;

• number of installers;

• required access direction;

• site photos;

• drawings.

Related DragonStructure Pages

Mobile Access Structure

https://www.dragonstructure.com/Mobile-Access-Structure-pl07055276.html

This is the primary category because the structure is designed as a movable temporary access solution.

Working Platform Structure

https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

Related because the main function is providing an elevated temporary working position.

Stair & Walkway Structure

https://www.dragonstructure.com/Stair-Walkway-Structure-pl05055276.html

Related when projects require temporary access systems beyond vertical ladders.

Original DragonStage Product Reference

Original product:

Aluminum Portable Mobile Double Scaffolding for Paint and Coating Work 3.83m

The original product is the manufacturing reference.

This DragonStructure page focuses on a different question:

How can an aluminum mobile access scaffold be understood as a temporary working platform structure for exhibition and event installation?

FAQ

What is an aluminum mobile access scaffold?

It is a temporary movable tower structure that provides elevated access for installation and maintenance work.

Why use mobile scaffold instead of a ladder?

A ladder provides access, but a mobile scaffold provides a working platform where installers can stand and work with tools.

Can this scaffold be used for exhibition truss installation?

Yes. It is suitable for temporary installation work where elevated access is needed, such as exhibition and event setup.

Is this the same as construction scaffolding?

No. Although both use scaffold principles, this structure is optimized for temporary mobile access rather than long-term building construction.

Can the height be customized?

Yes. The tower height, platform configuration and access arrangement can be adjusted according to project requirements.

Can it be used outdoors?

Outdoor use depends on project conditions, environment and required verification.

Structure Classification

Short Description

A 4m aluminum mobile access scaffold designed for exhibition and event installation work. The structure combines an aluminum modular tower frame, diagonal bracing, working platform, guardrails, integrated ladder and mobile caster system to provide temporary elevated access for truss, lighting and display structure installation. The configuration is based on an existing aluminum portable double scaffolding system and adapted for event installation applications.
