Why the 750mm Width Matters

The most distinctive feature of this structure is not simply its height.

It is the combination of:

approximately 4m height + only 750mm tower width + mobile access.

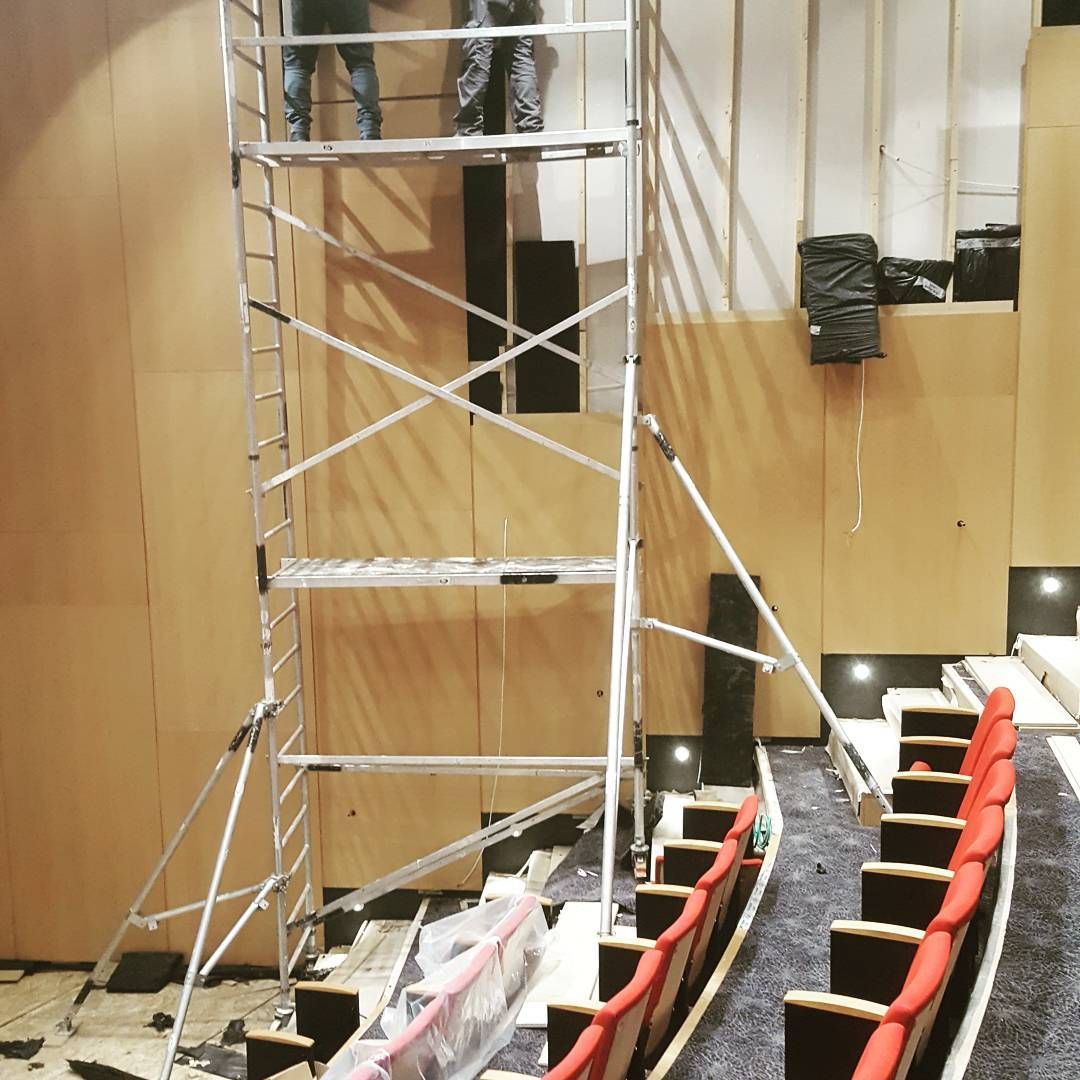

The supplied site photo shows the scaffold being used beside stepped auditorium seating, close to an interior wall. In this type of environment, available floor space can be constrained by:

• fixed seating;

• aisles;

• walls;

• stage edges;

• installed interior finishes;

• other equipment already in position.

A wider 1.35m double-width scaffold may provide a larger working area, but it also requires substantially more clear floor width.

The 750mm single-width configuration addresses a different problem: reaching the required elevated work position while keeping the central tower body narrow.

That is why this product should not simply be treated as a smaller version of the previous double-width scaffold.

Overall Structural Configuration

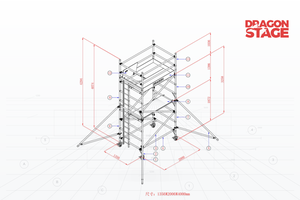

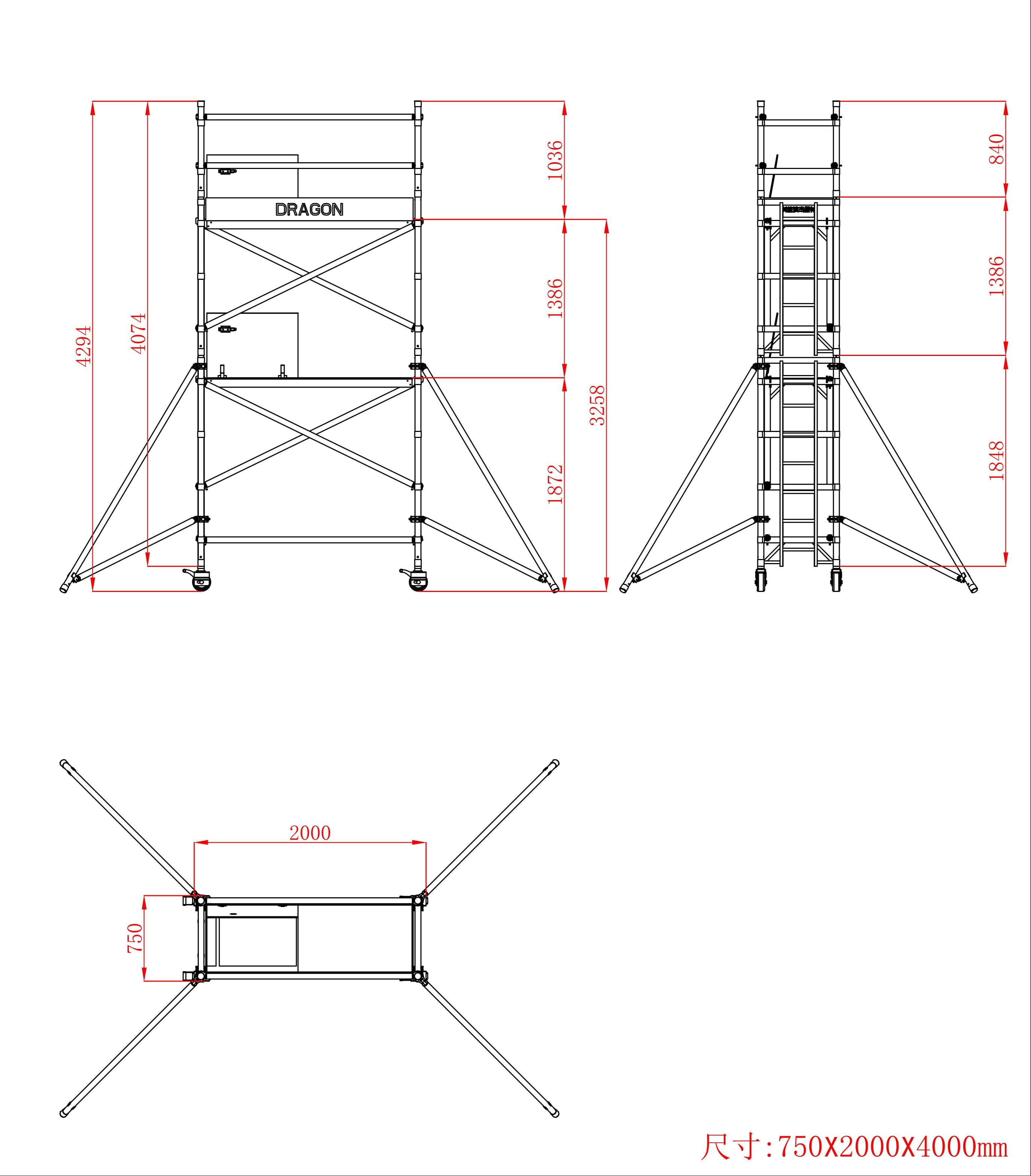

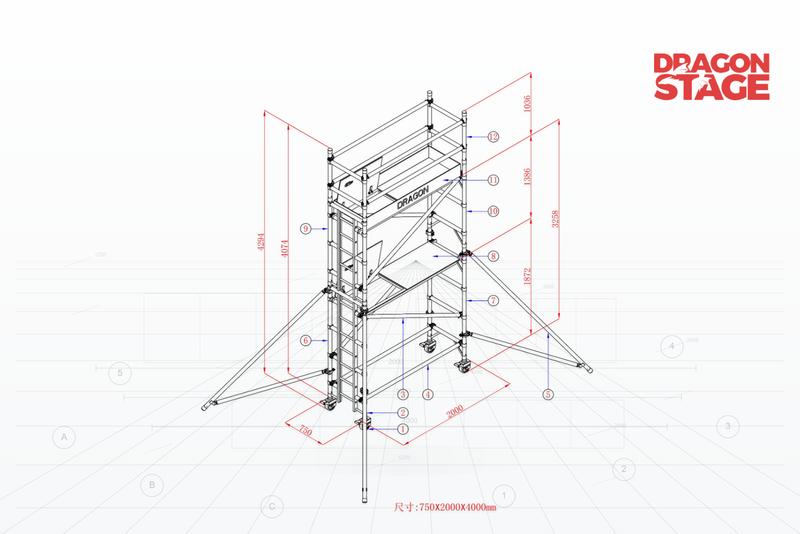

The supplied drawing identifies the main tower size as:

The original product page also confirms that this belongs to the single-width mobile scaffolding family.

Structural Breakdown

1. Narrow Aluminum Tower Body

The central tower uses a 750mm-wide single-width frame.

This is the defining geometry of the structure.

Compared with a 1350mm double-width tower, the narrower frame reduces the space occupied by the main scaffold body. For indoor AV installation, this can matter when the scaffold must be positioned between fixed building elements rather than in a large open event floor.

The 2000mm longitudinal dimension provides the other side of the working tower.

So the central geometry can be understood as:

750mm narrow side × 2000mm working length × approximately 4000mm tower height.

2. Vertical Ladder Frames

The side frames perform two functions:

tower structure + vertical access.

The ladder rungs are integrated into the frame rather than requiring a completely separate access tower.

This is particularly useful in a narrow configuration because access does not require creating another large structural zone beside the scaffold.

3. Horizontal Members

Horizontal members connect the two sides of the tower and maintain the rectangular scaffold geometry.

Together with the vertical frames, they establish the main modular tower body.

4. Diagonal Bracing

Diagonal members can be seen across the tower bays in the supplied drawing and site photo.

Their practical role is to brace the assembled tower geometry rather than leaving the tall frame as a set of vertical and horizontal members only.

This is a description of the scaffold system configuration, not a calculated statement about structural capacity.

5. Multi-Level Working Platforms

The drawing shows platforms installed at different elevations rather than one platform existing only at the very top.

This is useful for indoor installation because the required work position may change during the job.

For example, sound-system installation may involve different elevations for:

• cable work;

• wall-mounted equipment;

• brackets;

• speaker-related installation;

• adjustment or maintenance.

The scaffold therefore functions as a vertical access and working system, not merely as a tall ladder.

The exact platform elevation should be configured around the real installation point.

6. Upper Guardrail Zone

The upper working level is enclosed by an extended frame and horizontal guardrail members.

This creates a defined working zone above the platform.

An important distinction should be maintained:

overall scaffold height ≠ platform height ≠ worker reach height.

These three values should not be treated as interchangeable when selecting a tower for a project.

7. Mobile Caster Base

Four caster assemblies are shown at the bottom of the tower.

Mobility is important in indoor sound-system installation because the same tower may need to serve several installation positions.

For example:

Position A → install/adjust equipment → descend → reposition scaffold → Position B → continue installation

This is one reason a mobile access tower can be more practical than building separate fixed access structures at every work point.

Movement and working-position procedures must still follow the applicable operating requirements; the presence of casters should not be interpreted as permission to move the tower while occupied.

8. Long Outriggers

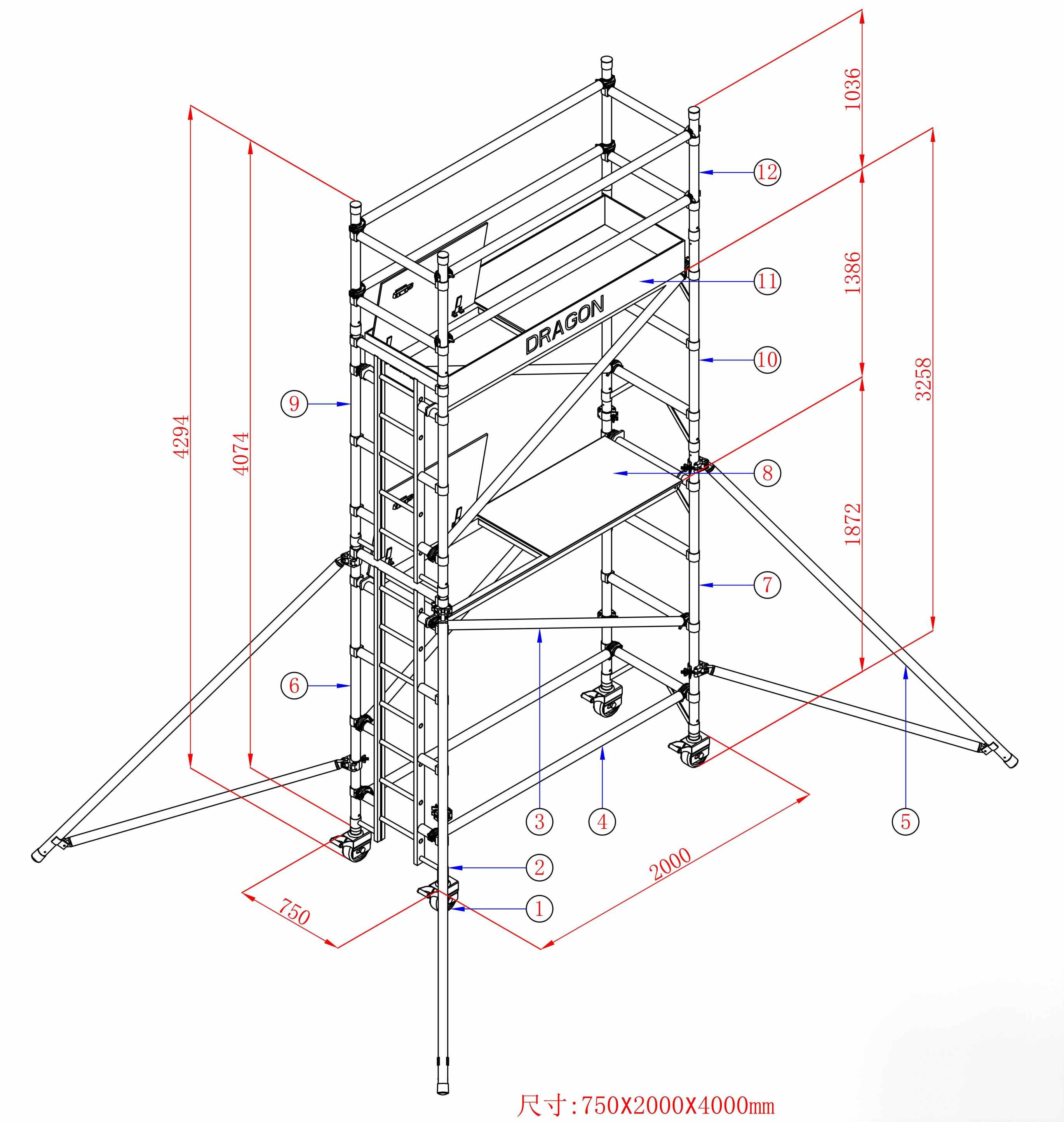

The drawing clearly shows long outriggers projecting outward from the narrow central tower.

This detail is particularly important because it prevents a common misunderstanding of narrow scaffolding:

750mm is the width of the central tower body, not the total operating footprint of the complete scaffold.

Once the outriggers are deployed, the actual occupied floor area becomes considerably larger.

This distinction matters when planning installation inside:

• auditoriums;

• theaters;

• conference halls;

• exhibition venues;

• houses of worship;

• indoor performance spaces.

A customer should therefore not check only whether a 750mm tower fits through or beside the seating. They should also confirm whether there is sufficient space to deploy the stabilizing configuration required for the working position.

Why This Structure Fits Indoor Sound Installation

The supplied site image is useful because it shows something a normal white-background product image cannot explain very well.

The scaffold is positioned beside fixed tiered seating and an interior wall.

That immediately explains the structural choice.

The installation problem is not simply:

“We need a 4m scaffold.”

It is closer to:

“We need to reach an elevated indoor installation point, but the working area beside the auditorium seating is narrow.”

For this situation, the single-width tower reduces the central footprint, while the mobile base allows the same access structure to be repositioned during the installation process.

This interpretation comes from the supplied project/site evidence and practical application analysis. It should not be presented as a formal engineering calculation.

Single-Width vs Double-Width Mobile Scaffold

This project also shows why tower width should be selected according to the working environment rather than simply choosing the larger scaffold.

The practical principle is simple:

Do not automatically choose the wider scaffold because it looks more substantial.

If the real constraint is a narrow auditorium aisle or a wall-side installation zone, reducing the tower width may be the more useful configuration.

At the same time, narrowing the central tower does not mean the complete working footprint is only 750mm, because the outrigger arrangement still needs to be considered.

BOQ / Structural Component Groups

The source product is a modular aluminum single-width mobile scaffold. The supplied evidence confirms the following component groups; exact quantities should follow the final production BOQ/drawing rather than being reconstructed from the rendering. This follows the DragonStructure rule that missing quantities should not be invented.

BOQ note: the original product page confirms the product identity and single-width configuration, but the accessible source does not provide a sufficiently reliable exact quantity table for every component. I therefore have deliberately not copied quantities from another similar scaffold model.

Practical Assembly Logic

At a structural-breakdown level, the system is assembled through the following logic:

caster/base assemblies
→ lower ladder frames
→ horizontal and diagonal connections
→ intermediate platform/access level
→ additional vertical frame section
→ upper working platform
→ guardrail zone
→ outriggers and working-position setup

This explains how the modules relate to each other. It is not intended to replace the manufacturer's assembly instructions or a site-specific safe-work procedure.

Suitable Applications

This configuration is particularly relevant for:

• indoor sound-system installation;

• auditorium AV installation;

• theater equipment maintenance;

• wall-mounted speaker installation access;

• exhibition equipment installation;

• indoor lighting installation;

• conference hall maintenance;

• temporary elevated work in restricted floor areas.

For DragonStructure, the key application is access to the equipment, not support of the sound equipment itself.

That distinction is important.

This scaffold is not a Sound Support Structure or PA tower. The speakers or other sound equipment are installed on the building or another confirmed support system; the scaffold provides temporary access for the installers.

Customization Variables

A similar structure should be configured after confirming:

Tower width — Is 750mm required because of restricted access?

Tower length — Is the 2000mm platform length suitable for the work position?

Platform elevation — At what height does the installer actually need to stand?

Overall working height — Where is the speaker, bracket, cable route or other installation point?

Floor clearance — Can the central tower and deployed outriggers fit around seats, walls or other obstacles?

Mobility route — Can the scaffold be repositioned between installation locations?

Indoor environment — Are there steps, slopes, level changes, fixed seats or sensitive finished surfaces?

These variables can change the final configuration even when the nominal tower height remains around 4m.

Experience-Based Structural Judgment

The site photo supports a useful practical lesson:

For indoor installation, available floor width can be just as important as working height.

A request for “a 4m scaffold” is therefore incomplete if the actual work is beside fixed auditorium seating.

From practical project experience, the useful questions become:

• How wide is the available floor strip?

• Where does the worker need to stand?

• Where is the sound equipment being installed?

• Can outriggers be deployed?

• Does the tower need to move between several positions?

This is application-based judgment derived from the installation scenario, not a verified structural calculation.

Engineering / Verification Boundary

Confirmed from the supplied evidence

• aluminum single-width mobile scaffold;

• approximately 750mm tower width;

• approximately 2000mm tower length;

• approximately 4000mm nominal tower height;

• approximately 4294mm maximum dimension shown in the drawing;

• ladder-frame access;

• working platforms;

• casters;

• diagonal/horizontal bracing;

• upper guardrail zone;

• long outriggers;

• real indoor installation use shown beside auditorium seating;

• original product identified as 0.75 × 2 × 4.29m Aluminum Ladder Mobile Single-width Scaffolding.

Experience-based interpretation

The narrow tower configuration is particularly useful where indoor floor width is constrained and elevated installation access is still required.

Not established by the supplied material

The supplied material does not establish:

• allowable working load;

• maximum worker count;

• maximum safe platform height for every configuration;

• required outrigger geometry for every project;

• allowable floor slope;

• wind rating;

• safety factor;

• certification;

• local compliance;

• engineering approval.

These must not be inferred from the drawing or site photograph. DragonStructure's governing rules specifically require this separation between confirmed facts, practical experience and verified engineering conclusions.

Information Needed for a Similar Project

For a similar indoor sound or AV installation, please provide:

• required equipment installation height;

• required worker platform height;

• available floor width and length;

• photos of the installation area;

• aisle and seating dimensions;

• speaker/equipment location;

• whether the tower must move between several positions;

• floor condition and level changes;

• indoor/outdoor environment;

• required platform arrangement;

• site or architectural drawing if available.

A side-view site photo is particularly useful for this type of project because it can reveal the relationship between the equipment position, wall, seating levels and available scaffold space before the access structure is selected.

Related DragonStructure Pages

Mobile Access Structure

https://www.dragonstructure.com/Mobile-Access-Structure-pl07055276.html

This is the primary category. The registered Dragon Internal Link Library specifically defines this page for mobile access towers, movable work structures and temporary elevated maintenance access.

Working Platform Structure

https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

Use this when the reader needs to explore temporary elevated working platforms for installation and maintenance.

Original DragonStage Product Reference

0.75x2x4.29m Aluminum Ladder Mobile Single-width Scaffolding

The original DragonStage page focuses on the physical scaffolding product and supply specification. The source page identifies it as a single-width scaffold and uses keywords such as “Single Scaffolding,” “single width tower,” and “Ladder mobile single-width scaffolding.”

This DragonStructure page deliberately answers a different question:

How is a narrow 750mm mobile access scaffold configured to provide elevated working access for indoor sound-system installation where floor space is restricted?

That difference is important for avoiding a near-duplicate DragonTruss product page.

FAQ

Why use a 750mm single-width scaffold for indoor sound installation?

The narrower central tower occupies less floor width than a 1.35m double-width scaffold, making it useful around auditorium seating, walls and other restricted indoor areas.

Does 750mm mean the complete scaffold only needs 750mm of floor space?

No. 750mm describes the central tower width. The deployed outriggers extend beyond the tower, so the complete working footprint must be checked against the actual site.

Is this scaffold supporting the speakers?

No. In this application the scaffold is a temporary access and working structure for installers. It should not be confused with a permanent or temporary sound-support tower.

Is a 4m scaffold the same as a 4m working height?

No. Overall tower height, platform elevation and worker reach are different dimensions. The required platform level should be determined from the actual installation point.

Why not always use a wider double-width scaffold?

A wider tower provides more platform space, but it also requires more floor width. In restricted indoor environments, the narrower single-width configuration may fit the installation route and working area better.
