1. What Is This Structure?

This is a temporary mobile working tower, not a speaker-support tower.

That distinction is essential.

The line-array equipment belongs to the sound system.

The scaffold belongs to the installation process.

So the functional relationship is:

Indoor Venue

↓

Line Array / Sound Equipment Installation Position

↓

Installer Needs Elevated Access

↓

7m Double-Width Mobile Scaffold

↓

Working Platform + Ladder Access

The scaffold allows technicians to reach the required installation elevation and work from a temporary platform.

Once installation or maintenance is completed, the scaffold can be relocated or removed.

2. Why Use a Double-Width Tower?

This configuration uses 1.35m-wide aluminum frames rather than a 0.75m single-width tower.

That creates a broader internal working zone.

For sound-system installation, a wider tower can be useful when technicians need room for:

• tools;

• cables;

• hardware;

• speaker-related accessories;

• installation equipment;

• more comfortable working movement.

The confirmed BOQ reflects this broader platform arrangement through:

1 × Trap Door Platform

3 × Standard Platforms

This is substantially different from a narrow access tower designed primarily around minimum footprint.

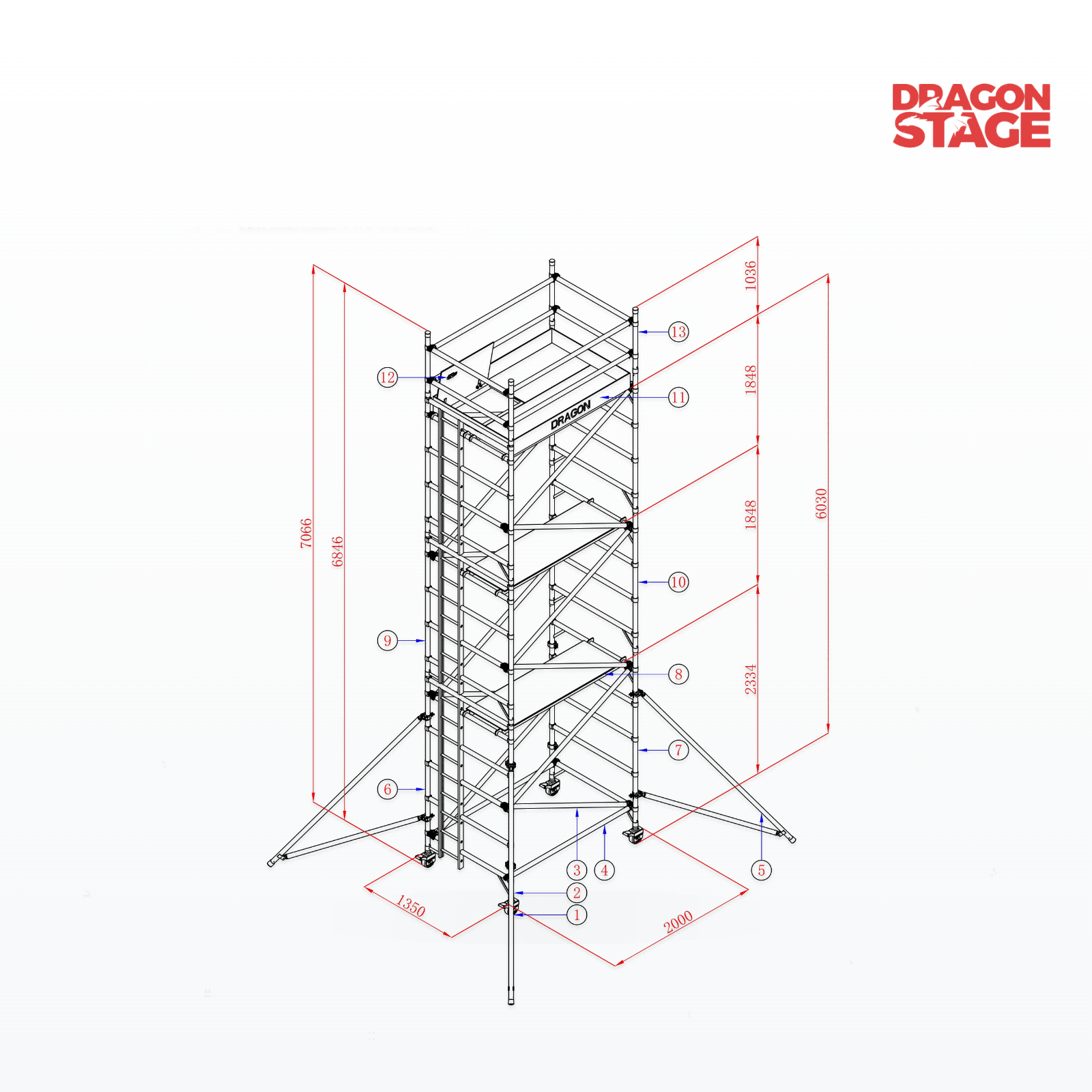

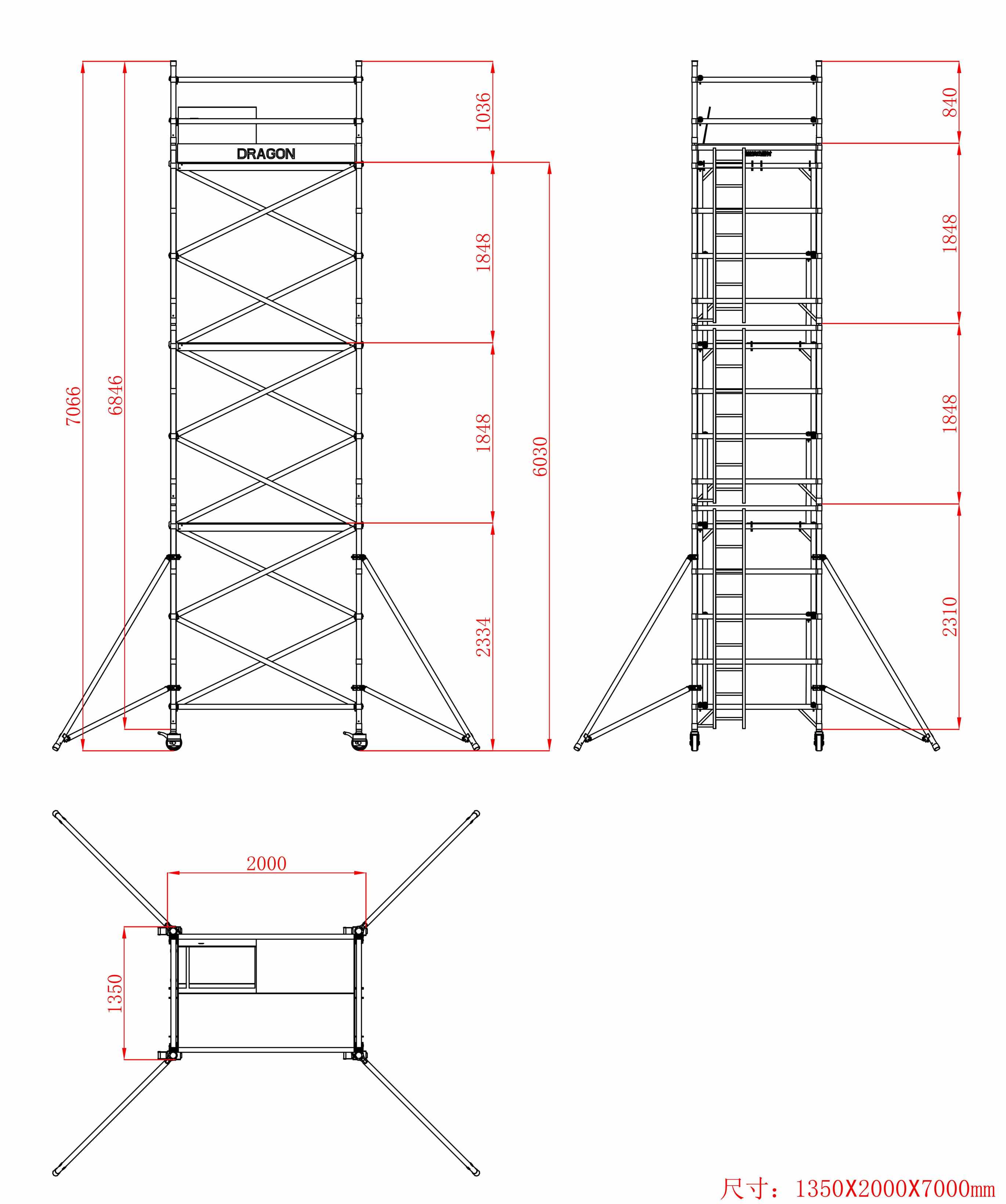

3. Overall Structural Configuration

The exact worker platform elevation should follow the actual assembled configuration.

The nominal product height should not automatically be treated as the platform height or worker reach height.

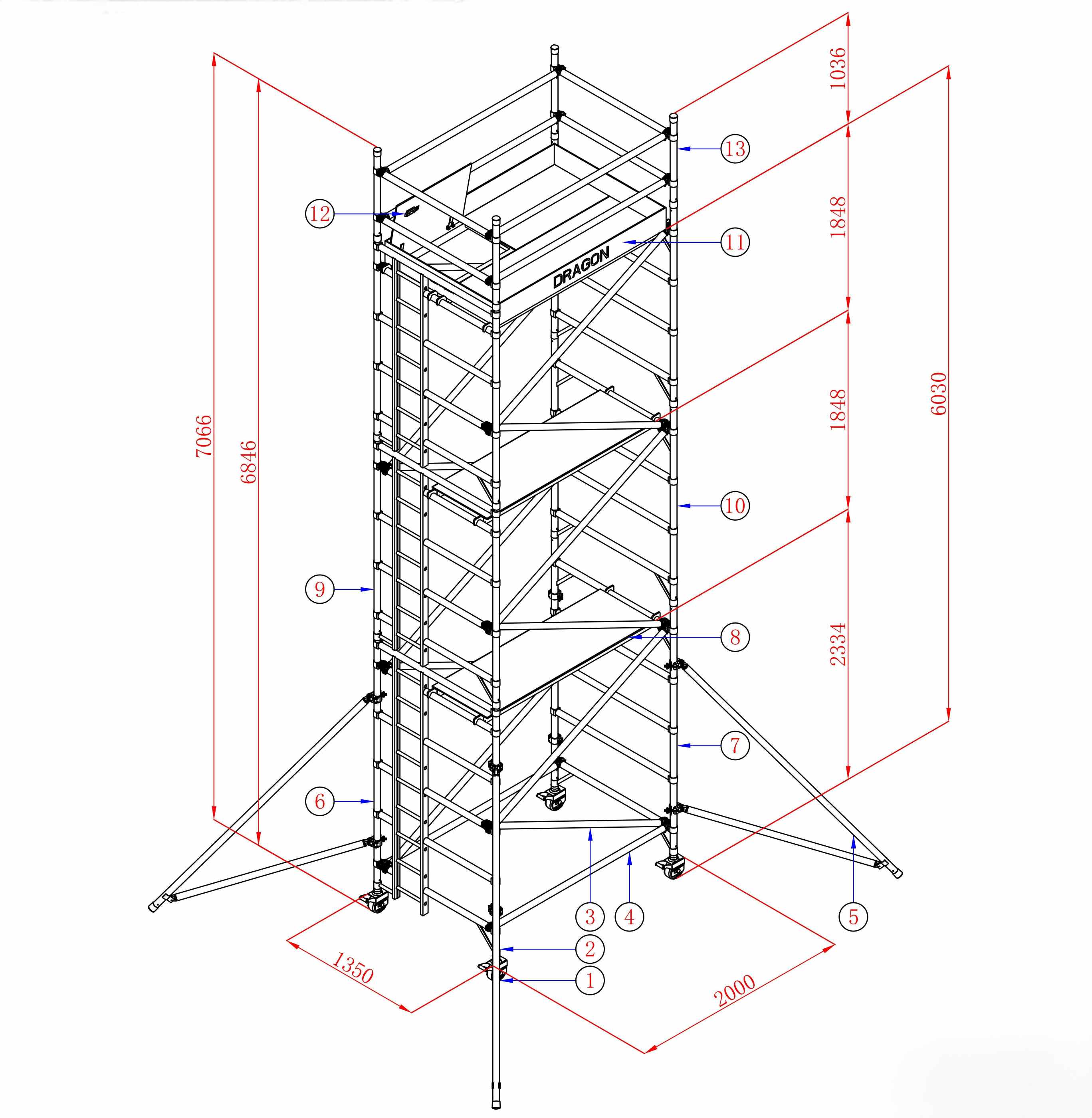

4. Modular Frame System

The vertical tower is built from several frame modules rather than one continuous fabricated ladder.

The confirmed frame combination includes:

Lower / Main Frame Modules

5 Rungs Frame

W × H: 1.35 × 2.31m

Quantity: 2 pcs

5 Rungs Frames with Integrated Ladder

W × H: 1.35 × 2.31m

Quantity: 2 pcs

Upper Shorter Frame Modules

3 Rungs Frame

W × H: 1.35 × 1.386m

Quantity: 1 pc

3 Rungs Frame with Integrated Ladder

W × H: 1.35 × 1.386m

Quantity: 1 pc

The BOQ also lists 1.848m four-rung frame options, but their quantity is 0 in this configuration.

This tells us that the 7m tower is created using:

two taller frame levels + one shorter upper frame level

rather than three identical vertical modules.

5. Why the 1.848m Frames Are Listed as Zero

The source BOQ contains:

• 4 rungs frame, 1.35 × 1.848m — 0 pcs

• 4 rungs frame with ladder, 1.35 × 1.848m — 0 pcs

These are part of the broader modular scaffold family but are not used in this particular configuration.

They should remain visible in the confirmed BOQ because they show how the manufacturer organizes the configurable scaffold system.

But they should not be counted as supplied components.

This is an important DragonStructure distinction:

available module ≠ module used in this final structure.

6. Integrated Ladder Access

Three of the vertical frame groups include dedicated ladder-frame versions.

The supplied configuration contains:

• 2 × 2.31m ladder frames;

• 1 × 1.386m ladder frame.

This creates a continuous vertical access route through the tower system.

For a tall indoor access structure, ladder integration is an important part of the overall configuration because technicians need to move between:

ground

↓

intermediate level

↓

upper work level

without building a completely separate access structure.

7. Diagonal Bracing

The BOQ contains:

12 × Diagonal Bar SD1

This is significantly more than the smaller 5.22m double-width configuration previously discussed.

The reason should not be invented as a calculated stability requirement, but the BOQ clearly confirms that the taller structure uses a more extensive bracing arrangement.

At structural-breakdown level:

Vertical Frames

Horizontal Connections

create the tower geometry.

Diagonal Bars

brace the tower bays.

This is a description of configuration, not a statement of allowable load or engineering performance.

8. Horizontal Bars

The confirmed BOQ includes:

8 × Horizontal Bar SD2

These members connect the vertical frames and contribute to the repeated scaffold bay structure.

Together with the diagonal bars, they turn the stacked ladder/frame elements into a complete three-dimensional mobile access tower.

9. Multiple Platform Levels

This configuration includes:

1 × Trap Door Platform SD7

3 × Platform SD6

This is one of the most important differences between this tower and a simple ladder-access structure.

The system provides multiple deck components that can create:

• working positions;

• intermediate standing areas;

• access transition areas.

For installation around indoor line arrays or high-mounted audio equipment, this can be useful because technicians may need to work at more than one elevation.

The exact installation level of every platform should follow the final assembly configuration.

10. Trap-Door Platform

The trap-door platform performs two functions:

working deck

access opening

This allows the ladder route to pass through a platform level rather than requiring the worker to move around the outside of the tower.

For a tall mobile scaffold, this relationship between:

ladder frame

and

trap-door platform

is part of the internal circulation logic.

11. Three Standard Platforms

The BOQ also includes:

3 × Platform SD6

The double-width 1.35m tower gives enough transverse space to use multiple platform units within the working arrangement.

This is one reason a double-width tower can be attractive when the project needs more than simple vertical access.

It can create a broader temporary working zone for:

• installers;

• tools;

• cables;

• equipment accessories.

However, the supplied material does not establish allowable platform loading, so no load value should be inferred.

12. Upper Guardrail System

The BOQ contains:

2 × Guardrail SD9

and:

1 × Toe Board SD7

These components define the upper working-platform zone.

The structural relationship becomes:

Working Platform

↓

Guardrail Boundary

Toe Board

This makes the upper scaffold level a defined working area rather than simply an exposed deck.

Any project-specific safety or compliance requirement still needs to be checked separately.

13. 6-Inch Wheels and Adjustable Legs

The bottom of the scaffold uses:

4 × 6-inch wheel and adjustable leg assemblies

This combination provides two important functions:

Mobility

The scaffold can be repositioned between installation locations.

Local Height Adjustment

The adjustable-leg component provides limited setup adjustment.

For indoor event installation, mobility can be especially useful when one scaffold tower must serve several speaker or equipment positions within the venue.

However:

mobile scaffold does not mean occupied scaffold can automatically be moved.

Movement procedures should follow the applicable operating instructions and site requirements.

14. Four 3m Long Outriggers

The confirmed BOQ includes:

4 sets × 3m Long Outrigger

These projecting components are visually and functionally important on a tall mobile scaffold.

They also create a planning issue that customers can easily overlook:

1.35m frame width is not the total floor area required during use.

The central tower may be 1.35m wide, but the 3m outriggers create a much larger working-position footprint.

For an indoor venue, the installer therefore needs to check:

• seating;

• aisles;

• walls;

• stage edges;

• doors;

• existing equipment;

• pedestrian routes.

A scaffold may physically fit into the venue but still lack enough clear area for its full working-position configuration.

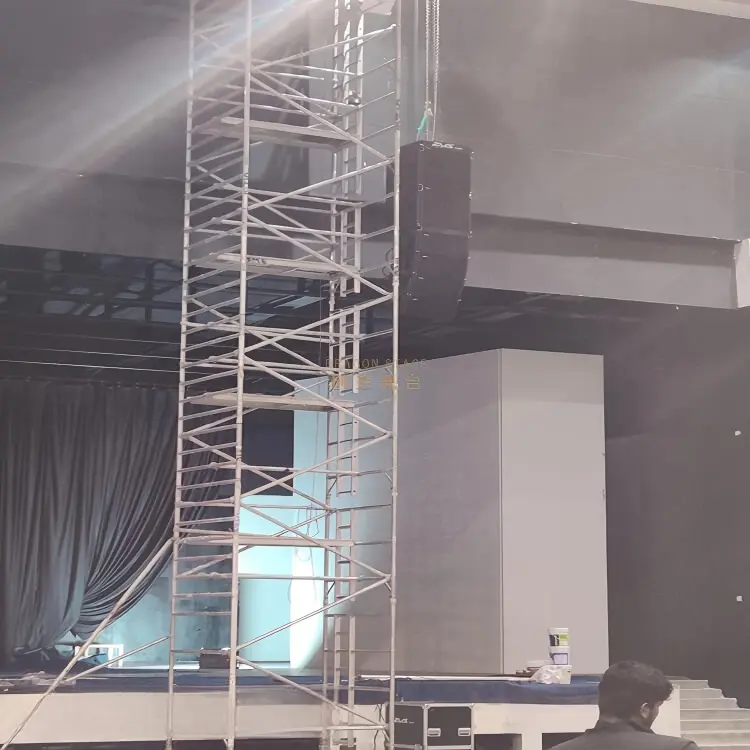

15. Why This Structure Fits Indoor Line Array Installation

Indoor sound-system installation has a different site environment from open outdoor truss assembly.

Typical constraints may include:

• fixed seating;

• finished floors;

• walls and acoustic panels;

• ceiling structures;

• limited access routes;

• equipment already installed;

• restricted work zones.

At the same time, line arrays and other sound equipment may be mounted several meters above floor level.

The practical requirement therefore becomes:

Create a sufficiently high temporary working position without turning the access system into part of the permanent sound structure.

This 7m double-width tower addresses that temporary access function.

16. Scaffold vs Line Array Support Tower

These two structures should never be confused.

Mobile Access Scaffold

Supports:

people + installation work area

Its purpose is:

• access;

• installation;

• maintenance;

• adjustment.

Line Array Support Structure

Supports:

sound equipment

Its purpose is:

• equipment suspension;

• structural support;

• speaker positioning.

This product belongs to the first category.

Even if the scaffold is standing directly beneath a line array during installation, that does not mean it is the line-array support structure.

17. Why 7m Changes the Access Problem

Compared with a 4m or 5m tower, a 7m-class scaffold creates a taller vertical access route.

That changes several practical aspects:

• more frame modules;

• more ladder climbing;

• additional brace members;

• more platform components;

• larger packing weight and volume;

• greater importance of the full working footprint.

The BOQ reflects this.

For example, compared with a lower double-width configuration, this tower uses:

• two 2.31m frame levels;

• one additional 1.386m frame level;

• 12 diagonal bars;

• four platform units in total.

So this should not be treated as a 5m scaffold with a small extension added casually.

It is a distinct access configuration.

Confirmed BOQ

Packing Information

Packing Weight: 230kg

Packing Volume: 2.5CBM

BOQ Structural Reading

The BOQ can be grouped functionally into five systems.

Vertical Tower

• 4 × 2.31m main/ladders frames

• 2 × 1.386m upper main/ladder frames

Tower Bracing

• 12 × SD1 diagonal bars

• 8 × SD2 horizontal bars

Platform System

• 1 × trap-door platform

• 3 × standard platforms

Upper Working Zone

• 2 × guardrails

• 1 × toe board

Mobile / Ground System

• 4 × wheel and adjustable-leg assemblies

• 4 × 3m outriggers

This grouping explains what the components actually create rather than leaving the BOQ as a purchasing table only.

Assembly Logic

At structural-breakdown level, the system can be understood as:

1. Set the four caster / adjustable-leg assemblies

↓

2. Install the first pair of 2.31m frames

↓

3. Connect SD2 horizontal and SD1 diagonal members

↓

4. Install the first required platform level

↓

5. Add the second 2.31m frame modules

↓

6. Continue horizontal and diagonal bracing

↓

7. Install intermediate / working platforms according to configuration

↓

8. Install the 1.386m upper frame pair

↓

9. Complete the upper trap-door / working platform arrangement

↓

10. Install guardrails and toe board

↓

11. Deploy the four long outriggers in the working configuration

This explains component relationships only.

It is not a substitute for the manufacturer's installation manual or site-specific safe-work procedure.

Working Height vs Tower Height

For a customer requesting an indoor scaffold, one of the most common mistakes is to provide only:

“I need a 7m scaffold.”

That is not enough.

Three dimensions should be distinguished:

Overall Tower Height

The physical height of the complete structure.

Platform Height

The elevation where the installer stands.

Required Working / Equipment Height

The location of the line array, bracket, cable or other installation point.

These values are related but not identical.

For quotation, the most useful information is usually:

At what height does the installer need to stand, and at what height is the equipment being installed?

Suitable Applications

This structure can be considered for temporary elevated access during:

• indoor line-array installation;

• PA system installation;

• auditorium sound installation;

• theater AV installation;

• event lighting installation;

• ceiling equipment maintenance;

• conference-hall technical installation;

• indoor truss installation;

• exhibition installation;

• temporary maintenance work.

Its primary DragonStructure identity remains mobile access, not sound support.

Customization Variables

A similar scaffold should be configured around the actual installation environment.

Required Platform Height

This is more important than simply saying “7m tower.”

Tower Width

This configuration uses 1.35m double-width frames.

Where floor width is restricted, a single-width solution may be considered instead.

Number of Platform Levels

Different work sequences may require different platform arrangements.

Ladder Configuration

Integrated ladder frames should match the required access route.

Venue Space

Check:

• aisle width;

• seating;

• wall distance;

• ceiling clearance;

• doors;

• floor obstacles.

Outrigger Space

The 3m long outriggers mean the operating footprint extends well beyond the central tower.

Mobility

Determine whether the same tower must move between several equipment positions.

Information Needed for a Similar Project

For a similar indoor line-array installation project, provide:

• venue type;

• line-array or equipment position;

• required installation height;

• required worker platform height;

• available floor width;

• available floor length;

• ceiling height;

• site photographs;

• seating or aisle layout;

• number of installation positions;

• whether the scaffold needs to move between positions;

• floor condition;

• required platform arrangement;

• indoor access restrictions.

A side-view photograph or drawing is particularly useful when the speaker position, wall and ceiling relationship is difficult to understand from a floor plan alone.

Experience-Based Structural Judgment

For indoor sound installation, the practical selection should not start from:

speaker height → buy equally tall scaffold

A more useful workflow is:

Equipment Position

→ Worker Reach Requirement

→ Platform Height

→ Tower Configuration

→ Available Footprint

→ Platform Width

→ Mobility / Outrigger Arrangement

That is a practical configuration judgment based on installation workflow.

It is not a structural calculation.

Engineering / Verification Boundary

Confirmed Facts

The supplied BOQ confirms:

• double-width aluminum scaffold;

• 1.35m-wide frames;

• two standard 2.31m 5-rung frames;

• two 2.31m ladder frames;

• one standard 1.386m 3-rung frame;

• one 1.386m ladder frame;

• zero 1.848m four-rung frames in this configuration;

• 12 SD1 diagonal bars;

• 8 SD2 horizontal bars;

• four 6-inch wheel/adjustable-leg assemblies;

• one trap-door platform;

• three standard platforms;

• one toe board;

• two guardrails;

• four sets of 3m outriggers;

• 230kg packing weight;

• 2.5CBM packing volume.

Experience-Based Interpretation

For indoor line-array installation, the double-width tower provides a broader temporary working area than a 0.75m single-width tower and can be useful where technicians need more room for installation work.

Not Established

The supplied material does not establish:

• allowable platform load;

• maximum number of workers;

• speaker-support capacity;

• whether any line-array load may be temporarily transferred to the scaffold;

• maximum worker reach;

• required outrigger arrangement for every site;

• allowable floor slope;

• safety factor;

• certification;

• code compliance;

• engineering approval.

These values should not be inferred from the BOQ.

Related DragonStructure Pages

Mobile Access Structure

https://www.dragonstructure.com/Mobile-Access-Structure-pl07055276.html

This is the primary internal link. The Dragon Internal Link Library defines it for mobile access towers, movable work structures and temporary elevated maintenance/access systems.

Working Platform Structure

https://www.dragonstructure.com/Working-Platform-Structure-pl06055276.html

This is the appropriate secondary route because the scaffold creates temporary elevated work decks for installation and maintenance. The registered library specifically covers elevated working platforms and scaffold work areas.

Original DragonStage Product

Original Product Name:
7m Custom Wooden Deck Double Scaffolding with Clambing Ladders

Original Product URL:
https://www.dragontruss.com/7m-Custom-Wooden-Deck-Double-Scaffolding-with-Clambing-Ladders-pd49421343.html

The original DragonStage page answers:

What 7m double-width aluminum scaffold package can DragonStage manufacture and supply?

The DragonStructure page deliberately answers another question:

How is a 7m double-width mobile scaffold configured as a temporary access and working-platform system for indoor line-array installation?

This distinction keeps the page within the DragonStructure STRUCTURE BREAKDOWN role instead of duplicating the original sales product.

FAQ

Is this scaffold supporting the line array?

No. In this application the scaffold provides temporary working access for installers. It is not the line-array support structure.

Why use double-width scaffolding for sound-system installation?

The 1.35m-wide structure provides a broader platform arrangement. This configuration includes one trap-door platform plus three standard platforms.

How many platform pieces are included?

The confirmed BOQ contains four platform units in total: one trap-door platform and three standard platforms.

Why are the 1.848m four-rung frames shown as zero?

They belong to the modular scaffold product family but are not used in this particular 7m configuration.

Does a 7m tower mean the worker stands at 7m?

No. Overall tower height, platform elevation and worker reach are different measurements.

Can the tower be moved inside the venue?

The scaffold includes caster assemblies and is designed as a mobile access structure. Repositioning should be performed according to the applicable operating procedure; mobility should not be interpreted as permission to move it while occupied.

Why are 3m outriggers necessary to consider when planning indoor use?

Because the operating footprint extends beyond the 1.35m central tower width. The venue must have enough clear floor space for the complete working configuration.

Structure Classification

Short Description

A 7m-class double-width aluminum mobile access scaffold configured for indoor line-array and sound-system installation. The 1.35m-wide tower combines two 2.31m frame levels with an additional 1.386m upper frame section, integrated ladder access, 12 diagonal braces, eight horizontal members, one trap-door platform, three standard working platforms, casters, guardrails, toe board and four 3m outriggers. Its function is to provide technicians with temporary elevated working access rather than to support the line-array equipment itself.
